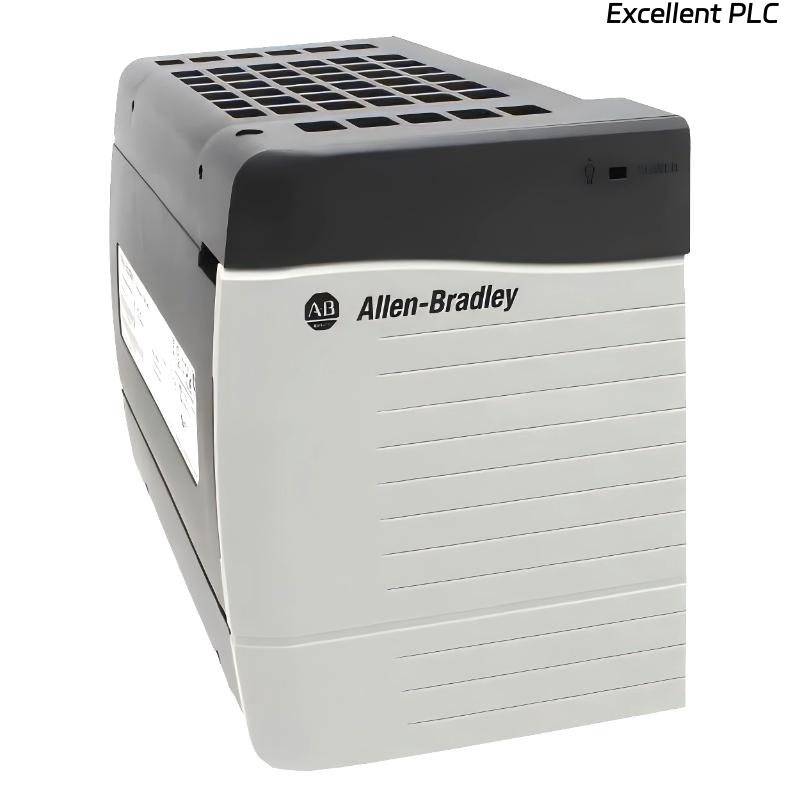

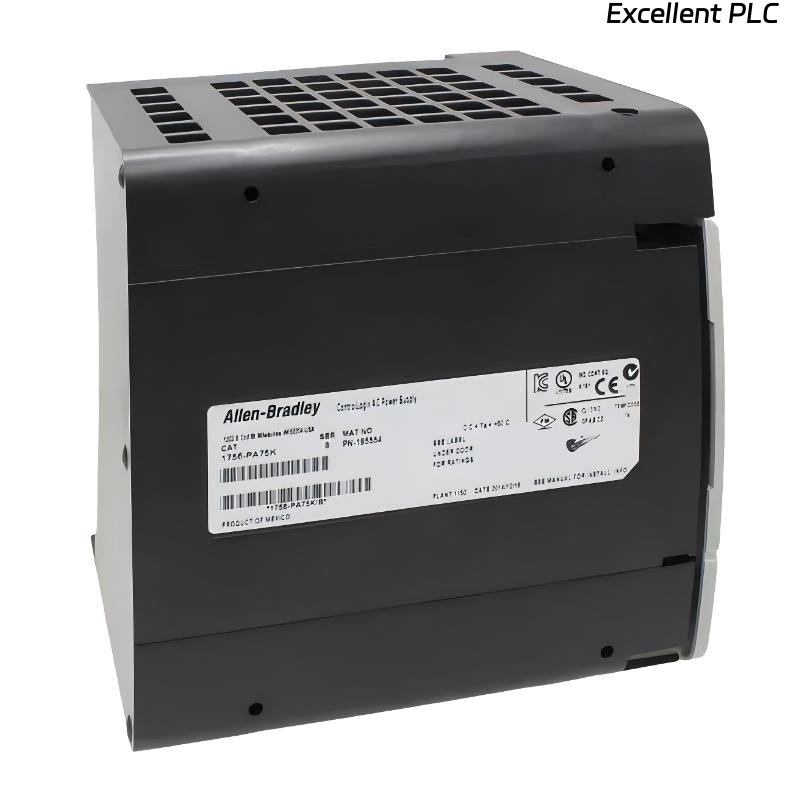

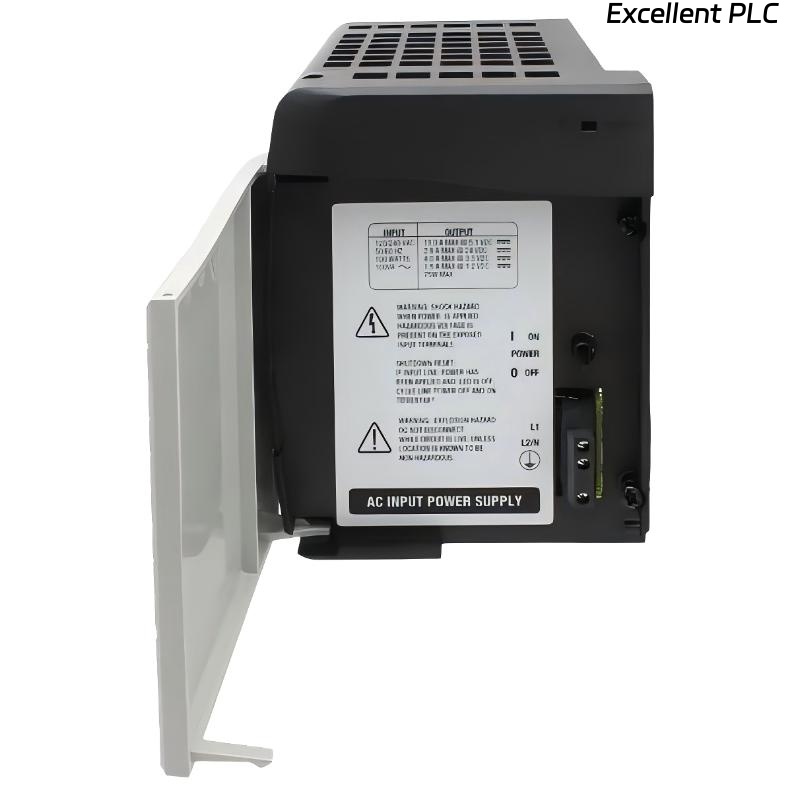

Allen Bradley 1756-PA75K ControlLogix AC Power Supply
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1756-PA75K ControlLogix AC Power Supply is a 75-watt chassis power module developed for the ControlLogix automation platform. It converts industrial AC input power into regulated DC backplane power required for system operation. Installed on the left side of the ControlLogix chassis, it supplies energy to processors, communication interfaces, and I/O modules mounted within the rack.
The 1756-PA75K is typically selected for medium to high-density ControlLogix systems where higher internal power capacity is required. It is designed for stable performance in industrial environments and supports continuous operation in applications where system reliability is critical.
Built specifically for the ControlLogix architecture, the module integrates mechanically and electrically without additional configuration, ensuring consistent power distribution across the chassis.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1756-PA75K |
| Series | ControlLogix |
| Rated Output Power | 75 Watt |
| Input Voltage | 120/240 VAC |
| Input Voltage Range | Wide industrial AC range |
| Frequency | 47–63 Hz |
| Input Phase | Single-phase |
| Backplane Output | Regulated DC power for ControlLogix chassis |
| Protection Features | Overcurrent protection, thermal shutdown |
| Isolation | Input-to-backplane isolation |
| Mounting Position | Left side of chassis |
| Operating Temperature | Industrial operating range |
| Cooling Method | Convection cooling |
| Dimensions | 140 x 112 x 145 mm |
| Weight | 0.95 kg |
Applications
• PLC-Based Manufacturing Systems
Provides stable internal power for ControlLogix processors and I/O modules in automated production environments.
• Process Industry Control Panels
Used in oil & gas, chemical processing, and water treatment facilities where continuous controller operation is required.
• High-Density I/O Installations
Suitable for racks containing multiple digital and analog modules.
• Motion and Communication Systems
Supplies dependable chassis power for applications using network and motion control modules.
• Centralized Industrial Cabinets
Installed in main automation cabinets supporting single or multi-rack configurations.
Advantages
• 75 Watt Output Capacity
Designed to support moderate to high backplane power requirements within a single chassis.
• Flexible AC Input Support
Compatible with common industrial AC supply systems without manual adjustment.
• Stable Internal Regulation
Ensures consistent DC distribution across the backplane, improving overall system reliability.
• Integrated Protection Design
Includes overcurrent limiting and thermal protection circuits to safeguard system components.
• Compact Industrial Construction
Maintains a standardized footprint for easy cabinet layout planning.
• Seamless ControlLogix Integration
Fully engineered for compatibility within the ControlLogix ecosystem.
FAQ
-
What is the main purpose of the 1756-PA75K in a ControlLogix system?
It supplies regulated internal power to the chassis to ensure stable operation of installed modules. -
Is this module suitable for high module-count configurations?
Yes, it is commonly used in systems with multiple I/O and communication modules. -
Does the power supply require setup or configuration before use?
No configuration is necessary; it operates automatically once installed. -
Can the unit operate continuously in industrial environments?
It is designed for continuous duty operation under proper installation conditions. -
How does the module enhance system stability?
By maintaining consistent internal power distribution, it reduces unexpected resets or communication interruptions. -
Is it compatible with standard ControlLogix chassis types?
Yes, it is designed for use with standard ControlLogix chassis configurations. -
Can this unit be used in redundant control systems?
It can be integrated into redundancy architectures when paired with appropriate system components. -
What environmental considerations should be taken during installation?
Proper ventilation and grounding should be ensured for optimal performance. -
Does the module require routine maintenance?
Regular visual inspection and ensuring clean ventilation paths are generally sufficient. -
Is the 1756-PA75K suitable for system upgrades?
Yes, it is often used in retrofit or expansion projects within existing ControlLogix installations.
Related Models
| Model | Description | Input Type | Power Level |
|---|---|---|---|
| 1756-PA75 | High Capacity AC Power Supply | AC | High |
| 1756-PA72 | Standard AC Power Supply | AC | Standard |
| 1756-PB75 | High Capacity DC Power Supply | DC | High |
| 1756-PB72 | DC Power Supply | DC | Standard |
| 1756-PA50 | AC Power Supply | AC | Medium |
| 1756-PSCA2 | Power Supply Chassis Adapter | N/A | Redundancy support |
Popular Models
| Model | Product Type | Key Feature |
|---|---|---|
| 1756-L81E | ControlLogix Controller | Integrated EtherNet/IP |
| 1756-L85E | High-End Controller | Advanced processing |
| 1756-EN2T | Communication Module | Industrial Ethernet |
| 1756-IB16 | Digital Input Module | 16-point input |
| 1756-OB16E | Digital Output Module | Protected outputs |
| 1756-IF8 | Analog Input Module | Multi-channel analog input |
