Product Introduction

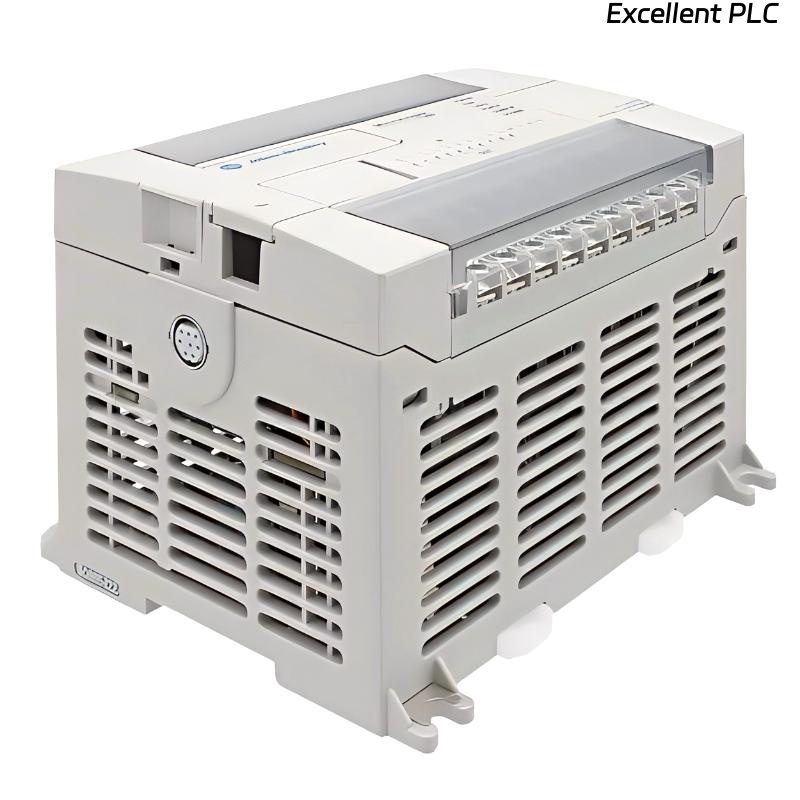

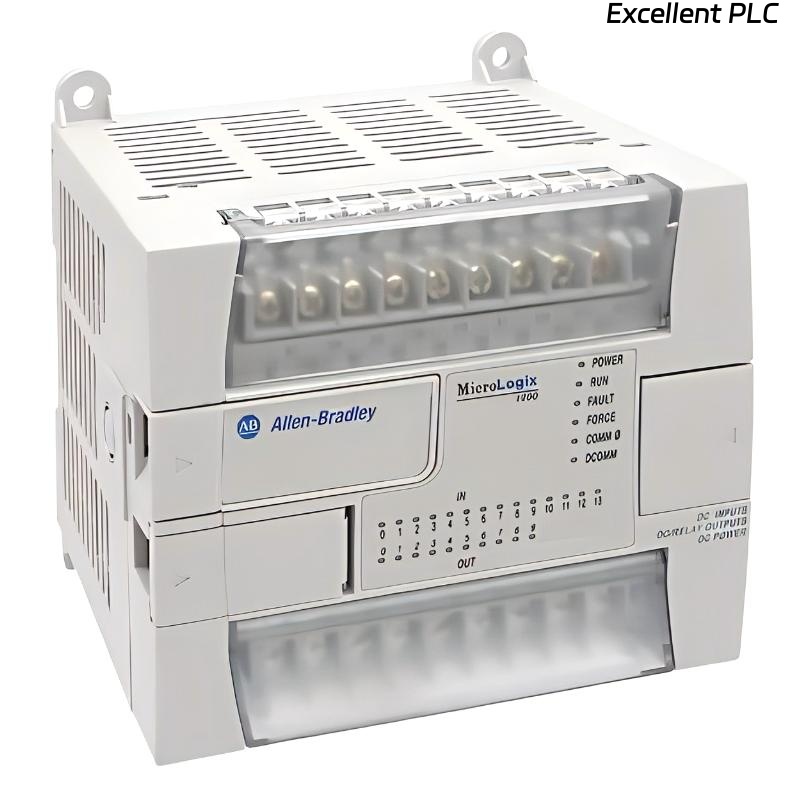

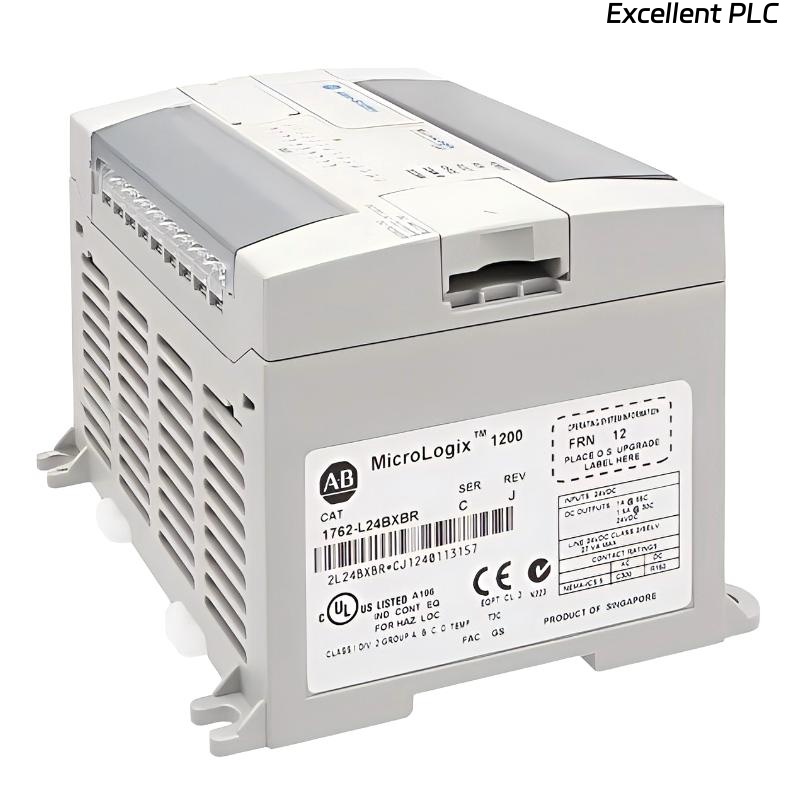

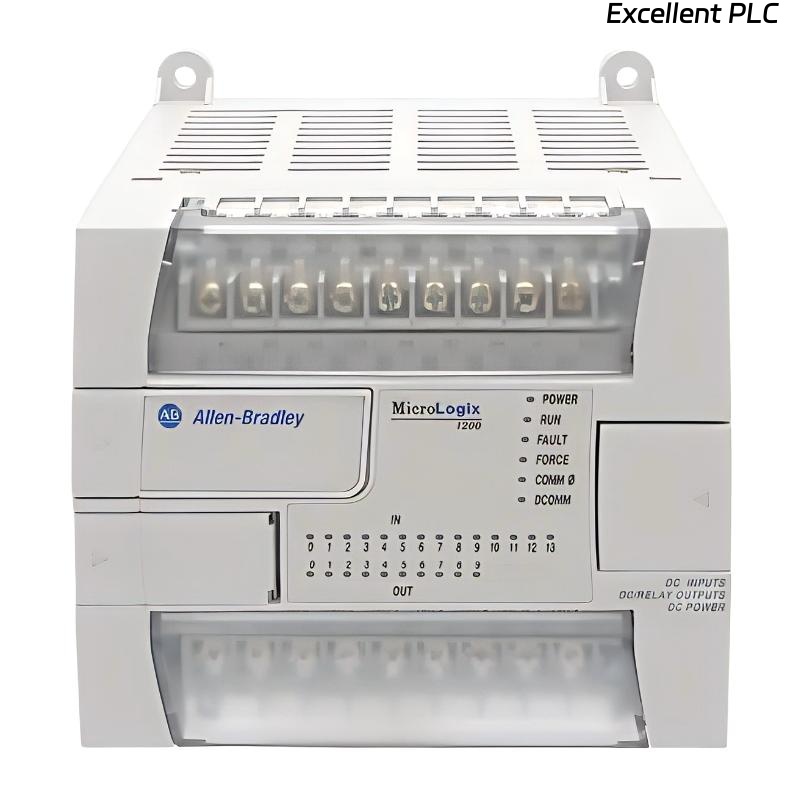

The Allen-Bradley 1762-L24BXBR is a MicroLogix 1200 programmable logic controller designed for applications requiring a combination of flexible input handling and mixed output control. It integrates both relay and transistor (FET) outputs, making it suitable for systems that need to control different types of loads with varying response requirements.
Powered by a 24 VDC supply, this controller is ideal for modern industrial environments where DC power distribution is standard. It provides a total of 24 I/O points, including 10 standard 24 VDC digital inputs and 4 fast 24 VDC digital inputs. These high-speed inputs are well-suited for processing pulse signals, encoder feedback, and other time-sensitive inputs.
On the output side, the 1762-L24BXBR combines 5 relay outputs with 5 FET outputs (including 1 fast FET output). This hybrid output structure allows the controller to handle both high-speed switching tasks and general-purpose load control. The fast FET output is particularly useful in applications requiring rapid switching, such as motion control or precise signal triggering.
The controller also includes a built-in programming/HMI port, enabling straightforward system configuration, monitoring, and integration with operator interfaces. With its compact design and modular expandability, the 1762-L24BXBR provides a reliable and efficient control solution for a wide range of industrial automation systems.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | 1762-L24BXBR Programmable Controller |
| Brand | Allen-Bradley |
| Series | MicroLogix 1200 |
| Controller Type | Programmable Logic Controller (PLC) |
| Total I/O Points | 24 Points |
| Power Supply | 24 VDC |
| Standard Digital Inputs | 10 x 24 VDC Inputs |
| Fast Digital Inputs | 4 x 24 VDC High-Speed Inputs |
| Relay Outputs | 5 Outputs |
| Standard FET Outputs | 4 x 24 VDC Outputs |
| Fast FET Output | 1 x High-Speed 24 VDC Output |
| Output Type | Relay + Transistor (FET) |
| Communication Port | Programming / HMI Port |
| Mounting | DIN Rail |
| Application Environment | Industrial automation systems |
| Dimensions | 110 × 87 × 90 mm |
| Weight | 0.9 kg |
Applications
• Mixed Load Control Systems
Suitable for applications requiring both relay-based and transistor-based output control within a single controller.
• High-Speed Automation Processes
Fast inputs and outputs support pulse detection, encoder feedback, and rapid signal switching.
• Machine Control and Packaging Equipment
Used in machines requiring precise timing and flexible output control.
• Conveyor and Material Handling Systems
Handles both standard control signals and high-speed sensor inputs.
• OEM Equipment Integration
Ideal for compact automation systems where versatility and performance are required.
Advantages
• Hybrid Output Configuration
Combines relay and FET outputs, allowing control of both high-speed and general-purpose loads.
• High-Speed Signal Capability
Fast inputs and a dedicated fast FET output support time-critical applications.
• DC Power Operation
24 VDC power supply aligns with modern industrial control system standards.
• Compact and Integrated Design
All-in-one controller reduces system complexity and saves panel space.
• Flexible System Expansion
Supports additional I/O modules for scaling system capabilities.
• Efficient Communication Access
Built-in programming/HMI port simplifies configuration and monitoring.
