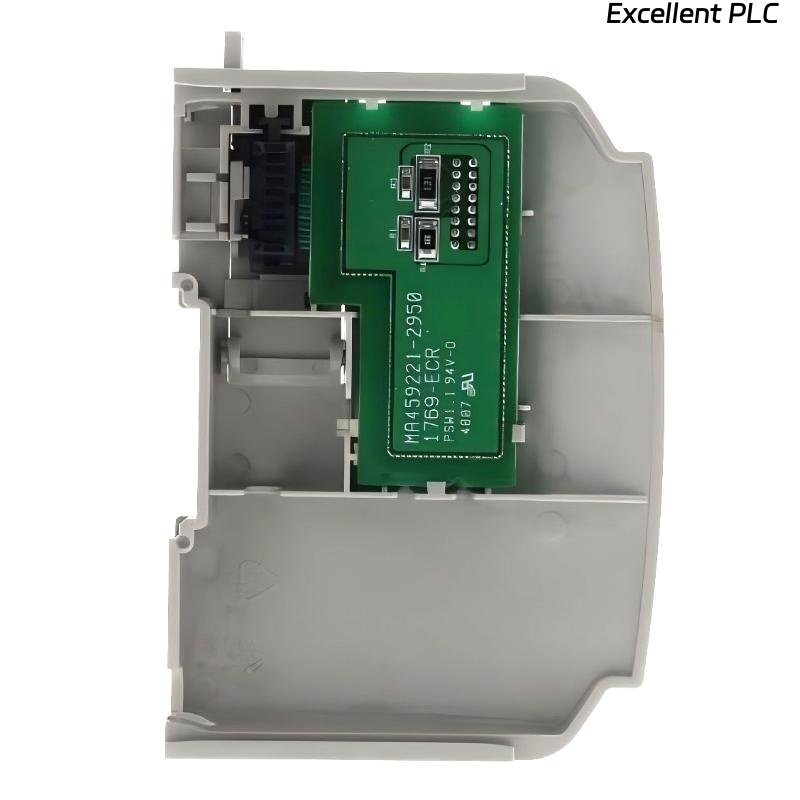

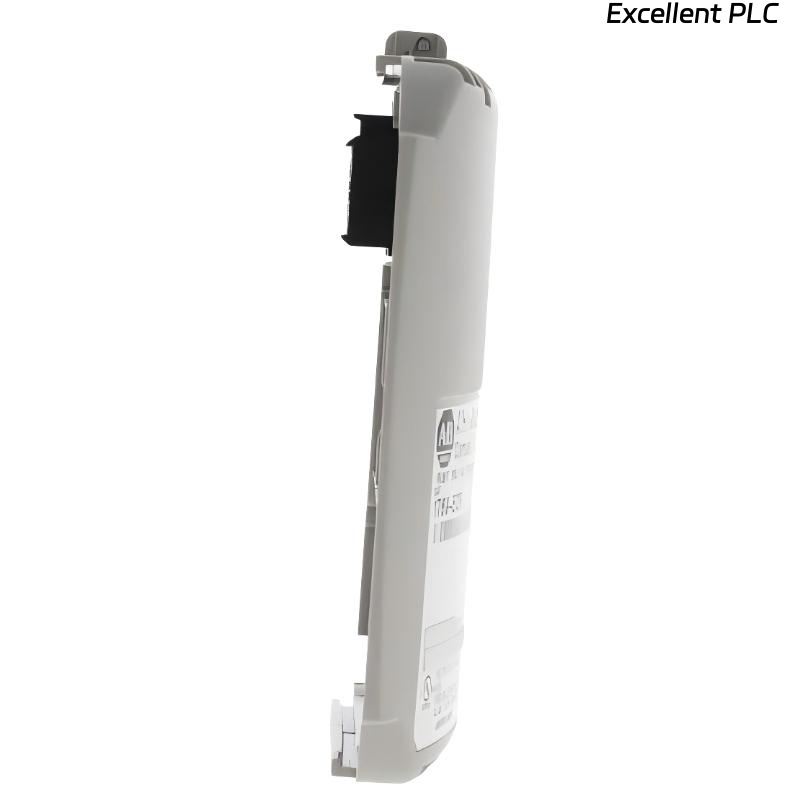

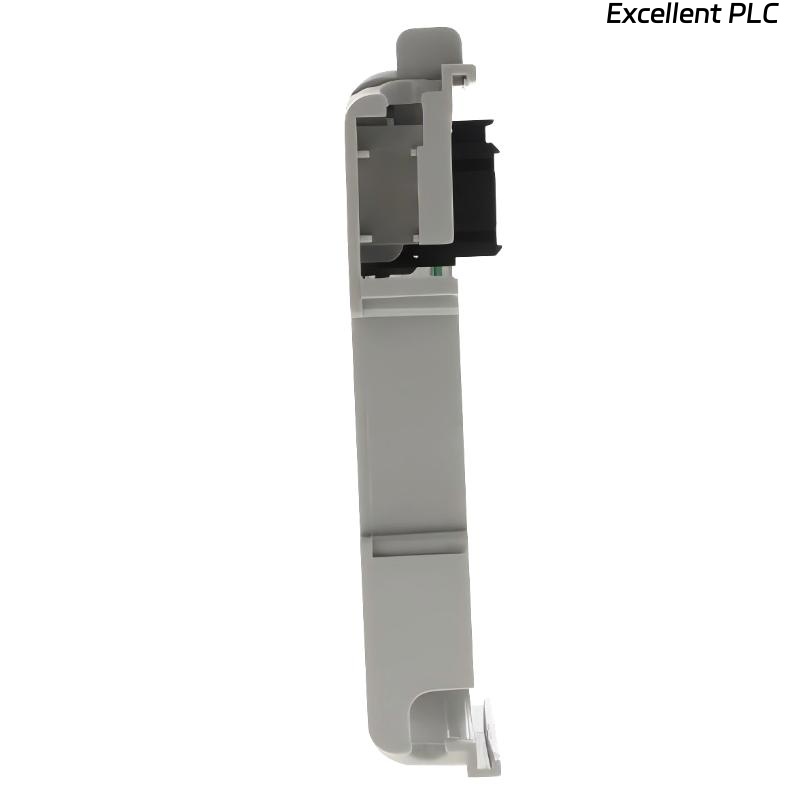

Allen Bradley 1769-ECR CompactLogix Right End Cap/Terminator

Product Introduction

The Allen Bradley 1769-ECR CompactLogix Right End Cap/Terminator is an essential accessory for CompactLogix 1769 I/O systems, designed to terminate the right end of a Compact I/O module bank. Proper termination is critical to maintaining stable backplane communication between modules and ensuring signal integrity throughout the I/O rack.

The 1769-ECR provides a reliable electrical termination that prevents signal reflections, reduces communication errors, and ensures the Compact I/O backplane functions as intended. Its compact and durable design allows easy installation in control panels, making it suitable for dense or space-limited industrial environments.

This module is widely used in industrial automation, including machine control, process automation, and manufacturing systems, where robust communication and data integrity between the PLC and I/O modules are essential. Its low current draw and compatibility with all 1769 series modules make it a convenient and maintenance-free solution for system termination.

Product Specifications

Applications

• Compact I/O bus termination – Ensures stable communication across 1769 I/O module banks.

• Industrial control panels – Maintains signal integrity in compact or crowded I/O racks.

• Machine automation systems – Provides proper termination for PLC-connected I/O modules controlling machinery.

• Manufacturing automation lines – Supports accurate data exchange in production equipment.

• Process automation – Prevents communication errors in critical control loops.

• Distributed I/O configurations – Allows multiple I/O banks to be terminated correctly for expansion purposes.

Advantages

• Reliable backplane termination – Prevents signal reflections and communication errors on the right side of the I/O bank.

• Compact design – Fits easily into limited space within control panels.

• Seamless integration – Fully compatible with all 1769 Compact I/O modules.

• Industrial durability – Can operate in standard industrial temperatures with stable performance.

• Low current draw – Consumes only 5 mA at 5.1 VDC, reducing power impact on the system.

• Simple installation – Snap-on design enables quick mounting on DIN rails.

• System reliability enhancement – Helps maintain consistent communication and prevents bus errors.
