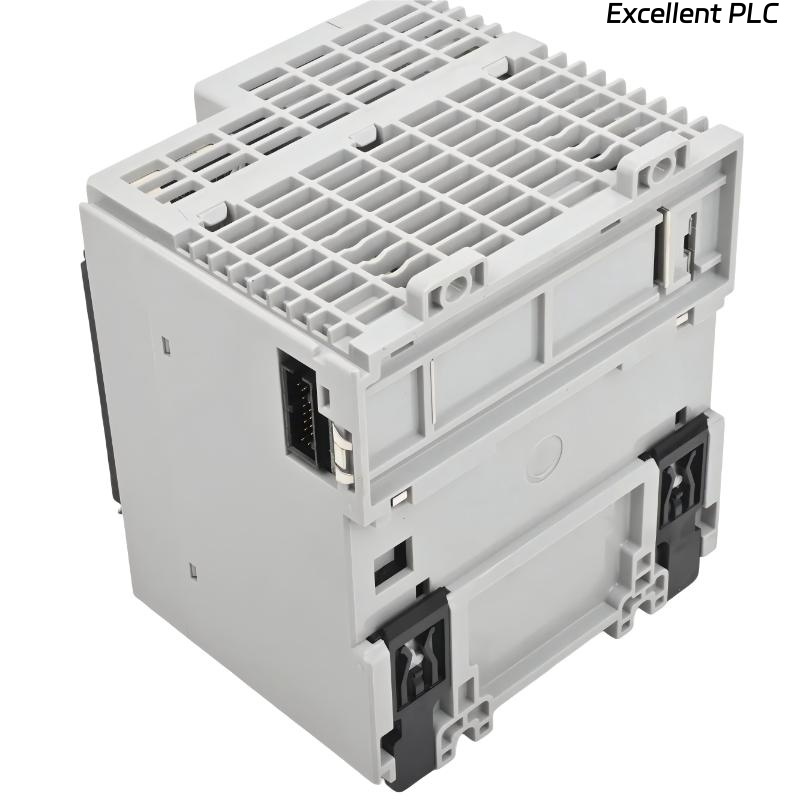

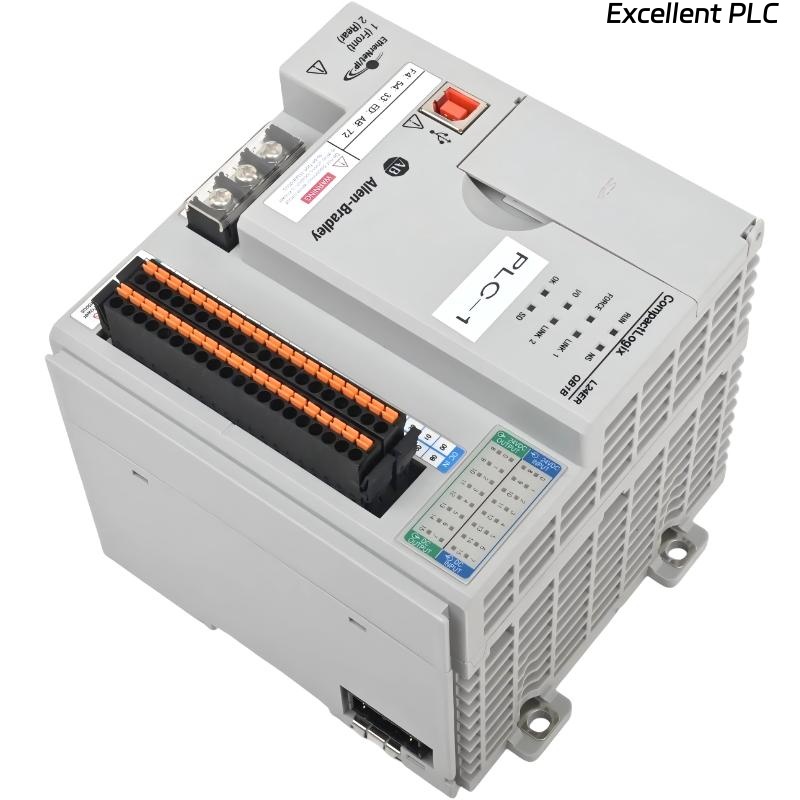

Allen Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Ethernet Controller

Product Introduction

The Allen Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Ethernet Controller is a compact programmable automation controller designed for small to medium-sized machine control systems. As part of the CompactLogix 5370 L2 series, it integrates controller processing capability, digital I/O, and EtherNet/IP communication into a single compact unit, making it suitable for applications where space efficiency and reliable performance are required.

This controller includes built-in digital inputs and outputs, allowing direct connection to field devices such as sensors, switches, relays, and actuators. With integrated I/O, the controller simplifies system architecture and reduces the need for additional hardware modules in many automation environments.

The unit also features EtherNet/IP communication, supporting multiple network connections for communication with HMIs, drives, distributed I/O systems, and supervisory control platforms. Its communication capability enables efficient data exchange and supports modern network-based automation systems.

With 750 KB of memory, the controller provides sufficient capacity for machine control programs, data handling, and communication tasks. The device also supports expansion through additional 1769 I/O modules, offering flexibility for future system upgrades. The included 1 GB SD card allows convenient storage of programs, firmware updates, and backup data.

Product Specifications

Applications

• Packaging machinery automation
The controller is commonly used in packaging machines where reliable digital I/O control and Ethernet communication are required for machine coordination.

• Material handling systems
Suitable for conveyor systems, automated sorting equipment, and transfer mechanisms that require real-time device control.

• Small manufacturing equipment
Used in compact production machines such as labeling equipment, assembly stations, and inspection systems.

• Industrial monitoring and control
The controller can collect input signals from sensors and control actuators in industrial monitoring applications.

• OEM machine building
Machine builders often use this controller due to its compact design and flexible expansion capability.

Advantages

• Compact controller design
The integrated processor and I/O structure reduces cabinet space requirements and simplifies system installation.

• Flexible expansion capability
Support for up to four 1769 I/O expansion modules allows the system to grow as application needs increase.

• Reliable Ethernet communication
The built-in EtherNet/IP interface enables efficient communication with industrial devices and control systems.

• High connection capacity
Support for multiple EtherNet/IP and TCP connections allows integration with complex automation networks.

• Integrated power supply
The embedded 24 VDC power supply simplifies system wiring and reduces additional hardware requirements.
