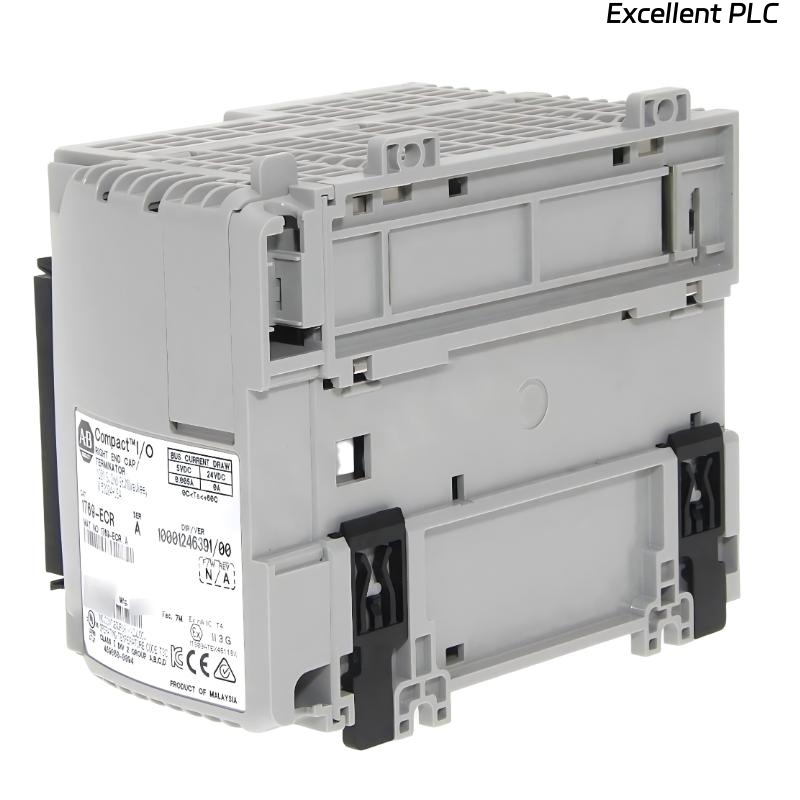

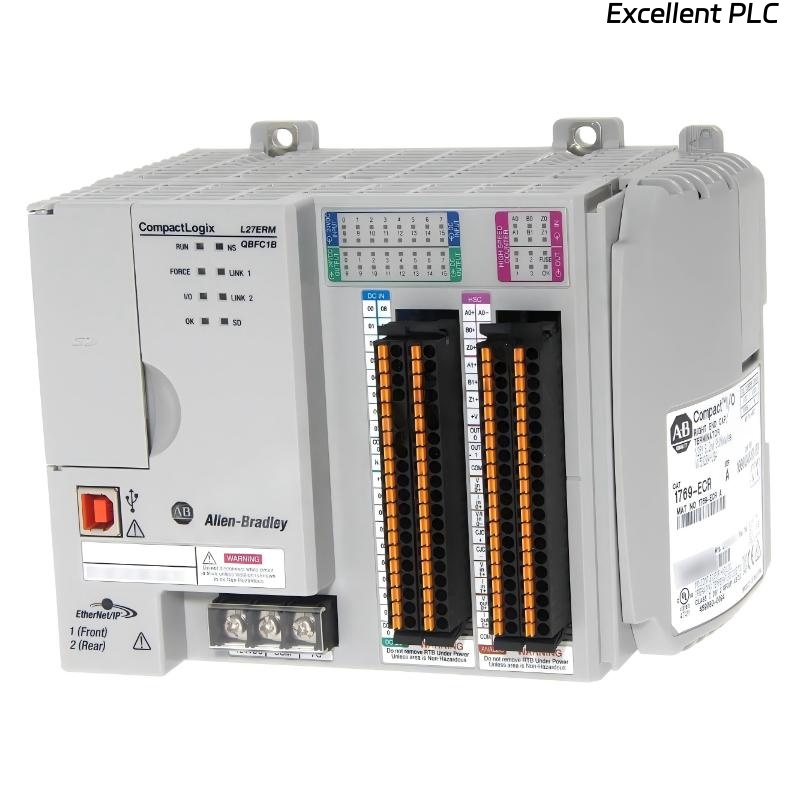

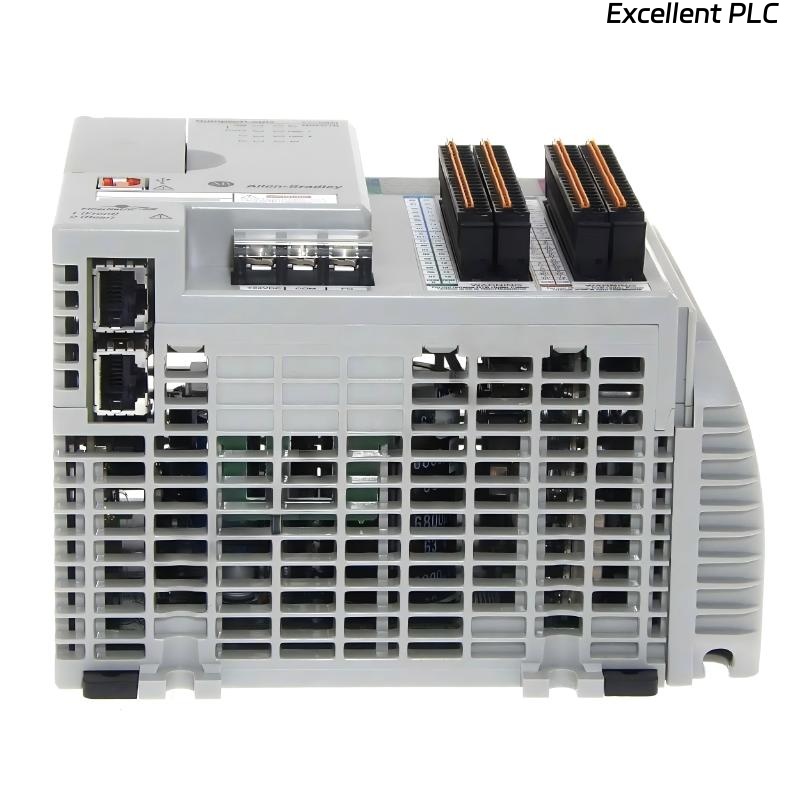

Allen Bradley 1769-L27ERM-QBFC1B CompactLogix 5370 L2 Ethernet Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1769-L27ERM-QBFC1B CompactLogix 5370 L2 Ethernet Controller is a powerful mid-range programmable automation controller designed for integrated control, motion, and networking applications. As part of the CompactLogix 5370 L2 family, it delivers a balanced combination of embedded I/O, motion capability, and high-speed EtherNet/IP communication.
This controller features dual EtherNet/IP ports with Device Level Ring (DLR) capability, ensuring robust and fault-tolerant network communication. It integrates digital and analog I/O, along with high-speed counters, enabling it to handle complex automation tasks including motion control, signal processing, and real-time system coordination.
With 1 MB of memory and support for CIP Motion, the controller can manage up to four motion axes, making it suitable for synchronized motion applications. Its ability to expand with additional 1769 I/O modules further enhances system flexibility and scalability.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1769-L27ERM-QBFC1B |
| Product Series | CompactLogix 5370 L2 |
| Controller Type | Ethernet Motion Controller |
| Power Supply | 24 VDC |
| Memory | 1 MB |
| Ethernet Ports | 2 × EtherNet/IP (DLR capable) |
| Digital Inputs | 16 × 24 VDC inputs |
| Digital Outputs | 16 × 24 VDC outputs |
| Analog Inputs | 4 × universal inputs |
| Analog Outputs | 2 × outputs |
| High-Speed Counters | 4 channels |
| Motion Capability | Up to 4 CIP Motion axes |
| I/O Expansion | Up to 4 × 1769 I/O modules |
| Communication Protocol | EtherNet/IP |
| Programming Port | USB |
| Mounting Type | DIN rail |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 140 × 105 × 118 mm |
| Weight | 0.9 kg |
Applications
● Motion control systems requiring multi-axis synchronization and precise positioning
● Packaging and assembly machinery with integrated digital and analog control requirements
● Material handling systems utilizing high-speed counters and motion coordination
● OEM automation equipment needing compact design with embedded I/O and motion capability
● Distributed automation networks with redundant Ethernet communication using DLR topology
Advantages
● Integrated motion control capability supports up to 4 CIP Motion axes for synchronized operations
● Dual Ethernet ports with DLR provide network redundancy and improved system reliability
● Embedded digital and analog I/O reduces the need for additional modules and simplifies system design
● High-speed counters enable precise measurement and control in timing-critical applications
● Scalable I/O expansion allows adaptation to changing system requirements
● Compact and efficient design saves panel space while maintaining high functionality
● 1 MB memory capacity supports complex control logic and data handling
● Seamless EtherNet/IP integration ensures compatibility with modern industrial networks
FAQ
- What is the advantage of integrated motion control in this controller?
It allows direct control of servo drives and motion devices without requiring a separate motion controller, simplifying system architecture. - How does Device Level Ring (DLR) improve network reliability?
DLR provides a ring topology where communication continues even if one network segment fails. - What types of analog signals can the universal inputs handle?
They can typically accept voltage and current signals, making them suitable for a wide range of sensors. - Can this controller operate as a standalone system?
Yes, with built-in I/O, it can function independently without additional modules in many applications. - What are high-speed counters used for?
They are used for counting pulses from encoders or sensors in applications requiring precise timing and measurement. - How many motion axes can this controller manage?
It supports up to 4 CIP Motion axes for coordinated motion control. - Is expansion possible beyond the built-in I/O?
Yes, up to 4 additional 1769 I/O modules can be added for increased capacity. - What industries benefit most from this controller?
Industries such as packaging, automotive, and material handling benefit from its motion and control capabilities. - How is programming performed on this controller?
Programming is done using engineering software via Ethernet or the USB port. - Is it suitable for real-time automation applications?
Yes, it is designed for real-time control and communication in industrial environments.
Related Models
| Model | Description |
|---|---|
| 1769-L24ER-QBFC1B | Lower-capacity CompactLogix motion controller |
| 1769-L30ERM | Higher-performance CompactLogix motion controller |
| 1769-L18ER-BB1B | CompactLogix L1 controller |
| 1734-AENTR | POINT I/O EtherNet/IP adapter |
| 1769-IF4 | Analog input module |
| 1769-OW16 | Relay output module |
Popular Models
| Model | Description |
|---|---|
| 1769-L33ER | CompactLogix Ethernet controller |
| 1756-L71 | ControlLogix processor |
| 1756-IB16 | Digital input module |
| 1756-OB16E | Digital output module |
| 1763-L16BWA | MicroLogix 1100 controller |
| 1766-L32AWAA | MicroLogix 1400 controller |
