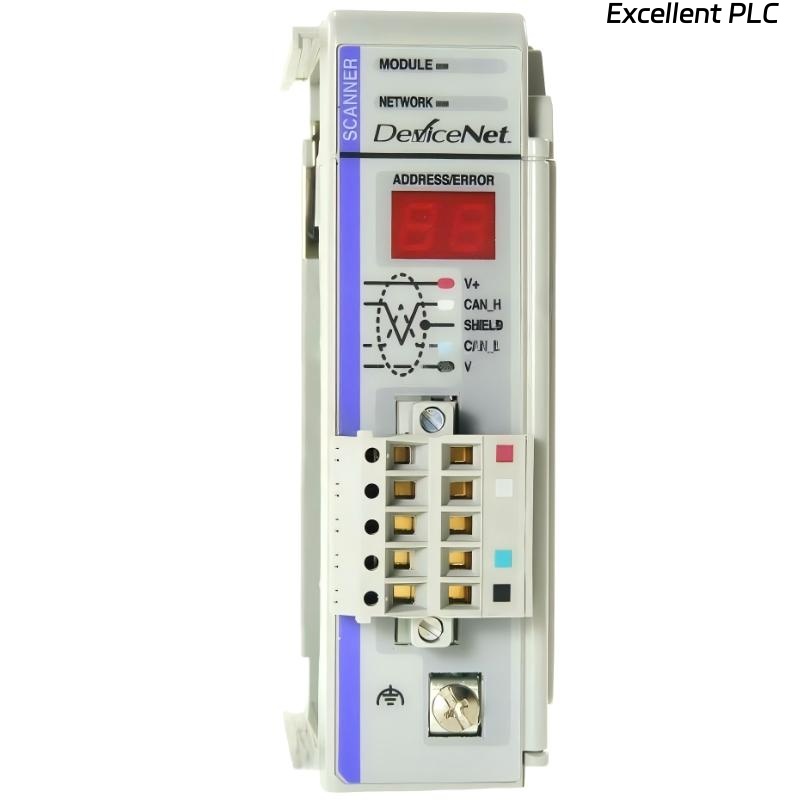

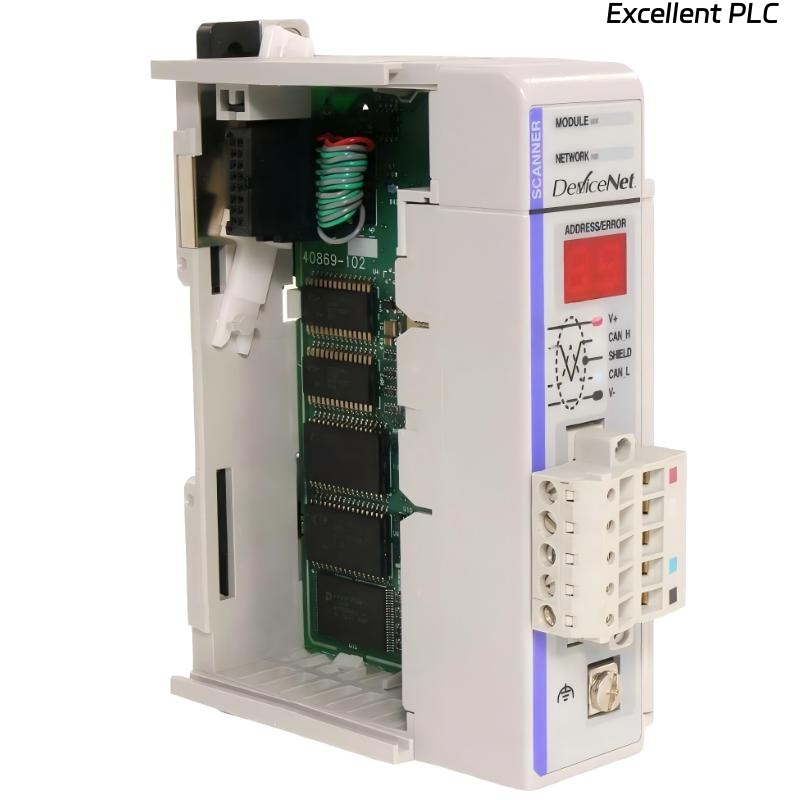

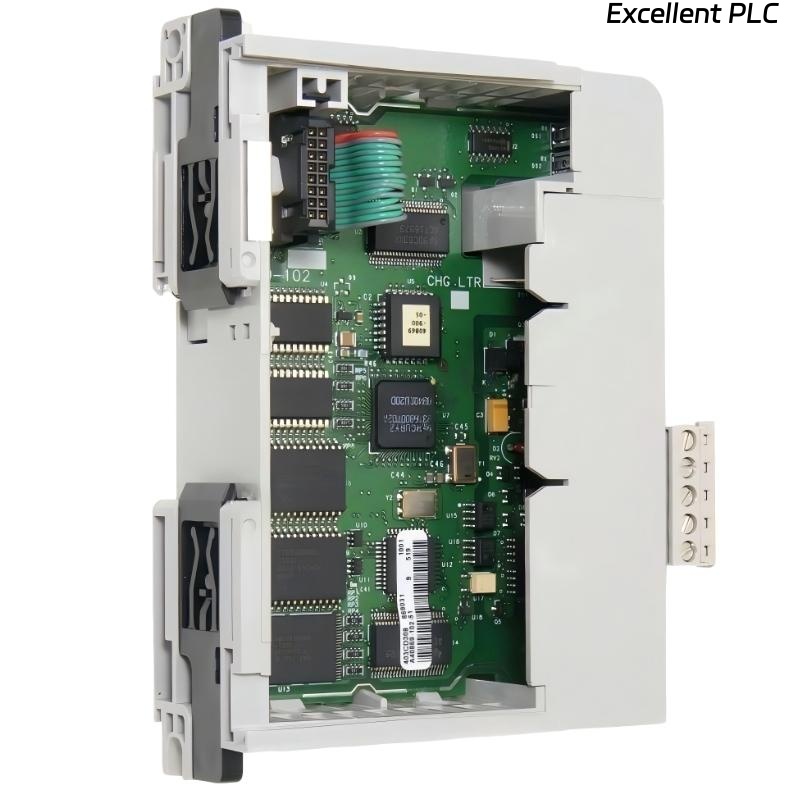

Allen Bradley 1769-SDN CompactLogix DeviceNet Scanner Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1769-SDN CompactLogix DeviceNet Scanner Module is a communication module designed for the CompactLogix I/O platform. It provides DeviceNet network scanning capabilities, allowing the PLC system to communicate with up to 64 nodes on a DeviceNet network. This module enables seamless integration of distributed I/O devices, sensors, and actuators into industrial automation systems.
The 1769-SDN operates on 11–25 VDC DeviceNet voltage, supporting reliable data transmission in industrial environments. It is built to withstand demanding conditions, including vibration, shock, and wide temperature variations, making it suitable for factory and process automation.
This module ensures efficient network communication, easy integration, and enhanced control across DeviceNet networks in CompactLogix systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1769-SDN |
| Product Type | CompactLogix DeviceNet Scanner Module |
| Max Nodes Supported | 64 nodes |
| DeviceNet Voltage Range | 11–25 VDC |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | −40 to 85 °C |
| Humidity | 5–95% non-condensing |
| Vibration | 2 G @ 10–500 Hz |
| Shock (Operating) | 30 G |
| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.28 kg |
Applications
• Distributed I/O integration
Connects multiple DeviceNet devices to CompactLogix controllers for centralized monitoring and control.
• Machine automation systems
Facilitates communication between PLCs and sensors, actuators, and control devices.
• Process control networks
Enables reliable data transfer from field devices in manufacturing and chemical processes.
• Factory automation
Integrates networked I/O devices into automated production lines.
• OEM machinery
Used in custom equipment to manage distributed DeviceNet devices efficiently.
Advantages
• Supports up to 64 DeviceNet nodes
Allows integration of large numbers of networked devices with a single module.
• Wide DC voltage compatibility
Operates reliably between 11–25 VDC DeviceNet supply.
• Robust industrial design
Withstands vibration, shock, and wide temperature ranges for harsh environments.
• Seamless CompactLogix integration
Easily interfaces with 1769 I/O modules for scalable automation systems.
• Efficient network scanning
Provides fast and reliable communication with DeviceNet devices across the network.
FAQ
-
How many DeviceNet nodes can the 1769-SDN module support?
The module can communicate with up to 64 nodes on a DeviceNet network. -
What voltage range does the DeviceNet scanner operate on?
It operates within 11–25 VDC for reliable network communication. -
Can the module handle industrial environmental conditions?
Yes, it is designed to withstand vibration, shock, humidity, and temperature extremes. -
Is the module compatible with CompactLogix controllers?
Yes, it integrates seamlessly with the 1769 I/O platform. -
What types of devices can be connected via DeviceNet?
Sensors, actuators, relays, and other DeviceNet-enabled I/O devices. -
What is the maximum operating temperature for the module?
The module can operate in environments from 0 to 60 °C. -
What storage conditions are recommended for the module?
It can be stored safely between −40 to 85 °C with 5–95% non-condensing humidity. -
Does the module support factory automation networks?
Yes, it allows centralized control of distributed DeviceNet devices in production systems. -
Why use a DeviceNet scanner module instead of direct I/O connections?
It enables networked communication, reducing wiring complexity and providing centralized control. -
Can this module be used in OEM machinery designs?
Yes, it is widely used in custom machinery requiring DeviceNet network integration.
Related Models
| Model | Description |
|---|---|
| 1769-SDN | CompactLogix DeviceNet Scanner Module |
| 1769-L32E | CompactLogix Ethernet Controller |
| 1769-IB16 | CompactLogix DC Input Module |
| 1769-OB16 | CompactLogix DC Output Module |
| 1769-IF8 | CompactLogix Analog Input Module |
| 1769-OF2 | CompactLogix Analog Output Module |
Popular Models
| Model | Product Type |
|---|---|
| 1756-L73 | ControlLogix PLC Controller |
| 1769-L33ERM | CompactLogix Ethernet Controller |
| 1769-L36ERMS | CompactLogix GuardLogix Ethernet Controller |
| 1769-IB16 | CompactLogix DC Input Module |
| 1769-OB16 | CompactLogix DC Output Module |
| 1734-AENTR | POINT I/O Ethernet Adapter |
