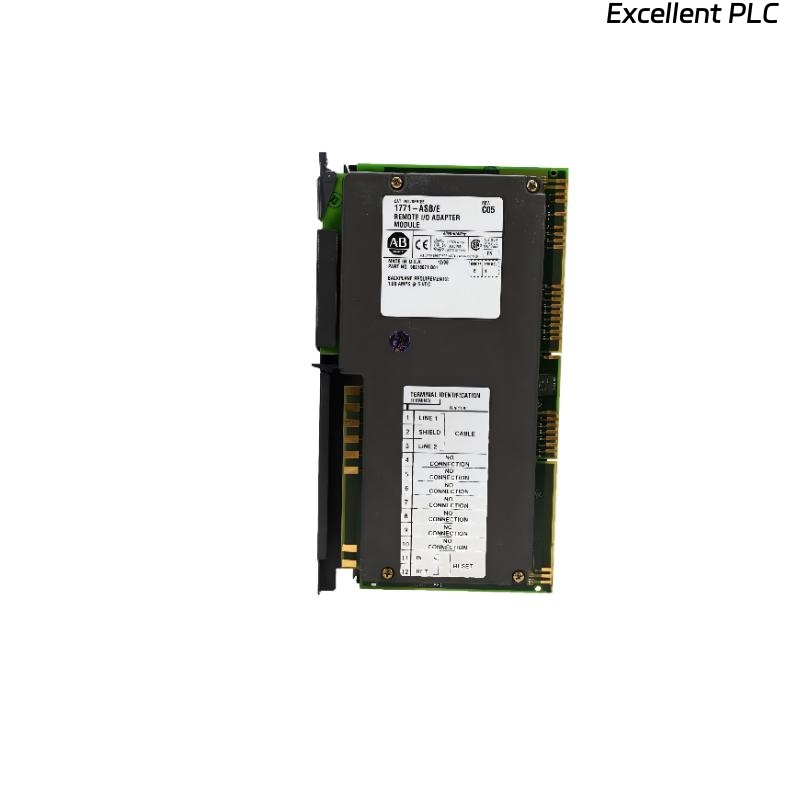

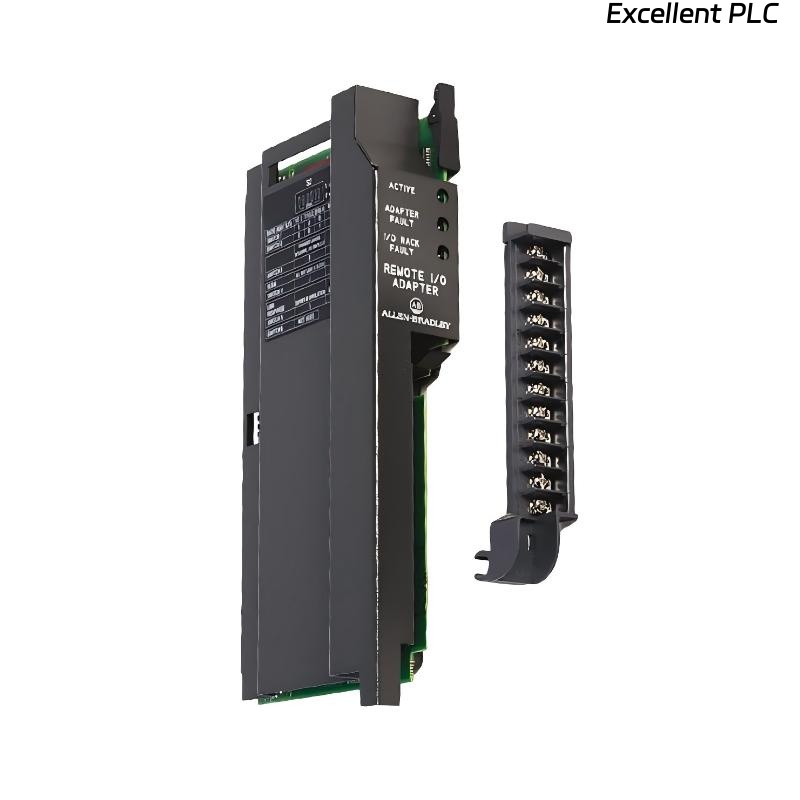

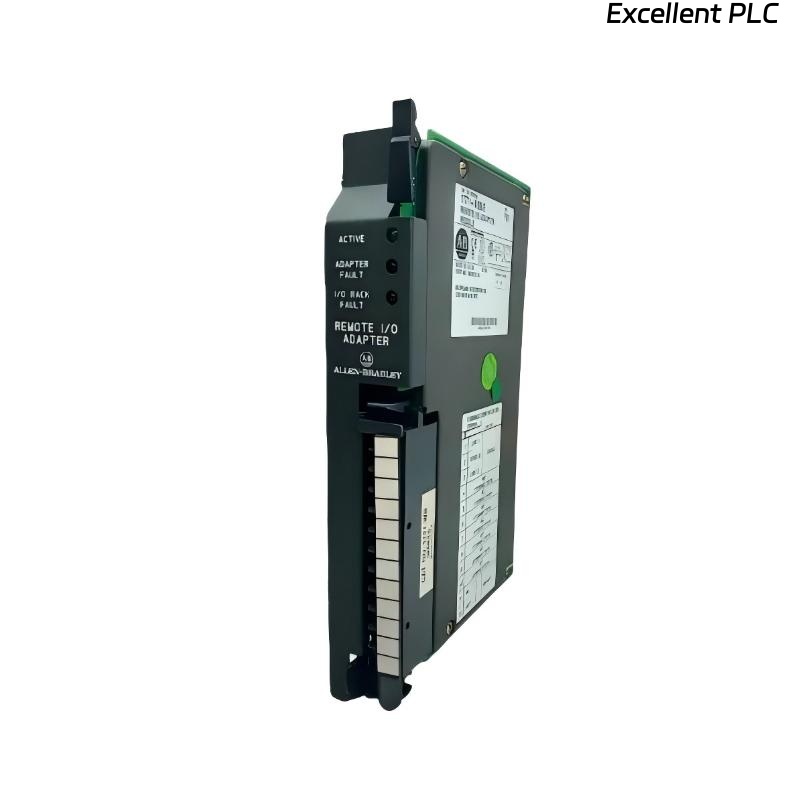

Allen Bradley 1771-ASB Remote I/O Adapter Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Overview
The Allen Bradley 1771-ASB Remote I/O Adapter Module is an essential component for distributed control architectures, enabling communication between remote I/O chassis and PLC systems through the Allen-Bradley Remote I/O (RIO) network. Designed with reliability and flexibility in mind, this module allows 1771 I/O racks to be seamlessly integrated into larger automation systems without sacrificing performance.
Its sturdy design and proven reliability make it a cornerstone for legacy and modernized systems that require consistent data exchange between controllers and field devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley / Rockwell Automation |
| Product Type | Remote I/O Adapter Module |
| Series | 1771 I/O Series |
| Communication Interface | Remote I/O (RIO) Network |
| Baud Rate | 57.6, 115.2, or 230.4 Kbps (selectable) |
| Maximum Chassis Connection | 8-slot, 12-slot, or 16-slot 1771 chassis |
| Backplane Current Load | 1.0 A at 5 V DC |
| Indicators | Active, Fault, and Communication LEDs |
| Isolation Voltage | 1500 V RMS for 1 minute |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 178 mm × 50 mm × 180 mm (7.0 in × 2.0 in × 7.1 in) |
| Weight | 0.8 kg (1.76 lb) |
| Mounting | 1771 Chassis Slot Mount |
| Certifications | UL, CSA, CE |
System Integration and Use Cases
The 1771-ASB serves as the communication link between a PLC controller (such as PLC-5 or SLC 500) and a remote 1771 I/O rack. It is widely used in manufacturing plants, refineries, and process automation systems where distributed I/O architecture enhances scalability and system manageability.
The adapter module reduces wiring complexity, minimizes installation time, and allows for efficient system expansion. It supports both discrete and analog I/O modules across the same chassis, offering flexibility in mixed-signal control applications.
Distinctive Advantages
-
Seamless Remote Connectivity: Enables reliable communication between main and remote control racks through RIO.
-
Flexible Configuration: Compatible with different chassis sizes (8, 12, 16 slots).
-
Diagnostic Feedback: Built-in LED indicators simplify troubleshooting during commissioning.
-
Durable Construction: Designed to operate in harsh industrial conditions without degradation.
-
Legacy Support: Fully compatible with PLC-5 and SLC 500 platforms, making it ideal for system upgrades.
Engineering Insight (Technical FAQs)
-
What is the primary function of the 1771-ASB module?
It serves as an adapter between a remote 1771 I/O chassis and the controller over the RIO network. -
Can multiple 1771-ASB modules be used in one system?
Yes, multiple adapters can be configured for different remote racks within the same RIO network. -
Is it compatible with modern ControlLogix systems?
It can be integrated using communication gateways or bridging modules like 1756-DHRIO. -
What are the selectable baud rates?
The module supports 57.6, 115.2, and 230.4 Kbps. -
How is addressing configured on the 1771-ASB?
Through DIP switches on the module’s front panel to assign rack and group addresses. -
Does the module support redundancy?
While not natively redundant, dual RIO channel configurations can be implemented using external systems. -
How is communication verified?
LED indicators for ACTIVE and FAULT show real-time module and network status. -
Can the 1771-ASB be hot-swapped?
No, power must be removed before installation or replacement. -
What cable type is recommended for RIO communication?
Shielded twisted-pair cable (Belden 9463 or equivalent) is recommended. -
Is there a limit to chassis distance from the controller?
Yes, the maximum distance depends on baud rate—up to 3 km (1.8 miles) at 57.6 Kbps.
Recommended Related Models
| Model | Description |
|---|---|
| 1771-ACN15 | ControlNet Communication Adapter |
| 1771-IFE | Analog Input Module |
| 1771-OBD | Digital Output Module |
| 1771-IXHR | Temperature Input Module |
| 1771-OWNA | Relay Output Module |
| 1771-IXE | RTD Input Module |
