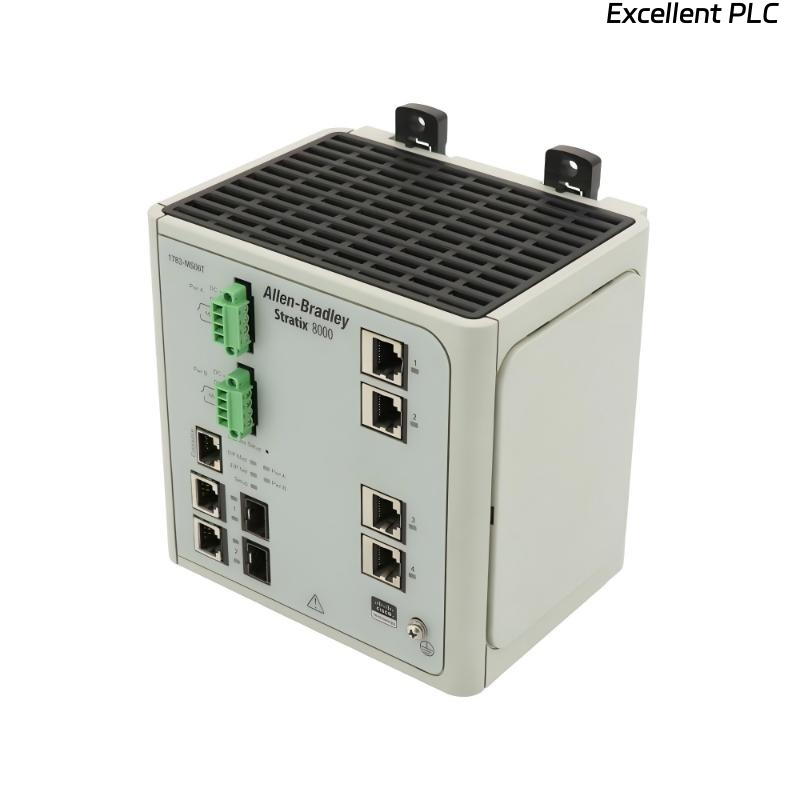

Allen Bradley 1783-MS06T Managed Ethernet Switch Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Introduction
The Allen Bradley 1783-MS06T is a Layer-2 managed Ethernet switch module tailored for industrial automation networks. Built under the Stratix 8000 family, this module delivers six Ethernet switching ports and two dual-purpose SFP/copper uplinks, enabling seamless integration of control systems, I/O devices and enterprise networks. Its architecture supports deterministic communications, network diagnostics, and modular expansion—ideal for demanding industrial environments where uptime and data integrity are paramount.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 1783-MS06T |
| Module Type | Managed Ethernet Switch Module |
| Switch Port Count | 6 base copper ports + 2 dual-purpose uplink ports |
| Data Rate | 10/100/1000 Mbps on uplinks (depending on variant) |
| Input Voltage Range | 18–60 V DC (nominal) |
| Inrush Current | Max ~2 A at start-up |
| Power Dissipation | ≈ 15.1 W typical |
| Isolation Voltage | 75 V (continuous) basic insulation between power and network channels |
| Operating Temperature | –40 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions (H × W × D) | 147 mm × 152 mm × 112 mm (approximate mounting size) |
| Weight | ≈ 2.56 kg |
| Mounting | DIN-rail or panel mount (industrial control cabinet) |
Applications
-
Deployment in factory automation networks requiring robust Ethernet deterministic communication for PLCs, HMIs, and I/O devices.
-
Industrial settings where modular managed switches enable redundancy, network segmentation (VLANs) and diagnostic visibility.
-
Expansion of control cabinets in process plants, discrete manufacturing, or infrastructure where connectivity and reliability are critical.
-
Integration in modernized control systems seeking both Ethernet/IP compatibility and legacy ease of use.
-
Networks operating in high-EMI or harsh environments requiring wide temperature and rugged design.
Advantages
-
Industrial-grade reliability: Wide temperature range, strong isolation, low power dissipation and robust design support long-term continuous operation.
-
Managed switch functionality: Enables traffic control, VLANs, diagnostics and improved network visibility—beneficial for control engineers and IT alike.
-
Flexible network integration: Dual-purpose uplink ports support copper or SFP fiber for long-haul or high-speed links.
-
Compact and panel-ready: Standard DIN-rail mount and moderate footprint make it suitable for control cabinets.
-
Brand ecosystem compatibility: Seamless integration with Allen Bradley / Rockwell Automation architecture simplifies system design and support.
Technical FAQs
-
What types of ports does the 1783-MS06T provide?
– Six standard copper ports plus two uplink ports that may be copper or SFP fiber. -
What is the input voltage requirement?
– 18–60 V DC nominal input, rated current up to ~2 A at start-up. -
Does it support redundancy or managed features?
– Yes, it supports managed Ethernet features such as VLANs, QoS, diagnostics, and uplink flexibility. -
What mounting options exist?
– DIN-rail or panel mount in industrial cabinet; standard industrial mounting clearance required. -
What is the operating temperature range?
– –40 °C to +60 °C. -
What weight should I account for during cabinet installation?
– Approximately 2.56 kg. -
Are the uplinks fiber capable?
– Yes—dual-purpose uplink ports support SFP fiber modules for longer distances or higher speeds. -
What isolation is provided between power and network portions?
– Basic insulation rated at 75 V continuous between power rails and network channels. -
What is the typical power dissipation?
– Around 15.1 W under typical conditions. -
Is the 1783-MS06T compatible with Ethernet/IP networks?
– Yes, it is designed for integration in industrial Ethernet/IP environments typical of Rockwell Automation systems.
Recommended Related Models
| Model Number | Description |
|---|---|
| 1783-MS10T | Stratix 8000 managed switch with 10 ports. |
| 1783-RMS06T | Stratix 8300 Layer-3 managed switch, six ports. |
| 1783-MX08T | Expansion module that adds 8 copper ports to Stratix 8000. |
| 1783-MX04E | Expansion module with 4 PoE ports for powered devices. |
Popular Allen Bradley Models
| Model Number | Description |
|---|---|
| 1783-MS06T | Managed Ethernet switch module (this model). |
| 1783-MS10T | Higher-port variant in the same series. |
| 1783-RMS06T | Layer-3 managed version of 6-port switch. |
| 1783-MX08T | Expansion port module for Stratix 8000 switches. |
| 1783-MX04E | Expansion module adding PoE ports for field I/O devices. |
