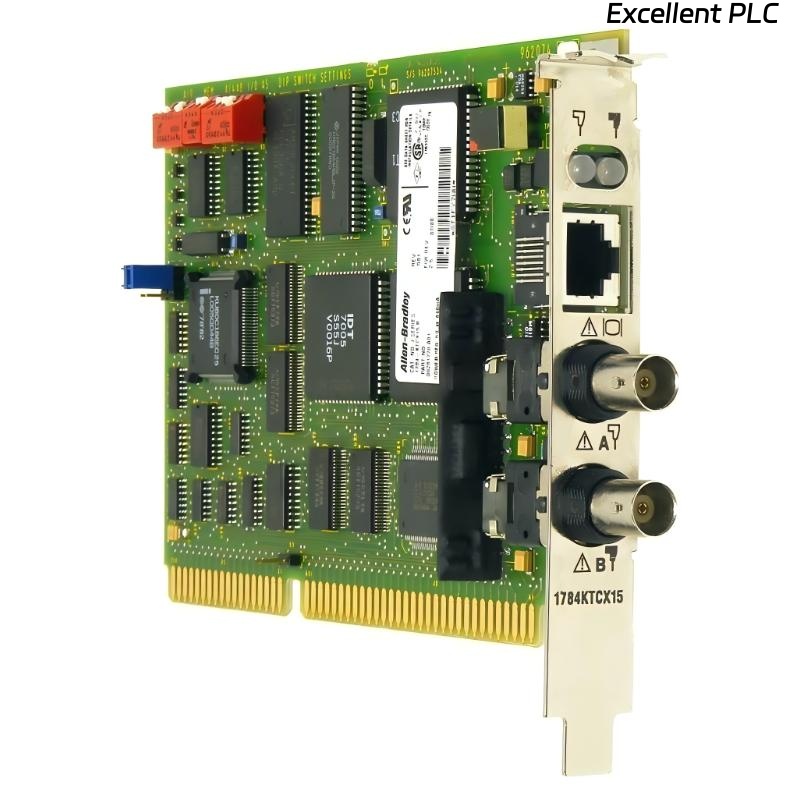

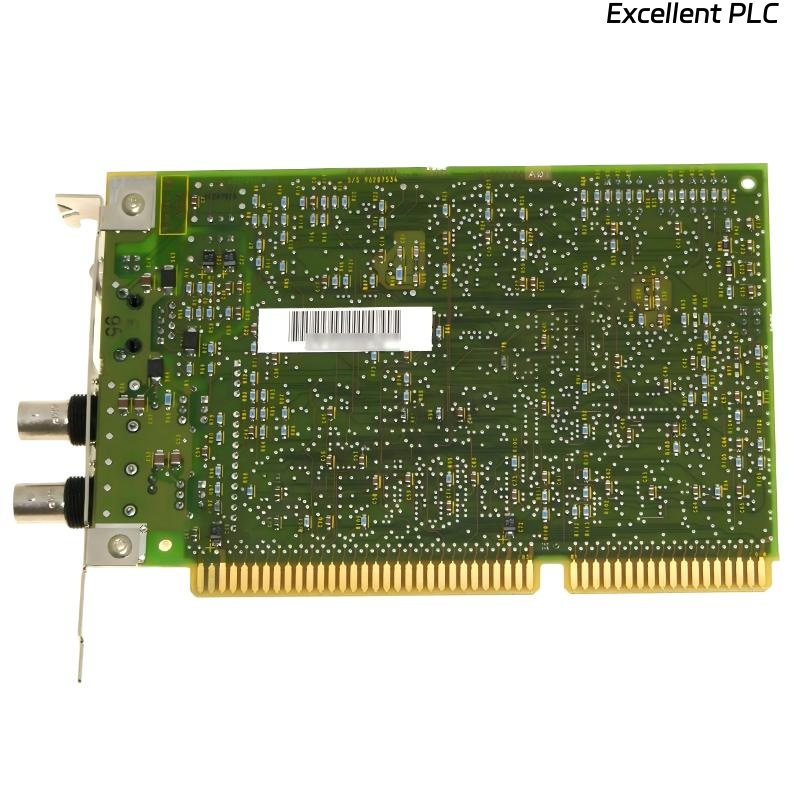

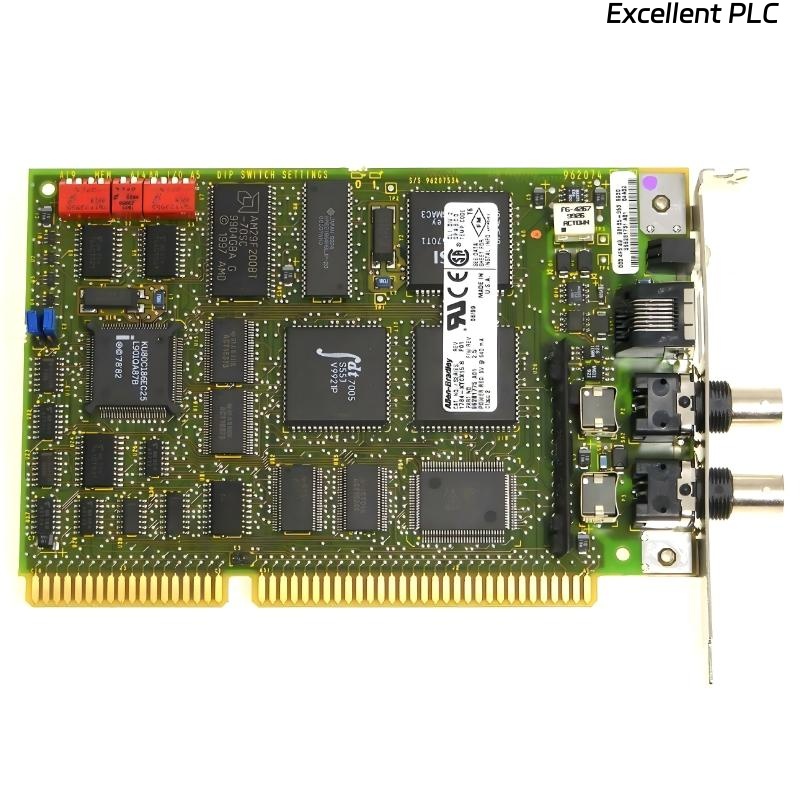

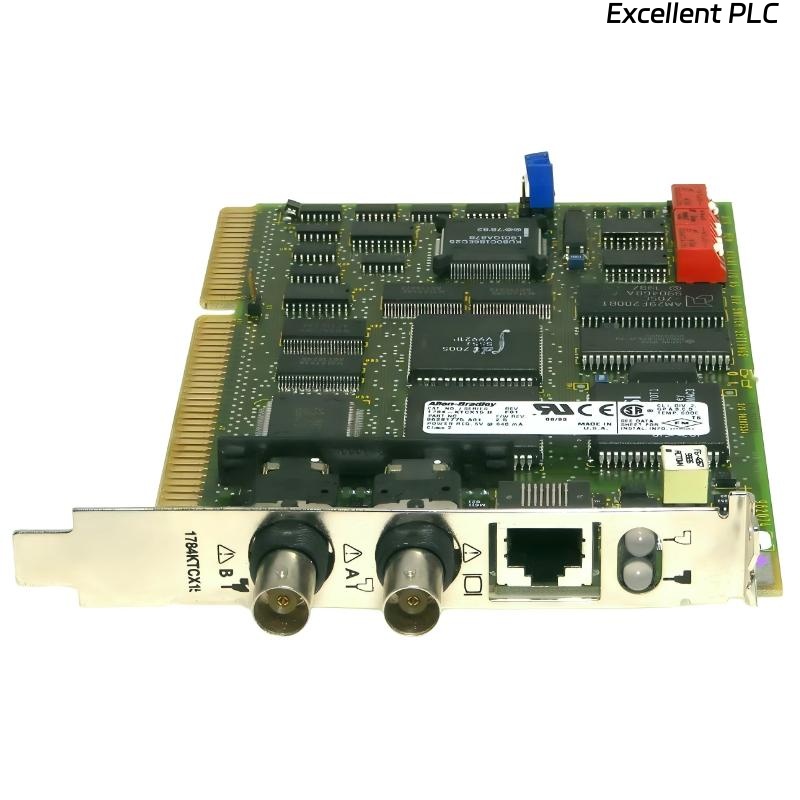

Allen Bradley 1784-KTCX15 ControlNet Communication Interface Card
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1784-KTCX15 ControlNet Communication Interface Card is an industrial communication module designed to provide high-speed connectivity between a personal computer and a ControlNet network. It enables configuration, monitoring, and diagnostics of ControlNet-based automation systems directly from an engineering workstation.
This interface card is widely used in legacy and industrial ControlNet networks where deterministic, high-speed communication is required. It supports reliable data exchange between control systems and field devices, making it suitable for system configuration, maintenance, and troubleshooting tasks.
Designed for ISA/EISA bus architecture, the 1784-KTCX15 integrates into industrial PCs and supports dual BNC connections for ControlNet media. Its open-style, mountable design ensures flexible installation within control cabinets or industrial computing environments.
Product Specifications
| Parameter | Value |
|---|---|
| Product Type | Communication Interface Card |
| Series | ControlNet |
| Model Number | 1784-KTCX15 |
| Network Type | ControlNet |
| Bus Interface | ISA / EISA |
| Connector Type | Dual BNC connectors |
| Number of Ports | 2 BNC ports |
| Required Memory | 16 KB |
| Function | PC to ControlNet communication |
| Installation Type | Open style, mountable |
| Application Area | Industrial automation and network diagnostics |
| Communication Mode | Deterministic real-time network access |
| Dimensions | 165 × 20 × 107 mm |
| Weight | 0.43 kg |
Applications
• ControlNet network configuration
Used for setting up and configuring ControlNet industrial communication networks from a PC.
• System diagnostics and troubleshooting
Enables engineers to monitor and diagnose network and device communication issues.
• Industrial automation integration
Provides communication between PCs and PLC-based ControlNet systems.
• Maintenance of legacy systems
Supports service and maintenance of existing ControlNet infrastructure.
• Real-time industrial networking
Facilitates deterministic communication in time-critical control applications.
Advantages
• High-speed deterministic communication
Ensures reliable real-time data exchange within ControlNet networks.
• Dual-port BNC interface
Supports network redundancy and flexible media configuration options.
• PC-based network access
Allows direct ControlNet access from engineering workstations.
• Stable industrial performance
Designed for use in harsh industrial environments with electrical noise.
• Flexible installation design
Open-style mountable structure fits into industrial PC systems and cabinets.
• Efficient system diagnostics
Enables fast troubleshooting and monitoring of ControlNet communication systems.
FAQ
- What is the main function of the 1784-KTCX15 card?
It allows a PC to connect to and communicate with a ControlNet industrial network. - What type of bus interface does it use?
It uses ISA or EISA bus architecture for integration into industrial computers. - What are the BNC connectors used for?
They are used to connect the card to the ControlNet network media for data transmission. - Is this device used for real-time communication?
Yes, it supports deterministic real-time communication required in industrial control systems. - Can it be used in modern Ethernet systems?
No, it is designed specifically for ControlNet networks and not Ethernet-based systems. - What is the purpose of the 16 KB memory requirement?
It supports internal processing and communication buffering for network operations. - Is it suitable for system configuration tasks?
Yes, it is commonly used for configuration, diagnostics, and maintenance of ControlNet systems. - What does “open style mountable” mean?
It means the card is designed for installation in open industrial PC slots or enclosures. - What are common installation issues?
Incorrect bus configuration, poor seating in ISA/EISA slot, and cable termination issues are common problems. - Is it still widely used today?
It is mainly used for maintaining and servicing legacy ControlNet-based automation systems.
Related Models
| Model | Description |
|---|---|
| 1784-KTCX | Standard ControlNet interface card |
| 1784-KTCS | ControlNet communication adapter |
| 1784-PKTX | Ethernet/PLC communication card |
| 1784-PCIC | ControlLogix communication interface |
| 1784-PCMK | PCMCIA communication card |
| 1784-KTXD | Enhanced communication interface |
Popular Models
| Model | Description |
|---|---|
| 1756-EN2T | Ethernet communication module |
| 1756-CN2R | ControlNet bridge module |
| 1756-IB16 | Digital input module |
| 1756-OB32 | Digital output module |
| 1769-L33ER | CompactLogix controller |
| 1734-AENTR | POINT I/O Ethernet adapter |
