Allen Bradley 1794-AENTRXT Flex I/O Dual Port Ethernet/IP Adapter Module

Product Introduction

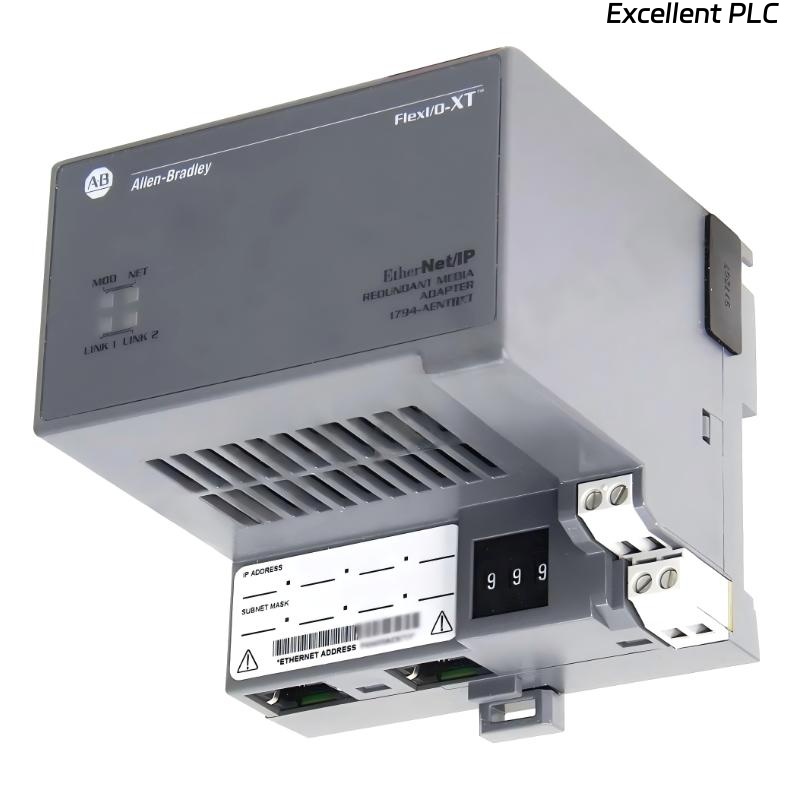

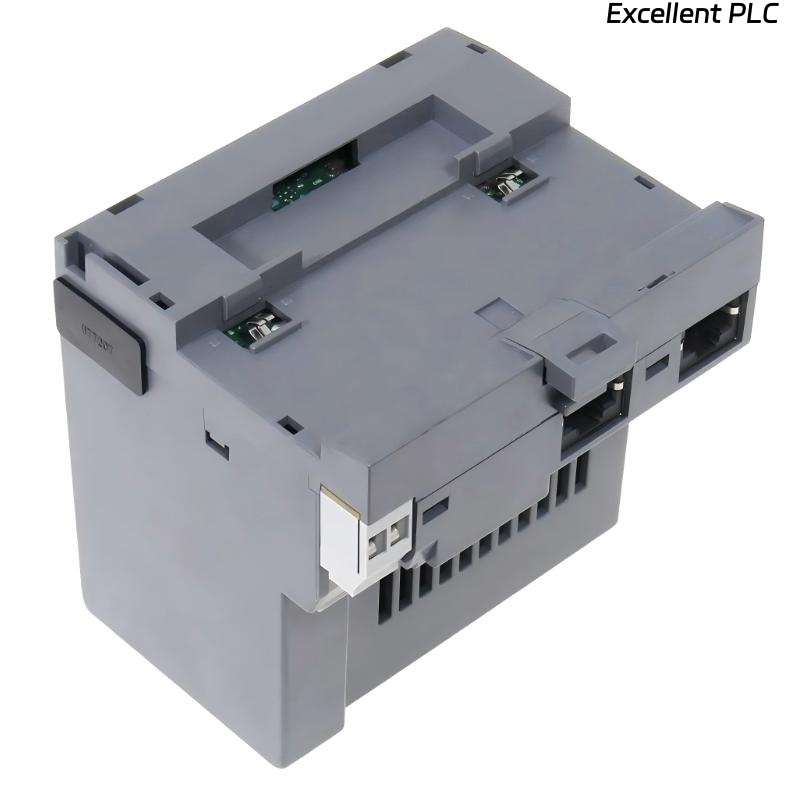

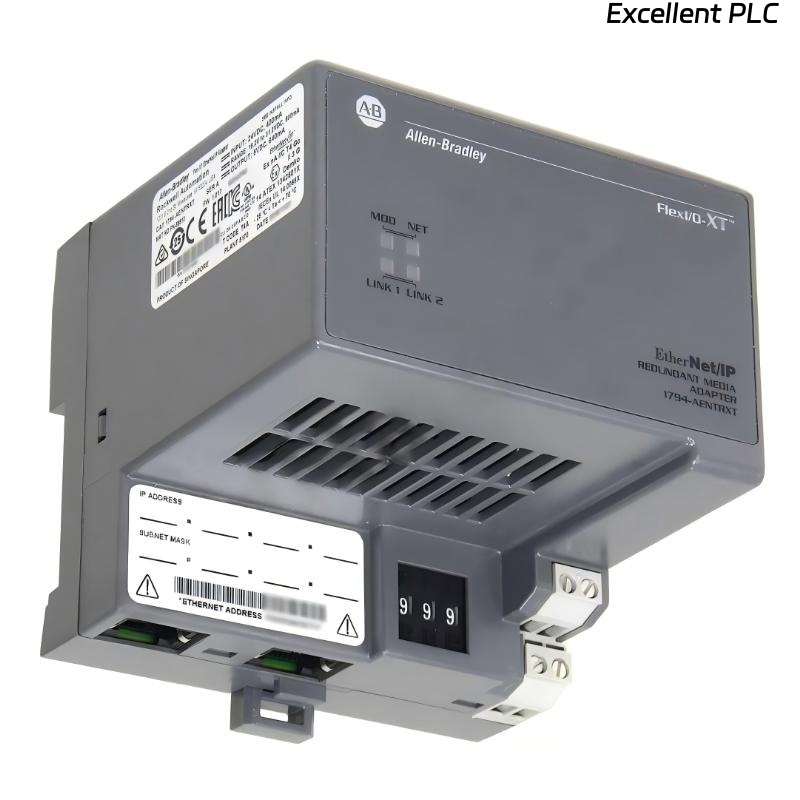

The Allen-Bradley 1794-AENTRXT FLEX I/O Dual Port EtherNet/IP Adapter Module is an extended temperature communication interface designed to connect FLEX I/O systems to EtherNet/IP networks in demanding industrial environments. It combines high-speed Ethernet communication with enhanced environmental tolerance, making it suitable for applications exposed to temperature extremes.

Featuring dual Ethernet ports, the module supports Device Level Ring (DLR) topology, enabling network redundancy and continuous communication even in the event of a network interruption. This ensures high system availability, which is critical for process continuity and operational reliability.

The 1794-AENTRXT operates on a 24V DC power supply and is designed with an open-style structure for easy integration into control cabinets. Its DIN rail mounting capability and compact size make it ideal for distributed I/O installations where flexibility, durability, and stable communication are required.

---

Product Specifications

---

Applications

• Harsh Environment Automation
Designed for systems operating in extreme temperature conditions, such as outdoor or unconditioned environments.

• Distributed Control Systems
Connects FLEX I/O modules to EtherNet/IP networks in decentralized automation architectures.

• Redundant Industrial Networks
Supports ring topology communication, ensuring continuous operation in critical systems.

• Process Industries
Widely used in oil & gas, chemical processing, and power generation where reliability is essential.

• Manufacturing Systems
Enables communication between controllers and remote I/O modules across production lines.

• Remote Installations
Ideal for installations where equipment is exposed to temperature variations and environmental challenges.

---

Advantages

• Extended Temperature Capability
Operates reliably in environments ranging from -20°C to +70°C, expanding deployment options.

• Dual Port Ethernet with Redundancy
Supports Device Level Ring (DLR) for improved network availability and fault tolerance.

• Stable EtherNet/IP Communication
Ensures efficient and deterministic data exchange for real-time control applications.

• Flexible Deployment
Suitable for both indoor and outdoor installations where environmental resilience is required.

• Compact Modular Design
Integrates seamlessly into FLEX I/O systems, supporting scalable architectures.

• Easy Installation
DIN rail mounting allows quick integration into control panels and field enclosures.

• Improved System Reliability
Reduces downtime through robust communication and redundant network paths.

FAQ

1. What is the main difference between this module and the standard AENTR?
   The XT version supports extended temperature operation, making it suitable for harsher environments compared to the standard model.
2. What is the purpose of dual Ethernet ports?
   They enable ring network configurations, allowing communication to continue if one connection fails.
3. Does this module support Device Level Ring topology?
   Yes, it supports DLR, which enhances network reliability in industrial systems.
4. What types of applications benefit from extended temperature capability?
   Applications in outdoor environments, heavy industry, or locations without climate control benefit the most.
5. Is this module compatible with all FLEX I/O components?
   Yes, it is designed to integrate seamlessly with FLEX I/O modules.
6. How does the module improve system uptime?
   By supporting redundant communication paths, it reduces the likelihood of network-related downtime.
7. What type of power supply is required?
   It operates on a standard 24V DC industrial power supply.
8. Can it be used in distributed I/O systems?
   Yes, it is specifically designed for distributed architectures where I/O modules are located remotely.
9. Does the module require complex configuration?
   Configuration is generally straightforward using standard EtherNet/IP tools and controller software.
10. How does this module enhance system scalability?
    It allows additional FLEX I/O modules to be added easily, supporting system expansion without major redesign.
