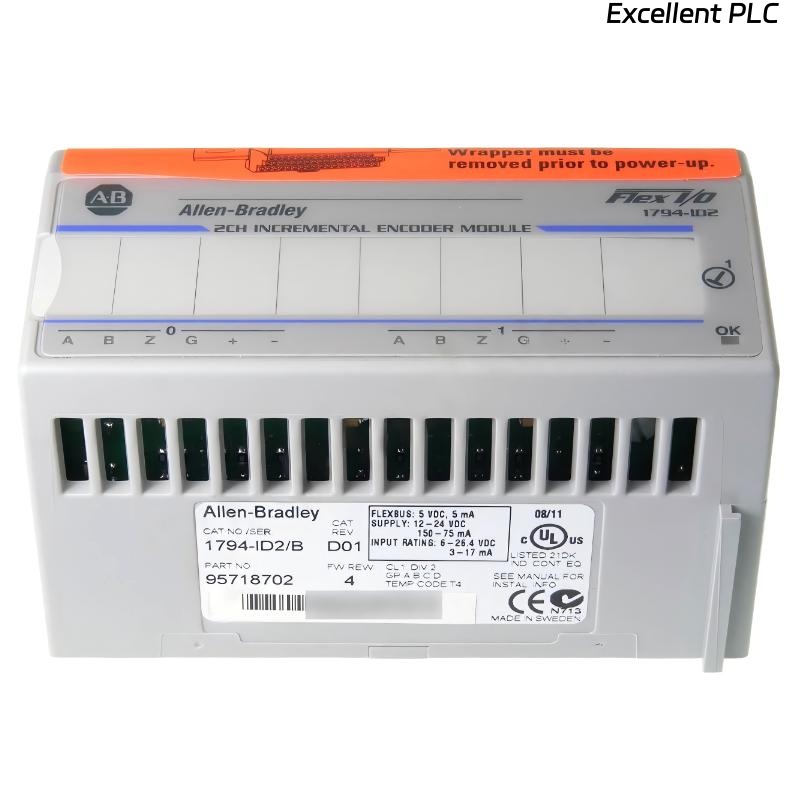

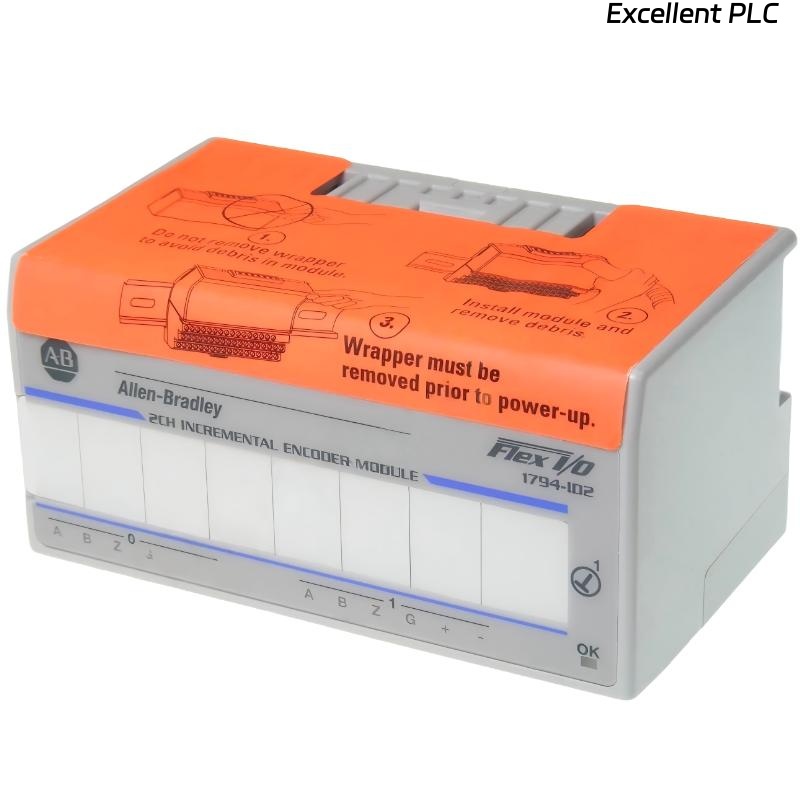

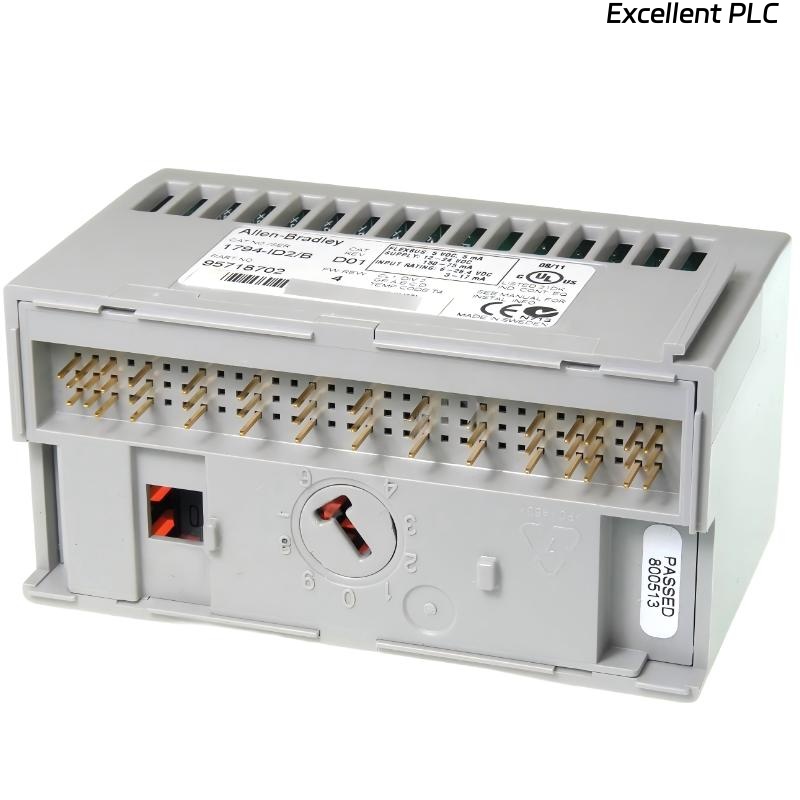

Allen Bradley 1794-ID2/B Flex I/O 2 Channel Incremental Encoder Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1794-ID2/B FLEX I/O Incremental Encoder Module is a specialized input module designed for precise motion feedback and position monitoring in industrial automation systems. Developed as part of the FLEX I/O platform by Rockwell Automation, this module enables reliable acquisition of incremental encoder signals in distributed control architectures.
With 2 input channels, the 1794-ID2/B is tailored for applications requiring accurate speed, direction, and position tracking. It processes incremental encoder signals efficiently, making it suitable for integration into motion control systems where real-time feedback is essential.
The module features an open-style design for improved thermal performance and supports DIN rail mounting, ensuring straightforward installation within control cabinets. Its robust construction and stable signal handling capabilities make it a dependable choice for demanding industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1794-ID2/B |
| Brand | Allen-Bradley |
| Series | FLEX I/O |
| Module Type | Incremental Encoder Input Module |
| Input Type | Encoder Signal Input |
| Number of Channels | 2 Channels |
| Signal Type | Incremental Encoder (A/B signals) |
| Rated Voltage | 24 VDC |
| Input Points | 2 Points |
| Mounting Type | DIN Mount |
| Construction | Open Style |
| Protection Rating | IP20 |
| Communication | FLEX I/O Backplane Communication |
| Isolation | Electrical isolation between field and system |
| Function | Speed, position, and direction detection |
| Dimensions | 94 x 46 x 53 mm |
| Weight | 0.1 kg |
Applications
• Motion Control Systems – Used for accurate position and speed feedback from incremental encoders in automated machinery.
• Conveyor and Material Handling – Enables precise tracking of movement and positioning in conveyor systems.
• Packaging and Labeling Machines – Provides synchronized motion control and encoder signal processing for high-speed operations.
• Robotics and Automation Equipment – Supports real-time motion monitoring and control feedback in robotic systems.
• Manufacturing Processes – Ensures accurate rotational and linear position detection in production equipment.
Advantages
• High-Precision Signal Processing – Designed for accurate interpretation of incremental encoder signals, ensuring reliable motion feedback.
• Dual Channel Capability – Supports 2 independent encoder channels, enabling flexible application in multi-axis systems.
• Seamless System Integration – Fully compatible with FLEX I/O architecture for easy integration into distributed control systems.
• Compact and Efficient Design – Offers space-saving installation while maintaining high performance.
• Stable and Reliable Operation – Ensures consistent signal acquisition even in demanding industrial environments.
• Easy Installation – DIN rail mounting simplifies setup and reduces installation time.
FAQ
-
What type of encoder signals does this module support?
It supports incremental encoder signals, typically A/B phase inputs used for motion feedback. -
Can this module detect direction of rotation?
Yes, it determines direction based on the phase relationship between A and B signals. -
Is it suitable for high-speed encoder applications?
Yes, it is designed to process encoder signals efficiently for real-time motion control. -
Can the module be integrated with PLC systems?
Yes, it communicates with PLCs through the FLEX I/O backplane and adapter modules. -
What kind of applications typically use this module?
Applications involving motion control, position tracking, and speed monitoring commonly use this module. -
Does it support multiple encoders simultaneously?
Yes, it supports two independent encoder channels. -
Is additional signal conditioning required?
In most cases, standard incremental encoders can be connected directly without extra conditioning. -
How is the module installed?
It is mounted on a DIN rail inside a control cabinet. -
Is it suitable for distributed I/O systems?
Yes, it is designed specifically for distributed FLEX I/O architectures. -
How does it communicate with the controller?
Through the FLEX I/O backplane connected to a communication adapter.
Related Models
| Model | Description |
|---|---|
| 1794-ID4 | 4-channel encoder input module |
| 1794-IB8 | 8-point digital input module |
| 1794-IB16 | 16-point digital input module |
| 1794-OB8 | 8-point digital output module |
| 1794-IE8 | Analog input module |
| 1794-OE4 | Analog output module |
Popular Models
| Model | Description |
|---|---|
| 1794-AENT | Ethernet adapter module |
| 1794-ACN15 | ControlNet adapter module |
| 1794-ADN | DeviceNet adapter module |
| 1734-IB8 | POINT I/O digital input module |
| 1756-IB16 | ControlLogix digital input module |
| 1769-IQ16 | CompactLogix digital input module |
