Allen Bradley 1794-OF4I Flex I/O Isolated Analog Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

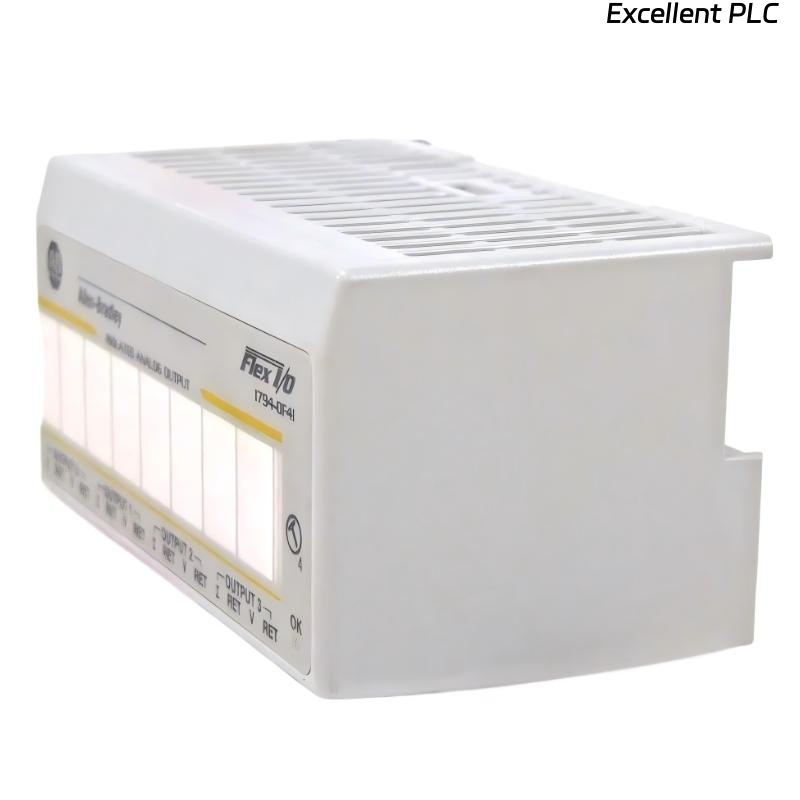

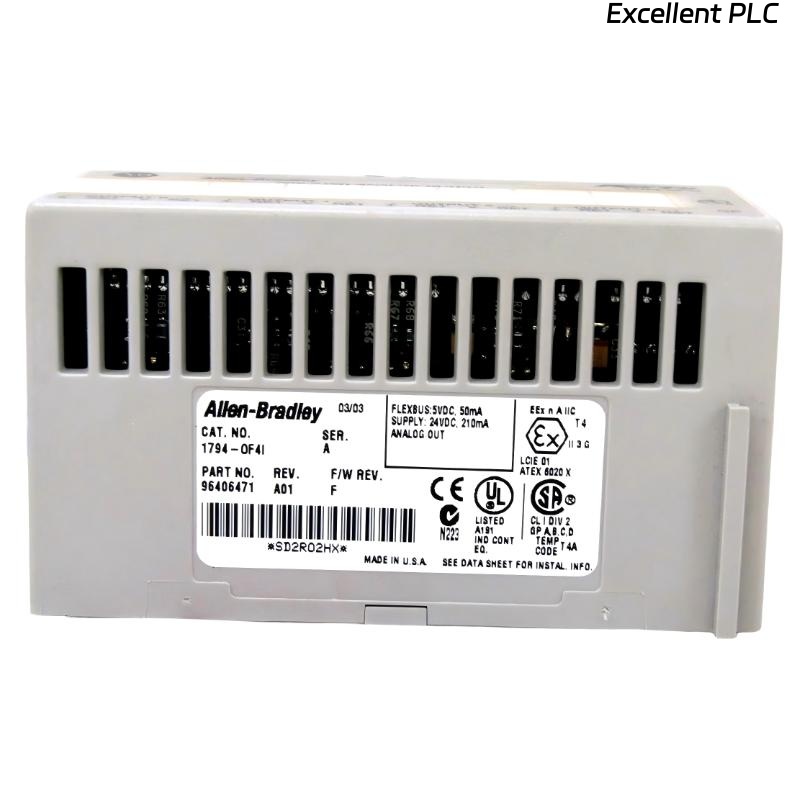

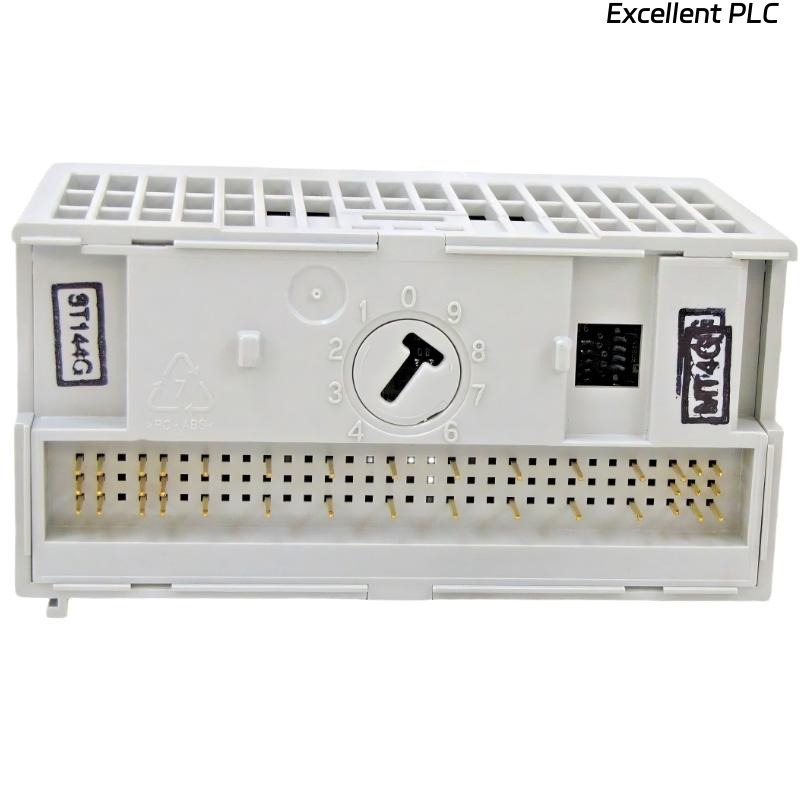

The Allen-Bradley 1794-OF4I FLEX I/O Isolated Analog Output Module is a high-performance analog output module engineered for precision control in demanding industrial environments. As part of the FLEX I/O series from Rockwell Automation, it provides flexible multi-range analog outputs with built-in isolation, ensuring reliable and noise-resistant signal transmission.
This module offers 4 independently controlled output channels with 16-bit resolution, delivering high accuracy and smooth signal control. It supports a wide range of output signals including current and voltage modes, making it suitable for diverse field devices such as control valves, actuators, and variable speed drives.
With integrated channel isolation, the 1794-OF4I effectively protects the control system from electrical interference, ground loops, and field-side disturbances. Its compact DIN rail-mounted design and compatibility with FLEX I/O terminal bases make it easy to deploy in distributed automation architectures.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Isolated Analog Output Module |
| Series | FLEX I/O |
| Manufacturer | Rockwell Automation |
| Model Number | 1794-OF4I |
| Number of Channels | 4 Outputs |
| Output Type | Analog (Current / Voltage) |
| Signal Ranges | 4–20 mA, 0–20 mA, ±10V, 0–10V, ±5V, 0–5V |
| Resolution | 16-bit |
| Channel Configuration | Individually configurable |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Power Supply | 24 VDC |
| Accuracy | High-precision industrial output |
| Response Time | Fast update rate for control applications |
| Wiring Method | Screw Terminal Connection |
| Mounting Method | DIN Rail Mount |
| Housing Type | Open Style |
| Ingress Protection | IP20 |
| Dimensions | 97 x 46 x 53 mm |
| Weight | 0.11 kg |
Applications
● Used in process control systems requiring high-precision analog signal output
● Ideal for controlling valves, actuators, and drives with multiple signal range compatibility
● Applied in industries such as oil & gas, chemical processing, and power generation
● Suitable for distributed I/O architectures, minimizing signal interference over long distances
● Integrated into PLC-based automation systems for precise variable control
● Common in high-noise industrial environments where signal isolation is essential
Advantages
● Multi-range signal support enables flexible integration with various field devices
● 16-bit high resolution provides precise and stable control performance
● Full isolation design protects against electrical noise, interference, and ground loops
● Independent channel configuration allows versatile application across different control scenarios
● Reliable 24V DC operation ensures compatibility with standard industrial power systems
● Compact modular design simplifies installation in distributed I/O systems
● Enhanced system stability through reduced signal distortion and improved accuracy
FAQ
-
Why is isolation important in analog output modules?
Isolation helps protect the control system from electrical disturbances coming from the field side. It prevents unwanted interference and ensures stable signal transmission, especially in complex industrial environments. -
Can this module be used in systems with different types of field devices?
Yes, it is designed to work with a wide variety of industrial equipment such as control valves, actuators, and drives, making it highly versatile in real applications. -
How does this module improve control accuracy?
It provides smooth and stable output signals, which helps maintain consistent control over process variables and reduces fluctuations in system behavior. -
Is it suitable for environments with high electrical noise?
Yes, the built-in isolation significantly reduces the impact of electrical noise, making it suitable for harsh industrial conditions. -
How flexible is the module in terms of application?
Each channel can be used independently, allowing the module to handle multiple control tasks within the same system. -
Does this module require special installation considerations?
Standard industrial installation practices are sufficient, but proper grounding and wiring are important to achieve the best performance. -
What kind of systems typically use this module?
It is commonly used in distributed control systems, PLC-based automation setups, and process industries requiring precise analog control. -
How does the module help reduce system downtime?
Its stable performance and resistance to interference reduce unexpected faults, which helps maintain continuous operation. -
Is it easy to integrate into existing systems?
Yes, it is designed to integrate seamlessly with FLEX I/O systems, making it easy to expand or upgrade existing installations. -
What makes this module different from non-isolated versions?
The key difference is the added protection and signal stability provided by isolation, which is especially important in sensitive or high-noise environments.
Related Models
| Model | Channels | Signal Type | Range | Description |
|---|---|---|---|---|
| 1794-OE4 | 4 | Analog Output | 4–20 mA | Standard analog output |
| 1794-OE2 | 2 | Analog Output | 4–20 mA | Low-channel output |
| 1794-OE8H | 8 | Analog Output | HART | Advanced analog module |
| 1794-IE8 | 8 | Analog Input | Voltage/Current | Analog input module |
| 1794-IF4I | 4 | Analog Input | Isolated | Isolated input module |
| 1794-IE4XOE2 | 6 | Mixed I/O | Analog | Combination module |
Popular Models
| Model | Type | Channels | Signal | Application |
|---|---|---|---|---|
| 1794-IB16 | Digital Input | 16 | 24 VDC | Input monitoring |
| 1794-OB16 | Digital Output | 16 | 24 VDC | Output control |
| 1794-IE8 | Analog Input | 8 | ±10V / 4–20 mA | Process signals |
| 1794-OE4 | Analog Output | 4 | 4–20 mA | Process control |
| 1794-IF8IH | Analog Input | 8 | HART | Smart instrumentation |
| 1794-IT8 | Temperature Input | 8 | RTD/TC | Temperature systems |
