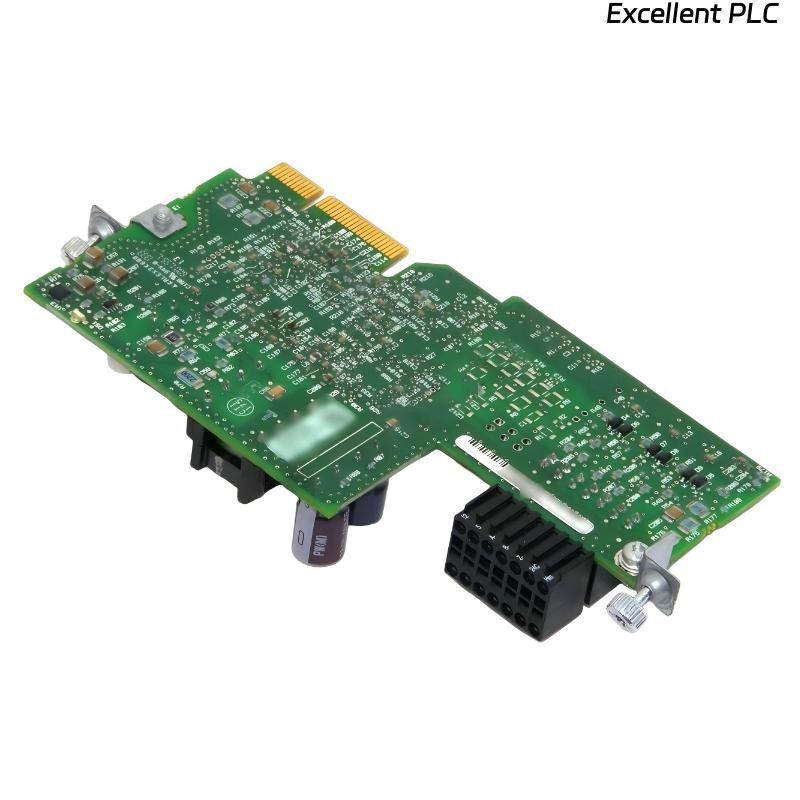

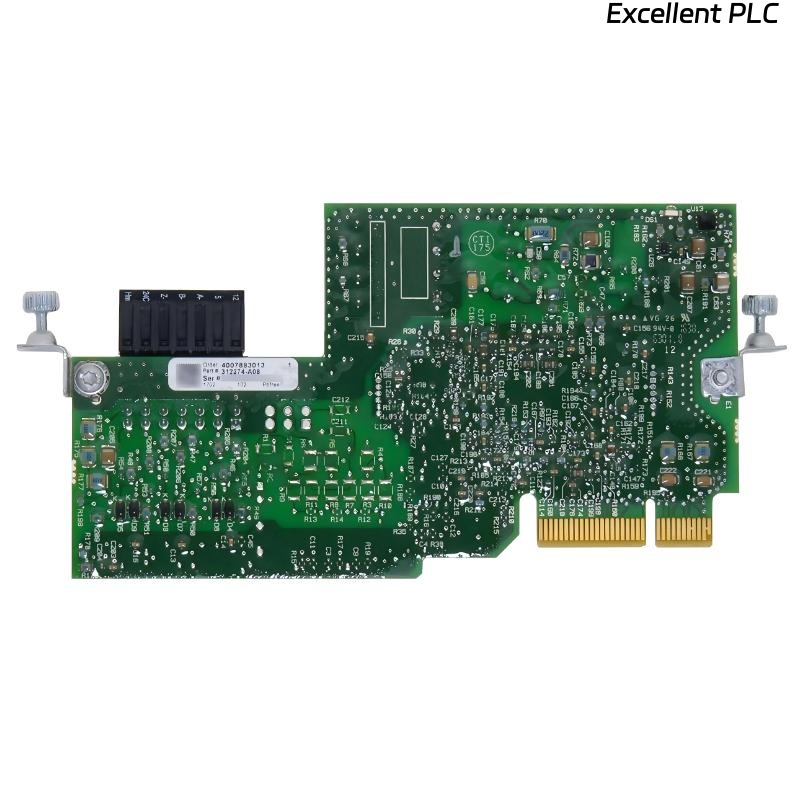

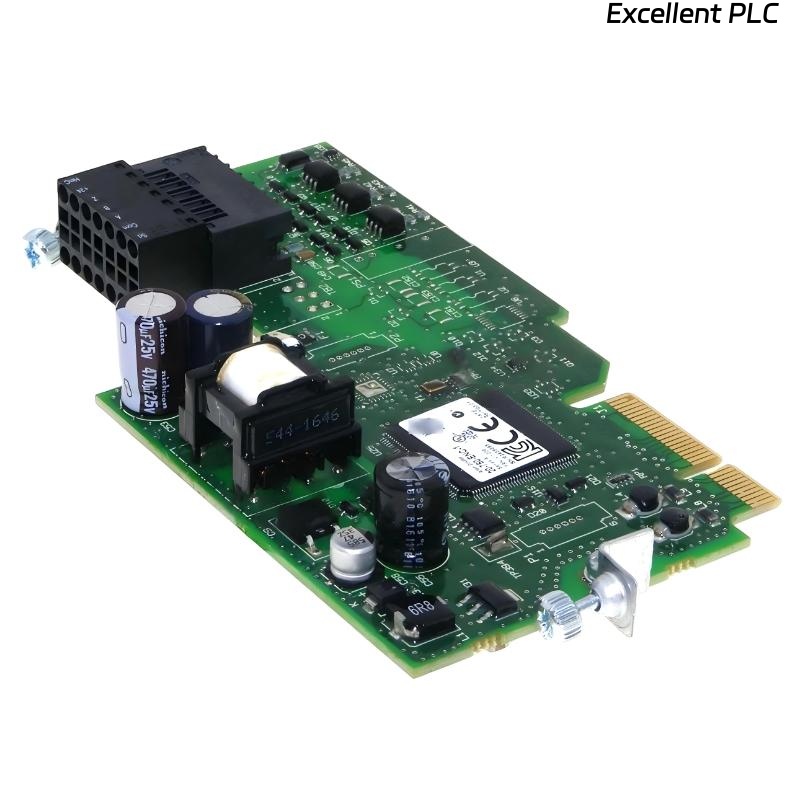

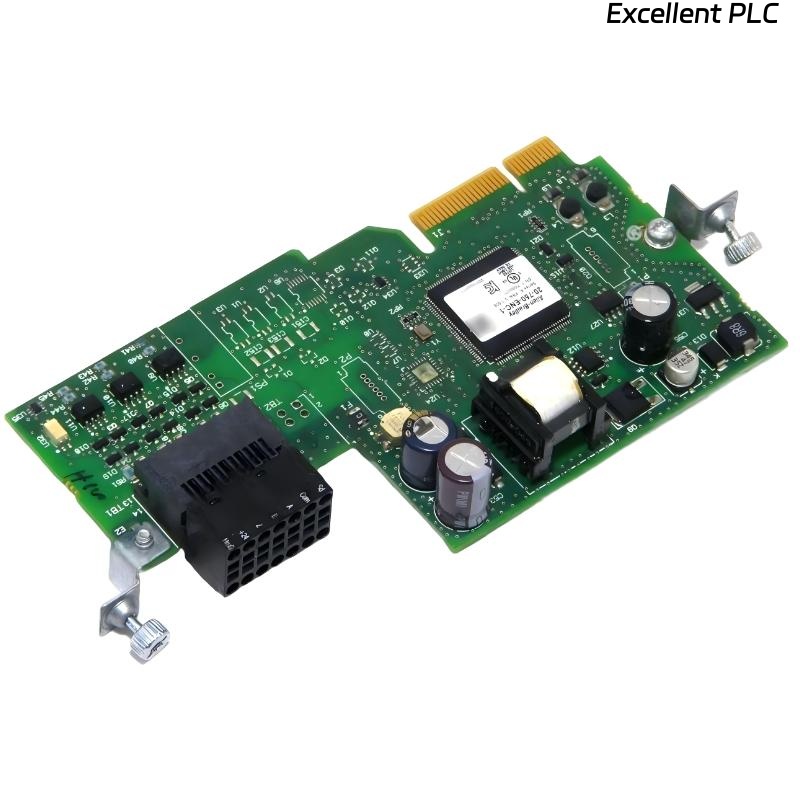

Allen Bradley 20-750-ENC-1 PowerFlex 750 Incremental Encoder Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 20-750-ENC-1 PowerFlex 750 Incremental Encoder Module is a dedicated feedback interface designed for PowerFlex 750 series drives. It provides accurate speed and position feedback by processing signals from incremental encoders, enabling precise motor control in industrial automation systems.
This module is used in applications where closed-loop control is required, such as positioning systems, synchronized drives, and high-precision speed regulation. It supports both differential and single-ended encoder inputs, offering flexibility for different field wiring configurations.
The module operates with constant current sink input logic and is compatible with a wide range of industrial encoder signal levels. It is designed to integrate directly into the PowerFlex 750 drive architecture, ensuring stable and real-time feedback processing without external signal conditioning devices.
With support for extended cable lengths and robust electrical characteristics, the 20-750-ENC-1 is suitable for demanding industrial environments requiring reliable motion feedback.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 20-750-ENC-1 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Type | Incremental encoder feedback module |
| Compatible Drives | PowerFlex 750 series |
| Encoder Type | Incremental encoder |
| Input Operation | Differential or single-ended |
| Input Voltage Range | 5V DC (min) to 15V DC (max) |
| Input Current | Approx. 10 mA (sinking) |
| High State Voltage | Minimum 3.5V DC |
| Low State Voltage | Maximum 0.4V DC |
| Cable Length Support | 30 m at 5V, 183 m at 12V |
| Mounting Type | Drive control pod mount |
| Function | Motor speed and position feedback |
| Dimensions | 150 × 26 × 68 mm |
| Weight | 0.068 kg |
Applications
● Closed-loop motor control systems
Provides real-time feedback for speed and position regulation in industrial drives.
● High-precision positioning systems
Used in applications requiring accurate movement control such as conveyors and automation machinery.
● Synchronized multi-drive systems
Enables multiple drives to operate in coordinated motion control environments.
● Industrial motion control applications
Supports stable encoder feedback for manufacturing and processing equipment.
● Variable speed control systems
Improves speed stability by continuously monitoring motor shaft rotation.
Advantages
● High compatibility with PowerFlex 750 drives
Designed specifically for seamless integration with PowerFlex 753 and 755 systems.
● Flexible encoder input support
Accepts both differential and single-ended encoder signals, increasing application flexibility.
● Long-distance signal transmission
Supports up to 183 m cable length at 12V, reducing installation constraints.
● Stable electrical performance
Maintains reliable signal integrity with defined voltage thresholds for noise immunity.
● Simple drive integration
Direct installation into the drive control pod eliminates the need for external modules.
● Industrial-grade reliability
Built for stable operation in harsh industrial environments with continuous duty cycles.
FAQ
- What is the main function of the 20-750-ENC-1 module?
It processes incremental encoder signals and provides real-time speed and position feedback to PowerFlex 750 drives for closed-loop motor control. - What types of encoder signals are supported?
The module supports both differential and single-ended incremental encoder signals, allowing flexible wiring configurations. - How does the module handle signal noise in industrial environments?
It uses defined voltage thresholds and current sinking logic to improve noise immunity and maintain stable signal interpretation. - What is the purpose of constant current sink operation?
It ensures consistent input signal behavior and improves reliability of encoder signal detection under varying conditions. - How does cable length affect performance?
Longer cable lengths are supported at higher supply voltages, with up to 183 m at 12V, ensuring flexibility in large installations. - Can the module operate with low-voltage encoders?
Yes, it supports a minimum input of 5V DC, making it compatible with standard industrial encoder systems. - How is the module integrated into the drive system?
It is installed directly into the PowerFlex 750 drive control pod, enabling internal communication without external wiring complexity. - What happens if encoder signals are lost?
The drive will detect signal loss and typically trigger a fault or fallback control mode depending on system configuration. - Is this module suitable for high-speed applications?
Yes, it is designed for real-time feedback processing in high-speed motion control environments. - Does it require external signal conditioning hardware?
No, the module internally handles signal processing, eliminating the need for additional conditioning devices.
Related Models
| Model | Description | Key Feature |
|---|---|---|
| 20-750-ENC-2 | Encoder feedback module | Dual encoder input support |
| 20-750-DNET | DeviceNet option card | Industrial network communication |
| 20-750-ENETR | Ethernet/IP module | High-speed network integration |
| 20-750-S1 | Safety option module | Safe torque off function |
| 20-750-UFB-1 | Feedback expansion module | Encoder feedback extension |
| 20-750-ASCII | Serial communication module | ASCII data interface |
Popular Models
| Model | Description | Key Feature |
|---|---|---|
| 20F11ND014AA0NNNNN | PowerFlex 753 drive | Standard industrial drive |
| 20G11NC072JA0NNNNN | PowerFlex 755 drive | High-performance drive |
| 1756-L81E | ControlLogix controller | Advanced PLC processing |
| 1756-EN2T | Ethernet module | Industrial network communication |
| 1769-L33ER | CompactLogix controller | Integrated automation system |
| 1734-IB8 | POINT I/O module | Compact input module |
