Allen Bradley 20-HIM-C3 PowerFlex Human Interface Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

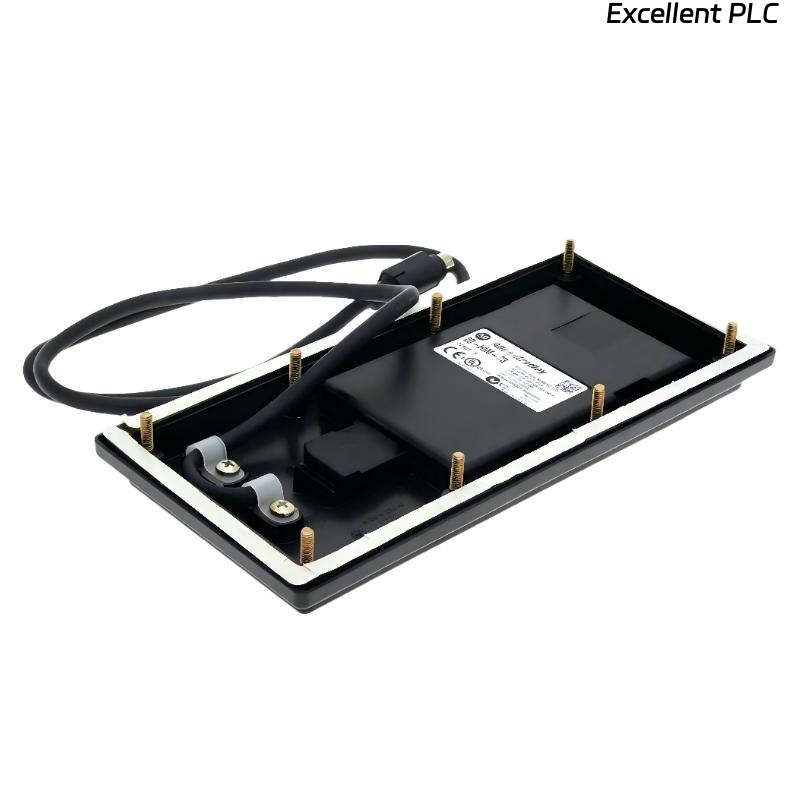

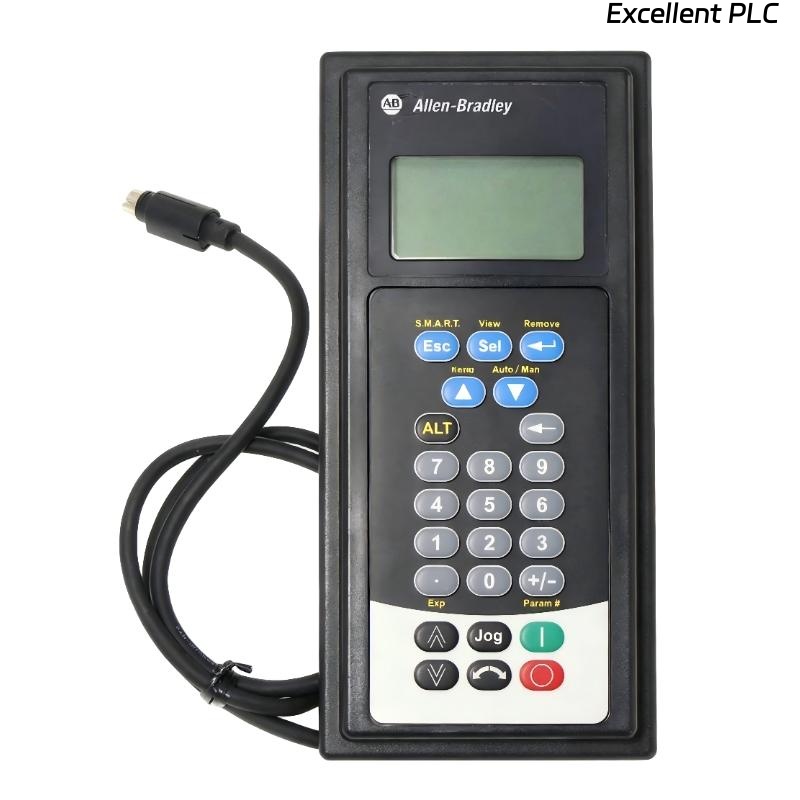

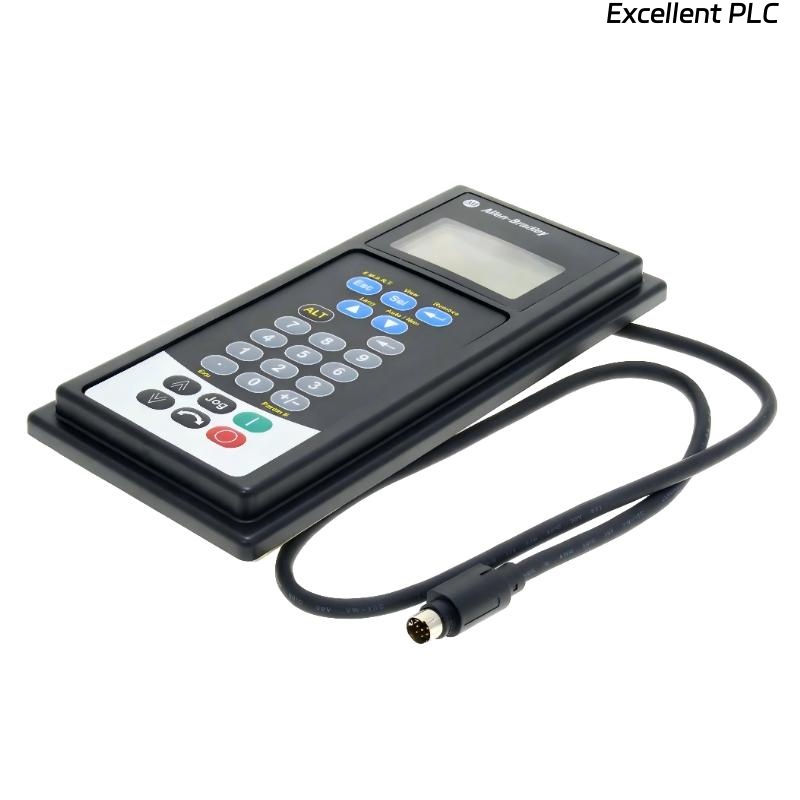

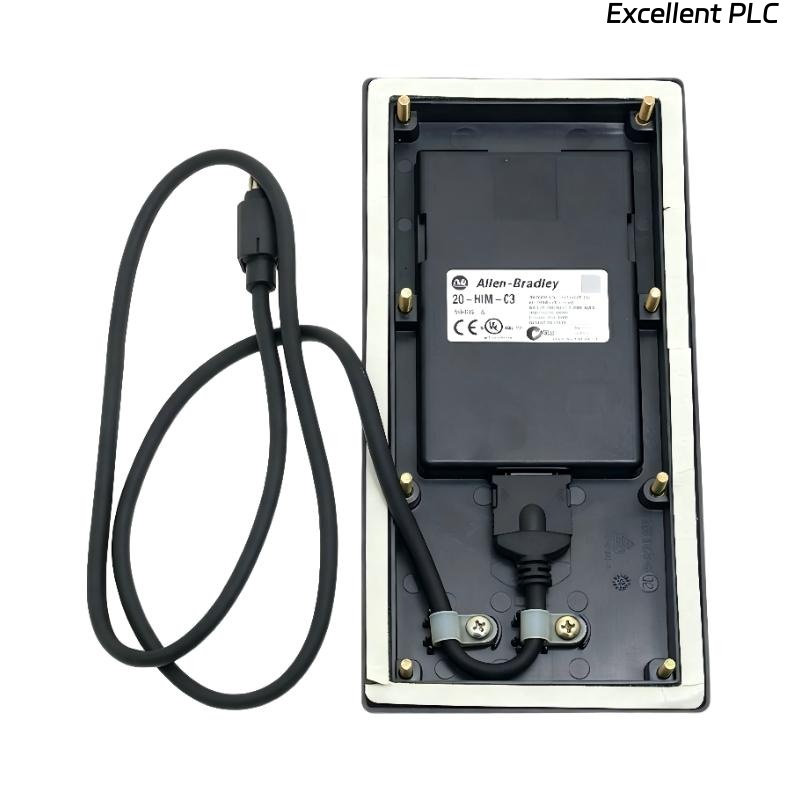

The Allen-Bradley 20-HIM-C3 PowerFlex Human Interface Module is a remote-mounted operator interface designed for PowerFlex drive systems. It provides a full-featured LCD display combined with a numeric keypad, enabling users to configure, monitor, and control drive operations directly from a control panel or cabinet door.
This module is specifically designed for remote installation, allowing operators to interact with the drive without direct access to the drive hardware. It enhances operational convenience and safety by placing the interface at an accessible location on the machine or enclosure.
With a robust enclosure rated at NEMA 4X/12 and IP66, the 20-HIM-C3 is suitable for harsh industrial environments, including areas exposed to dust, moisture, and washdown conditions. Its durable design and intuitive interface make it a reliable solution for both commissioning and ongoing system operation.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 20-HIM-C3 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Type | Human Interface Module (HIM) |
| Display Type | LCD display |
| Keypad Type | Full numeric keypad |
| Mounting Type | Panel / door-mounted |
| Protection Rating | IP66 |
| Enclosure Type | NEMA 4X / 12 |
| Function | Drive configuration, monitoring, control |
| Application Role | Remote operator interface |
| Compatibility | PowerFlex drive systems |
| Dimensions | 180 × 25 × 93 mm |
| Weight | 0.173 kg |
Applications
● Industrial drive control panels
Provides a remote operator interface for PowerFlex drives mounted inside cabinets.
● Harsh environment installations
Suitable for environments requiring IP66 and NEMA 4X/12 protection, including dust and moisture exposure.
● Machine operation and monitoring
Allows operators to view parameters and adjust settings during machine operation.
● System commissioning and diagnostics
Used during setup and troubleshooting for quick access to drive parameters and status.
● Remote drive access applications
Enables interaction with drives located in restricted or enclosed areas.
Advantages
● Full-featured operator interface
Includes a clear LCD display and full numeric keypad for easy parameter entry and monitoring.
● Remote mounting capability
Allows installation on cabinet doors, improving accessibility and operator safety.
● High environmental protection
Rated IP66 and NEMA 4X/12, suitable for harsh industrial conditions.
● Improved operational efficiency
Enables quick access to drive data and settings without opening the enclosure.
● Robust industrial design
Built to withstand demanding environments including dust, moisture, and vibration.
● Easy integration with PowerFlex drives
Designed specifically for seamless compatibility with PowerFlex systems.
FAQ
- What is the primary function of the 20-HIM-C3 module?
It provides a remote interface for configuring, monitoring, and controlling PowerFlex drives using an LCD display and keypad. - Can this module be mounted remotely from the drive?
Yes, it is designed for panel or door mounting, allowing remote operation away from the drive itself. - What type of display does it use?
It uses an LCD display that provides clear visibility of parameters, status, and diagnostics. - Is the keypad suitable for detailed parameter entry?
Yes, the full numeric keypad allows precise input of parameters and easy navigation through menus. - What environments is this module suitable for?
It is suitable for harsh environments due to its IP66 and NEMA 4X/12 protection ratings. - Can it be used in washdown environments?
Yes, its enclosure rating allows use in environments where moisture or cleaning processes are present. - Does it improve system safety?
Yes, by allowing operation without opening the cabinet, it reduces exposure to electrical hazards. - Is it compatible with all PowerFlex drives?
It is compatible with most PowerFlex drives that support HIM interfaces. - What role does it play during maintenance?
It allows technicians to quickly access diagnostics, adjust parameters, and troubleshoot without direct access to the drive. - Does it require additional protection when installed?
No, its built-in enclosure rating provides sufficient protection for most industrial environments.
Related Models
| Model | Description | Key Feature |
|---|---|---|
| 20-HIM-A3 | LCD HIM module | Basic operator interface |
| 20-HIM-A5 | Advanced HIM | Enhanced functionality |
| 20-HIM-C6S | Remote HIM cable module | Extended connectivity |
| 20-HIM-B1 | HIM bezel | Mounting accessory |
| 20-HIM-A6 | HIM module | Wireless capability |
| 20-HIM-ENET | HIM Ethernet module | Network interface |
Popular Models
| Model | Description | Key Feature |
|---|---|---|
| 20F11ND014AA0NNNNN | PowerFlex 753 drive | Industrial motor control |
| 20G11NC072JA0NNNNN | PowerFlex 755 drive | Advanced drive system |
| 1756-L81E | ControlLogix controller | PLC automation platform |
| 1756-EN2T | Ethernet module | Industrial networking |
| 1769-L33ER | CompactLogix controller | Integrated control system |
| 1734-IB8 | POINT I/O module | Compact input module |
