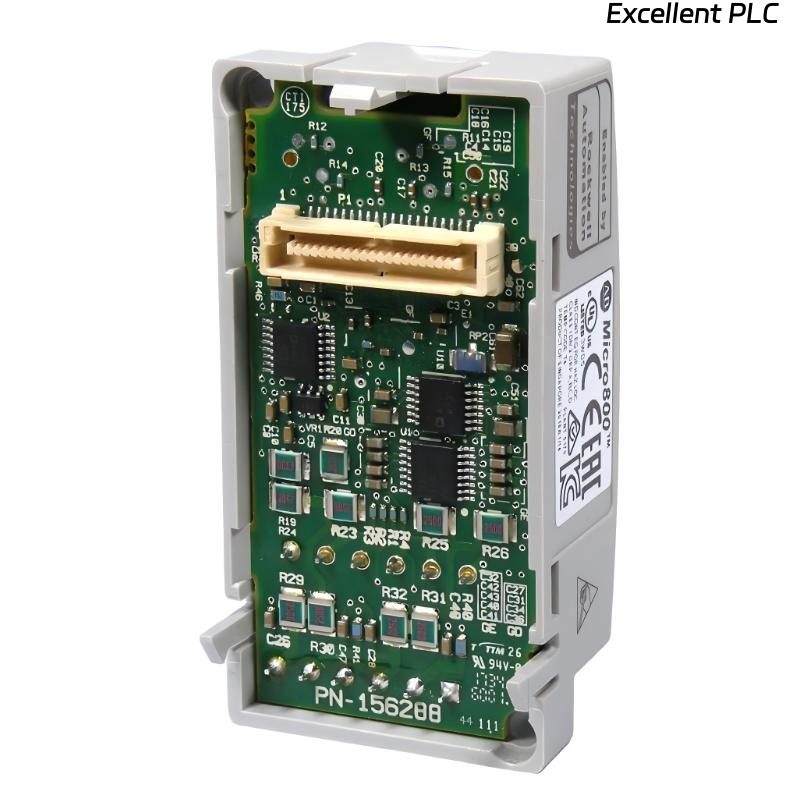

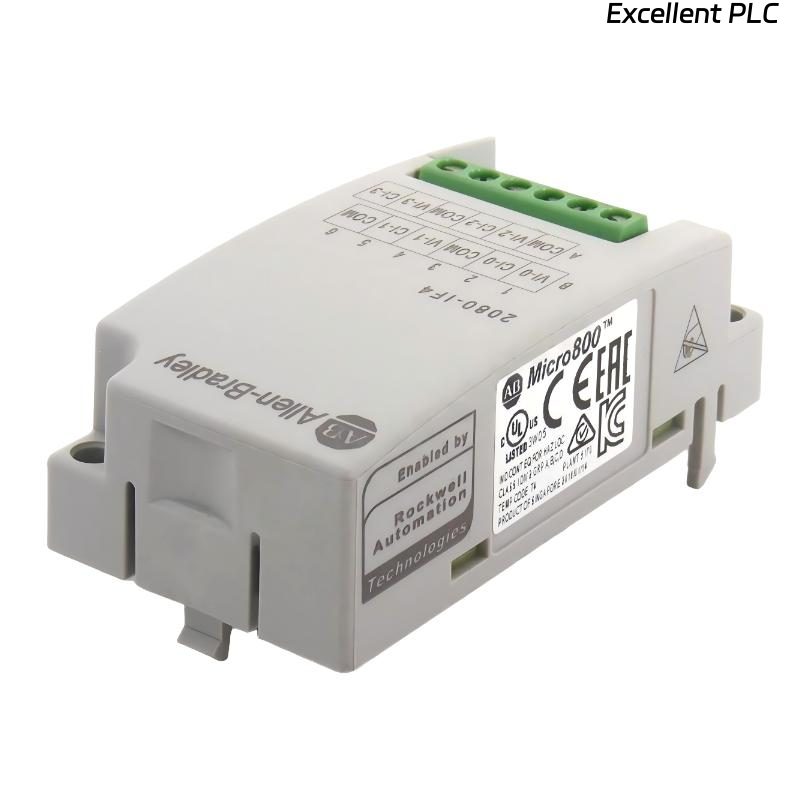

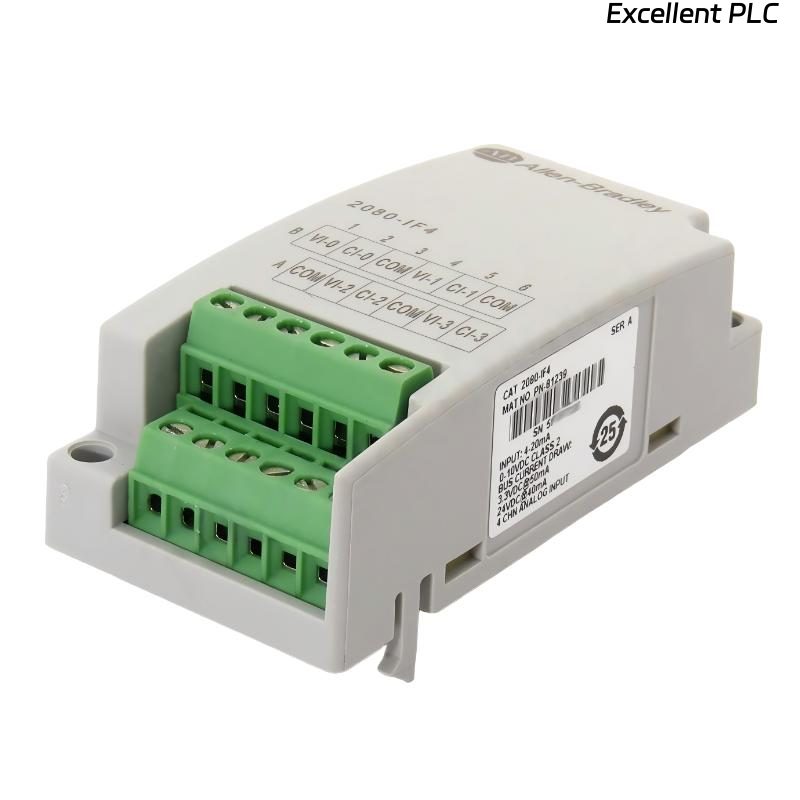

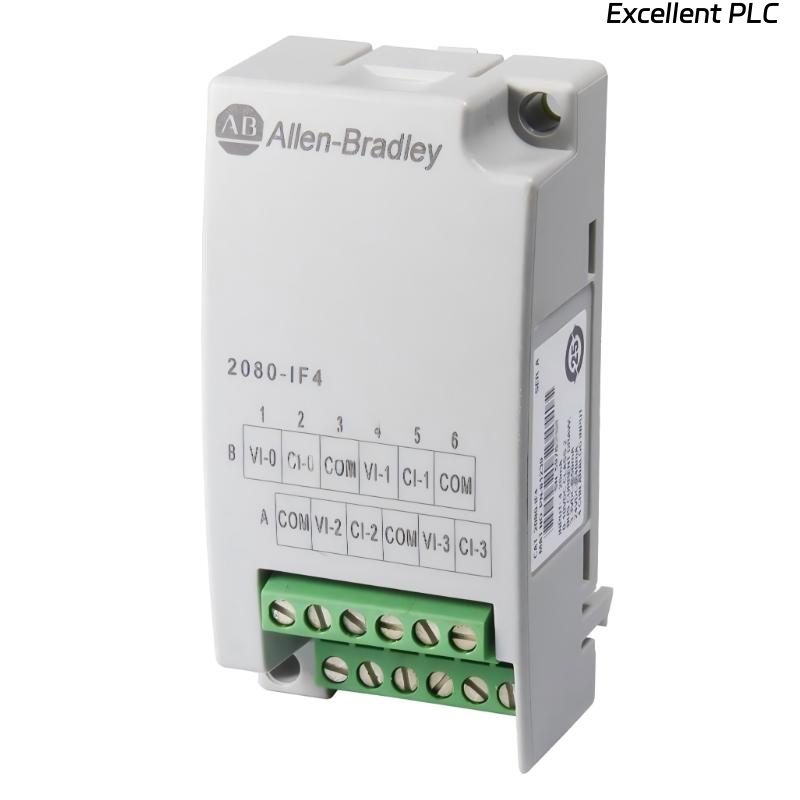

Allen Bradley 2080-IF4 Micro800 4 Channel Current/Voltage Analog Input Module

Product Introduction

The Allen-Bradley 2080-IF4 Micro800 Analog Input Module is a compact and cost-effective expansion module designed for Micro800 series PLC systems. It provides four analog input channels capable of handling both voltage and current signals, making it suitable for small to medium-scale automation applications that require flexible signal acquisition.

This module supports unipolar input ranges of 0–10 V and 0–20 mA, allowing it to interface with a wide range of industrial sensors such as pressure transmitters, flow meters, and level sensors. Its non-isolated design ensures efficient signal processing in applications where isolation is not required.

With its ultra-compact size and lightweight construction, the 2080-IF4 is ideal for installations where panel space is limited. It integrates seamlessly with Micro800 controllers, providing an easy-to-expand solution for analog signal monitoring and control.

---

Product Specifications

---

Applications

• Small automation systems – provides analog input capability for compact PLC setups

• Machine monitoring – collects voltage and current signals from sensors

• OEM equipment – integrates easily into compact machines and control panels

• HVAC systems – monitors temperature, pressure, and flow signals

• Water treatment systems – supports sensor data acquisition for process control

---

Advantages

• Compact and lightweight design ideal for space-constrained installations

• Dual signal support (voltage and current) increases application flexibility

• Four input channels provide efficient signal acquisition in a small footprint

• Seamless Micro800 integration simplifies system expansion

• Reliable industrial performance ensures stable operation in automation environments

• Cost-effective solution for basic analog input requirements

FAQ

1. What is the main function of the 2080-IF4 module?
   It is used to acquire analog voltage and current signals from field devices and convert them into data for Micro800 controllers.
2. How many input channels does this module provide?
   It provides 4 analog input channels.
3. What input signal types are supported?
   It supports unipolar voltage (0–10 V) and current (0–20 mA) signals.
4. Is this module isolated?
   No, it is a non-isolated analog input module.
5. What systems is it compatible with?
   It is designed for use with Allen-Bradley Micro800 PLC systems.
6. Is it suitable for compact installations?
   Yes, its small size makes it ideal for applications with limited panel space.
7. What industries typically use this module?
   It is commonly used in OEM machines, HVAC systems, and small automation applications.
8. Can it handle both voltage and current inputs simultaneously?
   Yes, each channel can be configured to accept either voltage or current signals.
9. Does it require complex configuration?
   No, it is designed for easy integration and configuration within Micro800 systems.
10. Why choose this module for analog input applications?
    Because it offers a compact, flexible, and cost-effective solution for basic analog signal acquisition.
