Product Introduction

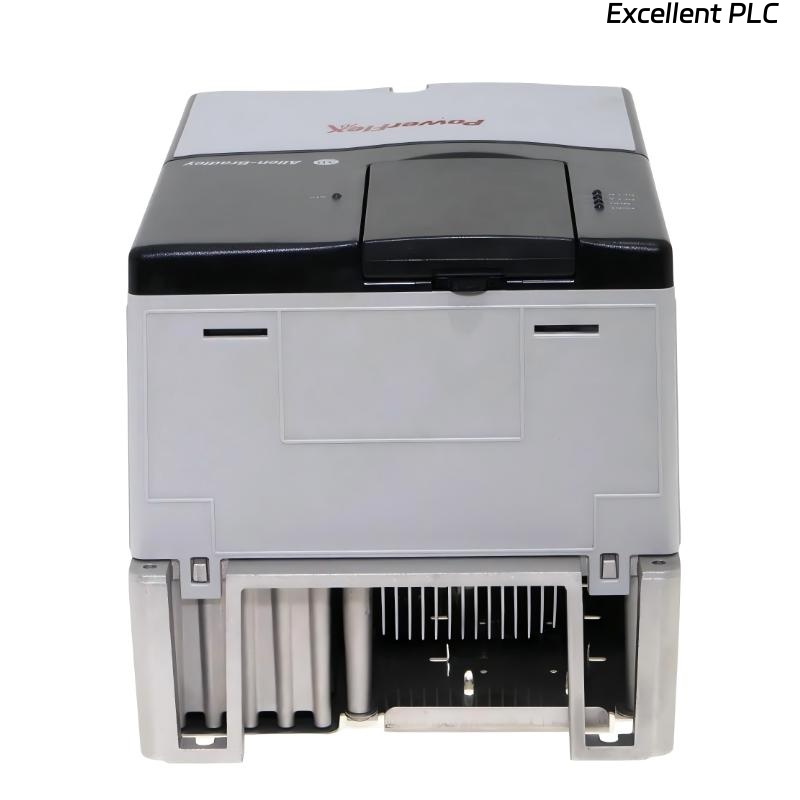

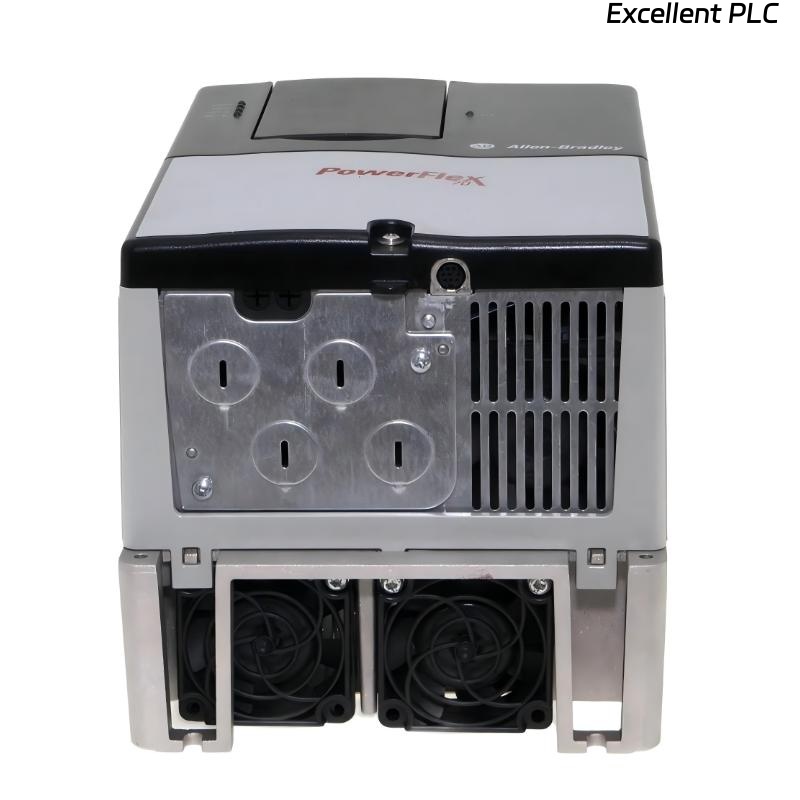

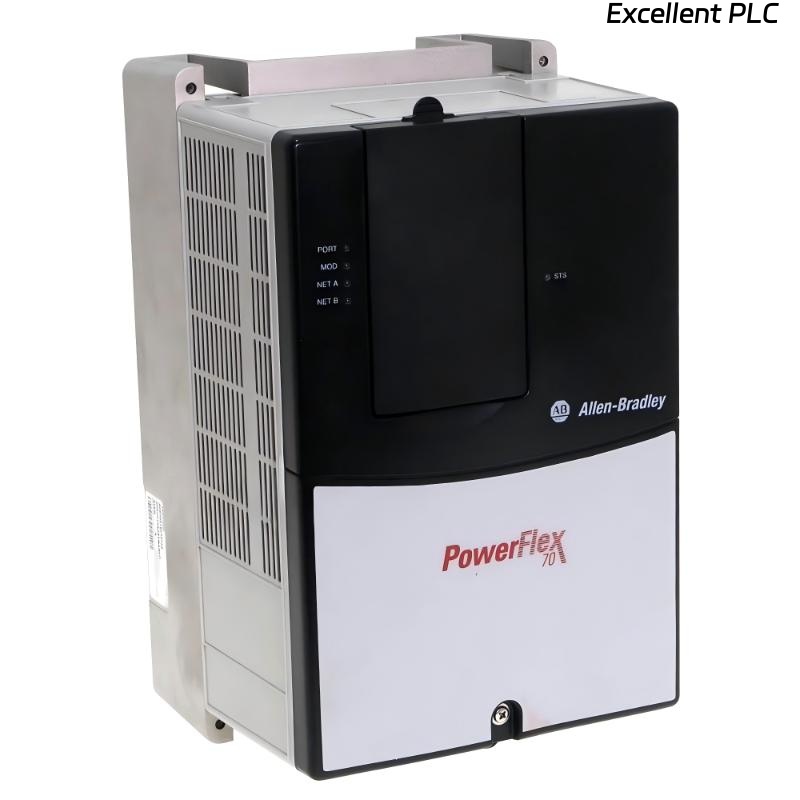

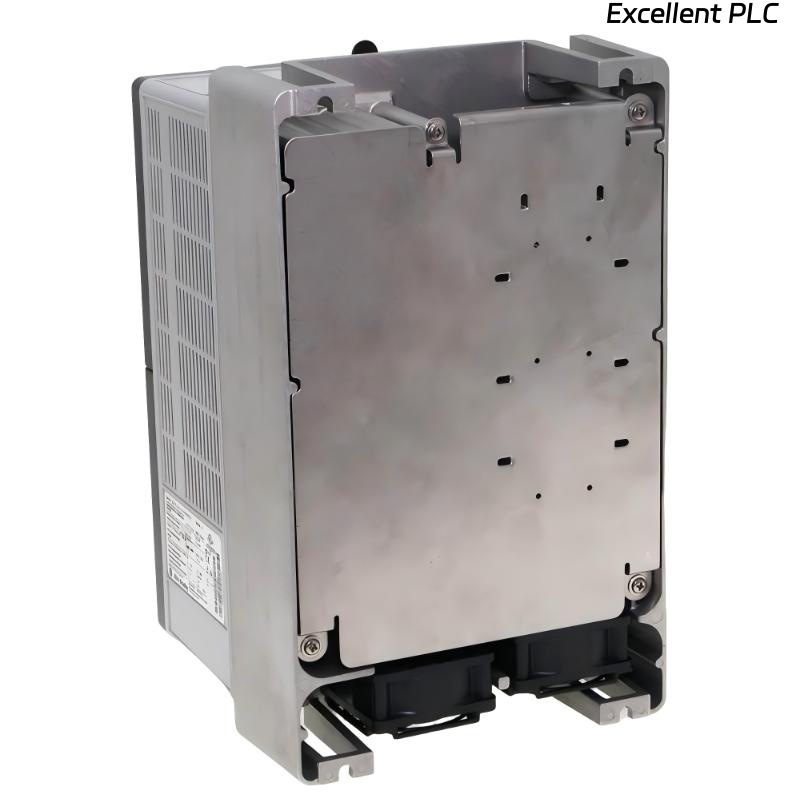

The Allen Bradley 20AC015A0AYNANC0 PowerFlex 70 AC Drive is a high-performance industrial variable frequency drive (VFD) designed for precise control of AC induction motors in demanding automation systems. Part of the PowerFlex 70 series, it provides enhanced motor control capabilities, offering reliable performance in both normal and heavy-duty applications.
This model operates on 400V AC three-phase power with a 15.4 Amp current rating. It delivers 7.5 kW output for normal duty and 5.5 kW for heavy-duty motor applications. The drive is designed for panel-mount installations, featuring IP20/NEMA Type 1 protection, a pre-installed Brake IGBT for stopping control, and compliance with CE EMC directive 89/336/EEC with a second environment filter. It does not include a HIM interface, drive-mounted brake resistor, or communication module, allowing system integrators to configure the drive as needed.
The 20AC015A0AYNANC0 is widely used in industrial machinery, material handling systems, pumps, fans, and factory automation lines where precise speed, torque control, and energy efficiency are critical.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 20AC015A0AYNANC0 |
| Product Type | PowerFlex 70 AC Drive |
| Series | PowerFlex 70 |
| Motor Type | AC Induction Motor |
| Input Voltage | 400V AC |
| Input Phase | 3 Phase |
| Current Rating | 15.4 Amps |
| Horsepower / Power Rating | 7.5 kW Normal Duty / 5.5 kW Heavy Duty |
| Mounting | Panel Mount |
| Protection | IP20 / NEMA Type 1 |
| Brake IGBT | Installed |
| Drive-Mounted Brake Resistor | Not Included |
| HIM (Human Interface Module) | Not Included (Blank Plate) |
| Communication Module | Not Included |
| Enhanced Control | Yes |
| Feedback | None |
| Compliance | CE EMC Directive 89/336/EEC (Second Environment Filter) |
| Dimensions | 300 × 179.8 × 185 mm |
| Weight | 6.89 kg |
Applications
• Industrial Machinery
Controls AC motors for pumps, fans, mixers, and conveyors with precise speed and torque regulation.
• Material Handling Systems
Supports smooth start/stop operation and dynamic load handling in automated systems.
• Packaging and Assembly Lines
Provides reliable motor control for packaging machines, labeling, and automated assembly equipment.
• HVAC Systems
Enables energy-efficient control of large fans and pumps in industrial facilities.
• Factory Automation
Integrates into production lines requiring stable and accurate motor control.
• Energy-Efficient Industrial Systems
Reduces energy consumption while improving process consistency and performance.
Advantages
• Enhanced Motor Control
Offers smooth acceleration, deceleration, and torque regulation for industrial motors.
• Panel-Mount IP20/NEMA Type 1 Design
Compact and easy to integrate into control cabinets.
• Pre-Installed Brake IGBT
Facilitates motor stopping without additional components.
• CE EMC Compliance
Equipped with second environment filter for electromagnetic compatibility.
• High Power Capability
Supports 7.5 kW normal duty and 5.5 kW heavy-duty motor applications.
• Flexible Configuration Options
Compatible with optional communication modules, HIM, and external brake resistors as required.
