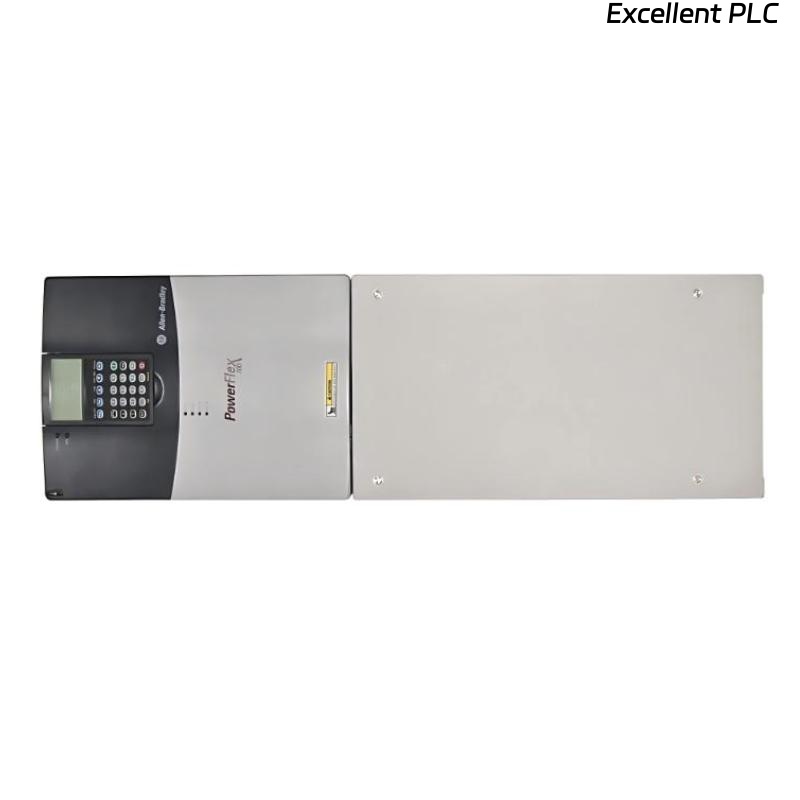

Allen Bradley 20BC085A0AYNANC0 PowerFlex 700 AC Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 20BC085A0AYNANC0 PowerFlex 700 AC Drive is a high-performance variable frequency drive designed for medium-power AC motor control applications. It provides precise speed, torque, and position control for three-phase AC motors while ensuring energy efficiency and system reliability.
The drive incorporates advanced motor control algorithms, configurable I/O, and built-in protection features to support industrial automation processes in manufacturing, material handling, and process control systems. The compact and robust design allows installation in control panels or cabinets with limited space while maintaining accessibility for maintenance and wiring.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 20BC085A0AYNANC0 |
| Product Type | AC Drive / Variable Frequency Drive |
| Voltage Rating | 480 V AC (3-phase) |
| Output Current | 85 A |
| Motor Power Rating | 75 kW (100 HP) |
| Control Type | V/Hz, Sensorless Vector Control |
| Input Frequency | 50/60 Hz |
| Output Frequency | 0–500 Hz |
| I/O Configuration | Built-in discrete and analog I/O |
| Communication | DeviceNet, Ethernet/IP (optional) |
| Protection Features | Overload, overvoltage, undervoltage, short circuit, overtemperature |
| Cooling | Forced air / internal fan |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | −40°C to 85°C |
| Shock Resistance | 15 g, 11 ms |
| Vibration Resistance | 5–9 Hz: 3.5 mm; 9–150 Hz: 0.5 g² |
| Mounting | Wall or panel mount |
| Dimensions | 758.8 × 201.7 × 220 mm |
| Weight | 29.03 kg |
Product Applications
-
Speed control of three-phase induction motors in industrial machinery
-
Conveyor systems, pumps, and fan control
-
Material handling equipment, mixers, and extruders
-
Process automation requiring precise torque and speed regulation
-
Energy-efficient motor operation in continuous or intermittent duty applications
-
Integration into industrial control systems with real-time monitoring and feedback
-
Applications requiring communication with PLCs or SCADA via DeviceNet or Ethernet/IP
Product Advantages
-
Precise Motor Control: Sensorless vector and V/Hz control provide accurate speed and torque regulation.
-
Energy Efficiency: Optimized control algorithms reduce energy consumption during variable load operation.
-
Robust Protection: Comprehensive fault monitoring and protective features safeguard the motor and drive.
-
Flexible Connectivity: Supports multiple industrial communication protocols for integration with automation systems.
-
Compact Design: Space-saving form factor for installation in control panels or cabinets.
-
Easy Configuration: User-friendly programming and setup via integrated keypad or software tools.
-
Reliable Operation: Designed to withstand industrial temperature, vibration, and shock conditions.
FAQ
-
What types of motors can be controlled by this AC drive?
Three-phase induction motors rated for 480 V AC. -
What control methods does the drive support?
It supports V/Hz control and sensorless vector control for precise speed and torque regulation. -
Can the drive communicate with industrial automation systems?
Yes, it supports DeviceNet and Ethernet/IP protocols for integration with PLCs and SCADA systems. -
Does the drive provide protection against electrical faults?
Yes, it includes overvoltage, undervoltage, overload, overtemperature, and short-circuit protection. -
What is the operating temperature range?
The drive operates reliably between 0°C and 50°C. -
Is the drive suitable for heavy industrial vibration and shock conditions?
Yes, it is rated to withstand shock up to 15 g and vibration as specified for industrial environments. -
Can output frequency be adjusted?
Yes, output frequency can be varied continuously from 0 to 500 Hz depending on motor and application requirements. -
What type of cooling does the drive use?
Forced-air cooling with an internal fan. -
Does the drive support energy-saving features?
Yes, the drive uses optimized control algorithms to minimize energy consumption under variable load conditions. -
Can multiple drives be networked together?
Yes, drives can be integrated into a networked control system using DeviceNet or Ethernet/IP for coordinated control.
Recommended Related Models (Same Series or Function)
| Model | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 20BC050A0AYNANC0 | PowerFlex 700 AC Drive, 50 A | 500 × 180 × 200 | 18 |
| 20BC065A0AYNANC0 | PowerFlex 700 AC Drive, 65 A | 600 × 180 × 200 | 22 |
| 20BC100A0AYNANC0 | PowerFlex 700 AC Drive, 100 A | 800 × 220 × 230 | 32 |
| 20BC150A0AYNANC0 | PowerFlex 700 AC Drive, 150 A | 950 × 250 × 260 | 45 |
| 20BC200A0AYNANC0 | PowerFlex 700 AC Drive, 200 A | 1100 × 280 × 280 | 60 |
| 20BC300A0AYNANC0 | PowerFlex 700 AC Drive, 300 A | 1350 × 300 × 300 | 85 |
Popular Allen-Bradley Models (Same Brand)
| Model | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 20BC025A0AYNANC0 | PowerFlex 700 AC Drive, 25 A | 400 × 180 × 180 | 12 |
| 20BC075A0AYNANC0 | PowerFlex 700 AC Drive, 75 A | 650 × 200 × 210 | 24 |
| 20BC120A0AYNANC0 | PowerFlex 700 AC Drive, 120 A | 850 × 220 × 230 | 35 |
| 20BC175A0AYNANC0 | PowerFlex 700 AC Drive, 175 A | 1000 × 250 × 260 | 50 |
| 20BC250A0AYNANC0 | PowerFlex 700 AC Drive, 250 A | 1200 × 280 × 280 | 70 |
| 20BC350A0AYNANC0 | PowerFlex 700 AC Drive, 350 A | 1400 × 300 × 300 | 95 |
