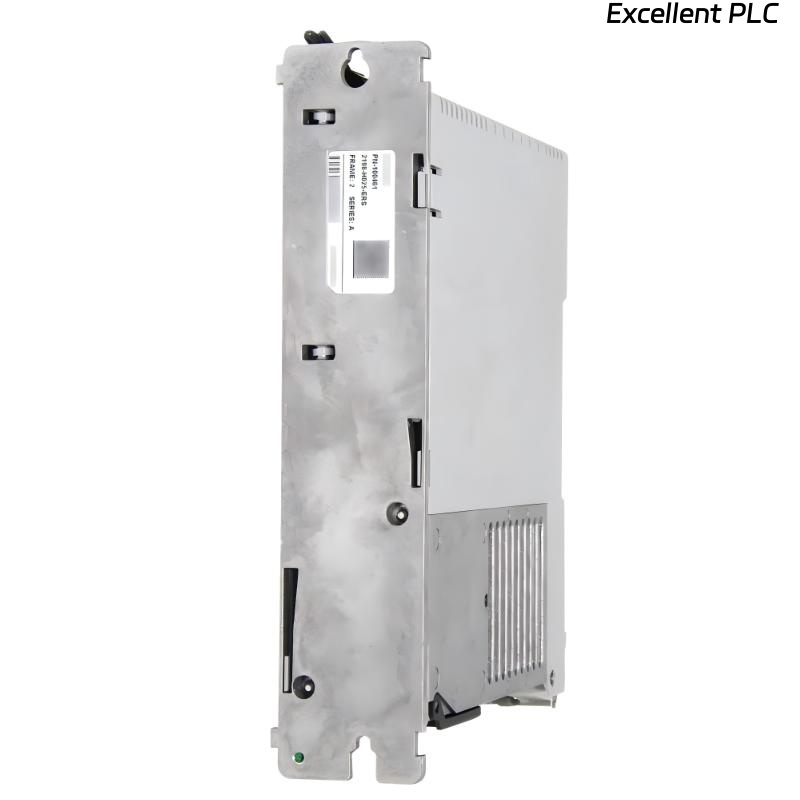

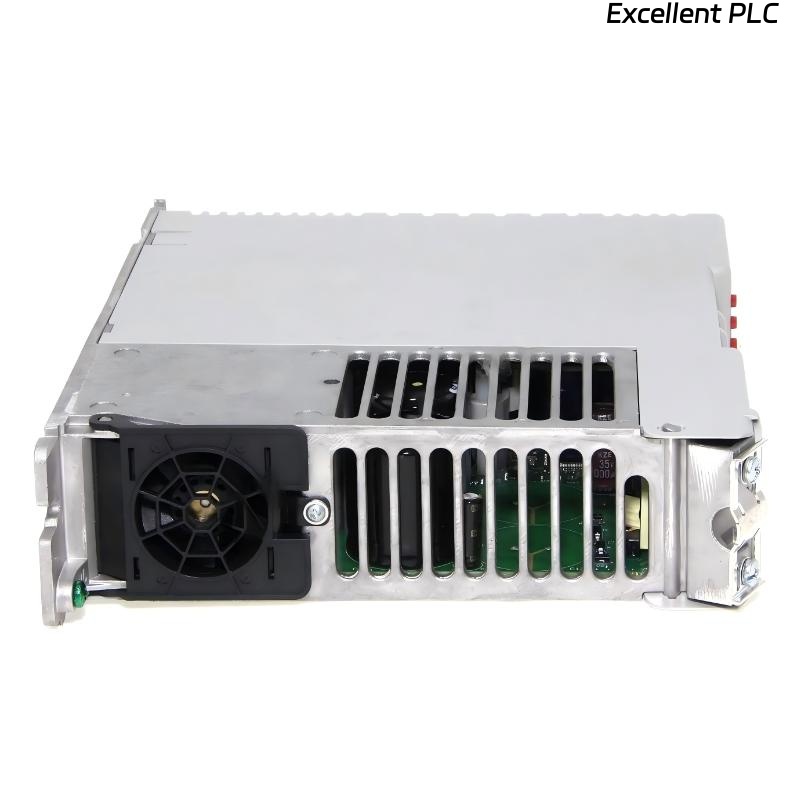

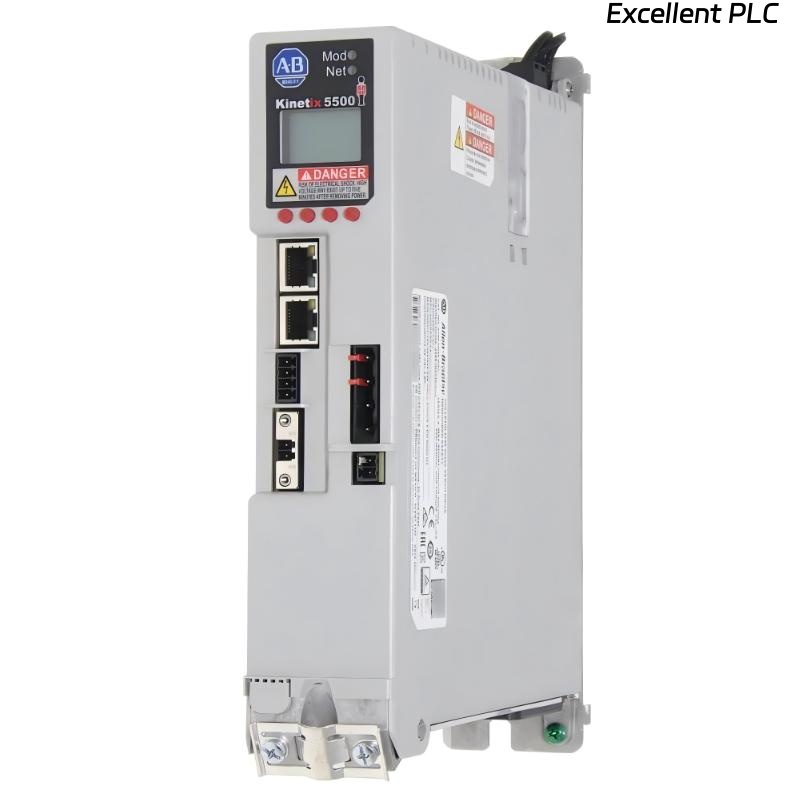

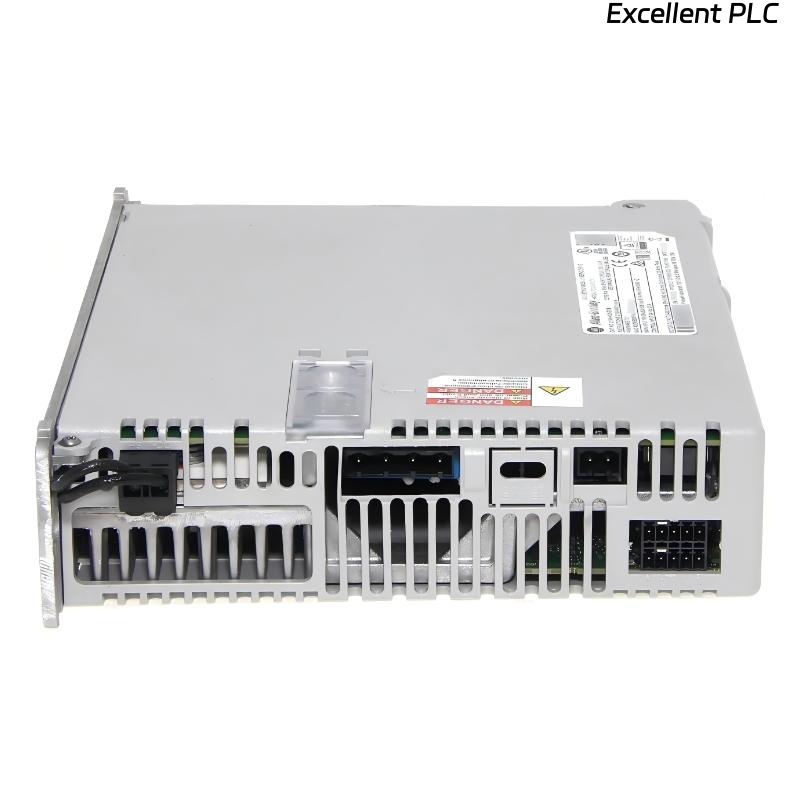

Allen Bradley 2198-H025-ERS Kinetix 5500 Servo Drive

Product Introduction

The Allen Bradley 2198-H025-ERS Kinetix 5500 Servo Drive is a high-performance industrial servo drive engineered for precise motion control in demanding automation systems. Part of the Kinetix 5500 series, it delivers accurate speed, torque, and positioning control for single-axis applications, making it ideal for factory automation, packaging, and process machinery.

The drive operates on a 3-phase voltage range of 195–528 VAC, providing peak and continuous current suitable for medium-power servo motors. Its open-style design allows flexible installation in industrial panels or enclosures, while its advanced features ensure smooth and repeatable motion control.

This model is particularly suited for conveyors, robotic pick-and-place systems, and material handling machinery, where precision, speed, and reliability are essential.

---

Product Specifications

---

Applications

• Single-Axis Motion Control
Provides high-precision positioning and speed regulation for servo-driven machinery.

• Factory Automation
Controls conveyors, robotic pick-and-place systems, and automated assembly lines.

• Packaging Machinery
Ensures smooth and accurate motion for filling, labeling, and sealing operations.

• Material Handling Systems
Integrates with high-speed conveyors and robotic systems requiring repeatable accuracy.

• Process Equipment
Ideal for motors requiring fast dynamic response and precise torque control.

• Medium-Power Servo Applications
Designed for servo motors with peak currents up to 20 Amps in industrial environments.

---

Advantages

• High-Performance Servo Control
Supports fast and precise motion for demanding automation tasks.

• Wide Input Voltage Range
Operates on 195–528 VAC, suitable for diverse industrial power environments.

• Open Style Design
Provides flexible installation options in panels or enclosures.

• Kinetix 5500 Integration
Fully compatible with Kinetix 5500 motion control systems for streamlined setup.

• Accurate Torque and Speed Control
Ensures repeatable, smooth motion in industrial machinery.

FAQ

1. What is the peak current rating of this drive?
   It supports a peak current of 20 Amps for medium-power servo motors.
2. What is the continuous current rating?
   Continuous current is rated at 11.3 Amps.
3. Does this drive support single-axis applications?
   Yes, it is designed for precise single-axis motion control.
4. Is it compatible with Kinetix 5500 systems?
   Yes, it integrates fully with the Kinetix 5500 series.
5. Does this drive include feedback support?
   Yes, servo motor feedback is required via encoders for closed-loop control.
6. What types of motors can it control?
   AC servo motors requiring high dynamic response and precise torque.
7. Is it suitable for high-speed motion applications?
   Yes, it delivers fast and accurate motion for industrial automation tasks.
8. Does it include a Human Interface Module (HIM)?
   No, this drive does not include a HIM; configuration is done through the motion controller.
9. Can it be used in material handling systems?
   Yes, it is suitable for conveyors, robotic pick-and-place, and other high-precision handling systems.
10. Does this drive provide torque control?
    Yes, it provides accurate torque and speed regulation for servo motors.
