Product Introduction

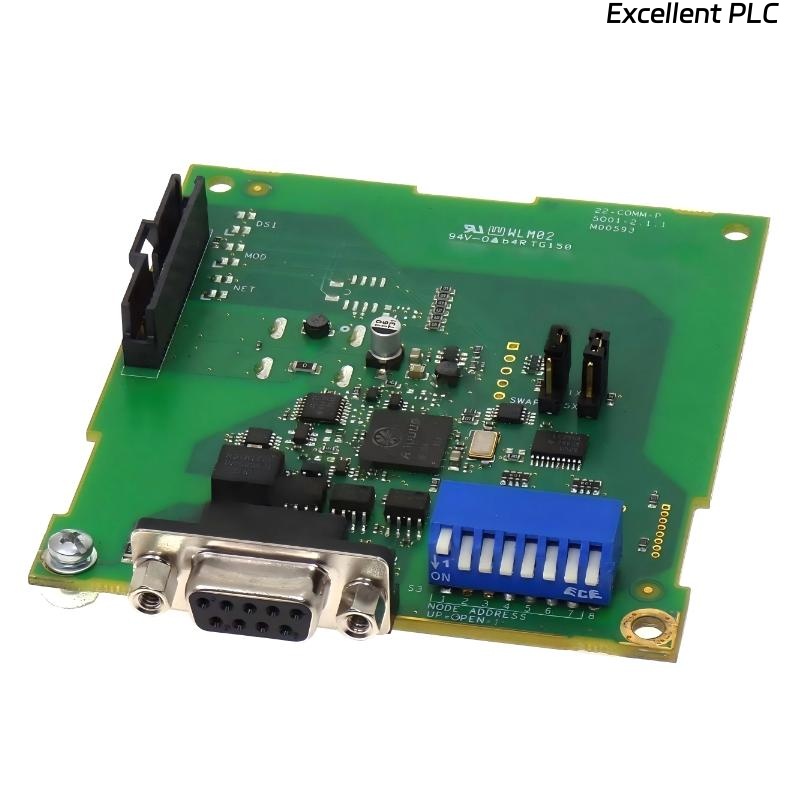

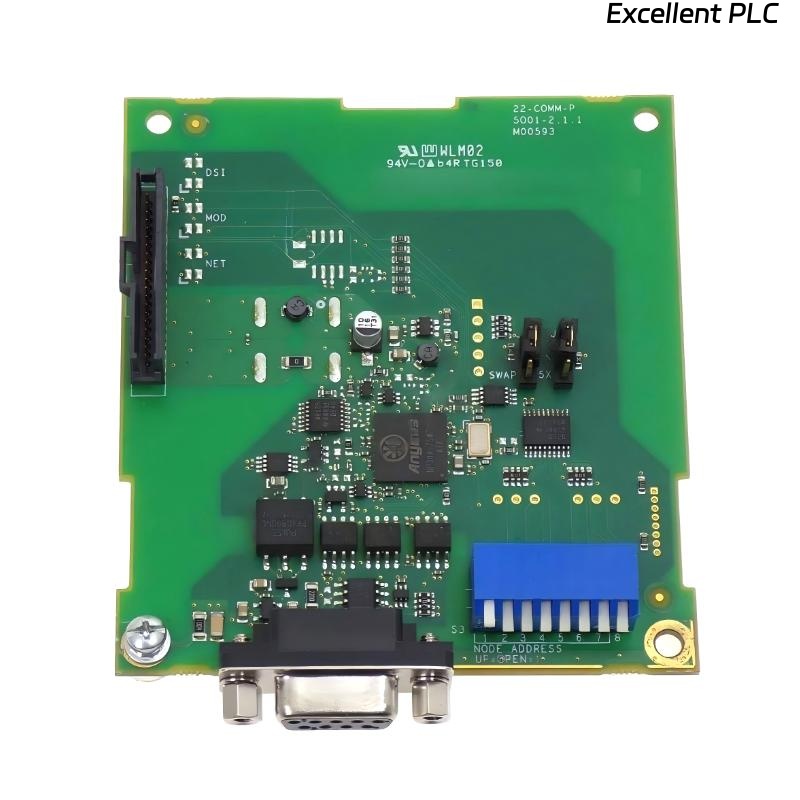

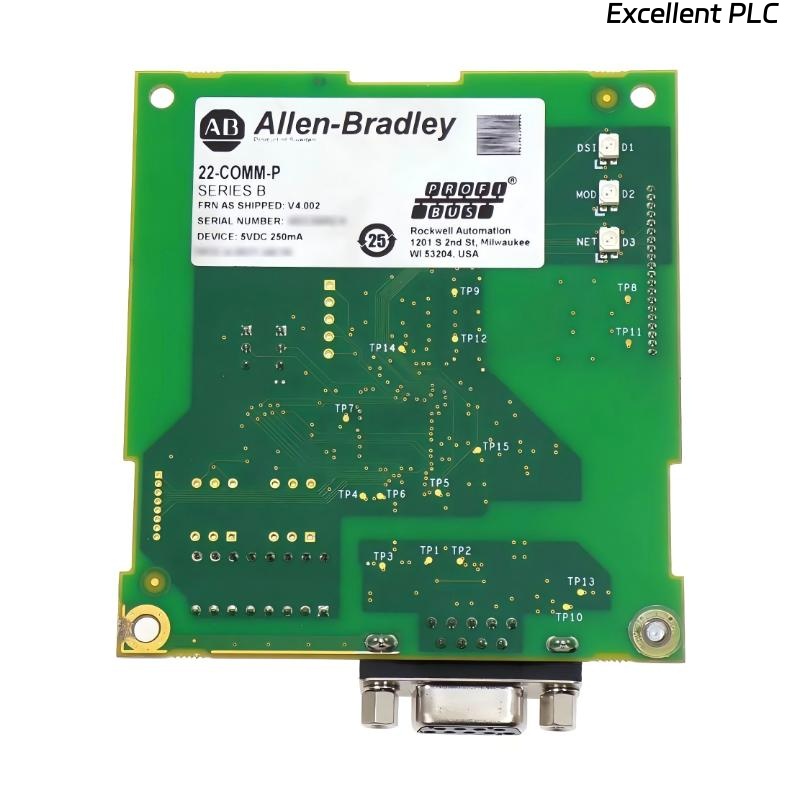

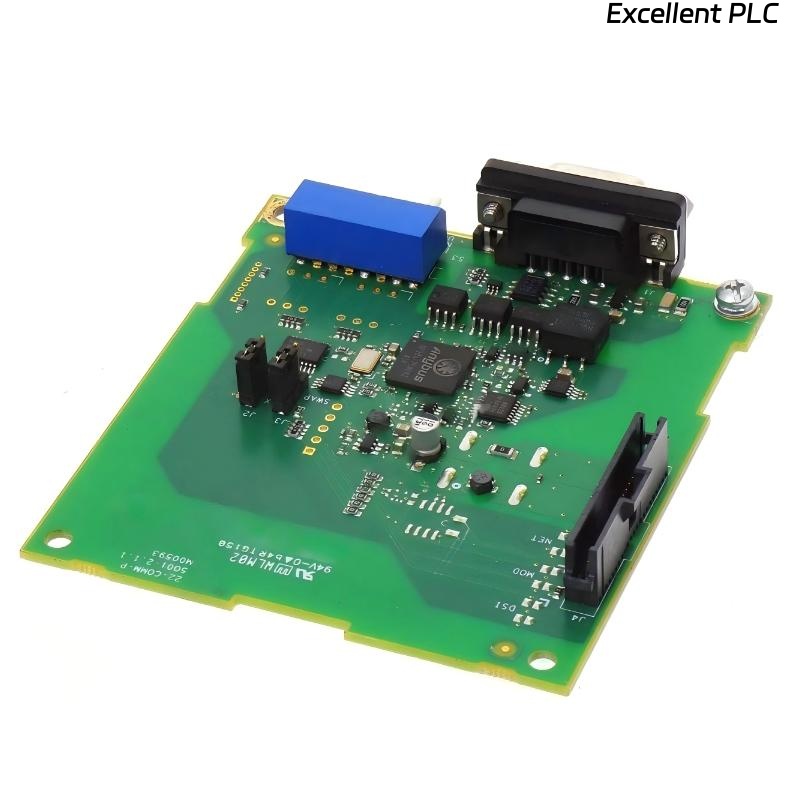

The Allen-Bradley 22-COMM-P PowerFlex Profibus Communication Adapter is a dedicated interface module designed to integrate PowerFlex drive systems into Profibus DP industrial networks. It provides a reliable communication bridge between the drive’s internal DPI (Drive Peripheral Interface) and the Profibus fieldbus standard, enabling seamless control and monitoring from a PLC or supervisory system.
This adapter is widely used in industrial automation environments where Profibus is the established communication backbone. It allows PowerFlex drives to operate as networked nodes within a Profibus DP system, supporting centralized control, diagnostics, and parameter management.
Compact and efficient in design, the 22-COMM-P mounts directly onto compatible PowerFlex drives and operates with a low-power 5 VDC supply. It is engineered for stable performance in continuous industrial operation.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 22-COMM-P |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Type | Profibus communication adapter |
| Compatible Systems | PowerFlex drives |
| Communication Protocol | DPI to Profibus DP |
| Network Type | Profibus DP |
| Supply Voltage | 5 VDC |
| Current Consumption | 150 mA |
| Function | Drive communication interface |
| Mounting Type | Drive-mounted adapter |
| Application Role | Industrial network integration |
| Dimensions | 86 × 19 × 78.5 mm |
| Weight | 0.057 kg |
Applications
● Profibus-based automation systems
Enables PowerFlex drives to integrate into Profibus DP industrial networks for centralized control.
● Manufacturing control systems
Used in production environments requiring stable and deterministic fieldbus communication.
● Process automation systems
Supports continuous process industries where reliable communication is essential.
● Drive network integration
Allows multiple drives to operate as part of a coordinated Profibus network.
● System upgrades and retrofits
Provides a communication solution for integrating PowerFlex drives into existing Profibus infrastructure.
Advantages
● Reliable Profibus communication
Ensures stable and deterministic data exchange in industrial environments.
● Simple drive integration
Directly mounts onto PowerFlex drives for quick and easy installation.
● Low power consumption
Operates efficiently at 5 VDC and 150 mA, minimizing energy usage.
● Wide system compatibility
Supports integration of PowerFlex drives into established Profibus networks.
● Compact design
Small form factor reduces cabinet space requirements.
● Stable industrial performance
Designed for continuous operation in demanding automation applications.
