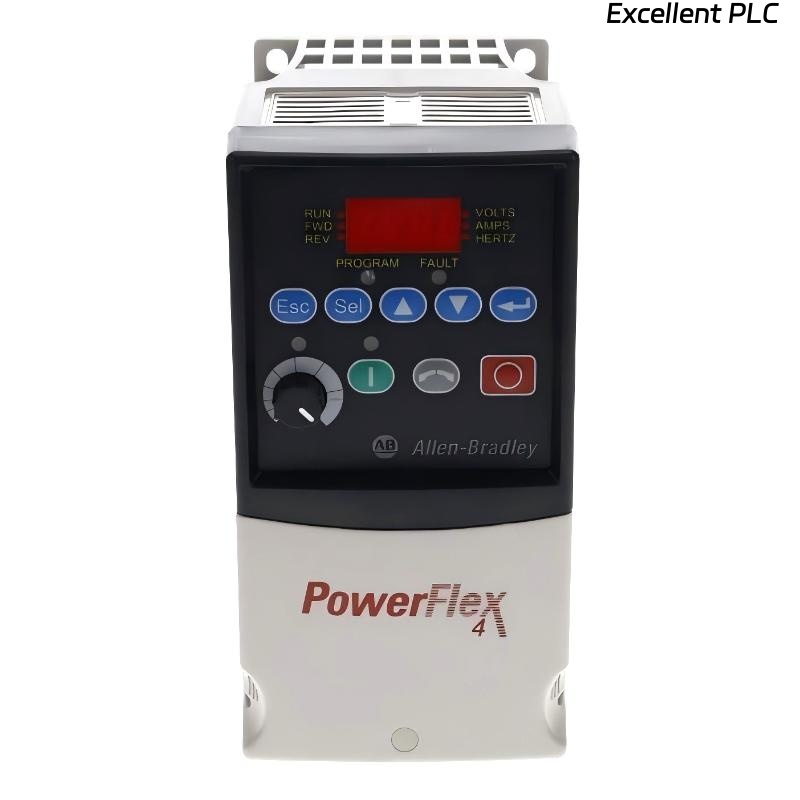

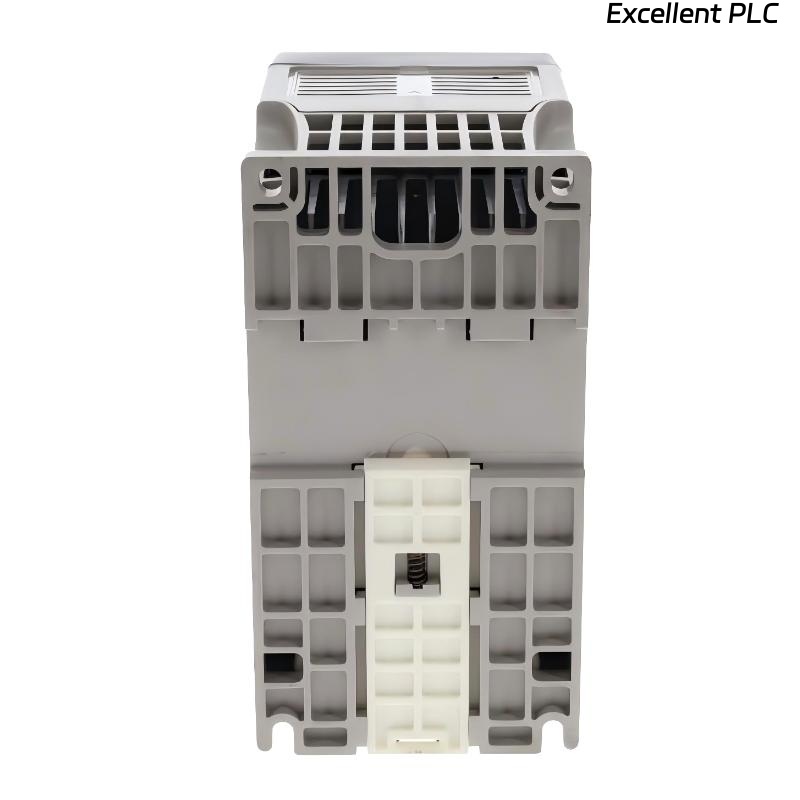

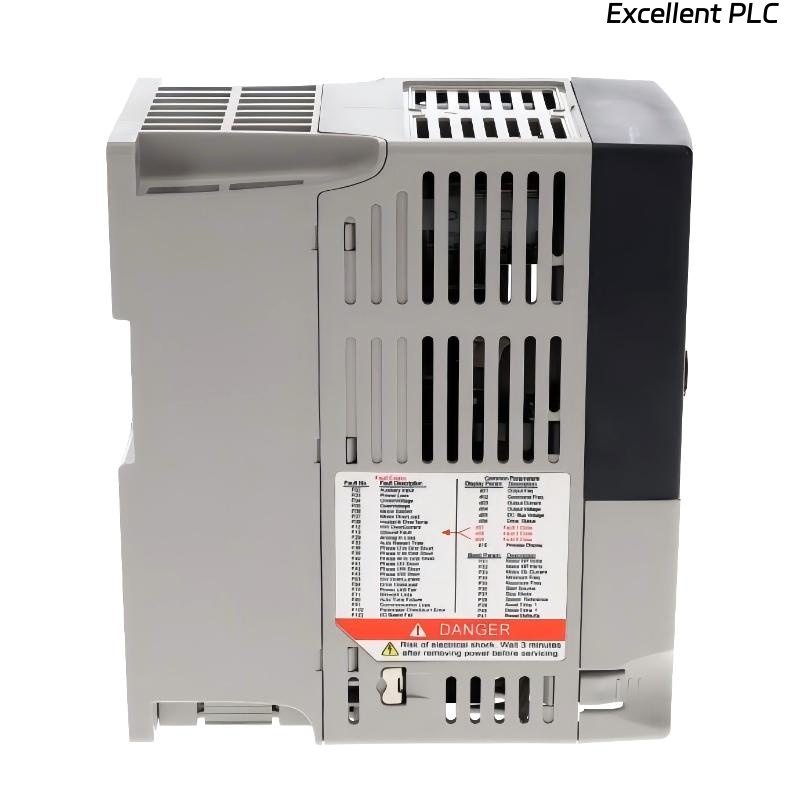

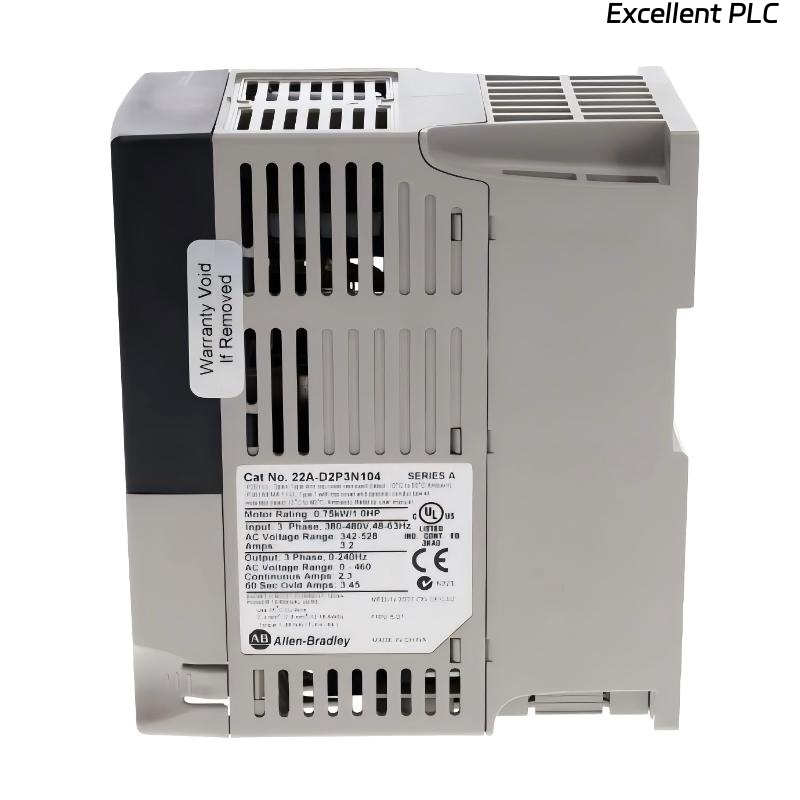

Allen Bradley 22A-D2P3N104 PowerFlex 4 AC Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 22A-D2P3N104 PowerFlex 4 AC Drive is a compact, reliable solution designed for controlling the speed and torque of single or three-phase AC motors in a wide variety of industrial applications. Featuring a user-friendly LED display and fixed digital keypad, this drive simplifies motor setup and operation while providing robust performance for demanding environments. With panel-mount capability and IP20 protection, it is ideal for control panels and machine-level integration. This model supports 480 VAC three-phase input, delivering 0.75 kW/1 HP output, making it suitable for smaller motors in material handling, packaging, and light industrial systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 480 VAC, 3 Phase |
| Output Current | 2.3 A |
| Output Power | 0.75 kW / 1 HP |
| Control Type | V/Hz Control, Open Loop |
| Display | LED Display, Fixed Digital Keypad |
| Mounting Type | Panel Mount |
| Environmental Rating | IP20, NEMA Type Open |
| Protection | Overload, Overvoltage, Undervoltage, Short-Circuit Protection |
| Communication | None / Local Programming via Keypad |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–70°C |
| Certifications | UL, CE |
| Dimensions | 152 × 80 × 136 mm |
| Weight | 1.4 kg |
Applications
• Material Handling: Efficiently controls conveyor belts, pumps, and small hoists for precise speed adjustment.
• Packaging Machines: Maintains smooth operation and energy efficiency in automated packing lines.
• HVAC Systems: Provides reliable fan and pump control while reducing energy consumption.
• Light Industrial Machinery: Ideal for small lathes, drills, mixers, and other machines requiring compact AC drive solutions.
• Water Treatment Plants: Controls pump speeds for consistent flow and energy optimization.
Advantages
• Compact Design: Saves valuable panel space without sacrificing functionality.
• Energy Efficiency: Reduces motor energy consumption through precise speed control.
• Easy Setup: LED display with digital keypad allows fast configuration and monitoring.
• Robust Protection: Built-in overload, overvoltage, and short-circuit protection enhance reliability.
• Flexible Installation: Panel-mount design supports a wide range of industrial equipment layouts.
• Maintenance-Friendly: Simplifies diagnostics and troubleshooting through clear display indicators.
FAQ
- What type of motor is compatible with this drive?
It supports standard three-phase AC induction motors with compatible voltage and current ratings. Single-phase motors are not recommended. - Can the drive handle frequent start-stop cycles?
Yes, the PowerFlex 4 is designed for intermittent and continuous duty cycles, allowing frequent start-stops without significant wear. - Does it offer dynamic braking?
This specific model does not include built-in dynamic braking; external braking resistors may be required for high-inertia loads. - How is the motor speed controlled?
Motor speed is controlled using a V/Hz open-loop control strategy via the keypad or digital inputs. - Is remote communication available?
The 22A-D2P3N104 does not include native network communication; control must be local or via hardwired digital/analog signals. - What protections are provided for the motor?
It includes overload, overvoltage, undervoltage, and short-circuit protection to prevent motor and drive damage. - Can it operate in harsh environments?
It has an IP20 rating suitable for indoor control panels but requires additional enclosure protection for dusty or wet environments. - Is it compatible with regenerative loads?
No, it is intended for standard loads; regenerative energy must be dissipated externally. - How is the drive configured?
Configuration is done through the built-in LED display and fixed digital keypad without needing external software. - Can multiple drives be synchronized?
Synchronization must be achieved externally through the process control system; the drive itself does not include multi-drive synchronization functions.
Related Models
| Model | Output Power | Voltage | Features |
|---|---|---|---|
| 22A-D2P3N101 | 0.37 kW / 0.5 HP | 480 VAC | Panel Mount, LED Display |
| 22A-D2P3N102 | 0.55 kW / 0.75 HP | 480 VAC | LED Display, IP20 |
| 22A-D2P3N103 | 0.75 kW / 1 HP | 480 VAC | Fixed Keypad, Panel Mount |
| 22A-D2P3N105 | 1.5 kW / 2 HP | 480 VAC | Advanced Protection |
| 22A-D2P3N106 | 2.2 kW / 3 HP | 480 VAC | IP20, LED Display |
| 22A-D2P3N107 | 3.0 kW / 4 HP | 480 VAC | Digital Keypad, Panel Mount |
Popular Models
| Model | Output Power | Voltage | Features |
|---|---|---|---|
| 22A-D2P3N104 | 0.75 kW / 1 HP | 480 VAC | Panel Mount, LED Display |
| 22A-D4P0N104 | 0.75 kW / 480 VAC | Panel Mount, IP20 | |
| 22A-D2P3N101 | 0.37 kW / 0.5 HP | 480 VAC | Compact Design |
| 22A-D2P3N103 | 0.75 kW / 1 HP | 480 VAC | Fixed Keypad |
| 22A-D4P0N106 | 2.2 kW / 3 HP | 480 VAC | Energy Efficient |
| 22A-D4P0N107 | 3 kW / 480 VAC | Panel Mount, LED Display |
