Product Introduction

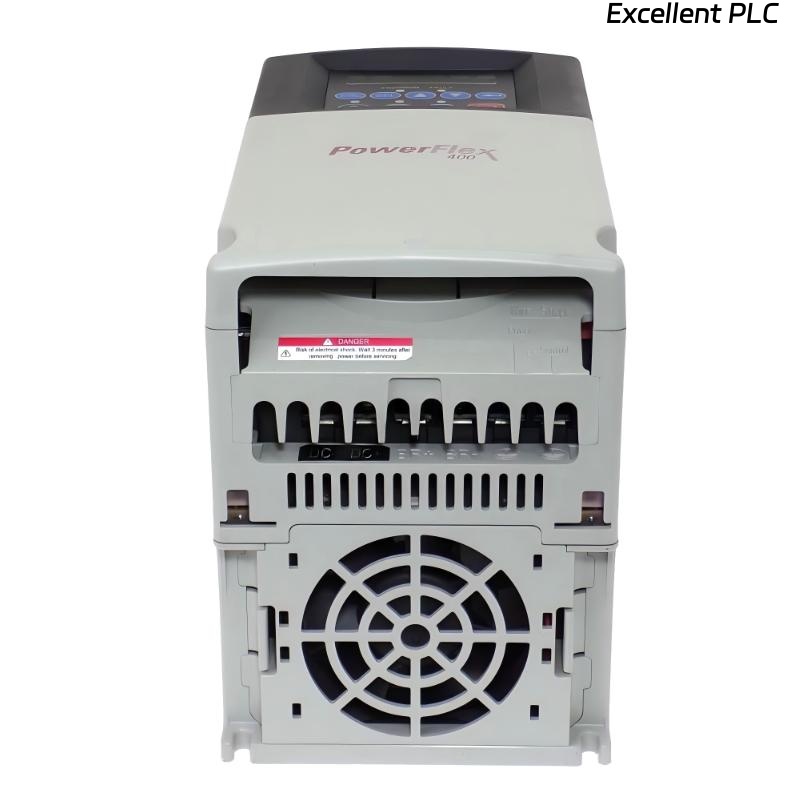

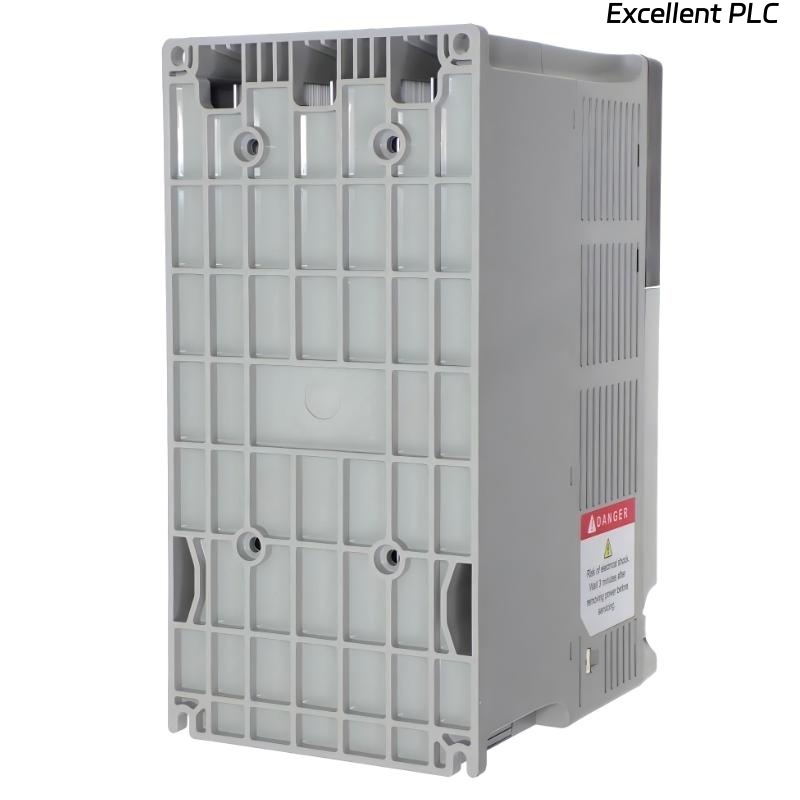

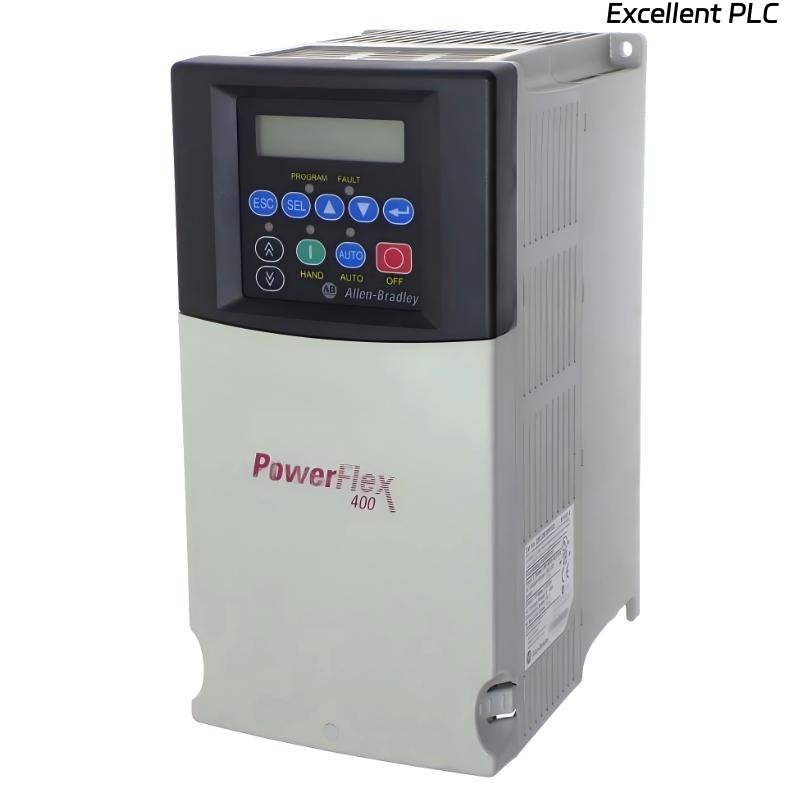

The Allen-Bradley 22C-D010N103 PowerFlex 400 AC Drive is a dedicated variable frequency drive designed primarily for HVAC and general-purpose motor control applications. As part of the PowerFlex 400 series, it focuses on simplicity, reliability, and application-oriented functionality, making it particularly suitable for fan and pump systems in commercial and industrial environments.
This model operates on a 480 VAC three-phase supply and is rated for 5 HP motor loads. It provides stable speed regulation with optimized control characteristics for variable torque applications. The drive is designed to support efficient motor operation with minimal configuration effort, making it suitable for standardized HVAC installations.
Equipped with a fixed keypad and LED interface, the unit allows straightforward local operation and parameter adjustment. Its RS485 communication capability supports integration into building management systems and industrial control networks. The IP20 open-type enclosure is intended for installation inside a protective control cabinet, ensuring safe and structured deployment.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 22C-D010N103 |
| Series | PowerFlex 400 |
| Input Voltage | 480 VAC |
| Phase | 3-Phase |
| Output Current | 10.5 A |
| Power Rating | 4 kW / 5 HP |
| Frame Size | C |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (Open Type) |
| Display Type | LED Display |
| Keypad | Fixed Keypad |
| Communication | RS485 |
| Filter | Not Filtered |
| Control Method | V/Hz Control |
| Application Type | Variable Torque (HVAC Focus) |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 260 × 130 × 180 mm |
| Weight | 4.33 kg |
Applications
● HVAC Fan Systems
Provides precise airflow regulation, improving comfort control and reducing energy consumption in ventilation systems.
● Pump Control Systems
Enables stable water and fluid flow management, optimizing system efficiency in heating and cooling circuits.
● Air Handling Units (AHU)
Supports variable speed operation, ensuring balanced air distribution in large buildings.
● Cooling Tower Fans
Maintains consistent fan speed control, improving thermal management efficiency.
● Building Automation Systems
Integrates into centralized control systems for coordinated HVAC operation.
● General Variable Torque Applications
Suitable for light industrial and commercial systems requiring reliable motor speed adjustment.
Advantages
● HVAC-Oriented Design
Optimized specifically for fan and pump applications, ensuring efficient variable torque performance.
● Simple Configuration Structure
The fixed keypad interface allows quick setup without complex programming requirements.
● Stable Speed Control
Provides smooth and consistent motor operation, especially under variable load conditions.
● System Integration Capability
Built-in RS485 communication enables connection to building management and automation systems.
● Reliable Industrial Operation
Designed for continuous-duty performance in HVAC environments.
● Compact Panel Installation
The Frame Size C design supports efficient installation inside standard control cabinets.
