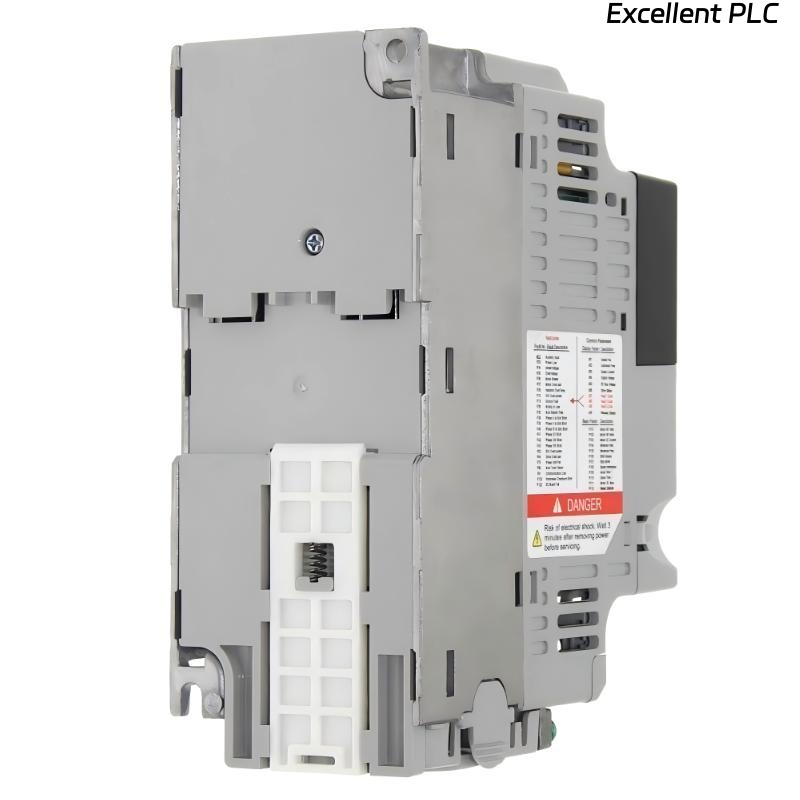

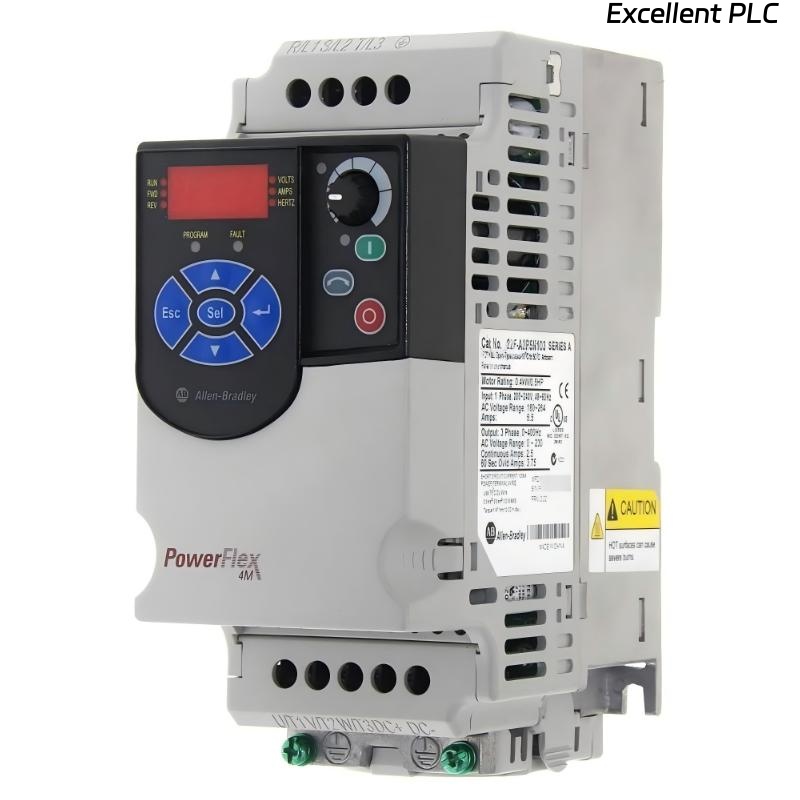

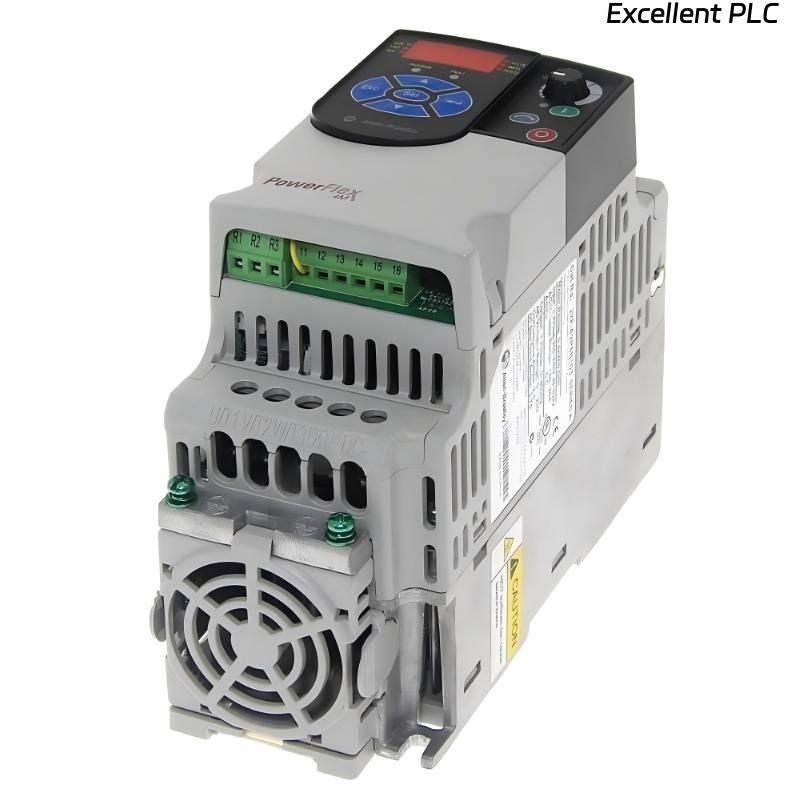

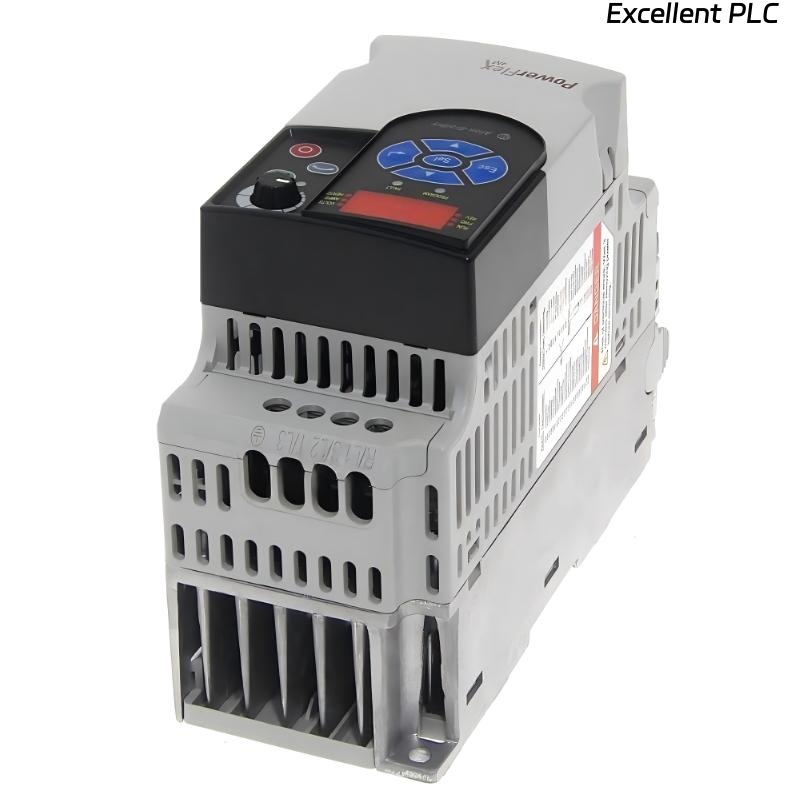

Allen Bradley 22F-A2P5N103 PowerFlex 4M AC Drive

Product Introduction

The Allen Bradley 22F-A2P5N103 PowerFlex 4M AC Drive is a compact, low-power drive designed to control single-phase AC motors with precision and reliability. It provides 0.37 kW / 0.5 HP output at 240V AC and 2.5 amps, making it ideal for small industrial machinery, fans, pumps, and other light-duty applications.

This drive features a Frame Size A and IP20 (open) protection, allowing easy integration into control panels or small enclosures. The LED display with a fixed digital keypad provides straightforward operation and monitoring of the drive without requiring additional software. This model does not include a CE compliant filter or a brake drive, making it a standard solution for simple single-phase motor control applications.

With its compact design and robust protections, the 22F-A2P5N103 is suitable for applications that require reliable operation, energy efficiency, and basic speed control in a lightweight, easy-to-install package.

---

Product Specifications

---

Applications

• Small Industrial Machinery: Controls small mixers, pumps, and light machines requiring precise speed adjustment.

• Fans and HVAC Systems: Provides energy-efficient speed control for small fans and ventilation equipment.

• Conveyors and Material Handling: Suitable for small conveyors and light-duty transfer systems.

• Packaging Equipment: Ensures smooth operation for compact automated packaging systems.

• Water Circulation: Maintains consistent motor speed for small pumps in fluid handling and water treatment applications.

---

Advantages

• Compact Design: Frame Size A allows installation in small panels or enclosures.

• Energy Efficient: Reduces motor energy consumption through V/Hz speed control.

• Simple Operation: LED display with fixed keypad enables basic monitoring and resets.

• Built-In Protection: Overload, overvoltage, undervoltage, and short-circuit protections safeguard both motor and drive.

• Easy Installation: Panel-mount design allows for straightforward setup.

• Reliable Performance: Provides stable and consistent motor operation for light-duty applications.

FAQ

1. What type of motor can this drive control?
   It supports single-phase AC induction motors up to 0.37 kW / 0.5 HP, suitable for small machinery, fans, and pumps.
2. Can it handle frequent start-stop cycles?
   Yes, it is suitable for light-duty intermittent operations, with frequent starts and stops without overloading the motor.
3. Does this drive include a CE compliant filter?
   No, it does not include a CE compliant filter. External filtering may be required for regions with CE standards.
4. Does it provide braking functionality?
   No, this model does not include a brake drive; external braking components are needed if required.
5. How is motor speed controlled?
   Motor speed is controlled through the V/Hz open-loop method using the LED display and fixed keypad.
6. Is remote network communication supported?
   No, this drive is designed for local control only.
7. What protections are built-in?
   It includes overload, overvoltage, undervoltage, and short-circuit protection for safe motor operation.
8. Can it operate in harsh environments?
   The drive has IP20 protection for indoor panel use; additional enclosure protection is needed for dusty or wet conditions.
9. How is the drive configured?
   Configuration is performed locally through the keypad, allowing simple setup and basic monitoring.
10. Can multiple drives be synchronized?
    No, this drive does not support multi-drive synchronization; coordinated operation must be managed externally.
