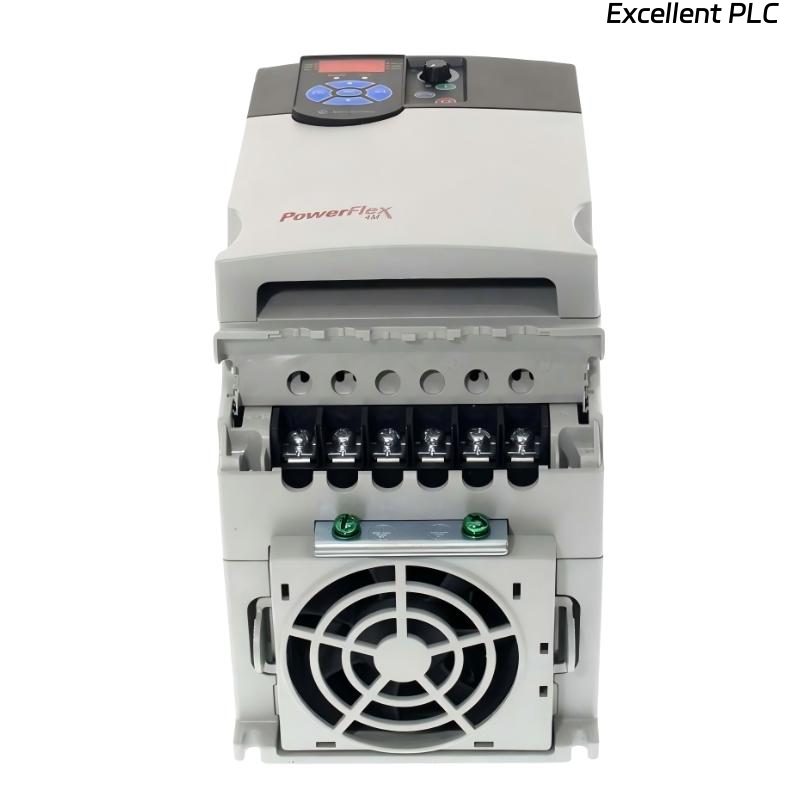

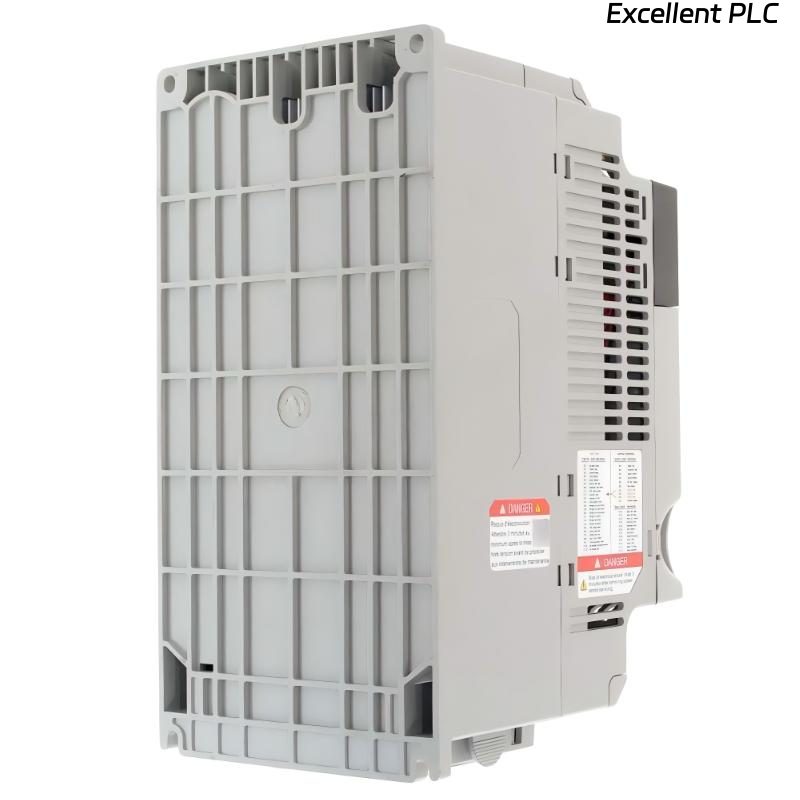

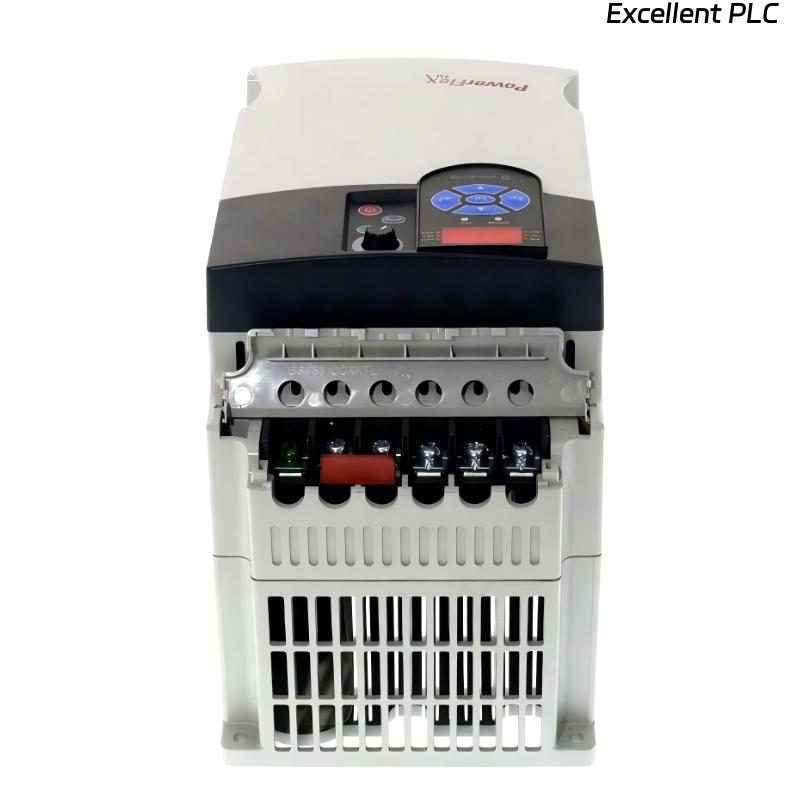

Allen Bradley 22F-D018N104 PowerFlex 4M AC Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 22F-D018N104 PowerFlex 4M AC Drive is a compact and cost-effective variable frequency drive designed for basic motor control applications in industrial environments. It offers reliable speed control and simple configuration, making it a practical solution for standalone machines and small automation systems.
Operating on 480V AC three-phase power, this drive delivers 7.5 kW (10 HP) output with a rated current of 18 amps. The PowerFlex 4M series is known for its straightforward installation and operation, featuring a fixed digital keypad and LED display for easy setup and monitoring.
With built-in RS485 communication capability, the drive supports integration into industrial control systems for basic networking and parameter configuration. Its compact Frame C design and IP20 enclosure make it suitable for installation inside control cabinets.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 22F-D018N104 |
| Series | PowerFlex 4M |
| Brand | Allen-Bradley |
| Type | AC Drive (VFD) |
| Input Voltage | 480V AC |
| Phase | 3-phase |
| Rated Current | 18 A |
| Power Rating | 7.5 kW / 10 HP |
| Frame Size | Frame C |
| Protection Rating | IP20 (Open Type) |
| Display | LED Display |
| Keypad | Fixed Digital Keypad |
| Communication | RS485 |
| Filter | No CE Compliant Filter |
| Application | Motor speed control |
| Mounting Type | Panel mount |
| Dimensions | 260 × 130 × 180 mm |
| Weight | 4.8 kg |
Applications
• Conveyors and material handling – provides stable speed control for transport systems
• Pumps and fans – enables energy-efficient motor operation
• Small machinery – suitable for standalone equipment requiring basic speed control
• HVAC systems – controls airflow and system efficiency
• General industrial automation – integrates easily into simple control systems
Advantages
• Compact and economical design ideal for small to mid-size applications
• Simple installation and operation with built-in keypad and LED display
• Reliable motor control performance ensures stable operation
• RS485 communication support allows basic system integration
• Energy efficiency helps reduce power consumption in variable speed applications
• Proven PowerFlex platform ensures long-term industrial reliability
FAQ
- What is the main function of the 22F-D018N104 drive?
It controls the speed and torque of AC motors in industrial applications. - What motor power does this drive support?
It supports motors up to 7.5 kW (10 HP). - What type of power supply is required?
It operates on 480V AC, three-phase power. - Does this drive have a built-in display?
Yes, it includes an LED display and a fixed digital keypad for configuration. - What communication protocol does it support?
It supports RS485 communication for basic networking and control. - Is this drive suitable for advanced motion control?
No, it is designed for basic speed control applications rather than complex motion systems. - Where is this drive typically installed?
It is installed inside control cabinets due to its IP20 open-type design. - Does it include a built-in filter?
No, it does not include a CE compliant filter. - What industries commonly use this drive?
It is widely used in manufacturing, HVAC, and general automation systems. - Why choose the PowerFlex 4M series?
Because it offers a cost-effective, reliable, and easy-to-use solution for basic motor control needs.
Related Models
| Model | Type | Function |
|---|---|---|
| 22F-D024N104 | AC Drive | Higher current model |
| 22F-A2P5N104 | AC Drive | Lower power version |
| 25B-D024N104 | AC Drive | PowerFlex 525 advanced drive |
| 20A-D2P1A0AYNNNC0 | AC Drive | PowerFlex 70 |
| 1769-L30ERMS | PLC Controller | Machine control |
| 1783-BMS06SA | Managed Switch | Industrial networking |
Popular Models
| Model | Type | Application |
|---|---|---|
| 1756-EN2TR | Network Module | Industrial communication |
| 2711P-T9W22D9P | HMI Panel | Operator interface |
| 1734-IE4C | Analog Input | Signal acquisition |
| PM5670-2ETH | PLC Module | Advanced automation |
| PM5650-MC-KIT | Controller Kit | Motion control |
| DI524 | Digital Input Module | Signal acquisition |
