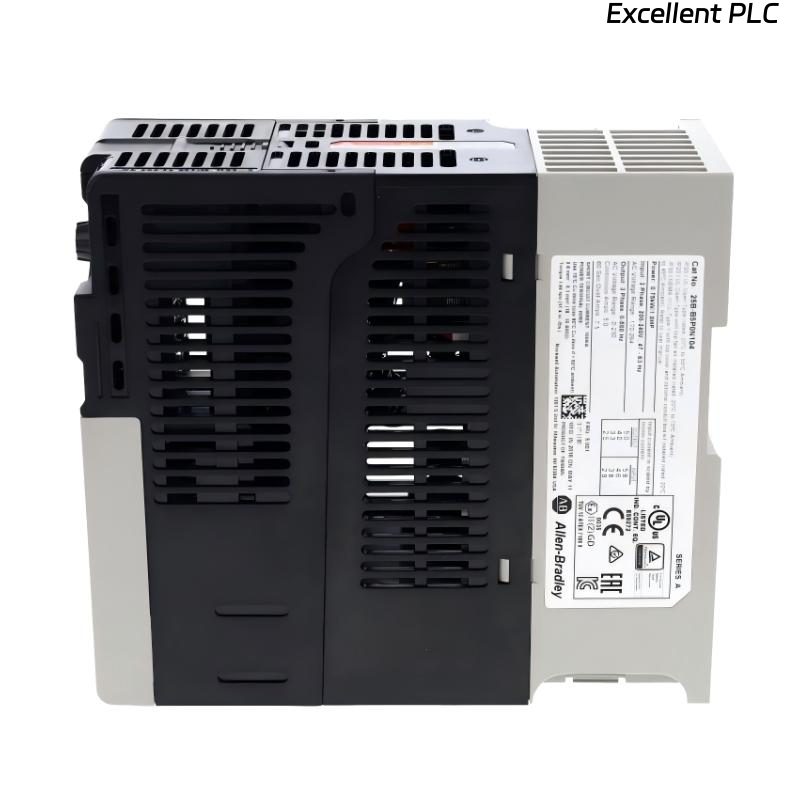

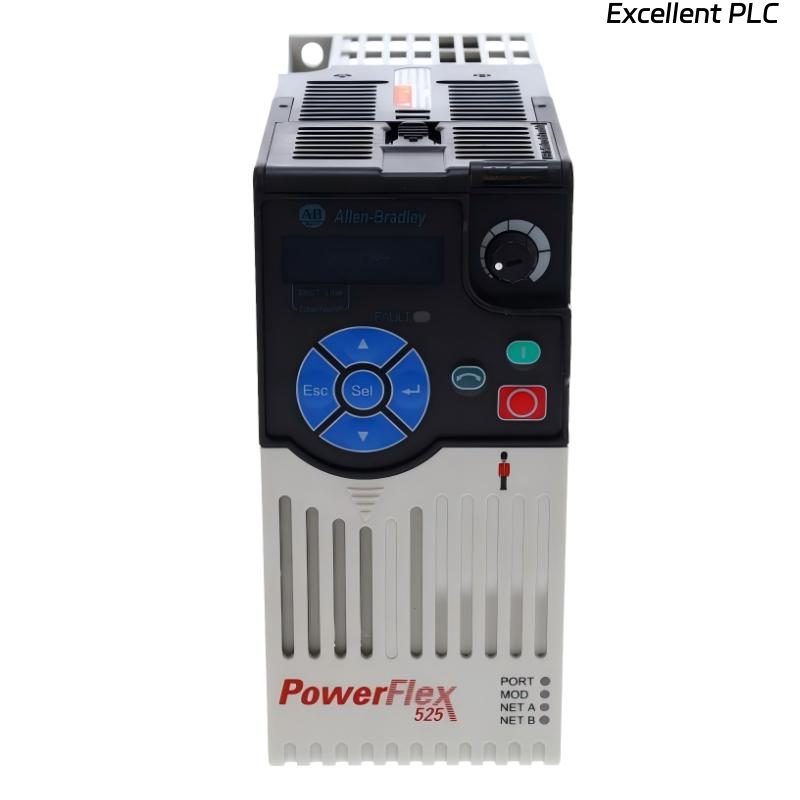

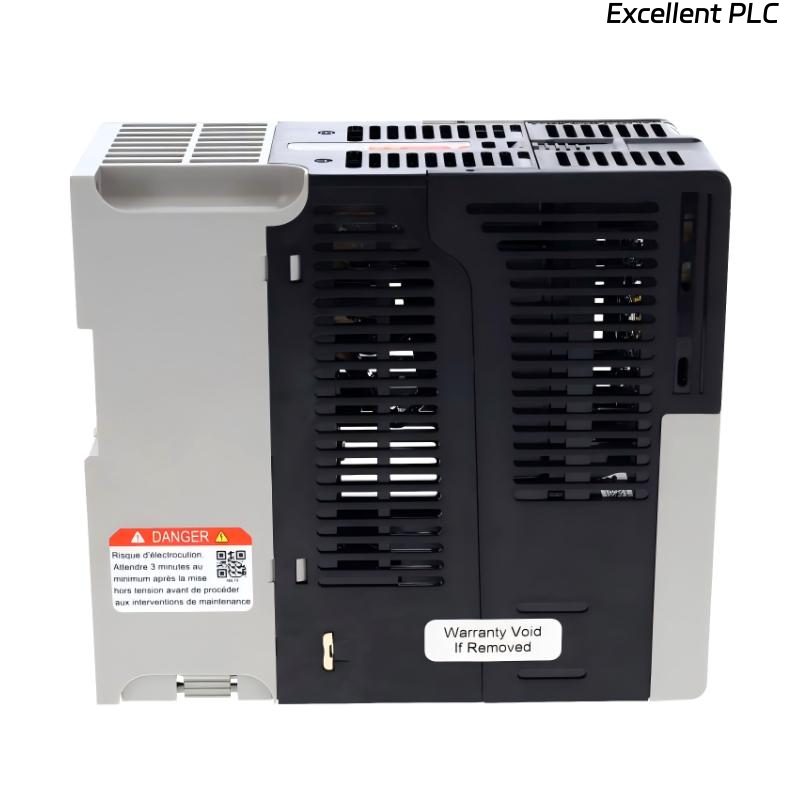

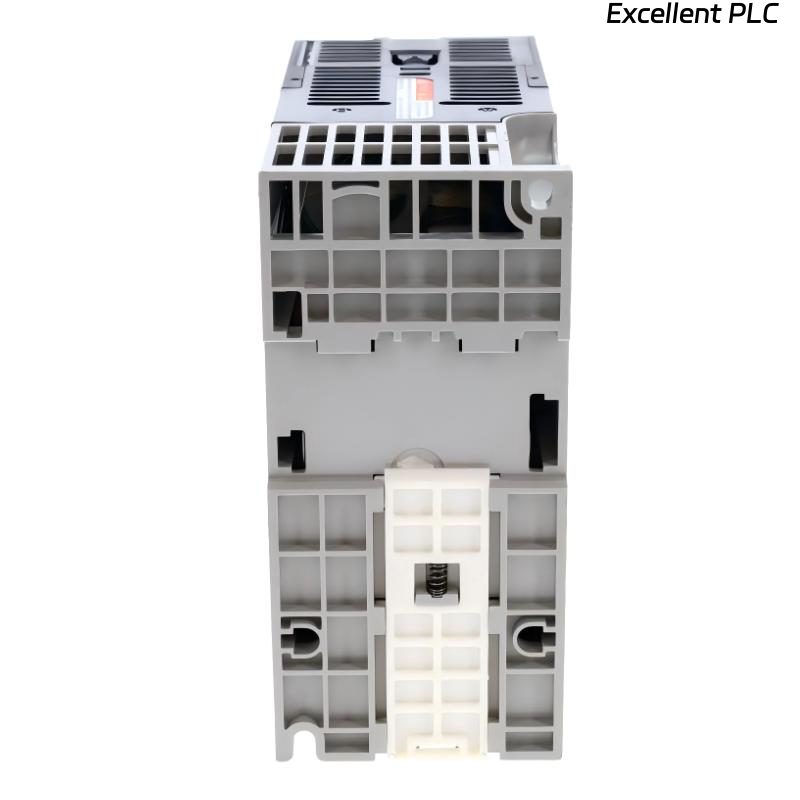

Allen Bradley 25B-B5P0N104 PowerFlex 525 AC Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 25B-B5P0N104 PowerFlex 525 AC Drive is a compact and highly flexible variable frequency drive designed for precise motor control in small to medium industrial applications. As part of the PowerFlex 525 series, this model integrates embedded EtherNet/IP communication and built-in safety features into a space-saving design, making it ideal for modern automation systems.
Operating on a 240V AC, 3-phase supply, the drive delivers 1.0 HP (0.75 kW) output with a 5A current rating, suitable for both normal and heavy-duty applications. Its compact Frame A construction allows installation in tight control cabinets, while advanced control modes provide smooth and efficient motor performance. The integrated Safe Torque-Off (STO) function enhances system safety without requiring additional components, reducing installation complexity and cost.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 25B-B5P0N104 |
| Series | PowerFlex 525 |
| Type | AC Drive (Variable Frequency Drive) |
| Input Voltage | 240 VAC |
| Phase | 3 Phase |
| Current Rating | 5 A |
| Power Rating (Normal Duty) | 1.0 HP / 0.75 kW |
| Power Rating (Heavy Duty) | 1.0 HP / 0.75 kW |
| Frame Size | Frame A |
| Communication | Embedded EtherNet/IP |
| Safety Features | Integrated Safe Torque-Off (STO) |
| Motor Compatibility | Induction and Permanent Magnet Motors |
| Control Modes | V/Hz, Sensorless Vector Control |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection, Fault Diagnostics |
| Enclosure Type | IP20 / NEMA Open Type |
| Filter | No Internal Filter |
| Dimensions | 172 × 72 × 152 mm |
| Weight | 1.1 kg |
Applications
• Small conveyor systems, providing smooth speed control and reliable operation in compact automation setups.
• Fans and pumps, enabling energy-efficient variable speed control for reduced power consumption.
• Packaging equipment, ensuring stable and precise motor performance in repetitive processes.
• Light material handling systems, supporting consistent motion in automated workflows.
• General-purpose machinery, where compact size and flexible control are required.
Advantages
• Compact Frame A design allows installation in space-constrained control panels.
• Embedded EtherNet/IP communication simplifies integration into modern industrial networks.
• Integrated Safe Torque-Off (STO) enhances safety without additional hardware requirements.
• Dual-duty capability supports both normal and heavy-duty applications with the same rating.
• Flexible motor compatibility supports both induction and permanent magnet motors.
• Energy-efficient motor control helps reduce operational costs in variable speed applications.
FAQ
- What is the primary function of the 25B-B5P0N104 AC drive?
It controls motor speed and torque using variable frequency technology for efficient and precise operation. - Does this drive support industrial network communication?
Yes, it includes embedded EtherNet/IP for seamless integration with PLC systems. - What safety feature is included in this model?
It features Safe Torque-Off (STO), which safely disables motor torque without cutting main power. - What type of motors can be used with this drive?
It supports both induction motors and permanent magnet motors. - What is the advantage of dual-duty rating?
It allows the drive to handle both constant and variable load conditions without changing specifications. - Is this drive suitable for energy-saving applications?
Yes, it is commonly used in fans and pumps where variable speed reduces energy consumption. - What control methods are available?
It supports V/Hz control and sensorless vector control for flexible motor performance. - Does this drive include an internal filter?
No, this model does not include an internal filter and may require external filtering depending on the application. - Can it be installed in small control cabinets?
Yes, its compact Frame A design makes it ideal for limited space installations. - Is it suitable for continuous operation?
Yes, it is designed for reliable, continuous industrial use in light to medium-duty applications.
Related Models
| Model | Series | Power Rating | Voltage |
|---|---|---|---|
| 25B-B2P5N104 | PowerFlex 525 | 0.5 HP | 240 VAC |
| 25B-B4P8N104 | PowerFlex 525 | 0.75 HP | 240 VAC |
| 25B-B6P0N104 | PowerFlex 525 | 1.5 HP | 240 VAC |
| 25B-B017N104 | PowerFlex 525 | 5 HP | 240 VAC |
| 25B-D2P3N104 | PowerFlex 525 | 1 HP | 480 VAC |
| 25B-D4P0N104 | PowerFlex 525 | 2 HP | 480 VAC |
Popular Models
| Model | Series | Power Rating | Communication |
|---|---|---|---|
| 25A-D2P3N104 | PowerFlex 523 | 1 HP | Optional |
| 25B-D017N104 | PowerFlex 525 | 5 HP | EtherNet/IP |
| 25B-D024N104 | PowerFlex 525 | 7.5 HP | EtherNet/IP |
| 2097-V33PR3 | Kinetix 300 | 1 kW | EtherNet/IP |
| 2094-BC01-M01-S | Kinetix 6000 | 6 kW | SERCOS |
| 2098-DSD-020-SE | Ultra3000 | 2 kW | SERCOS |
