Product Introduction

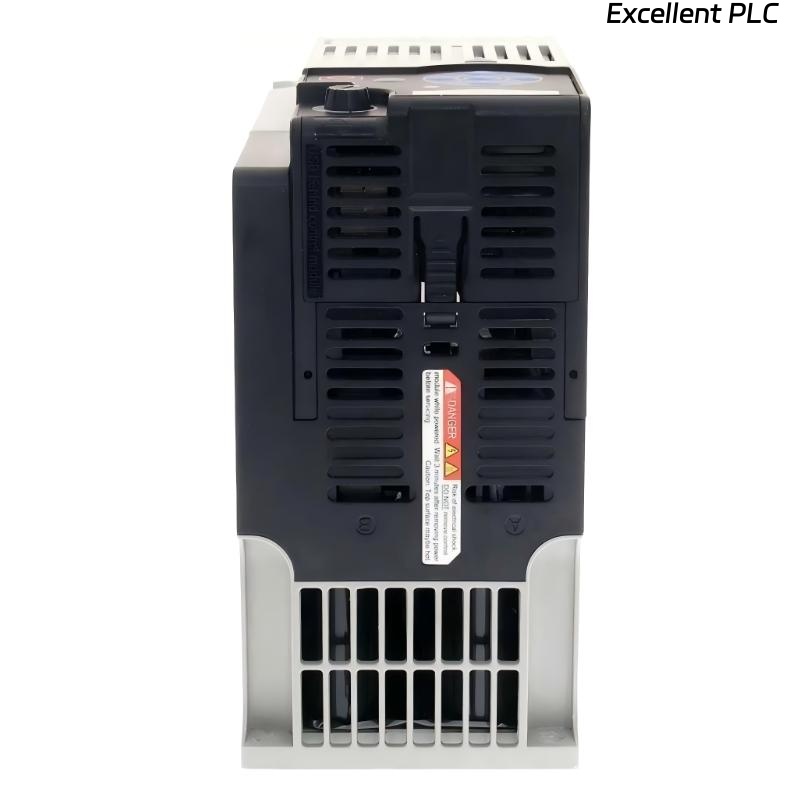

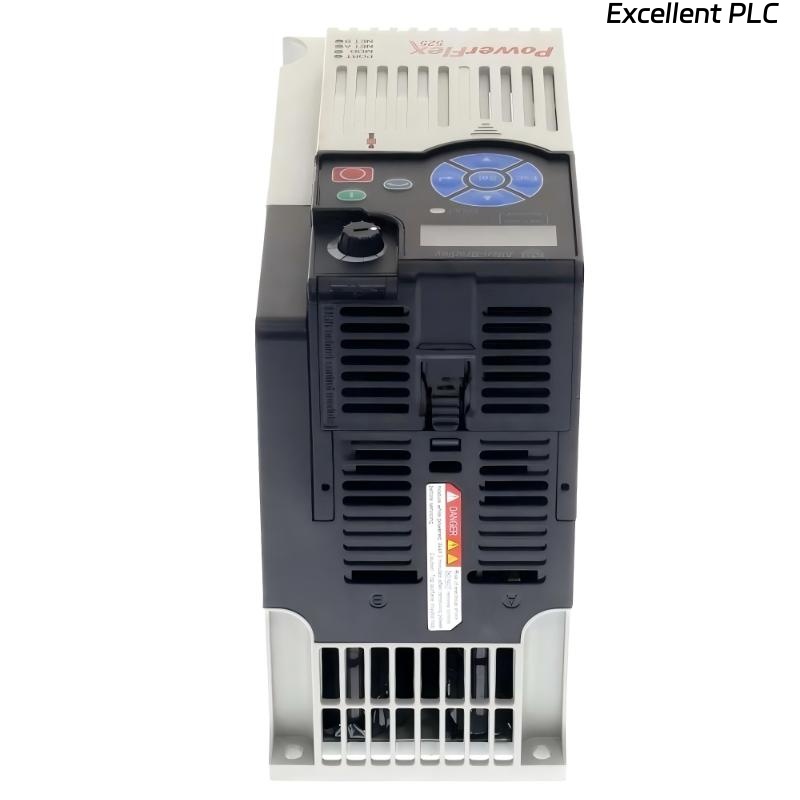

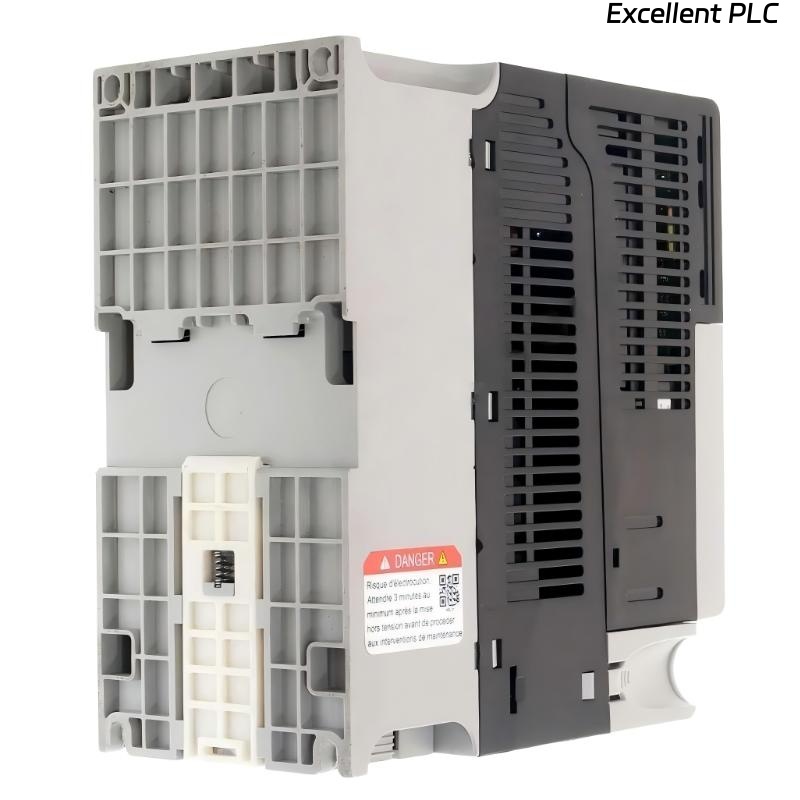

The Allen-Bradley 25B-D010N104 PowerFlex 525 AC Drive is a versatile and high-performance variable frequency drive designed for modern industrial automation systems. As part of the PowerFlex 525 series, it combines compact design, flexible control capabilities, and advanced integration features, making it suitable for a wide range of applications from standalone machines to networked production systems.
This model operates on a three-phase 480 VAC supply and is rated for 5 HP motors. It provides precise speed control, smooth acceleration and deceleration, and stable torque output under varying load conditions. The drive supports enhanced control flexibility compared to earlier series, allowing users to implement more advanced control strategies when required.
With a compact Frame Size B design, the unit is optimized for panel mounting in space-constrained environments. It supports modern communication and control architectures, making it easy to integrate into PLC-based systems. The non-filtered configuration offers flexibility for users to apply external EMC solutions depending on installation requirements.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 25B-D010N104 |
| Series | PowerFlex 525 |
| Input Voltage | 480 VAC |
| Phase | 3-Phase |
| Output Current | 10.5 A |
| Power Rating | 4 kW / 5 HP |
| Frame Size | B |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (NEMA Type Open) |
| Filter | No Filter |
| Control Method | V/Hz Control / Sensorless Vector Control |
| Communication | Embedded Communication (EtherNet/IP Ready) |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical) |
| Dimensions | 180 × 87 × 172 mm |
| Weight | 1.6 kg |
Applications
● Conveyor Systems
Provides precise and stable speed control, improving material handling efficiency.
● Packaging Machinery
Ensures accurate motor synchronization, enhancing production consistency.
● Fan and Ventilation Systems
Supports adjustable airflow control, reducing energy consumption in HVAC systems.
● Pump Applications
Enables efficient flow regulation, optimizing fluid system performance.
● Material Handling Equipment
Delivers smooth motion control, reducing mechanical stress during operation.
● General Industrial Automation
Suitable for diverse automation tasks requiring flexible motor control solutions.
Advantages
● Advanced Control Flexibility
Supports both V/Hz and sensorless vector control, allowing improved performance across applications.
● Compact and Efficient Design
The Frame Size B structure fits easily into modern control cabinets.
● Strong Integration Capability
Embedded EtherNet/IP communication simplifies system connectivity and reduces wiring complexity.
● Stable and Reliable Operation
Ensures consistent motor performance under varying load conditions.
● Flexible Installation Options
The non-filtered design allows customized EMC solutions based on system requirements.
● Energy Efficiency Optimization
Adjusts motor speed according to demand, reducing overall power consumption.
