Product Introduction

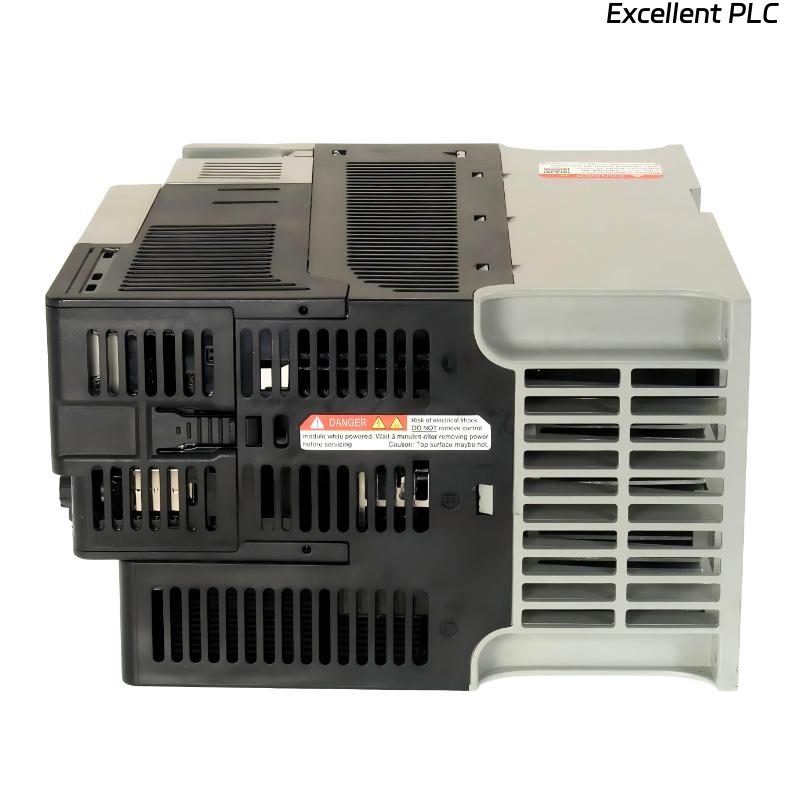

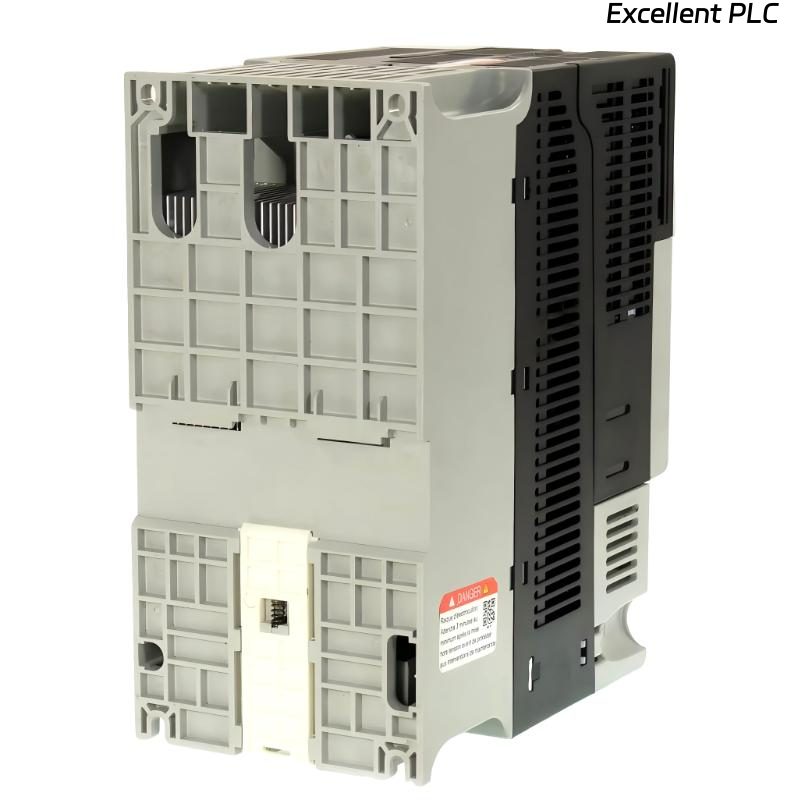

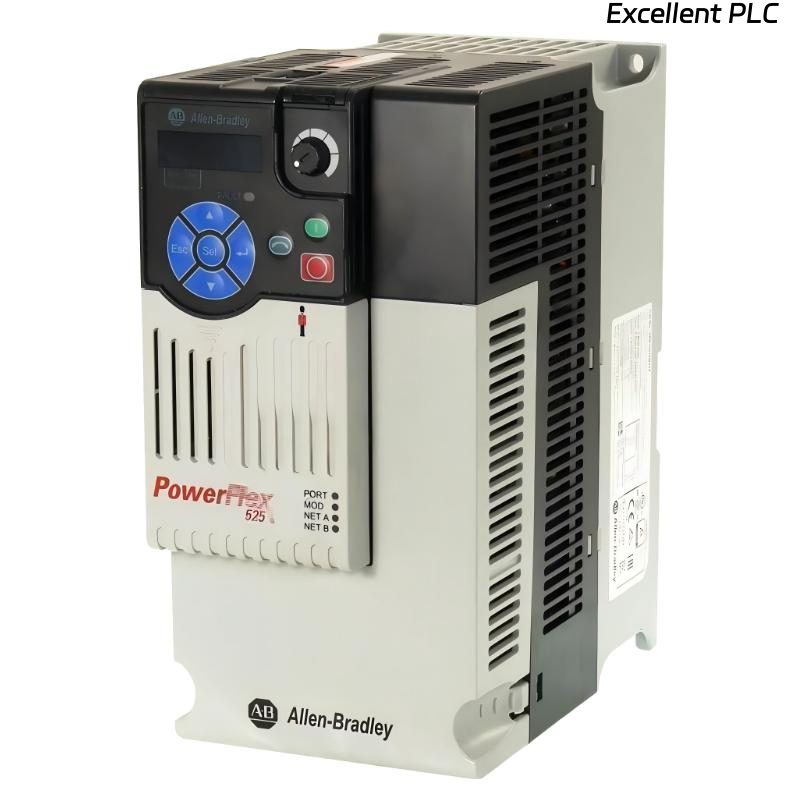

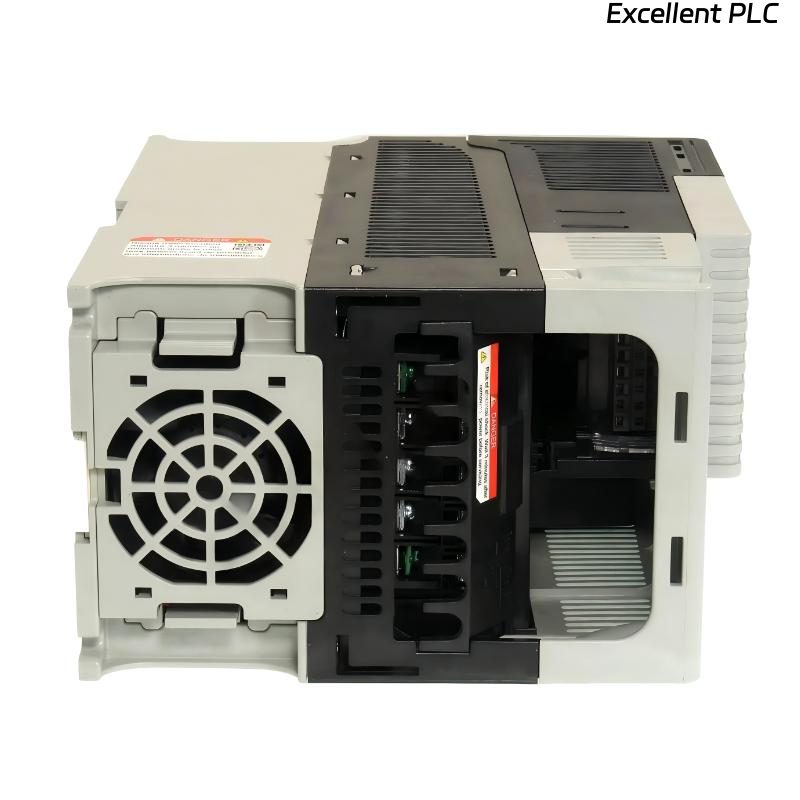

The Allen Bradley 25B-D017N114 PowerFlex 525 AC Drive is a high-performance variable frequency drive designed for efficient and flexible motor control in industrial automation systems. As part of the PowerFlex 525 series, it combines compact design, embedded communication, and advanced control features to deliver reliable performance in a wide range of applications.
Operating on a 480 VAC, 3-phase power supply, this drive provides a 10 HP (7.5 kW) output with a 17 AMP rating, making it suitable for medium-duty industrial processes. Unlike standard models, this version includes an integrated filter, helping reduce electrical noise and improving electromagnetic compatibility (EMC). The drive supports advanced motor control modes and is compatible with both induction and permanent magnet motors, offering versatility across different machine types.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 25B-D017N114 |
| Series | PowerFlex 525 |
| Type | AC Drive (Variable Frequency Drive) |
| Input Voltage | 480 VAC |
| Phase | 3 Phase |
| Current Rating | 17 AMP |
| Power Rating | 10 HP / 7.5 kW |
| Frame Size | Frame B/C (Typical for this rating) |
| Communication | Embedded EtherNet/IP |
| Safety Features | Integrated Safe Torque-Off (STO) |
| Motor Compatibility | Induction and Permanent Magnet Motors |
| Control Modes | V/Hz, Sensorless Vector Control |
| Filter | Integrated EMC Filter |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection, Fault Diagnostics |
| Enclosure Type | IP20 / NEMA Open Type |
| Dimensions | 220 × 109 × 184 mm |
| Weight | 2.3 kg |
Applications
• Conveyor systems, providing stable speed control and smooth operation for material transport.
• Industrial pumps and fans, enabling energy-efficient performance through variable speed control.
• Packaging and processing equipment, ensuring consistent motor control in repetitive operations.
• Mixing and processing machinery, supporting stable torque under varying load conditions.
• General industrial automation, where reliable and flexible motor control is required.
Advantages
• Integrated EMC filter reduces electrical noise and improves system compatibility.
• Embedded EtherNet/IP communication enables easy integration into modern control networks.
• Compact and efficient design helps save panel space while maintaining performance.
• Advanced motor control modes provide smooth operation and accurate speed regulation.
• Integrated Safe Torque-Off (STO) enhances system safety without additional components.
• Wide motor compatibility allows use with both induction and permanent magnet motors.
