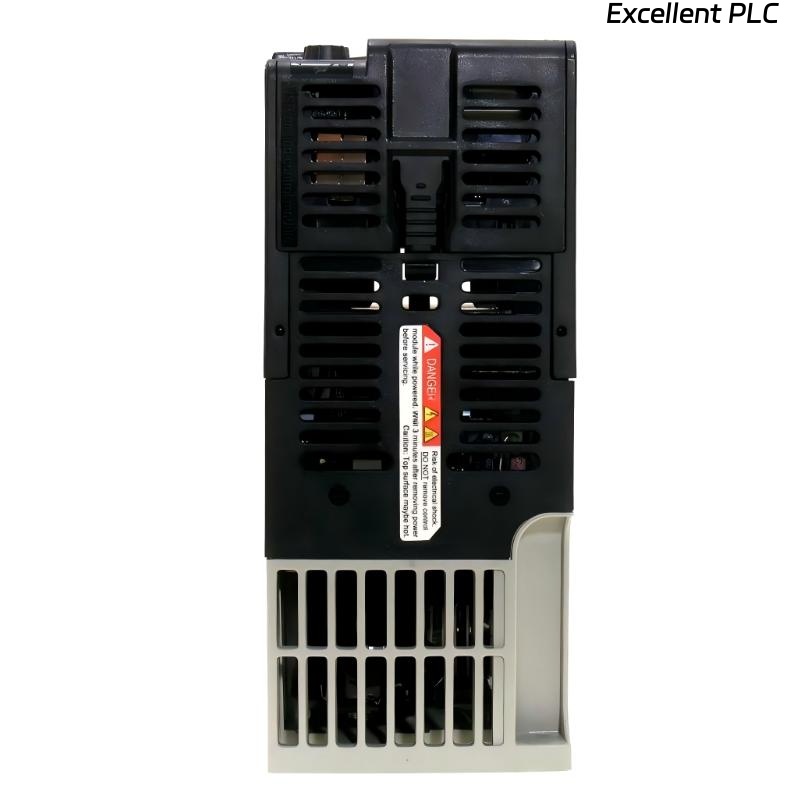

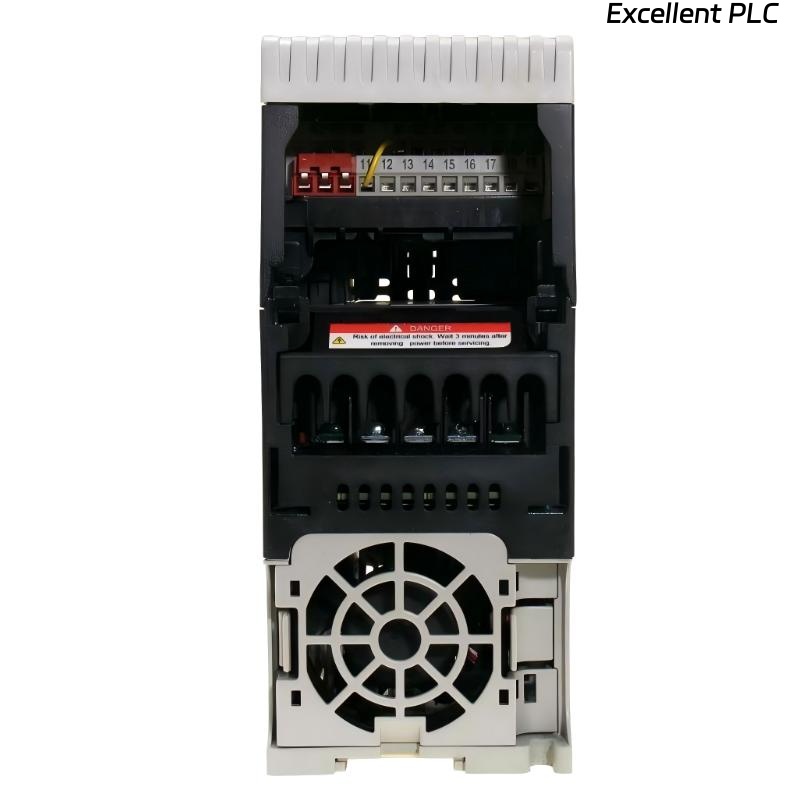

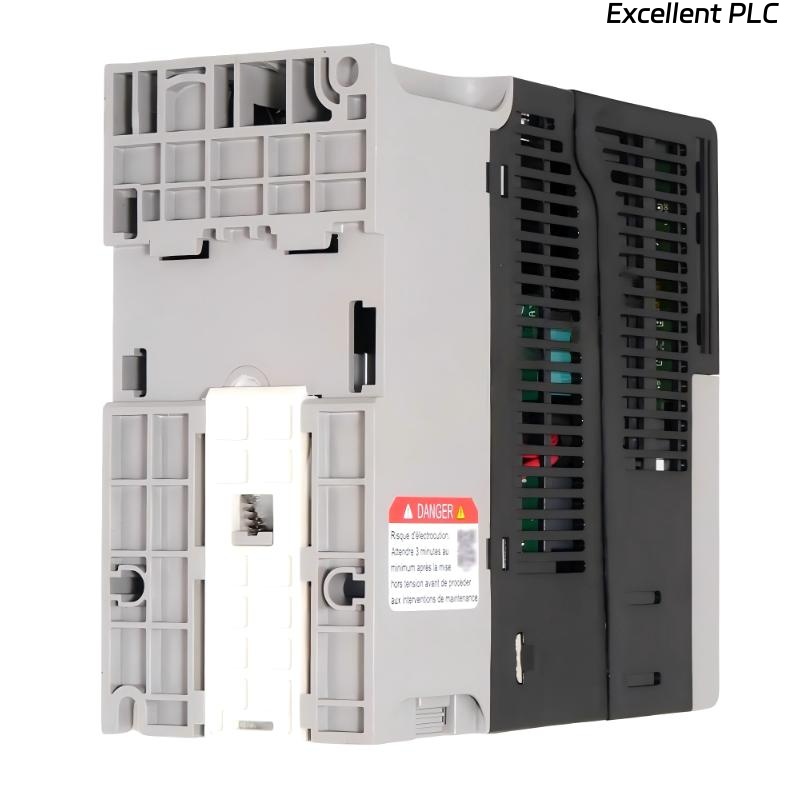

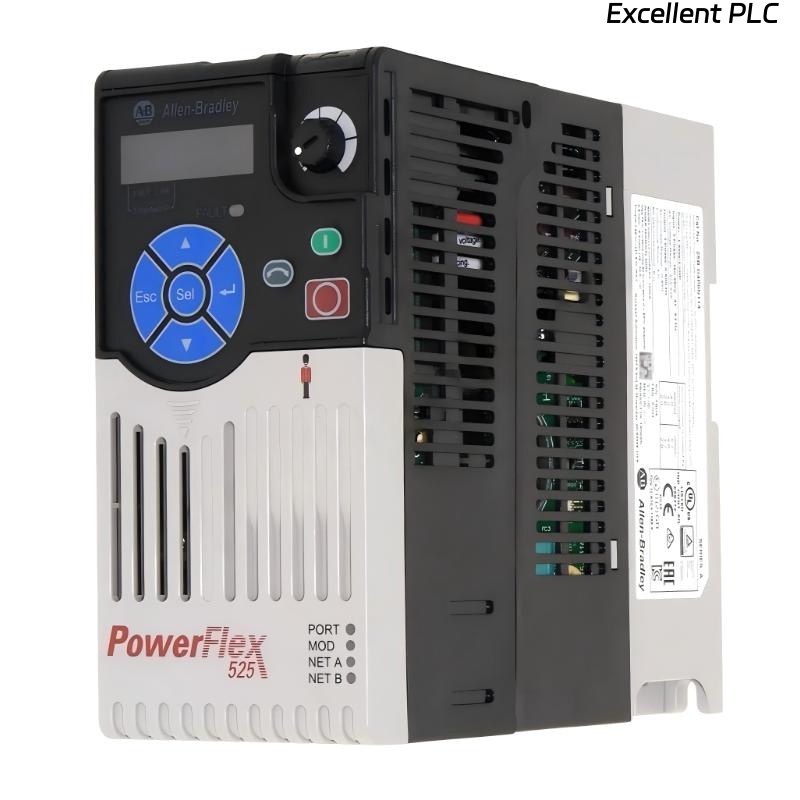

Allen Bradley 25B-D4P0N114 PowerFlex 525 AC Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 25B-D4P0N114 PowerFlex 525 AC Drive is a compact and efficient motor control solution designed for industrial automation and variable speed applications. Operating on a 480 VAC, 3-phase power supply, this drive delivers reliable performance for motors rated up to 2 HP / 1.5 kW, making it suitable for conveyors, pumps, fans, and light industrial machinery.
The PowerFlex 525 series is known for its flexible motor control capabilities, user-friendly configuration, and dependable operation in demanding industrial environments. This model provides accurate speed regulation and smooth motor acceleration while helping reduce energy consumption and mechanical stress on equipment.
Its compact Frame A design allows easy installation inside standard control cabinets, while the IP20 / NEMA Type Open enclosure is suitable for protected indoor industrial environments. The drive is engineered for consistent performance, efficient operation, and simplified integration into modern automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 25B-D4P0N114 |
| Drive Series | PowerFlex 525 AC Drive |
| Input Voltage | 480 VAC, 3-Phase |
| Current Rating | 4 A |
| Output Power | 2 HP / 1.5 kW |
| Frequency | 50/60 Hz |
| Control Type | Adjustable Frequency AC Drive |
| Frame Size | Frame A |
| Mounting Type | Panel Mount |
| Protection Rating | IP20 |
| NEMA Rating | NEMA Type Open |
| Cooling Method | Internal Fan Cooling |
| Motor Control | V/Hz and Sensorless Vector Control |
| Communication | Embedded EtherNet/IP |
| Safety Features | Integrated Safety Functions |
| Dimensions | 172 × 72 × 152 mm |
| Weight | 1.1 kg |
Applications
• Conveyor Systems: Provides stable speed control for industrial conveyor and material handling equipment.
• Pump and Fan Control: Improves energy efficiency and process stability in HVAC and fluid handling systems.
• Packaging Machinery: Delivers accurate motor performance for automated packaging and assembly applications.
• Industrial Automation: Suitable for automated production systems requiring compact and reliable motor drives.
• Light Manufacturing Equipment: Supports mixers, small compressors, and processing machines with precise motor control.
Advantages
• Compact Design: Small Frame A construction allows installation in limited panel spaces.
• Energy Efficient Operation: Variable frequency control helps reduce power consumption and operating costs.
• Reliable Motor Performance: Provides smooth acceleration, deceleration, and stable speed regulation.
• Integrated Communication: Embedded EtherNet/IP simplifies network integration and diagnostics.
• Flexible Control Functions: Supports multiple motor control methods for different industrial applications.
• Easy Installation: Panel-mountable design simplifies wiring and system integration.
FAQ
- What type of motors can this drive control?
The drive is designed to control 3-phase AC induction motors rated up to 2 HP / 1.5 kW, providing stable and efficient motor performance. - Does the drive support network communication?
Yes, the PowerFlex 525 series includes embedded EtherNet/IP communication for easy integration into industrial automation networks. - Can the drive operate in continuous industrial applications?
Yes, it is designed for continuous-duty industrial environments and provides reliable long-term motor control. - What protection features are included?
The drive includes protection against overload, overvoltage, undervoltage, overheating, and short-circuit conditions. - Is the drive suitable for pump and fan applications?
Yes, it is commonly used in pumps, fans, and HVAC systems because of its efficient variable speed control capabilities. - Can the drive reduce motor energy consumption?
Yes, adjustable frequency operation allows motors to run only at the required speed, reducing unnecessary energy usage. - What type of enclosure protection does it provide?
The unit is rated IP20 / NEMA Type Open and is intended for installation inside a protected control cabinet. - Does the drive support safety functions?
Yes, integrated safety functions help improve personnel and equipment protection in industrial systems. - How is the drive installed?
It is designed for panel mounting and can be integrated into standard industrial control cabinets. - Is the drive suitable for automation systems?
Yes, it is widely used in industrial automation applications requiring compact size, network communication, and reliable motor control.
Related Models
| Model | Voltage | Current | Power | Features |
|---|---|---|---|---|
| 25B-D2P3N114 | 480 VAC | 2.3 A | 1 HP / 0.75 kW | Embedded EtherNet/IP |
| 25B-D4P0N114 | 480 VAC | 4 A | 2 HP / 1.5 kW | Compact Frame A Design |
| 25B-D5P0N114 | 480 VAC | 5 A | 3 HP / 2.2 kW | Integrated Safety |
| 25B-D6P0N114 | 480 VAC | 6 A | 5 HP / 3.7 kW | EtherNet/IP Communication |
| 25B-D010N114 | 480 VAC | 10 A | 7.5 HP / 5.5 kW | Adjustable Frequency |
| 25B-D013N114 | 480 VAC | 13 A | 10 HP / 7.5 kW | Industrial Automation Use |
Popular Models
| Model | Voltage | Current | Power | Features |
|---|---|---|---|---|
| 25B-D4P0N114 | 480 VAC | 4 A | 2 HP / 1.5 kW | Compact Industrial Drive |
| 25B-D2P3N114 | 480 VAC | 2.3 A | 1 HP / 0.75 kW | Embedded EtherNet/IP |
| 25B-D5P0N114 | 480 VAC | 5 A | 3 HP / 2.2 kW | Integrated Safety |
| 25B-D6P0N114 | 480 VAC | 6 A | 5 HP / 3.7 kW | Panel Mount Design |
| 25B-D010N114 | 480 VAC | 10 A | 7.5 HP / 5.5 kW | Adjustable Frequency |
| 25B-D013N114 | 480 VAC | 13 A | 10 HP / 7.5 kW | Heavy Industrial Applications |
