Product Introduction

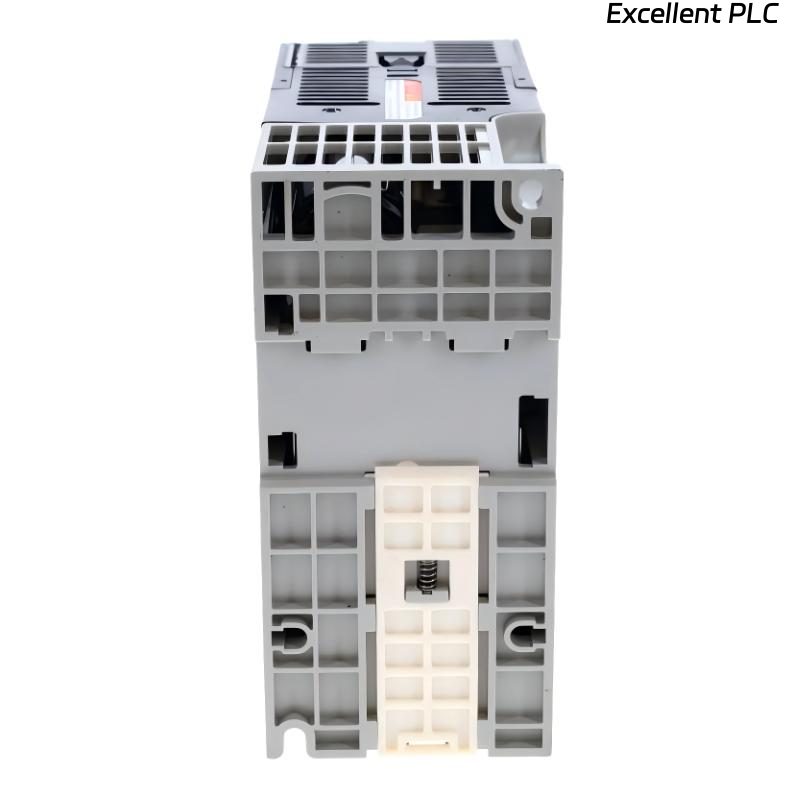

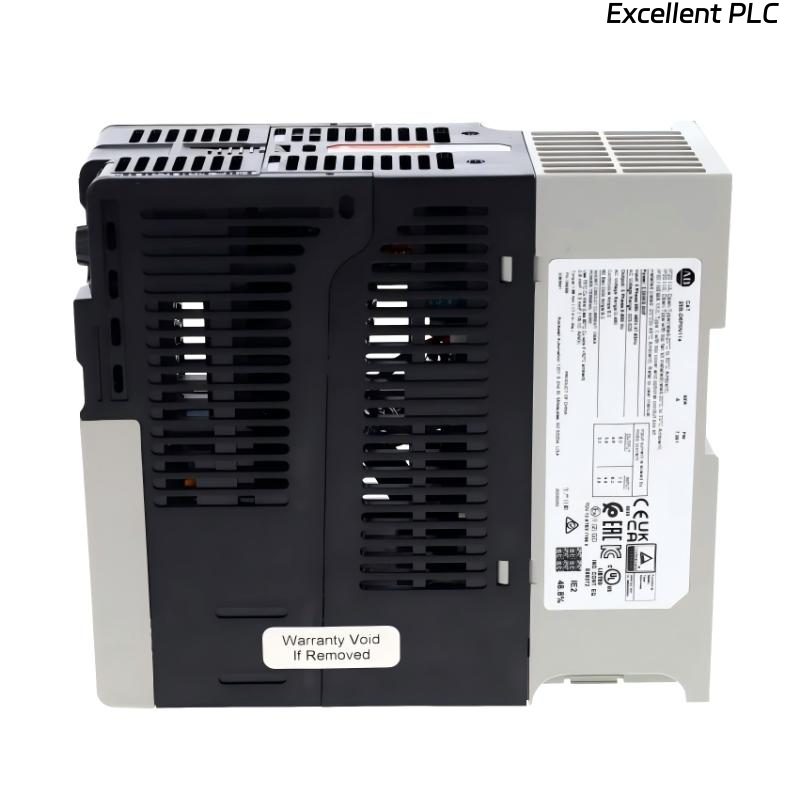

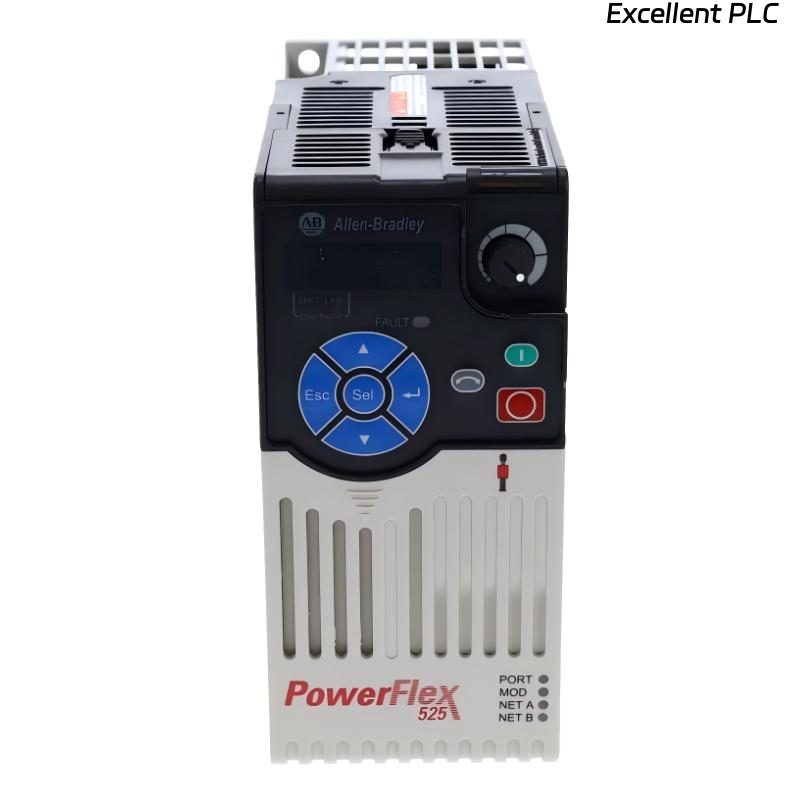

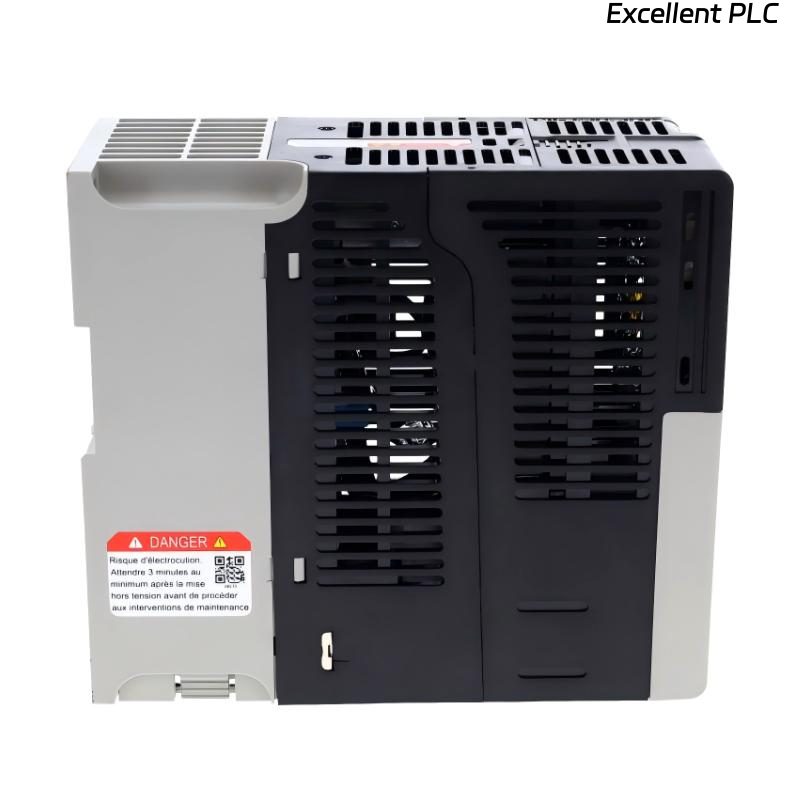

The Allen Bradley 25B-D6P0N114 PowerFlex 525 AC Drive is a compact and high-performance variable frequency drive engineered for efficient motor control in light to medium industrial applications. As part of the PowerFlex 525 series, this model integrates embedded EtherNet/IP communication, built-in safety features, and an internal EMC filter into a space-saving Frame A design.
Designed for 480 VAC, 3-phase systems, the drive delivers 3 HP (2.2 kW) output for both normal and heavy-duty applications. Its compact structure makes it ideal for installations where panel space is limited, while the integrated filter helps reduce electromagnetic interference and simplifies compliance with EMC requirements. The inclusion of Safe Torque-Off (STO) enhances operational safety without requiring additional external components, making it a cost-effective and efficient solution for modern automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 25B-D6P0N114 |
| Series | PowerFlex 525 |
| Type | AC Drive (Variable Frequency Drive) |
| Input Voltage | 480 VAC |
| Phase | 3 Phase |
| Power Rating (Normal Duty) | 3 HP / 2.2 kW |
| Power Rating (Heavy Duty) | 3 HP / 2.2 kW |
| Frame Size | Frame A |
| Communication | Embedded EtherNet/IP |
| Safety Features | Integrated Safe Torque-Off (STO) |
| Motor Compatibility | Induction and Permanent Magnet Motors |
| Control Modes | V/Hz, Sensorless Vector Control |
| Filter | Integrated EMC Filter |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection, Fault Diagnostics |
| Enclosure Type | IP20 / NEMA Open Type |
| Dimensions | 172 × 72 × 152 mm |
| Weight | 1.1 kg |
Applications
• Compact conveyor systems, delivering smooth and efficient speed control in material handling applications.
• Pumps and fans, enabling energy savings through variable speed operation.
• Packaging machinery, ensuring stable and repeatable motor performance.
• Light industrial automation, supporting flexible motor control in small machines.
• General-purpose equipment, where compact size and reliable performance are required.
Advantages
• Integrated EMC filter reduces electrical noise and simplifies compliance with EMC standards.
• Embedded EtherNet/IP communication enables seamless integration into industrial networks.
• Compact Frame A design saves panel space and supports high-density installations.
• Integrated Safe Torque-Off (STO) enhances safety while reducing system complexity.
• Dual-duty capability supports both normal and heavy-duty applications.
• Flexible motor compatibility allows operation with both induction and permanent magnet motors.
