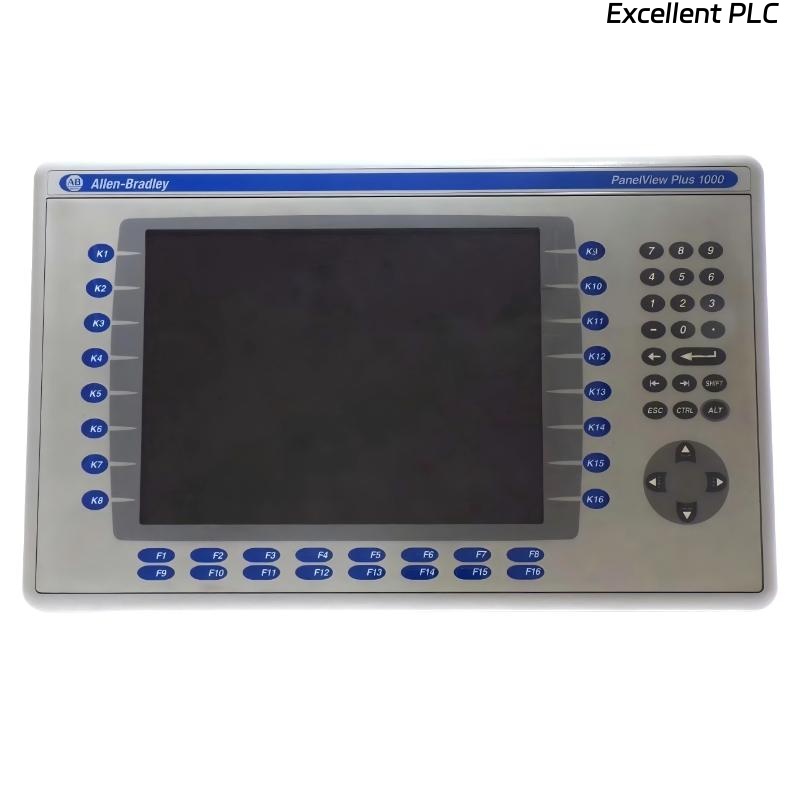

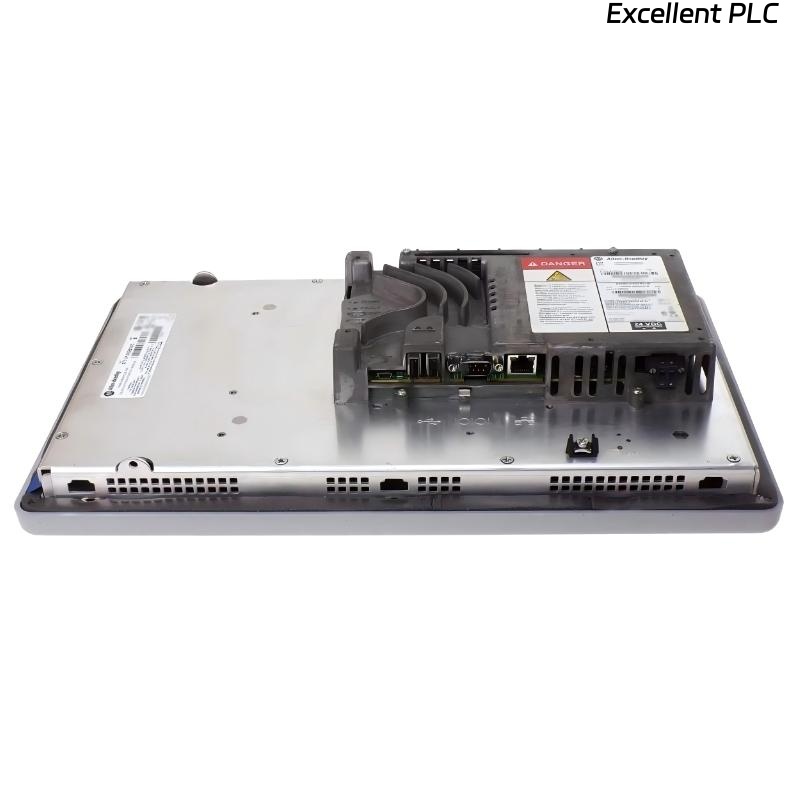

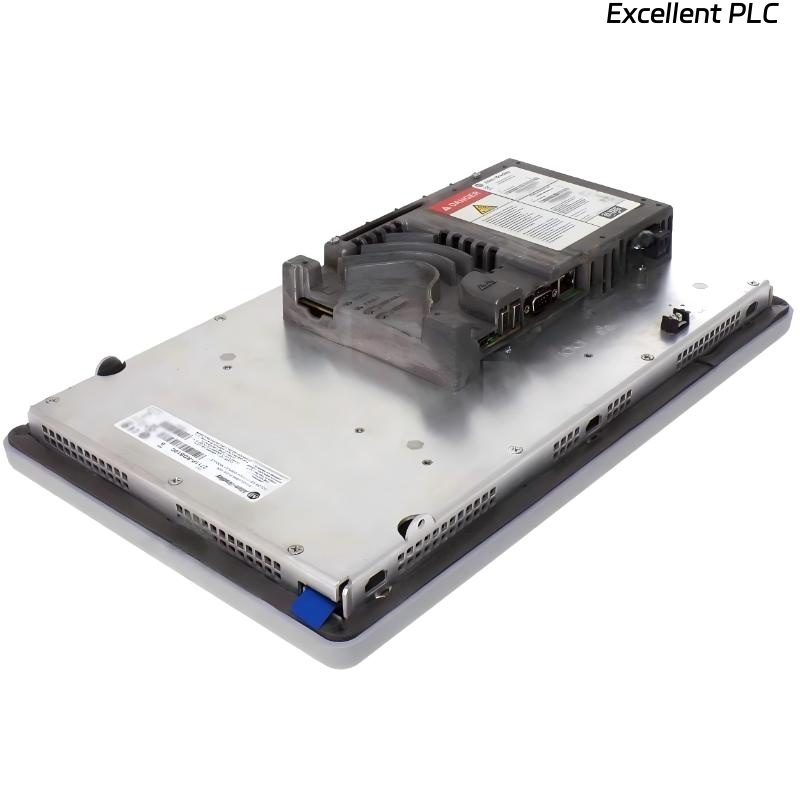

Allen Bradley 2711P-K10C4A9 PanelView Plus 6 1000 Operator Interface

Product Introduction

The Allen-Bradley 2711P-K10C4A9 PanelView Plus 6 1000 Operator Interface is a high-performance industrial HMI designed for reliable visualization and control in demanding automation environments. As part of the PanelView Plus 6 1000 series, this model offers a large display area combined with keypad-only operation, making it especially suitable for applications where precise and tactile input is preferred.

Equipped with a 10.4-inch color display and VGA resolution (640 × 480 pixels), the terminal provides clear and structured visualization of process data, system status, and operator controls. Running on Windows CE 6 Extended, it delivers stable and consistent performance for industrial HMI applications.

This unit supports a wide input voltage range of 100–240 VAC, allowing deployment across different regions without additional power adaptation. With built-in Ethernet, RS-232, and dual USB ports, it ensures flexible communication and easy integration into modern PLC-based systems. Its robust design and intuitive interface make it well-suited for continuous industrial operation.

---

Product Specifications

---

Applications

• Industrial Production Systems
Provides stable and clear operator interaction for monitoring and controlling complex production processes.

• Harsh Environment Operations
Keypad input is well-suited for environments where touchscreens may be less practical, such as areas requiring gloves or precise physical input.

• Process Control Panels
Used to display and manage parameters such as temperature, pressure, and flow in process industries.

• Material Handling Systems
Supports monitoring and control of conveyors, sorting systems, and automated logistics equipment.

• OEM Equipment Interfaces
Ideal for machinery requiring a reliable and consistent operator interface with minimal input variability.

---

Advantages

• Dedicated Keypad Operation
Provides precise and consistent input, especially useful in environments where touch interaction is less convenient.

• Large and Clear Display
10.4-inch screen with VGA resolution ensures clear visibility of process data and system information.

• Wide Voltage Compatibility
100–240 VAC input allows flexible installation across different regions and systems.

• Comprehensive Connectivity
Ethernet, serial, and USB ports support integration with a wide range of industrial devices.

• Stable Embedded Platform
Windows CE 6 Extended ensures reliable operation and supports advanced HMI applications.

• Industrial-Grade Reliability
Designed for continuous operation with consistent performance in industrial environments.

FAQ

1. What are the advantages of using a keypad-only HMI?
   Keypad input provides consistent and precise operation, especially in environments where touchscreens may be affected by gloves or external conditions.
2. Is the display suitable for detailed process visualization?
   Yes, the VGA resolution and larger screen size allow clear display of complex graphics and process data.
3. Can this HMI communicate with PLCs over Ethernet?
   Yes, it includes Ethernet connectivity for integration with modern network-based control systems.
4. What types of applications can be implemented on this device?
   It supports applications such as process monitoring, machine control, alarm management, and data visualization.
5. How is data transferred for updates or configuration?
   Data can be transferred via USB devices or through network connections.
6. Is this model suitable for continuous industrial operation?
   Yes, it is designed for stable performance during long operating periods.
7. What role does Windows CE 6 Extended play?
   It provides a stable operating environment for running HMI applications and managing system resources efficiently.
8. Can multiple communication ports be used at the same time?
   Yes, the device supports simultaneous use of Ethernet, RS-232, and USB interfaces depending on configuration.
9. How does the device support operator efficiency?
   It provides clear visual feedback and structured control layouts, allowing operators to interact efficiently with the system.
10. Is it suitable for integration into existing automation systems?
    Yes, it supports standard industrial communication interfaces, making integration straightforward.
