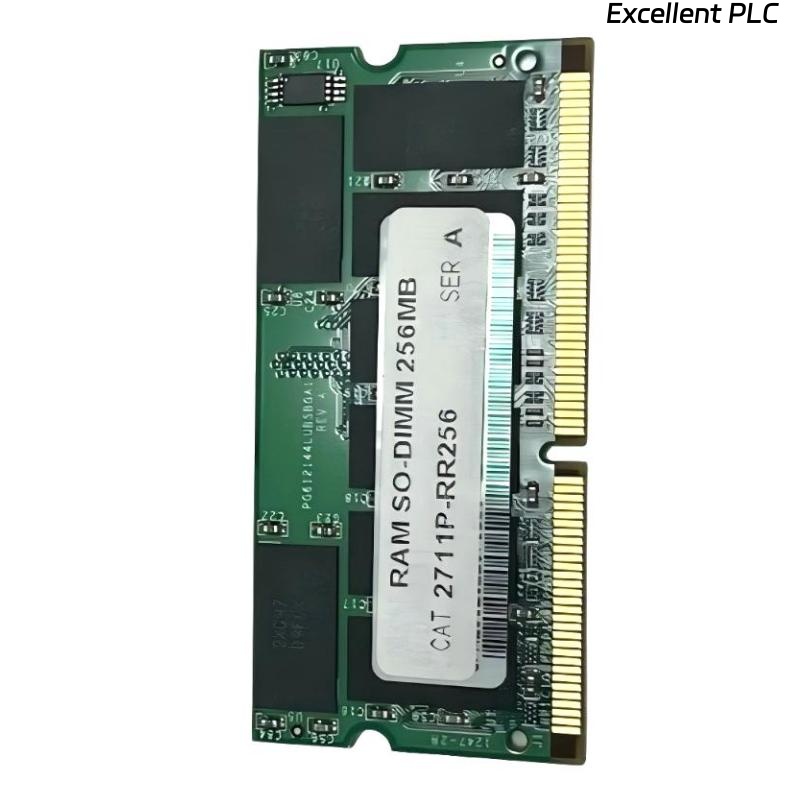

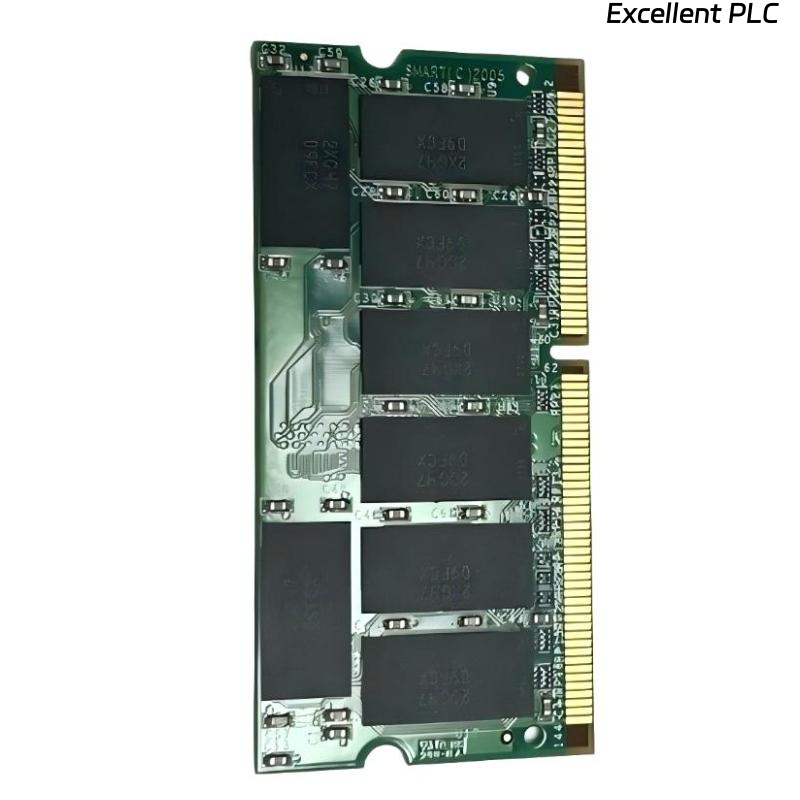

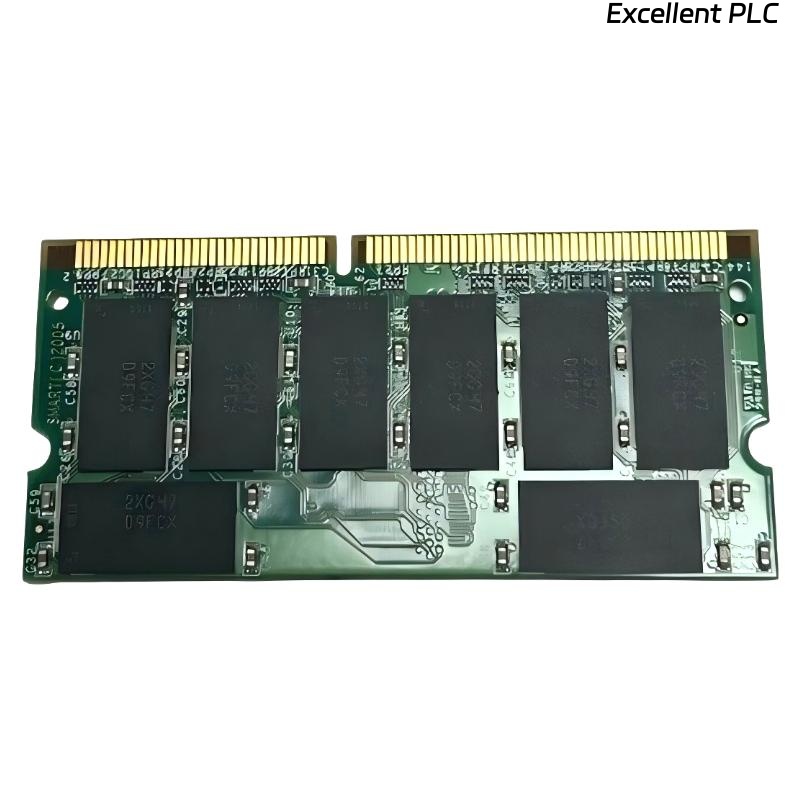

Allen Bradley 2711P-RR256 SODIMM Memory Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 2711P-RR256 SODIMM Memory Module is a high-capacity memory upgrade designed for PanelView Plus logic modules. Manufactured by Rockwell Automation under the Allen-Bradley line, this module provides 256 MB of additional memory to support larger HMI applications and enhanced system performance.
It is compatible with PanelView Plus 700–1500 series terminals and is ideal for upgrading existing systems or expanding memory for complex graphics, extended logging, or larger application projects.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | Allen-Bradley 2711P-RR256 |
| Series | PanelView Plus |
| Product Type | SODIMM Memory Module |
| Compatible Terminals | PanelView Plus 700–1500 |
| Logic Module Compatibility | Compatible with PV+ RP1, RP2A, RP7A logic modules |
| Memory Capacity | 256 MB |
| Memory Type | SODIMM |
| Purpose | Expands memory for HMI applications, logging, and graphics |
| Mounting Type | Internal module slot insertion |
| Installation Position | Logic module memory slot |
| Dimensions (Estimated) | 50 × 10 × 30 mm |
| Weight | 0.145 kg |
Applications
• Memory expansion for logic modules
Supports larger HMI projects, complex graphics, and extended logging capabilities.
• Industrial automation systems
Used in manufacturing, process control, and packaging environments to enhance operator interface performance.
• System upgrades and retrofits
Enables memory upgrades without replacing the logic module or terminal.
• OEM machine integration
Ideal for machines requiring extended HMI capabilities and advanced memory handling.
• Support for large applications
Ensures smooth operation for applications with high memory demands.
Advantages
• High-capacity memory
Provides 256 MB of additional memory for demanding HMI applications.
• Seamless integration
Compatible with RP1, RP2A, and RP7A logic modules, ensuring system continuity.
• Compact and lightweight
Small size (50 × 10 × 30 mm) and low weight (0.145 kg) allow easy installation.
• Cost-effective system upgrade
Enhances memory without the need to replace the logic or display module.
• Optimized for PanelView Plus terminals
Supports 700–1500 series for consistent performance and reliability.
FAQ
- Which logic modules are compatible with the RR256 memory module?
It is compatible with RP1, RP2A, and RP7A logic modules for PanelView Plus 700–1500 terminals. - What is the memory capacity of the RR256 module?
The module provides 256 MB of SODIMM memory for HMI applications and system expansion. - Can this module be installed without shutting down the terminal?
No, the terminal should be powered down before installing the memory module to prevent damage and ensure safe operation. - Does the module support larger or complex HMI graphics?
Yes, the additional memory allows logic modules to handle more complex graphics, larger screens, and extended logging. - How is the module installed in the system?
It is inserted into the memory slot of the logic module within the PanelView Plus terminal. - Is the module compatible with all PanelView Plus terminals?
No, it is only compatible with 700–1500 series terminals and the specified logic modules. - Can the module improve system performance?
Yes, by providing additional memory, it reduces limitations on HMI application size and enhances runtime performance. - Does it require any external power?
No, the module draws power from the logic module itself and does not require a separate power source. - Can multiple RR256 modules be used in one system?
Typically, only one memory module is used per logic module. System design should follow Allen-Bradley guidelines. - Is this module suitable for OEM equipment upgrades?
Yes, it is ideal for upgrading machines to support advanced HMI features without replacing the terminal or logic module.
Related Models
| Model | Description |
|---|---|
| 2711P-RP1 | Standard logic module for PV+ 700–1500 |
| 2711P-RP2A | Enhanced logic module with 128 MB Flash/RAM |
| 2711P-RP7A | High-performance logic module with 256 MB Flash/RAM |
| 2711P-RN1 | RIO / SRIO communication module |
| 2711P-RDT7C | Display module for PV+ 700 |
| 2711P-RDT15C | Display module for PV+ 1500 |
Popular Models
| Model | Description |
|---|---|
| 2711P-T7C4D8 | PanelView Plus 700 touchscreen |
| 2711P-K7C4D8 | PanelView Plus 700 keypad |
| 2711P-T10C4D1 | PanelView Plus 1000 touchscreen |
| 2711P-K10C4D1 | PanelView Plus 1000 keypad |
| 2711P-T15C4D1 | PanelView Plus 1500 touchscreen |
| 2711P-T12C4D1 | PanelView Plus 1250 touchscreen |
