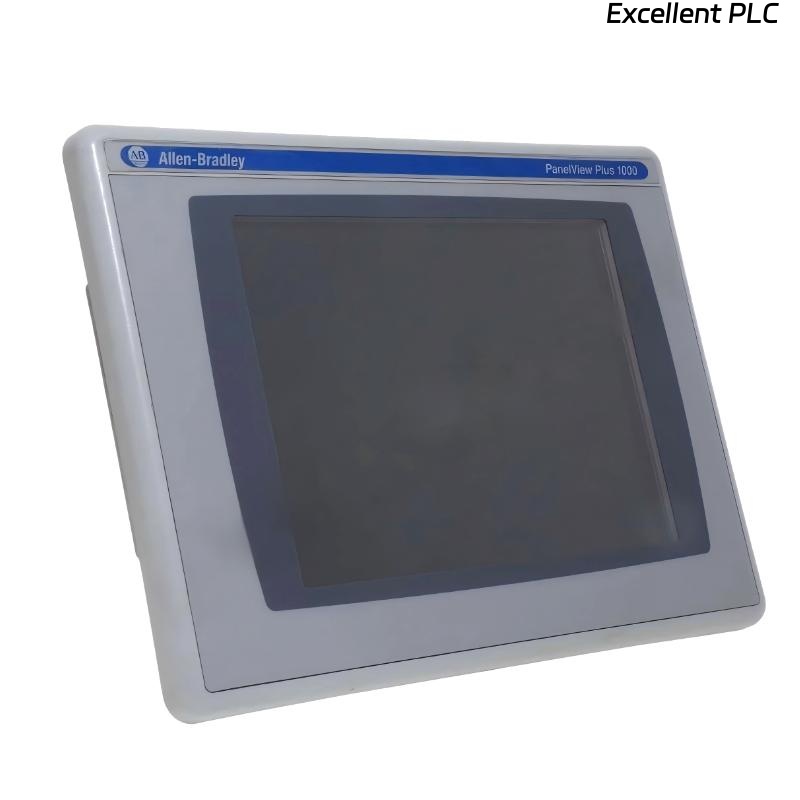

Allen Bradley 2711P-T10C4D8 PanelView Plus 6 1000 Operator Interface

Product Introduction

The Allen Bradley 2711P-T10C4D8 PanelView Plus 6 1000 Operator Interface is a reliable and widely used human-machine interface designed for industrial control and monitoring applications. As part of the PanelView Plus 6 series, this unit provides a stable platform for visualization and operator interaction, combining proven hardware with a straightforward touchscreen interface.

Based on the Windows CE 6 operating system, the terminal supports FactoryTalk View Machine Edition applications, allowing seamless integration with Allen-Bradley PLCs and automation systems. It is particularly suitable for environments where consistent performance and ease of use are essential.

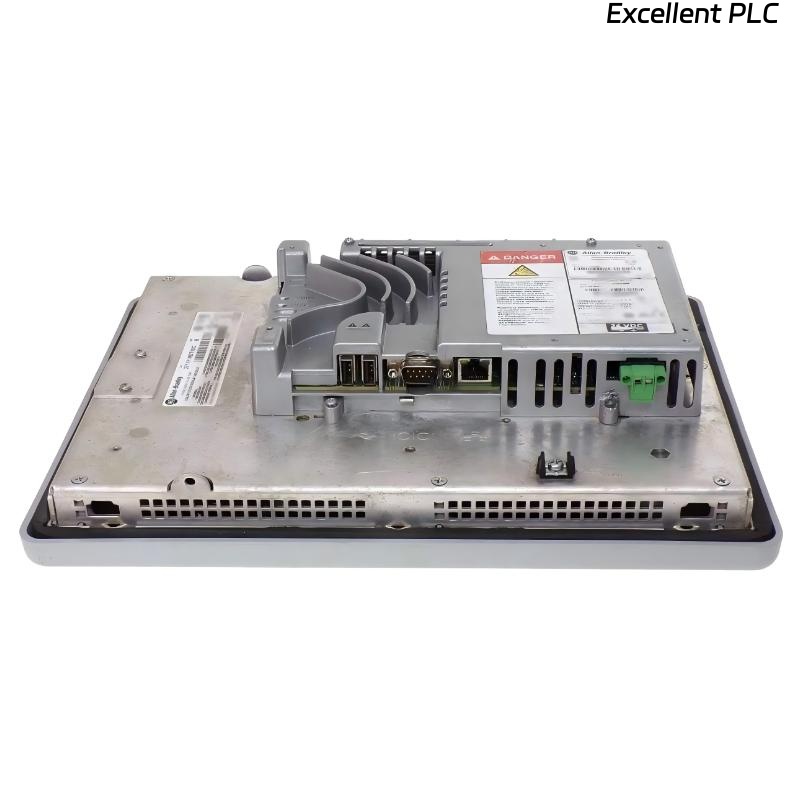

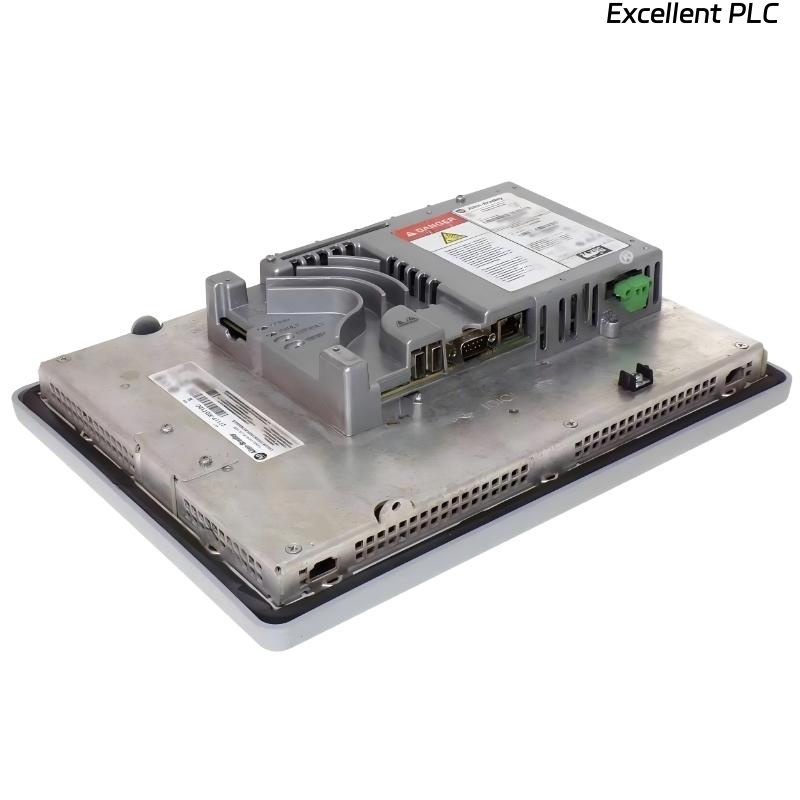

Featuring a 10.4-inch color display and multiple communication interfaces, including Ethernet, RS-232, and USB, this HMI offers flexible connectivity options. The 24 VDC power input makes it ideal for modern industrial control panels where DC power distribution is standard.

---

Product Specifications

---

Applications

● Factory Automation Systems
Centralized control and monitoring of production equipment, enabling operators to manage processes efficiently.

● Machine-Level Control Panels
Direct interaction with machinery allows quick adjustments and operational feedback in real time.

● Water and Wastewater Treatment
Reliable visualization of system status supports continuous operation of pumps, valves, and treatment processes.

● Material Handling Systems
Improved system coordination for conveyors, sorting systems, and logistics automation.

● Energy and Utilities
Monitoring and control of electrical systems to ensure stable and efficient operation.

---

Advantages

● Standard 24 VDC Power Compatibility
Easily integrates into modern control panels using common DC power supplies.

● Flexible Communication Options
Ethernet, RS-232, and USB interfaces allow connection to a wide range of industrial devices.

● Stable Operating Platform
Windows CE 6 system ensures reliable long-term operation with minimal system overhead.

● User-Friendly Touch Interface
Responsive touchscreen design simplifies operator interaction and reduces training requirements.

● Seamless Integration with Automation Systems
Compatible with FactoryTalk View ME, enabling efficient deployment within Rockwell Automation environments.

● Proven Industrial Reliability
Designed for continuous operation in demanding industrial conditions.

FAQ

1. What software platform is used to develop applications for this HMI?
   FactoryTalk View Machine Edition is used to create and manage applications, providing full compatibility with Allen-Bradley controllers.
2. How does this device communicate with PLC systems?
   It primarily uses EtherNet/IP over Ethernet, and can also communicate via RS-232 for legacy or specific configurations.
3. What is the advantage of using a 24 VDC power supply?
   24 VDC is commonly used in industrial panels, offering safer operation and easier integration with existing power systems.
4. Can applications be transferred without a network connection?
   Yes, applications can be loaded using USB storage devices, allowing offline updates and backups.
5. What types of peripherals can be connected via USB?
   USB ports support devices such as flash drives, keyboards, and other compatible accessories for configuration and maintenance.
6. Is this HMI suitable for integration into legacy systems?
   Yes, the inclusion of RS-232 allows communication with older equipment while still supporting modern Ethernet networks.
7. What communication protocol is used over Ethernet?
   EtherNet/IP is the primary protocol for communication with PLCs and industrial networks.
8. How is system security managed on this device?
   Security is handled through user access levels, password protection, and application-level restrictions.
9. Does the touchscreen support industrial operation conditions?
   Yes, it is designed for use in industrial environments and can typically be operated with gloves or a stylus.
10. What should be considered when installing this unit?
    Proper panel mounting, stable DC power supply, grounding, and correct network setup are essential for reliable performance.
