Product Introduction

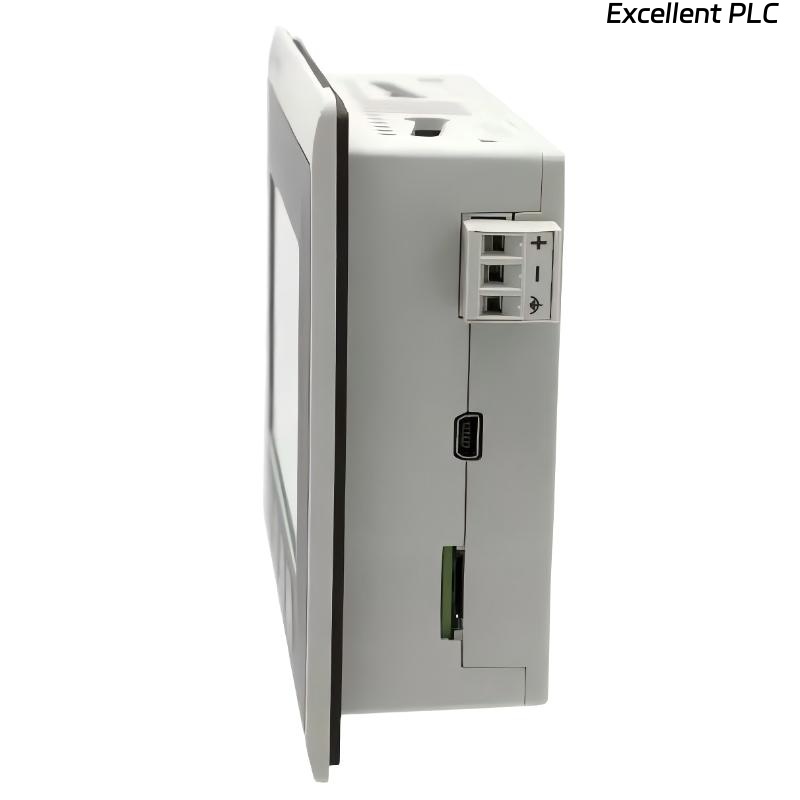

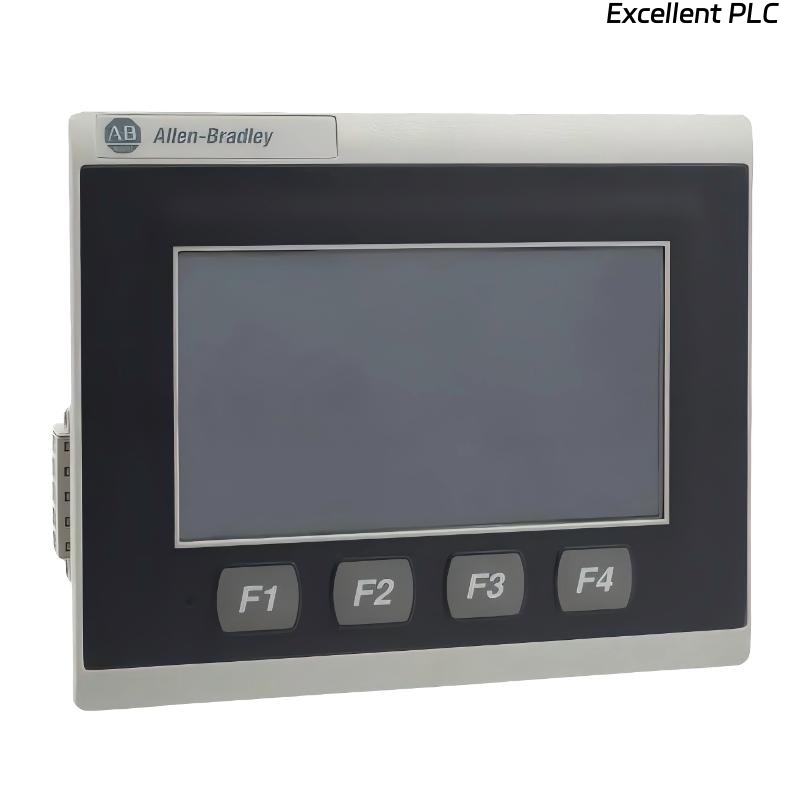

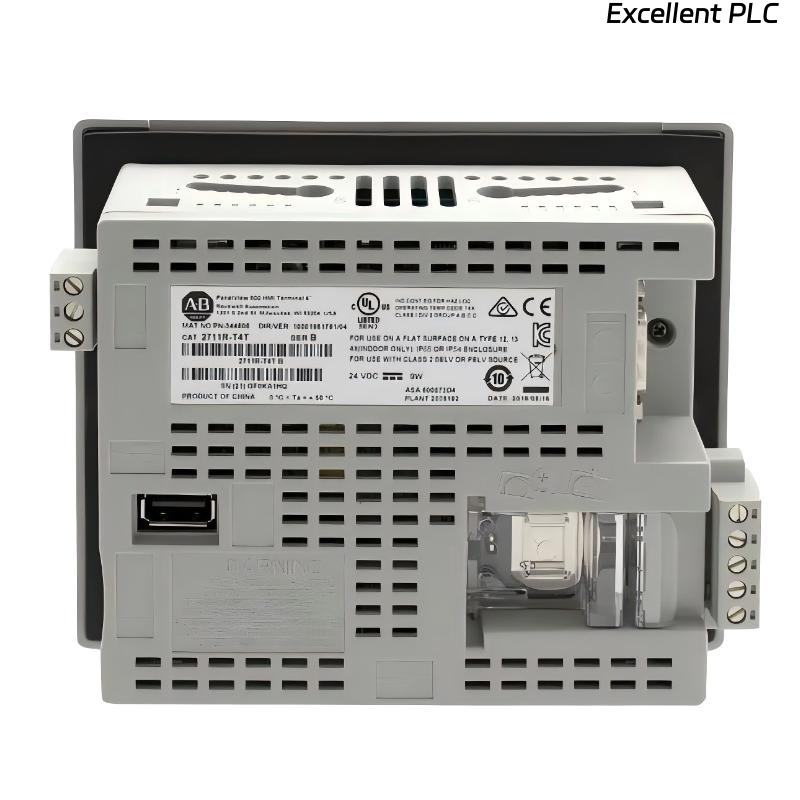

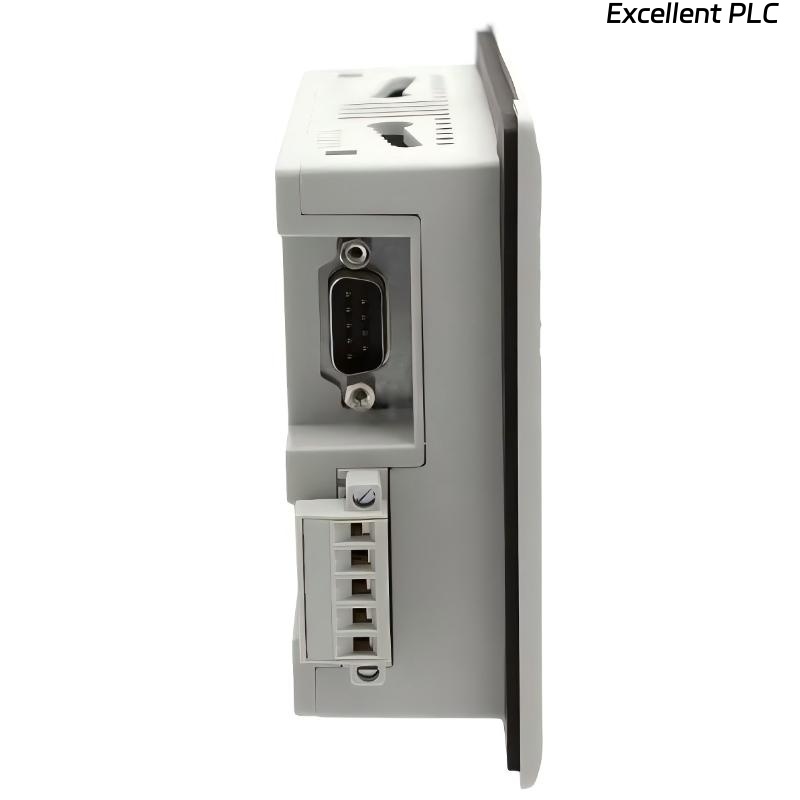

The Allen Bradley 2711R-T4T PanelView 800 HMI Terminal is a compact and efficient human-machine interface designed for industrial automation, machine control, and process monitoring applications. Featuring a responsive touchscreen and a 4-inch color TFT display, this terminal provides operators with clear access to machine status, alarms, diagnostics, and operational data in real time.
The PanelView 800 series is developed for small and medium-sized automation systems requiring reliable HMI performance, flexible communication options, and simple integration with industrial controllers. Its 480 × 272 WVGA display resolution delivers clear graphics and improved readability, making it suitable for compact industrial control environments where space is limited.
This model supports Ethernet communication along with RS-232/422/485 serial interfaces, enabling seamless integration with PLCs, drives, and industrial control equipment. Equipped with 256 MB internal storage and 256 MB RAM, the terminal delivers stable performance for industrial visualization applications. Powered by a 24 VDC input supply, the unit is ideal for packaging systems, OEM machinery, conveyors, and manufacturing automation applications requiring reliable compact touchscreen HMI functionality.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 2711R-T4T |
| Series | PanelView 800 |
| Display Size | 4 Inch |
| Display Type | Color TFT Display |
| Resolution | 480 × 272 WVGA |
| Input Method | Touchscreen |
| Communication Port | Ethernet |
| Serial Communication | RS-232/422/485 |
| Internal Storage | 256 MB |
| RAM Memory | 256 MB |
| Input Voltage | 24 VDC |
| Mounting Type | Panel Mount |
| Interface Type | Human Machine Interface (HMI) |
| Display Technology | TFT Color Display |
| Cooling Method | Passive Cooling |
| Application Type | Industrial Operator Terminal |
| Dimensions | 138 × 43 × 116 mm |
| Weight | 0.333 kg |
Applications
• Industrial Automation: Provides operator monitoring and machine control for compact automation systems.
• Packaging Equipment: Suitable for small packaging machines and labeling systems requiring touchscreen operation.
• OEM Machinery: Ideal for machine builders requiring compact and reliable HMI functionality.
• Conveyor Systems: Supports monitoring and control of material handling equipment.
• Process Visualization: Displays machine status, alarms, diagnostics, and operational information clearly and efficiently.
Advantages
• Ultra-Compact Design: Small footprint allows installation in limited panel spaces and compact machinery.
• Clear WVGA Display: The color TFT screen provides sharp graphics and improved visibility.
• Flexible Communication Support: Ethernet and RS-232/422/485 interfaces support broad industrial compatibility.
• Reliable Performance: 256 MB storage and RAM ensure stable HMI operation.
• Easy System Integration: Compatible with Allen Bradley PLC systems and industrial automation platforms.
• Efficient Operator Interaction: Responsive touchscreen simplifies machine operation and monitoring.
