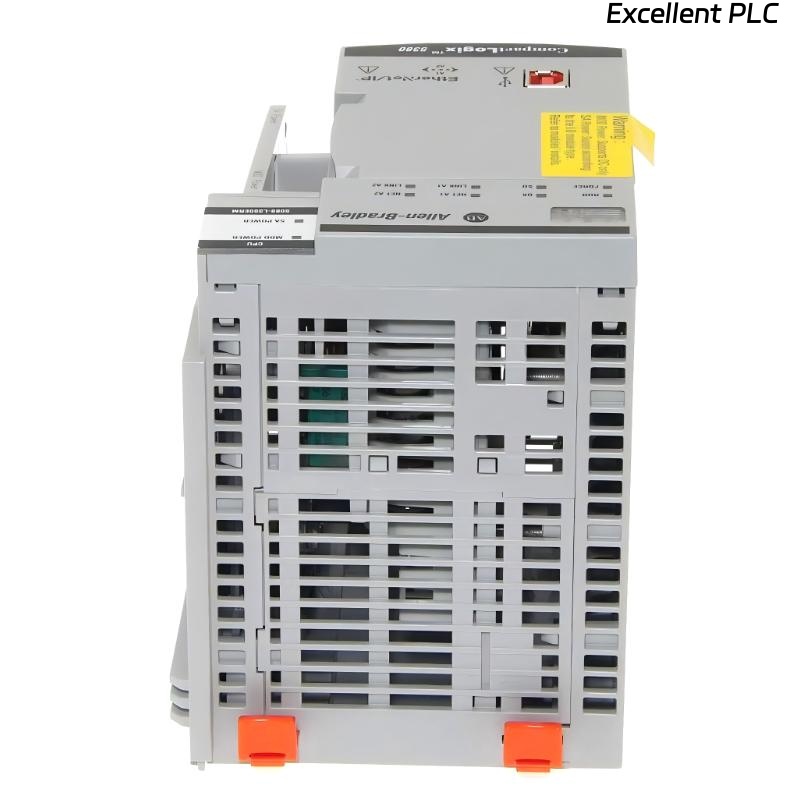

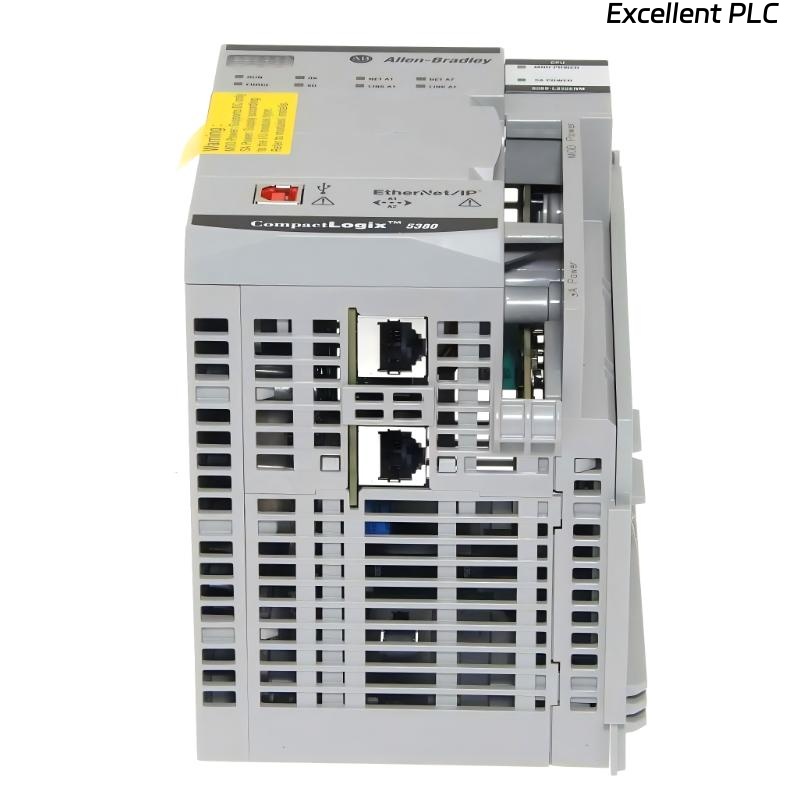

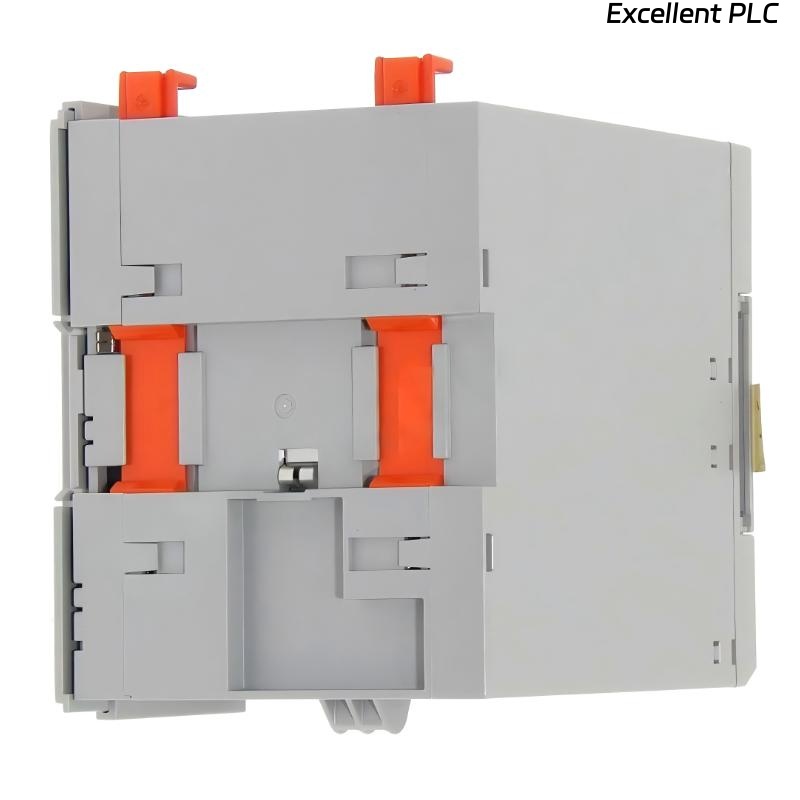

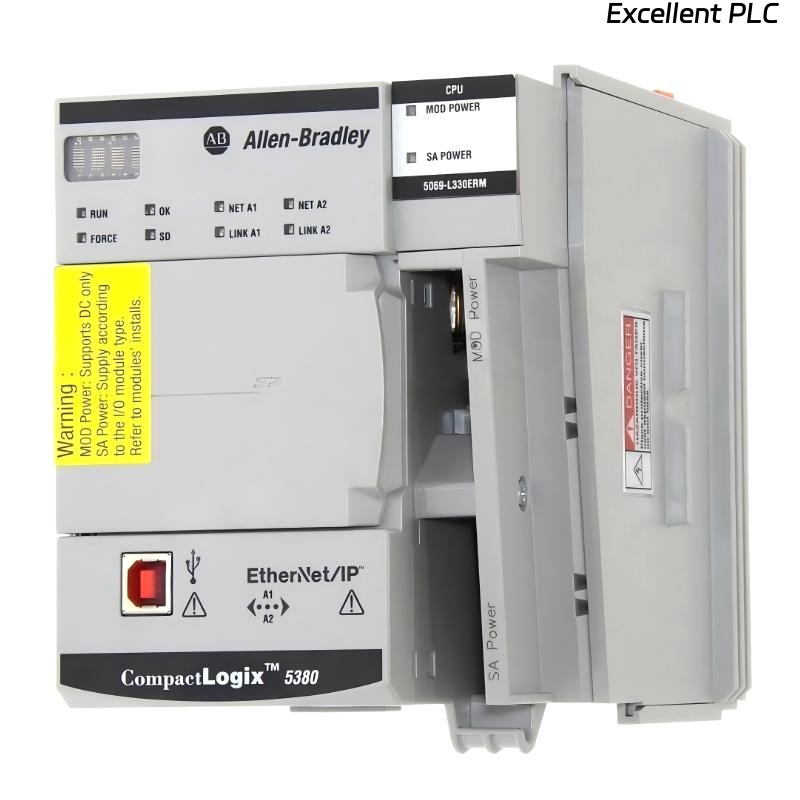

Allen Bradley 5069-L330ERM CompactLogix 5380 Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 5069-L330ERM CompactLogix 5380 Controller is a high-performance motion-enabled controller designed for advanced industrial automation systems that require precise multi-axis coordination, large-scale I/O integration, and reliable communication. As part of the CompactLogix 5380 series, this model combines standard control capabilities with powerful integrated motion functionality, making it suitable for complex machine architectures.
Equipped with 3 MB of user memory, the controller is capable of handling sophisticated control logic, motion algorithms, and large data sets. Its support for up to 16 axes of integrated motion allows accurate synchronization and coordination across multiple motion devices, significantly improving machine performance and efficiency.
With dual-channel EtherNet/IP communication and support for up to 50 nodes, the controller enables seamless integration into distributed industrial networks. Additionally, the ability to expand up to 31 local I/O modules provides excellent scalability for growing system requirements. Its compact DIN rail mounting design ensures easy installation while maintaining high reliability in industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 5069-L330ERM |
| Series | CompactLogix 5380 |
| Controller Type | Motion-Enabled Dual Channel EtherNet/IP Controller |
| User Memory | 3 MB |
| Integrated Motion | Up to 16 Axes |
| Communication Ports | Dual EtherNet/IP |
| Maximum Ethernet/IP Nodes | Up to 50 Nodes |
| Local I/O Expansion | Up to 31 Modules |
| Power Supply Voltage | 18–32 VDC |
| Mounting Type | DIN Rail Mount |
| Controller Class | Standard |
| Isolation | Integrated System Isolation |
| Dimensions | 143.97 x 101.66 x 136.81 mm |
| Weight | 0.768 kg |
Applications
• Multi-Axis Motion Systems such as packaging, printing, and converting machines requiring precise synchronization
• High-Speed Manufacturing Lines where coordinated motion and fast control response are essential
• Robotics and Automated Handling Systems involving complex motion paths and positioning control
• OEM Equipment Development for scalable machines integrating motion and logic control in one platform
• Advanced Production Systems that require high I/O density and distributed communication
Advantages
• High Motion Capability supports up to 16 axes, enabling complex synchronized motion applications
• Large Memory Capacity with 3 MB allows execution of advanced control and motion algorithms
• Extensive I/O Scalability with up to 31 local modules for large system configurations
• Dual Ethernet/IP Communication enhances network flexibility and system reliability
• Integrated Control and Motion reduces system complexity and hardware requirements
• Compact Industrial Design ensures efficient panel installation and long-term operational stability
FAQ
- What types of motion control are supported by this controller?
The controller supports point-to-point, coordinated, and interpolated motion control, suitable for applications such as camming, gearing, and indexing. - How are multiple axes synchronized in the system?
Synchronization is achieved through integrated motion control features that allow coordinated movement with precise timing across all configured axes. - Which software platform is required for programming?
Programming is performed using Studio 5000 Logix Designer, which provides tools for both logic and motion configuration. - What communication method is used for motion devices?
Motion devices communicate over EtherNet/IP using CIP Motion technology for real-time data exchange. - Can the controller handle both motion and standard control tasks simultaneously?
Yes, it is designed to execute motion control and standard logic within a unified environment without performance compromise. - How does the controller manage high I/O counts efficiently?
It uses optimized processing architecture and communication scheduling to ensure fast and reliable I/O handling. - Is external motion hardware required for operation?
No, the integrated motion capability eliminates the need for a separate motion controller in most applications. - What factors influence motion performance?
Performance depends on system configuration, number of axes, communication load, and application complexity. - Does the controller support real-time feedback from drives?
Yes, it processes real-time feedback data from connected drives to maintain accurate motion control. - Can this controller be integrated into larger automation systems?
Yes, it is fully compatible with the Logix platform, allowing seamless integration with other controllers and systems.
Related Models
| Model | Description |
|---|---|
| 5069-L330ER | Standard Controller without Motion |
| 5069-L320ERM | Motion Controller, Lower Capacity |
| 5069-L340ERM | Higher Performance Motion Controller |
| 5069-L350ERM | High-End Motion Controller |
| 5069-L330ERS2 | Safety Controller Version |
| 5069-L310ERM | Entry-Level Motion Controller |
Popular Models
| Model | Description |
|---|---|
| 1756-L81E | ControlLogix High-End Controller |
| 1756-L85E | Advanced ControlLogix Controller |
| 1769-L33ER | CompactLogix Mid-Range Controller |
| 1769-L36ERM | Motion CompactLogix Controller |
| 5069-L320ER | Standard CompactLogix 5380 |
| 5069-L320ERM | Motion CompactLogix Controller |
