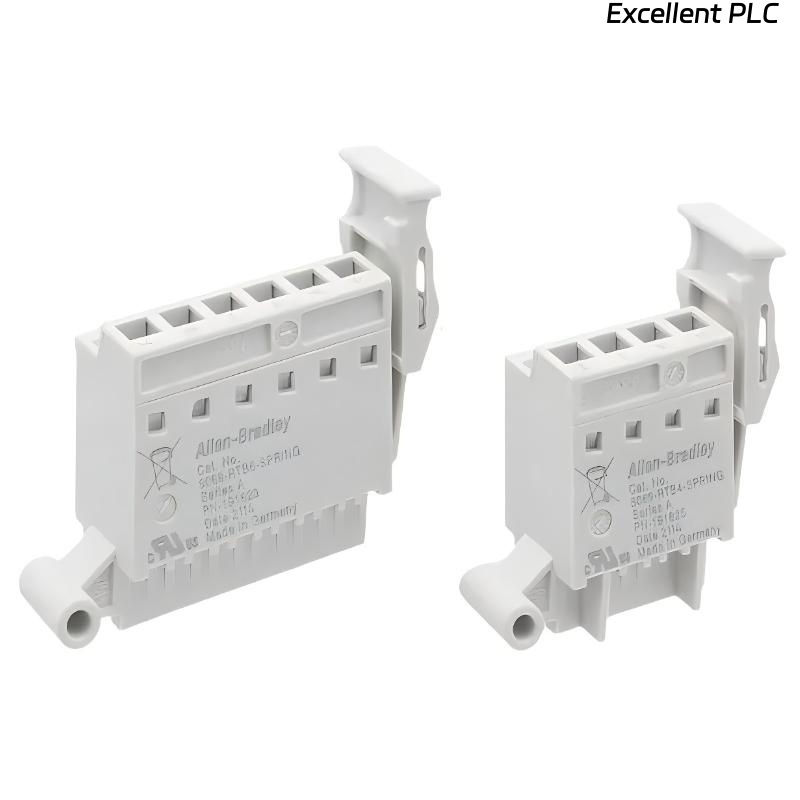

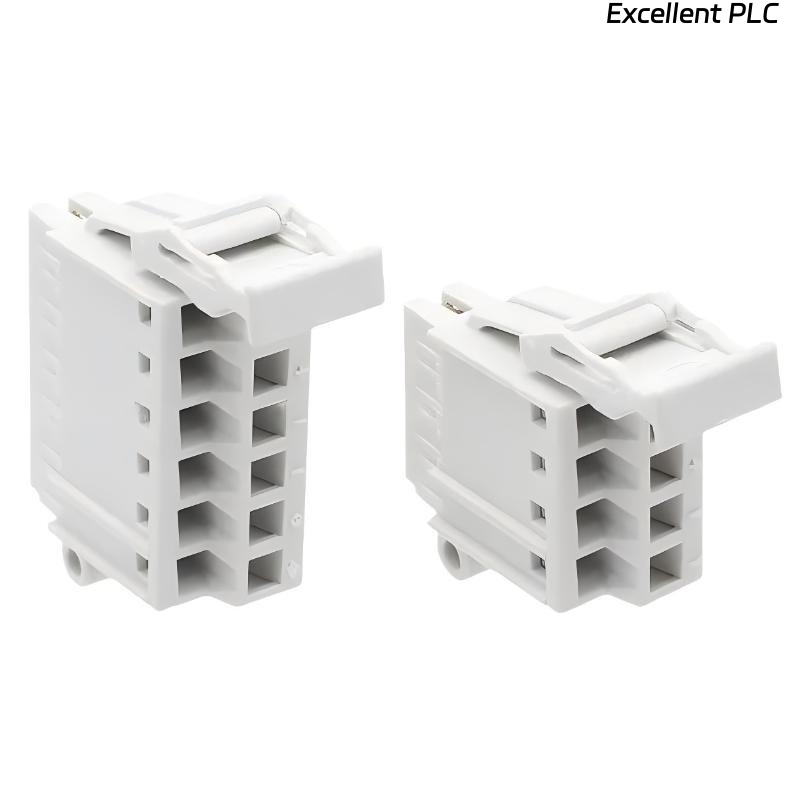

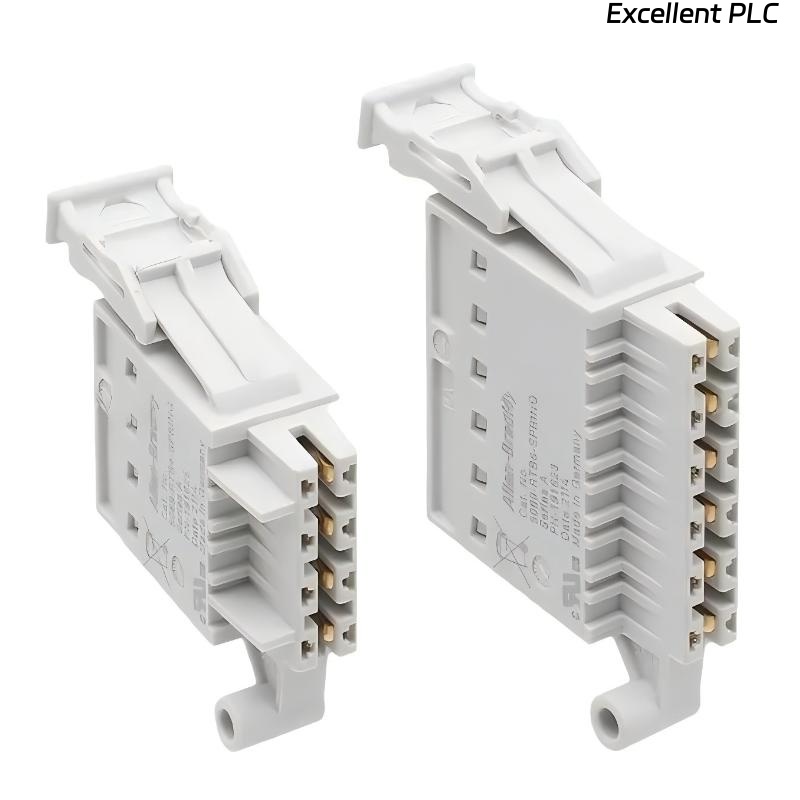

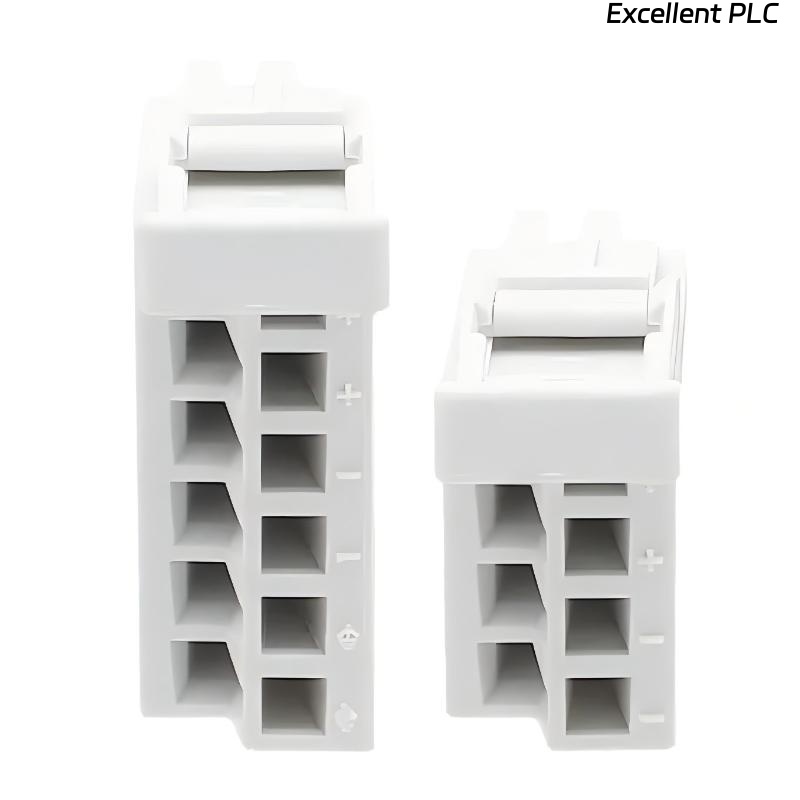

The Allen Bradley 5069-RTB64-SPRING Compact 5000 I/O Power Terminal RTB Kit is a removable terminal block designed for Compact 5000 I/O systems, providing a reliable power and field wiring interface for industrial automation applications. It is used to connect field wiring to Compact I/O modules, ensuring stable electrical distribution and secure system integration within CompactLogix-based architectures.
This RTB kit supports both 4-pin and 6-pin configurations and is designed for use in Compact 5000 I/O and safety-related modules. It enables efficient wiring in distributed I/O systems, helping maintain consistent power delivery and signal integrity across multiple modules in an industrial control environment.
Although labeled as a spring-type RTB kit, this model description also references screw-type compatibility in field usage, depending on installation configuration. Its compact and modular structure allows easy installation and replacement without disturbing the entire I/O assembly, making it suitable for modern industrial automation systems requiring flexible maintenance and high system availability.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 5069-RTB64-SPRING |
| Series | Compact 5000 |
| Product Type | I/O Power Terminal RTB Kit |
| Pin Configuration | 4 / 6 Pin |
| Terminal Type | Spring / Screw Type (config dependent) |
| Design Style | Open Style |
| Mounting Type | Mountable |
| Compatibility | Compact 5000 I/O Modules |
| System Application | Standard & Safety I/O Power Wiring |
| Wiring Method | Removable Terminal Block |
| Controller Compatibility | CompactLogix / GuardLogix Systems |
| Network Integration | EtherNet/IP via Compact 5000 Adapters |
| Industrial Use | Automation and Control Systems |
| System Architecture | Distributed I/O Systems |
| Weight | 0.05 kg |
Applications
• Industrial Control Systems: Provides secure power and wiring termination for Compact 5000 I/O modules.
• Safety Automation Systems: Used in GuardLogix-based safety control architectures.
• Manufacturing Equipment: Supports wiring connections in automated production systems.
• Distributed I/O Architectures: Enables scalable modular wiring for multi-module control systems.
• OEM Machine Building: Suitable for machine builders requiring flexible I/O wiring solutions.
Advantages
• Flexible Pin Configuration: Supports both 4-pin and 6-pin terminal arrangements.
• Removable Design: Allows fast maintenance and replacement without rewiring the system.
• Stable Power Distribution: Ensures reliable electrical connection for Compact 5000 I/O modules.
• Compact Industrial Design: Saves space in control panels and supports high-density installations.
• System Compatibility: Designed for integration with CompactLogix and GuardLogix systems.
• Efficient Field Wiring: Simplifies installation and reduces downtime during servicing.
