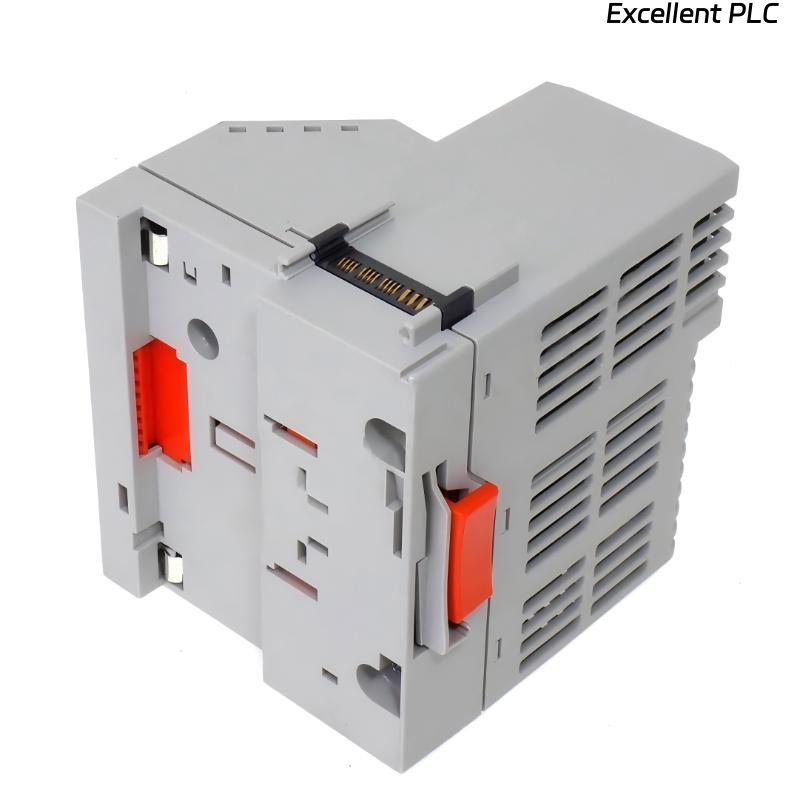

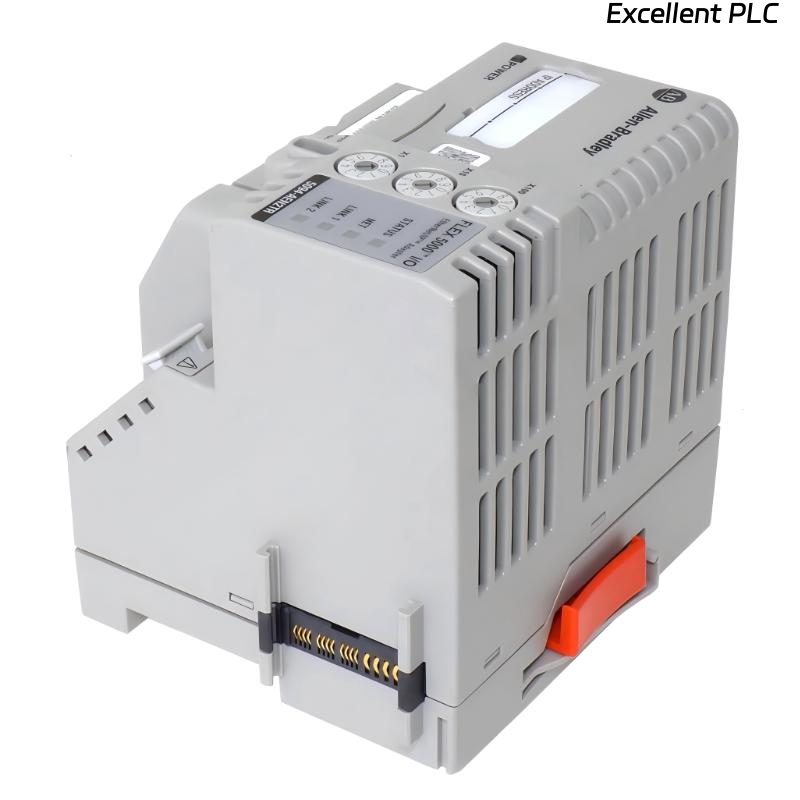

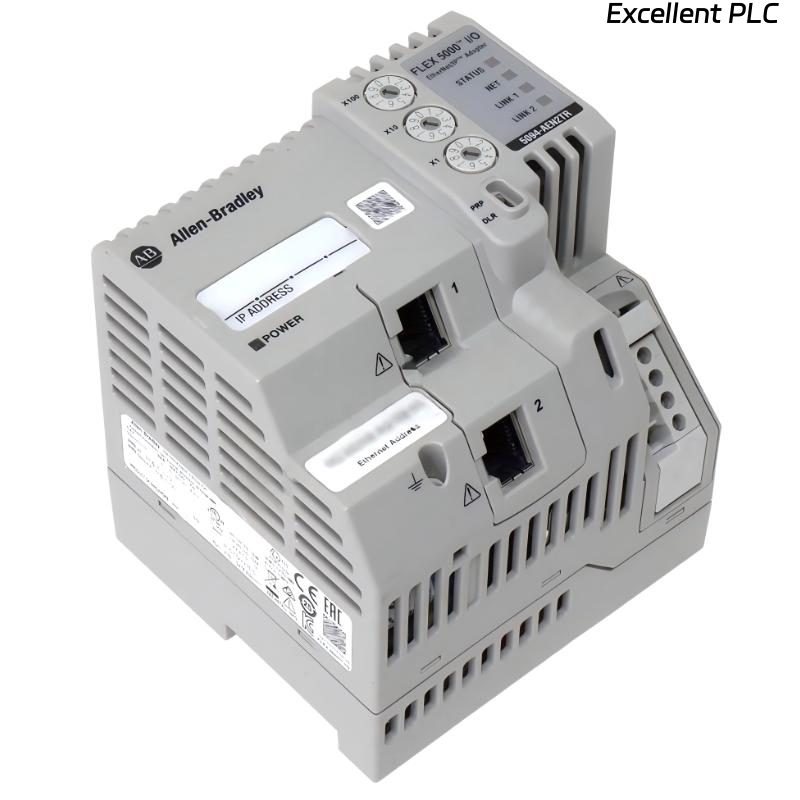

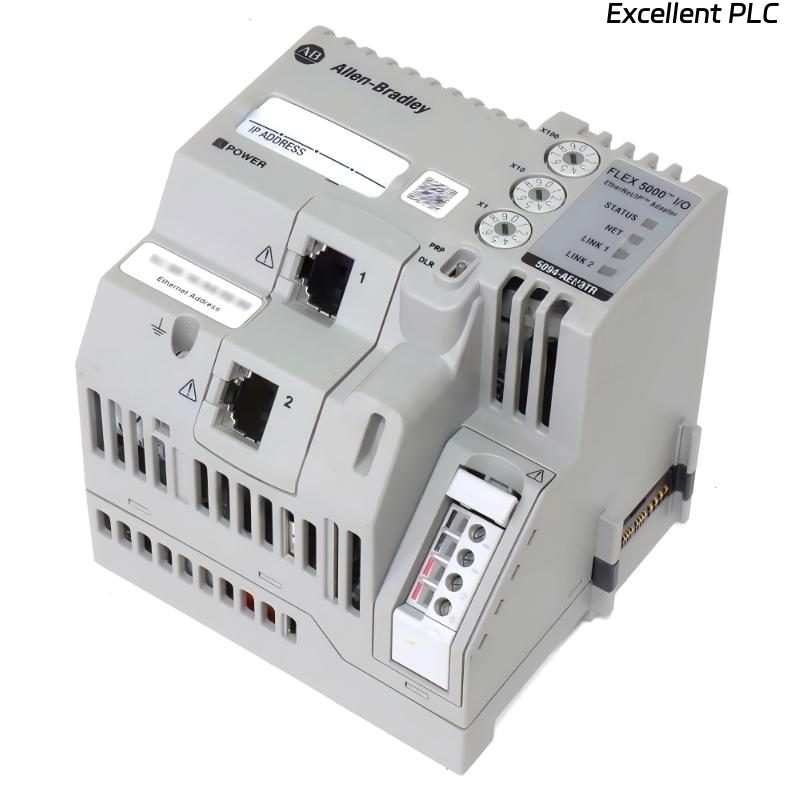

Allen Bradley 5094-AEN2TR Flex 5000 EtherNet/IP Adapter

Product Introduction

The Allen Bradley 5094-AEN2TR Flex 5000 EtherNet/IP Adapter is a high-performance communication module designed to connect FLEX 5000 I/O systems to EtherNet/IP networks. It serves as the central interface between distributed I/O modules and Logix-based controllers, enabling real-time data exchange and efficient system control in modern industrial automation environments.

This adapter supports up to 16 FLEX 5000 I/O modules on a single backplane, making it suitable for scalable and modular system designs. With dual RJ45 ports supporting 10/100/1000 Mbps communication and Device Level Ring (DLR) topology, it ensures high-speed data transmission and network redundancy. The module also features built-in thermal monitoring and diagnostic capabilities, improving system reliability and reducing downtime.

Designed for industrial use, the unit operates with a 15V DC backplane supply and offers efficient thermal management. Its compact and robust design allows easy installation in control cabinets, making it ideal for distributed I/O applications requiring flexibility, performance, and reliability.

---

Product Specifications

---

Applications

• Distributed I/O systems

• Manufacturing automation lines

• Process control systems

• Material handling systems

• Machine building applications, offering flexible and modular I/O expansion capabilities.

---

Advantages

• Supports up to 16 I/O modules

• High-speed Ethernet communication (up to 1 Gbps)

• Dual RJ45 ports with DLR support

• Integrated thermal monitoring

• Compact and modular design simplifies installation and reduces cabinet space requirements.

• Seamless integration with Logix platforms enables efficient configuration and control.

FAQ

1. What is the main function of the 5094-AEN2TR adapter?
   It connects FLEX 5000 I/O modules to an EtherNet/IP network, enabling communication with controllers.
2. How many I/O modules can this adapter support?
   It can support up to 16 FLEX 5000 I/O modules on a single backplane.
3. What network speeds are supported?
   It supports 10 Mbps, 100 Mbps, and 1 Gbps Ethernet communication.
4. What is the purpose of dual RJ45 ports?
   They allow network daisy-chaining and support Device Level Ring (DLR) for redundancy.
5. What is DLR functionality?
   DLR provides network redundancy, ensuring communication continues even if a network fault occurs.
6. What is the backplane voltage requirement?
   It operates with a 15V DC backplane supply.
7. Does the module include diagnostic features?
   Yes, it includes thermal monitoring and status indicators for system diagnostics.
8. Is it suitable for industrial environments?
   Yes, it is designed for reliable operation in industrial automation systems.
9. How is the module mounted?
   It can be mounted on a panel or DIN rail as part of a FLEX 5000 system.
10. What controllers are compatible with this adapter?
    It is designed for use with Logix-based controllers in EtherNet/IP networks.
