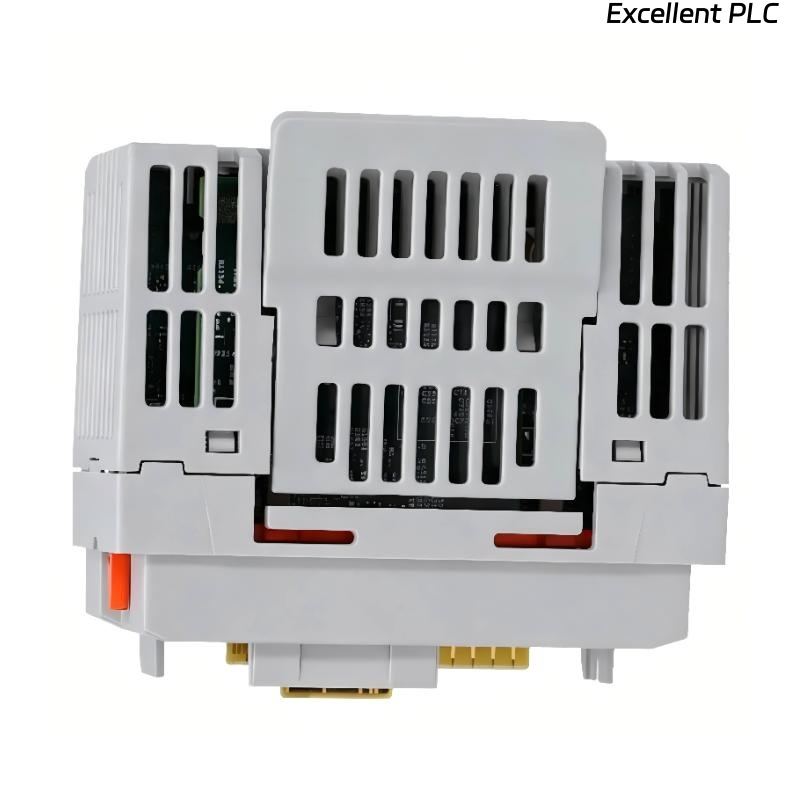

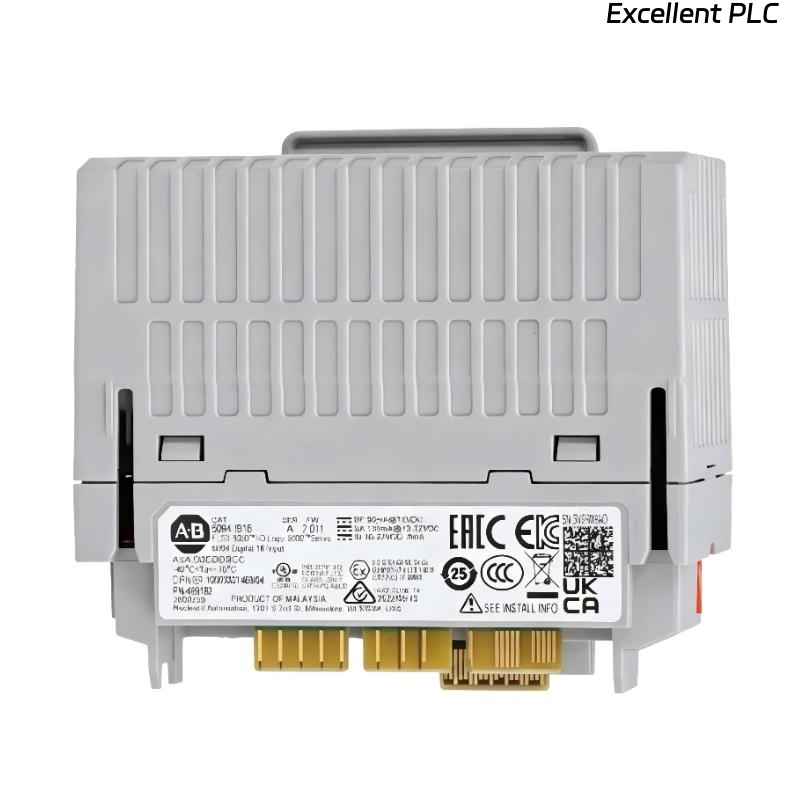

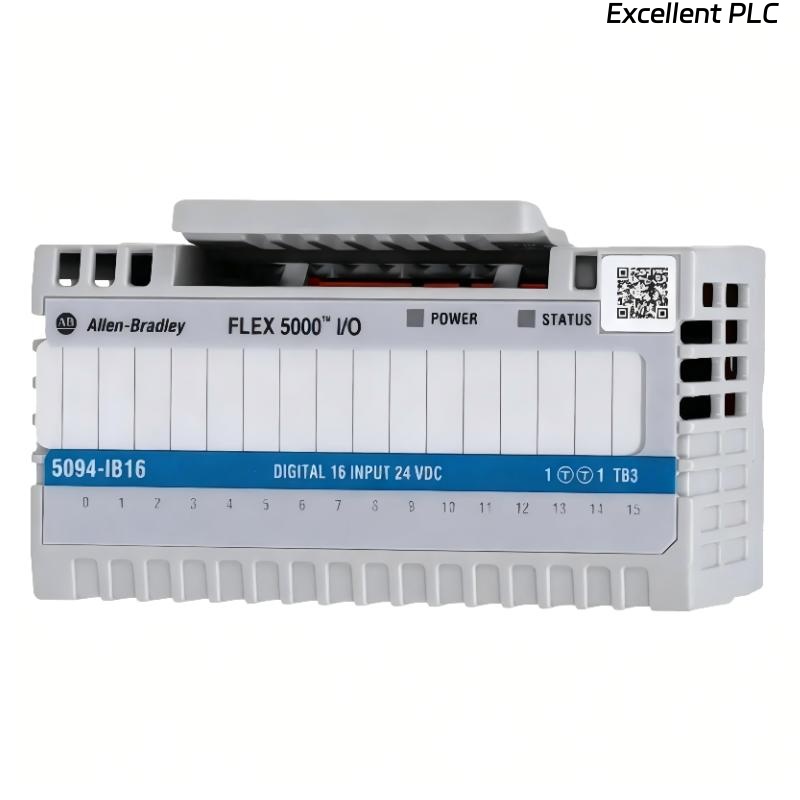

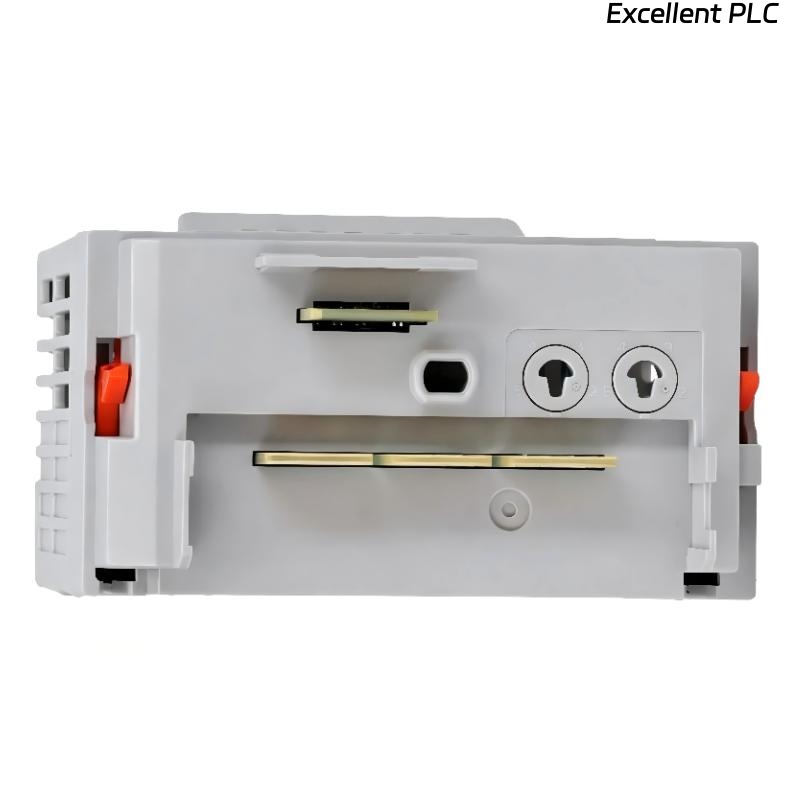

Allen Bradley 5094-IB16 Flex 5000 Digital Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 5094-IB16 Flex 5000 Digital Input Module is a high-performance 16-channel input module designed for Flex 5000 control systems. It allows reliable detection of discrete signals from field devices and provides corresponding relay outputs to the control system. The module is built to support industrial environments, featuring IP54 protection and screw-type terminals for secure wiring.
This module is ideal for applications requiring robust input monitoring with integrated relay outputs, making it suitable for process automation, machine control, and distributed I/O systems. Its compact design and high-density input channels allow efficient use of panel space while ensuring consistent signal integrity across all connected devices.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 5094-IB16 |
| Series | Flex 5000 |
| Product Type | Digital Input Module |
| Input Channels | 16 |
| Output Type | Relay Output |
| Voltage | 24 VDC |
| Terminal Type | Screw Connection |
| Protection Class | IP54 |
| System Compatibility | Flex 5000 Controllers |
| Industrial Use | Process Automation, Machine Control |
| Design Style | Compact Module |
| Mounting Type | Panel/Chassis Mountable |
| Weight | 0.101 kg |
| Dimensions | 94 x 54 x 87 mm |
Applications
• Industrial Automation: Monitors discrete field inputs for machines and processes.
• Distributed I/O Systems: Interfaces multiple field devices efficiently in a modular setup.
• Machine Control: Provides relay outputs to trigger control actions based on input status.
• Process Monitoring: Captures discrete signals from sensors, switches, and other devices.
• OEM Equipment: Compact design suitable for custom-built industrial machinery.
Advantages
• High-Density Input: 16 discrete inputs in a compact module.
• Integrated Relay Outputs: Simplifies wiring and reduces the need for additional relays.
• Screw-Type Terminals: Provides secure and reliable electrical connections.
• IP54 Protection:
• Flex 5000 Compatibility:
• Compact Design: Saves panel space and allows efficient layout in control systems.
FAQ
- How many input channels does this module provide?
It provides 16 discrete input channels. - What type of outputs does the module use?
It provides relay outputs corresponding to the input states. - Is it compatible with Flex 5000 controllers?
Yes, it is fully compatible with Flex 5000 systems. - What terminal type does it use?
It uses screw-type terminals for secure connections. - What voltage is required for operation?
The module operates at 24 VDC. - Is the module protected against dust and water?
Yes, it has an IP54 rating suitable for industrial environments. - Can it be used in distributed I/O setups?
Yes, it supports modular distributed I/O configurations. - What industries is this module suitable for?
It is suitable for machine control, process automation, and OEM equipment. - Does it support high-density installations?
Yes, its compact size and 16 input channels support efficient panel layouts. - What is the advantage of integrated relay outputs?
It simplifies wiring, reduces additional relay requirements, and speeds up installation.
Related Models
| Model | Type | Inputs | Outputs | System Type | Features |
|---|---|---|---|---|---|
| 5094-IB16 | Digital Input Module | 16 | Relay | Flex 5000 | IP54, Screw Terminals |
| 5094-IB8 | Digital Input Module | 8 | Relay | Flex 5000 | Compact, IP54 |
| 5094-IB32 | Digital Input Module | 32 | Relay | Flex 5000 | High Density, IP54 |
| 5094-OB16 | Digital Output Module | — | 16 | Flex 5000 | Relay Outputs |
| 5094-IB16-A | Digital Input Module | 16 | Relay | Flex 5000 | Extended Temp Range |
| 5094-IB16-B | Digital Input Module | 16 | Relay | Flex 5000 | Enhanced Diagnostics |
Popular Models
| Model | Type | Inputs | Outputs | System Type | Features |
|---|---|---|---|---|---|
| 5094-IB16 | Digital Input Module | 16 | Relay | Flex 5000 | IP54, Screw Terminals |
| 5094-IB8 | Digital Input Module | 8 | Relay | Flex 5000 | Compact, IP54 |
| 5094-OB16 | Digital Output Module | — | 16 | Flex 5000 | Relay Outputs |
| 5094-IB32 | Digital Input Module | 32 | Relay | Flex 5000 | High Density, IP54 |
| 5094-IB16-A | Digital Input Module | 16 | Relay | Flex 5000 | Extended Temp Range |
| 5094-IB16-B | Digital Input Module | 16 | Relay | Flex 5000 | Enhanced Diagnostics |
