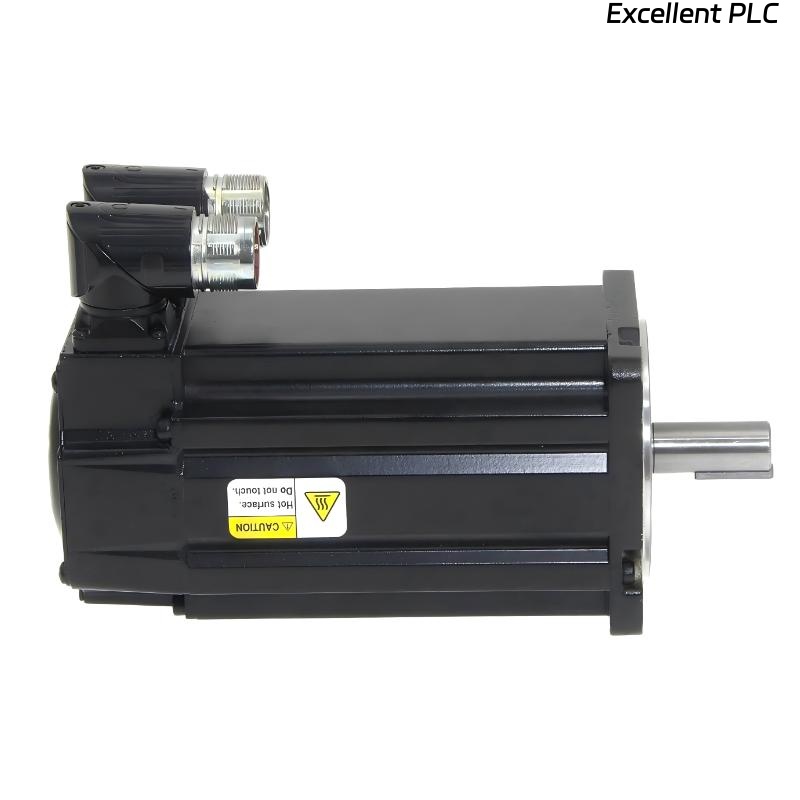

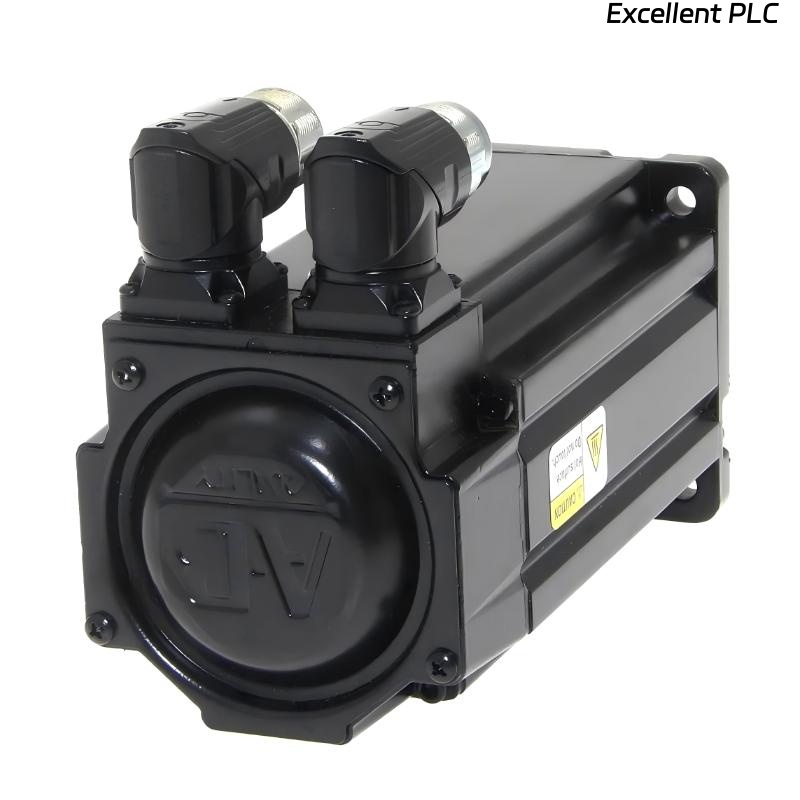

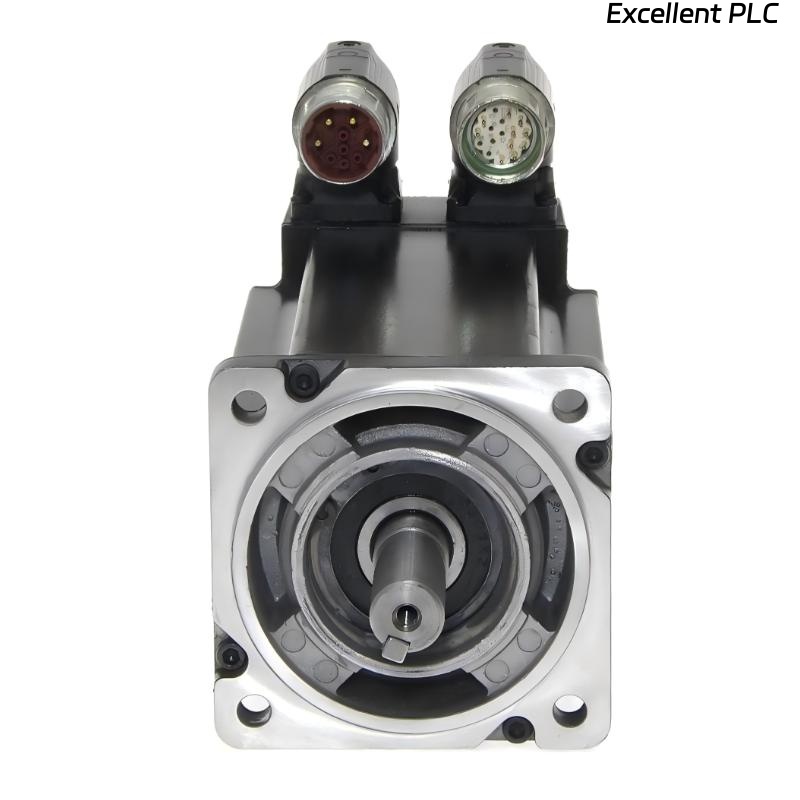

Allen Bradley MPL-A330P-MJ72AA Servo Motor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley MPL-A330P-MJ72AA Servo Motor is a high-performance servo motor designed for precision motion control applications in industrial automation systems. As part of the MPL series, this motor is engineered to deliver high torque density, fast dynamic response, and reliable operation in demanding environments.
This model features a 200V voltage class and operates at a rated speed of 5000 rpm, making it suitable for high-speed motion control tasks. Equipped with a Hiperface absolute multi-turn encoder, the motor provides accurate position feedback, ensuring precise control and repeatability. The compact 100 mm frame size combined with a 76.2 mm magnet stack length offers an optimized balance between power and space efficiency.
With its SpeedTec DIN connector for quick and secure connections, along with a keyed shaft design, the motor ensures ease of installation and stable mechanical coupling. It is particularly suitable for applications where high precision, responsiveness, and reliability are essential.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | MPL-A330P-MJ72AA |
| Series | MPL Servo Motor |
| Frame Size | 100 mm |
| Voltage Class | 200 V |
| Rated Speed | 5000 rpm |
| Encoder Type | Absolute Multi-turn (Hiperface) |
| Encoder Resolution | 1024 Sin/Cos |
| Magnet Stack Length | 76.2 mm |
| Shaft Type | Keyed Shaft |
| Shaft Seal | No Shaft Seal |
| Connector Type | Circular (SpeedTec DIN Connector) |
| Brake | No Brake |
| Cooling Method | Natural Cooling |
| Mounting Type | Flange Mount |
| Weight | 4.6 kg |
Applications
● Packaging Machinery
High-speed and precise motion control ensures accurate positioning and synchronization of packaging processes.
● Material Handling Systems
Smooth and responsive operation improves conveyor and robotic movement efficiency.
● CNC and Machine Tools
Accurate positioning capability supports high-precision machining and repeatability.
● Robotics and Automation Equipment
Fast dynamic response enhances robotic arm movement and coordinated motion control.
● Printing and Converting Equipment
Consistent speed and torque control ensures high-quality output in continuous processes.
Advantages
● High-Speed Performance
5000 rpm rated speed enables rapid motion and increased productivity.
● Precision Feedback System
Hiperface absolute encoder provides accurate position tracking and eliminates the need for homing after power cycles.
● Compact and Efficient Design
100 mm frame with optimized magnet stack delivers high torque density in a compact size.
● Reliable Mechanical Connection
Keyed shaft design ensures secure coupling and stable torque transmission.
● Quick and Secure Installation
SpeedTec DIN connector simplifies wiring and reduces installation time.
● Flexible Application Integration
Suitable for a wide range of motion control systems in industrial automation.
FAQ
- What are the benefits of using a Hiperface absolute encoder?
It provides precise position feedback and retains position data after power loss, eliminating the need for re-homing and improving system efficiency. - What type of applications is this servo motor best suited for?
It is ideal for high-speed, high-precision motion control applications such as packaging, robotics, and CNC machinery. - What does the 1024 Sin/Cos encoder resolution indicate?
It refers to the analog feedback signal quality, allowing high interpolation for accurate position and speed control. - How does the SpeedTec connector improve installation?
It enables quick locking and secure connections, reducing wiring time and minimizing the risk of loose connections. - Is this motor suitable for environments requiring shaft sealing?
No, this model does not include a shaft seal, so additional protection may be needed in harsh or contaminated environments. - What is the advantage of a keyed shaft design?
It ensures reliable torque transmission and prevents slippage between the motor shaft and the connected load. - Does this motor include a holding brake?
No, this version does not include a brake, so external braking solutions may be required if holding torque is needed. - How is cooling handled for this motor?
The motor typically uses natural cooling, relying on its design and ambient conditions to dissipate heat. - What voltage systems is this motor compatible with?
It is designed for 200V class servo drive systems commonly used in industrial automation. - What should be considered when selecting this motor for an application?
Key factors include load requirements, speed range, environmental conditions, and compatibility with the servo drive system.
Related Models
| Model | Description |
|---|---|
| MPL-A320P-MJ72AA | Smaller frame size variant |
| MPL-A330P-MJ74AA | Extended magnet stack version |
| MPL-A330P-SJ72AA | Different shaft configuration |
| MPL-A330P-MJ72AB | Brake version |
| MPL-B330P-MJ72AA | Higher performance series |
| MPL-A430P-MJ72AA | Larger frame size |
Popular Models
| Model | Description |
|---|---|
| MPL-A310P-MJ22AA | Compact servo motor |
| MPL-A420P-MJ72AA | Mid-range performance motor |
| MPL-B320P-MJ72AA | High-performance MPL-B series |
| MPL-A4530F-MJ74AA | High torque variant |
| MPL-A330P-SJ22AA | Standard industrial servo |
| MPL-B430P-MJ74AA | Large frame high-performance motor |
