Product Introduction

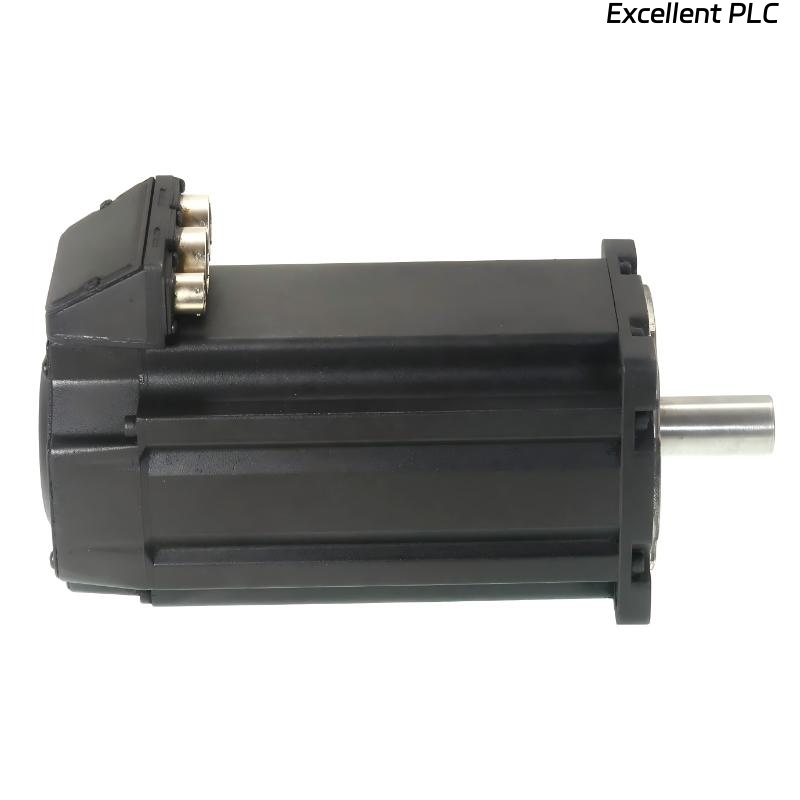

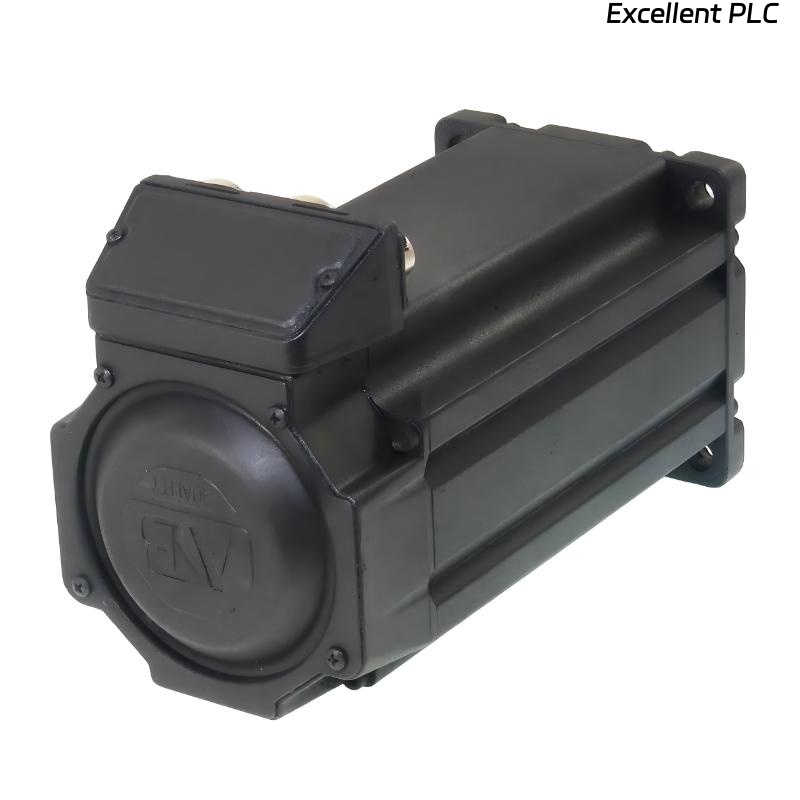

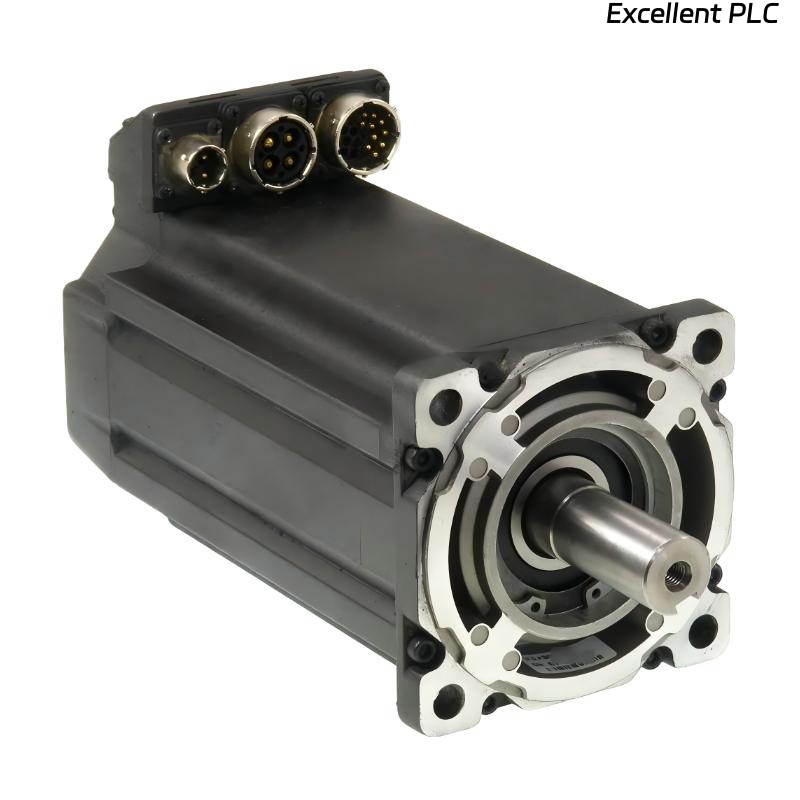

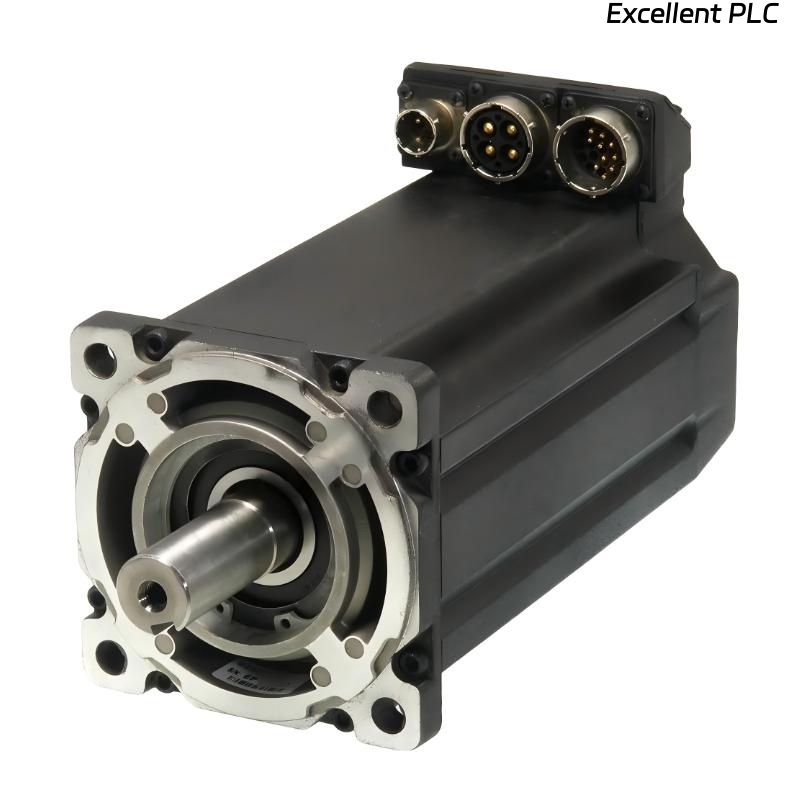

The Allen Bradley MPL-B4530K-MJ24AA Servo Motor is a high-performance low-inertia servo motor from the MPL-B series, designed for demanding motion control applications requiring rapid acceleration, high torque output, and precise positioning. This model is particularly suitable for advanced automation systems where responsiveness and stability are critical.
With a 130 mm frame size and a 3-inch magnetic stack length, the motor delivers strong torque performance while maintaining dynamic efficiency. Operating at a rated speed of 4000 rpm under a 460 VAC voltage class, it is ideal for high-power industrial environments.
The motor is equipped with a multi-turn high-resolution encoder, providing accurate and continuous position feedback for complex motion control tasks. It also includes a 24 VDC holding brake, ensuring secure load holding in vertical or safety-critical applications. The bayonet-style right-angle connector with 180° rotation capability enhances installation flexibility and simplifies cable management.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | MPL-B4530K-MJ24AA |
| Series | MPL-B Servo Motor |
| Series Type | Low Inertia |
| Frame Size | 130 mm |
| Voltage Class | 460 VAC |
| Rated Speed | 4000 rpm |
| Encoder Type | Multi-turn High Resolution Encoder |
| Magnetic Stack Length | 3 inch |
| Shaft Type | Keyed Shaft |
| Shaft Seal | No Shaft Seal |
| Connector Type | Bayonet Connector, Right Angle, 180° Rotatable |
| Brake | 24 VDC Holding Brake |
| Mounting Flange | IEC Metric |
| Cooling Method | Natural Cooling |
| Weight | 7.3 kg |
Applications
● Robotics and Automation Systems
High dynamic response enables precise and fast motion control for robotic arms and automated equipment.
● CNC Machinery
Accurate positioning and torque control support high-precision machining operations.
● Vertical Axis Drives
Integrated holding brake ensures load stability and safety during power-off conditions.
● Packaging and Assembly Lines
Fast acceleration and deceleration improve cycle times and production efficiency.
● Material Handling Systems
Reliable and smooth motion control enhances conveyor and automated transport performance.
Advantages
● Low Inertia Design
Fast response and improved control accuracy enhance system performance in dynamic applications.
● High Voltage Operation
460 VAC capability supports high-power industrial systems with improved efficiency.
● Advanced Feedback System
Multi-turn high-resolution encoder ensures precise position tracking and control.
● Integrated Holding Brake
24 VDC brake provides secure load holding for vertical and safety-critical applications.
● Flexible Installation
Rotatable right-angle connector simplifies cable routing and installation in confined spaces.
● Robust Mechanical Structure
Keyed shaft design ensures reliable torque transmission.
