Product Introduction

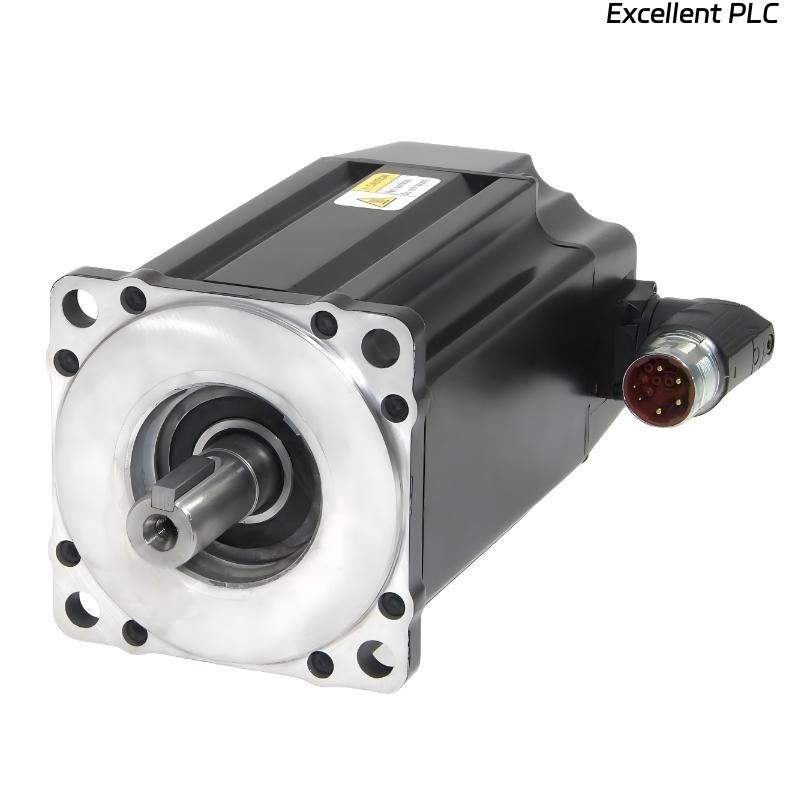

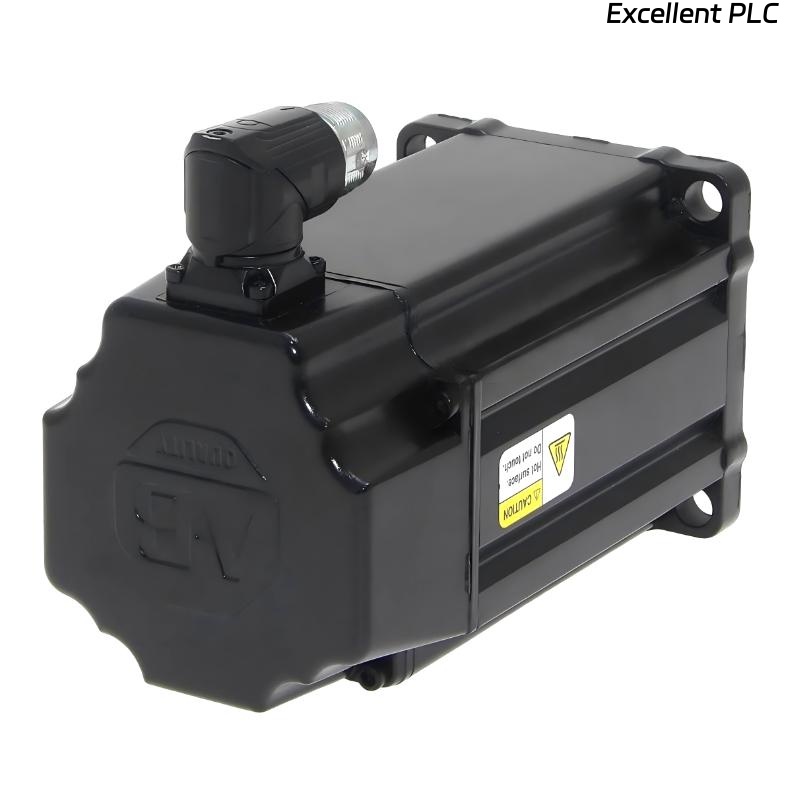

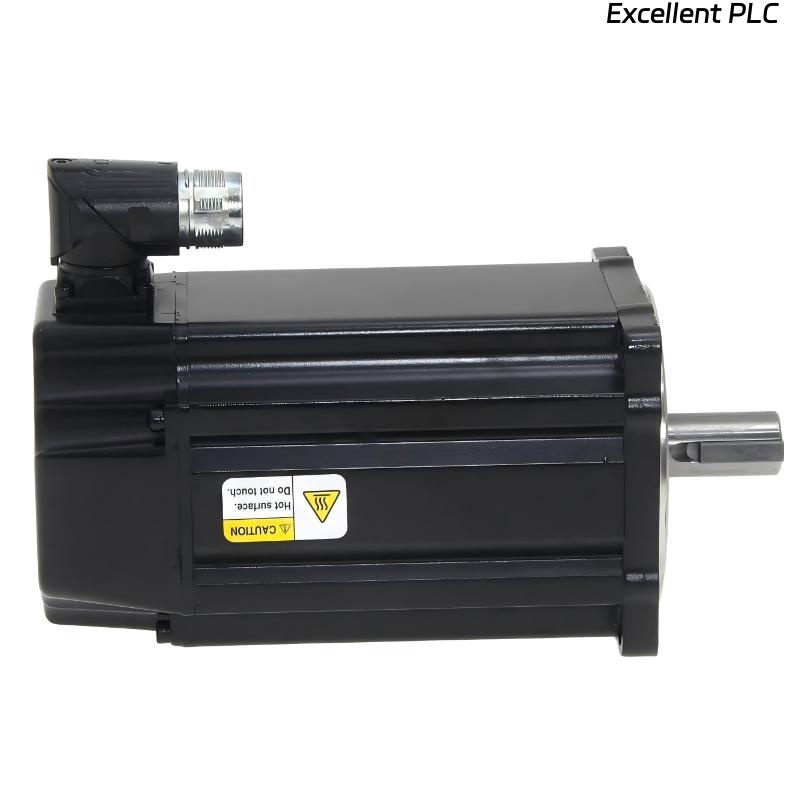

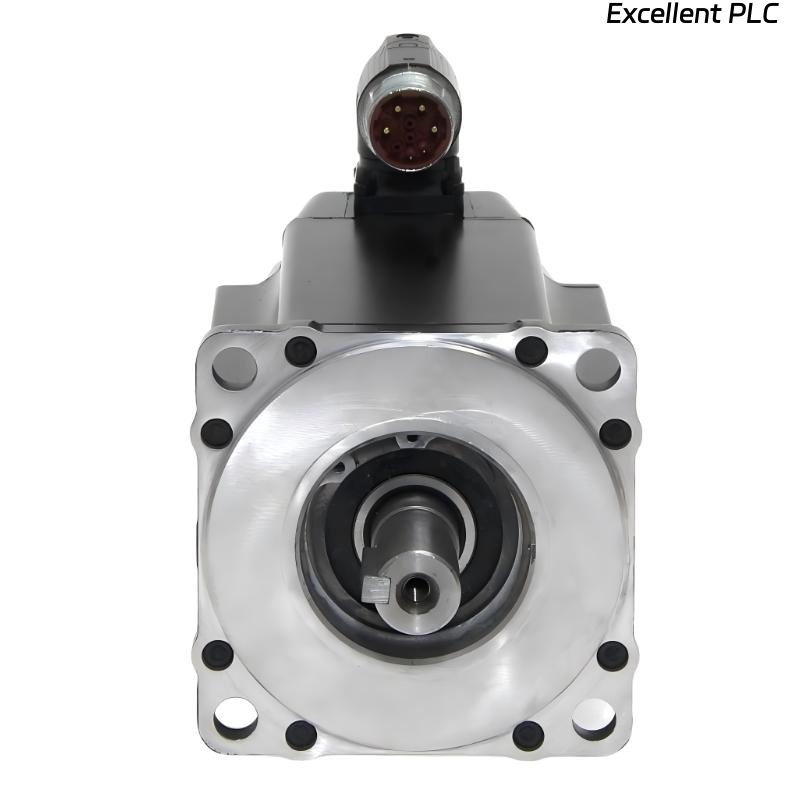

The Allen Bradley VPL-B1306F-PJ14AA is a high-performance low-inertia servo motor engineered for precision motion control applications in demanding industrial environments. With a 130 mm frame and a rated speed of 4500 RPM, this motor delivers fast, responsive operation, making it ideal for robotics, CNC machinery, packaging systems, and high-speed automation lines.
Featuring an 18-bit absolute multi-turn Hiperface DSL encoder, the motor provides high-resolution positioning and exceptional repeatability, ensuring precise control even in complex motion sequences. Its integrated 24V DC holding brake enhances safety during power-off conditions, while the single SpeedTec DIN connector simplifies installation and reduces wiring complexity. This servo motor combines compact design, robust performance, and IEC-compliant construction, making it a reliable choice for modern automated systems.
Product Specifications
| Parameter | Specification |
| Motor Type | Low Inertia Servo Motor |
| Frame Size | 130 mm |
| Magnet Stack | 6 Magnet Stacks |
| Rated Speed | 4500 RPM |
| Encoder | 18-bit Absolute Multi-Turn Digital Encoder (Hiperface DSL) |
| Shaft Type | Shaft Key |
| Connector | Single SpeedTec DIN Connector |
| Brake | 24V DC Holding Brake |
| Voltage Class | 400 V |
| Compliance | IEC Metric |
| Weight | 12.21 kg |
Applications
• High-Speed Automation – Ideal for industrial machinery and robotic applications requiring fast, precise motion control.
• CNC and Machining Systems – Provides accurate positioning and smooth motion for milling, cutting, or assembly tasks.
• Precision Robotics – Enables repeatable and accurate movements in automated production lines.
• Factory Automation – Supports low-inertia operations, reducing energy consumption and improving cycle times.
• Motion Control Integration – Easily integrates with drives, controllers, and other components in advanced control systems.
Advantages
• High-Speed Performance – 4500 RPM capability ensures fast and efficient operations.
• Accurate Positioning – 18-bit multi-turn Hiperface DSL encoder provides high-resolution absolute positioning.
• Integrated Holding Brake – 24V DC brake improves safety and system stability during power-off conditions.
• Compact Low-Inertia Design – Reduces mechanical lag and improves dynamic response.
• Simplified Connectivity – Single SpeedTec DIN connector streamlines wiring and installation.
• Robust Industrial Compliance – IEC metric standard ensures global compatibility and reliability.
