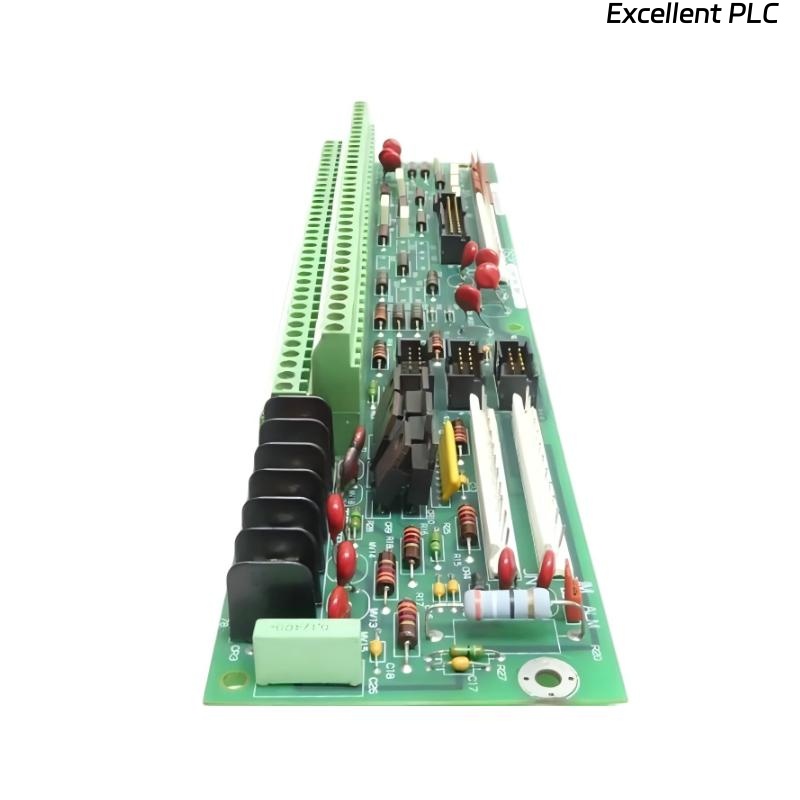

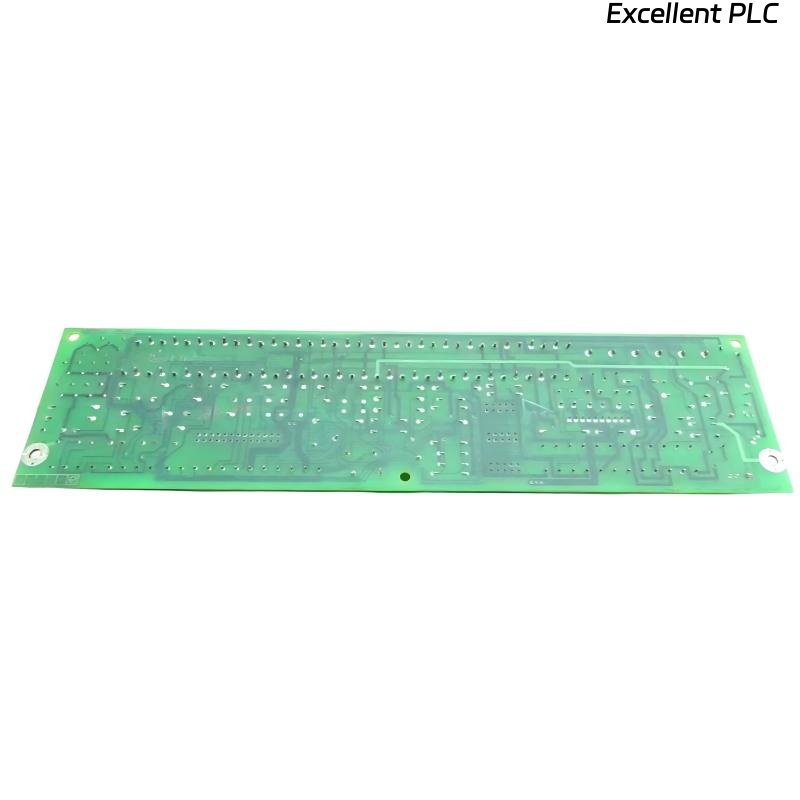

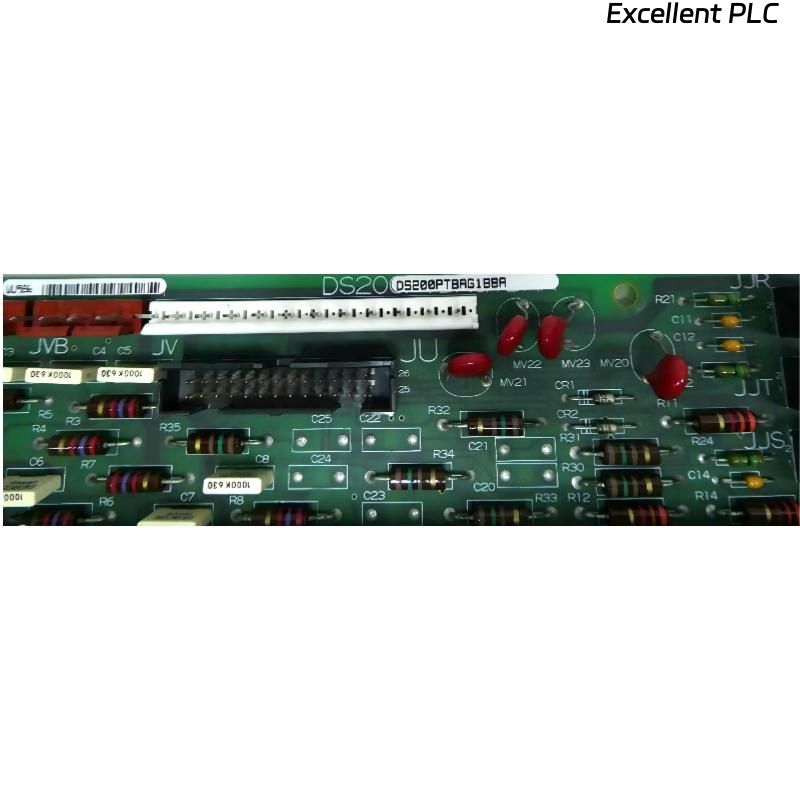

GE DS200PTBAG1BBA Mark V Termination Board
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The GE DS200PTBAG1BBA is a Mark V Termination Board designed to provide organized and reliable connections between field wiring and GE Mark V control system modules. It serves as a central interface for signal termination, distribution, and isolation, ensuring clean and secure wiring in industrial control cabinets.
Engineered for robust performance and modular integration, the termination board supports both analog and digital signals while maintaining electrical integrity and reducing wiring complexity. It is ideal for turbine control, process automation, and safety-critical industrial systems where proper termination is crucial for system reliability.
Product Specifications
| Parameter | Description |
|---|---|
| Product Series | GE Mark V |
| Model Number | DS200PTBAG1BBA |
| Product Type | Termination Board |
| Supported Signals | Analog and digital signals from Mark V modules |
| Connection Type | Screw terminals for field wiring |
| Channel Capacity | High-density termination for multiple signals |
| Electrical Isolation | Isolation provided between channels for signal integrity |
| Backplane Compatibility | IS200/Mark V system modules |
| Mounting | Rack-mountable within Mark V cabinet |
| Environmental Compliance | Industrial grade |
| Dimensions | 260 × 100 × 25 mm |
| Weight | 0.39 kg |
Applications
• Turbine and generator control systems
Centralized termination for all field and control signals.
• Industrial automation and process control
Reliable interface between sensors, actuators, and control modules.
• Safety-critical system wiring
Supports fail-safe and redundant signal pathways.
• Control cabinet wiring organization
Simplifies complex wiring setups and reduces installation errors.
• Signal isolation and distribution
Maintains electrical integrity and prevents crosstalk in mixed analog/digital environments.
Advantages
• Organized signal termination
Provides clear and structured connections for multiple control and field signals.
• Electrical isolation between channels
Reduces interference and ensures signal integrity.
• High-density interface
Supports many channels in a compact board layout, optimizing cabinet space.
• Robust industrial design
Engineered to operate reliably under industrial conditions.
• Simplified maintenance
Clearly labeled terminals enable quick troubleshooting and replacement.
FAQ
-
What types of signals can the DS200PTBAG1BBA handle?
It supports both analog and digital signals from Mark V system modules. -
How is electrical isolation achieved between channels?
Isolation barriers and spacing are designed to prevent crosstalk and maintain signal integrity. -
Can it be used in redundant or fail-safe systems?
Yes, it is suitable for redundant and safety-critical applications. -
Are the terminals screw-type or plug-in?
Screw-type terminals provide secure and stable connections for field wiring. -
Is the board compatible with all Mark V modules?
Yes, it integrates seamlessly with standard Mark V backplane modules. -
Can it handle high-density wiring without performance degradation?
Yes, the board is designed to maintain signal integrity even in dense wiring setups. -
Does it support both analog and digital module connections on the same board?
Yes, it efficiently accommodates mixed signal types. -
How is maintenance or replacement performed?
The board can be removed from the rack, with terminals clearly labeled for easy identification. -
Is it suitable for industrial environments with temperature and vibration variations?
Yes, it is built to industrial-grade standards. -
Can it simplify wiring in large Mark V control cabinets?
Yes, centralized termination reduces wiring complexity and installation errors.
Related Models
| Model | Description |
|---|---|
| DS200PTBAG2BBA | Dual-section termination board for Mark V systems |
| DS200PTBAG1BBB | Standard termination board for mixed I/O |
| DS200PTBAG1BCA | Compact analog/digital termination variant |
| DS200PTBAG2BCA | Extended termination board with additional channels |
| DS200PTBAG1BCB | High-density termination for industrial applications |
| DS200PTBAG1BDC | Advanced protection and isolation variant |
Popular Models
| Model | Application Focus |
|---|---|
| DS200PTBAG1BBA | Standard Mark V termination and wiring organization |
| DS200PTBAG2BBA | Dual-section high-density termination |
| DS200PTBAG1BBB | Mixed analog/digital I/O terminations |
| DS200PTBAG1BCA | Compact termination for limited-space racks |
| DS200PTBAG2BCA | Extended termination for complex systems |
| DS200PTBAG1BDC | Advanced isolation and protection termination board |
