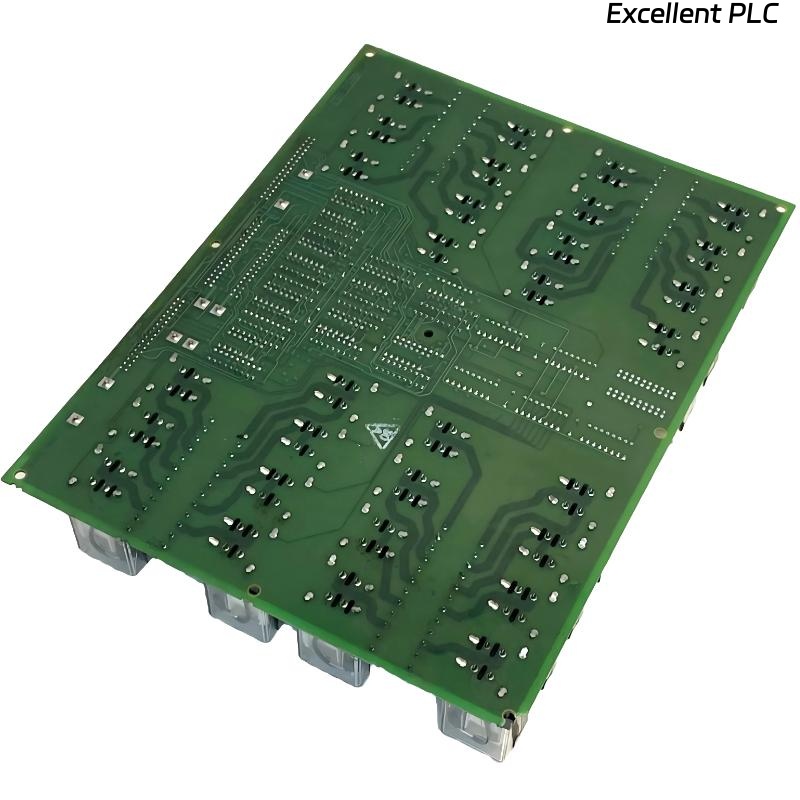

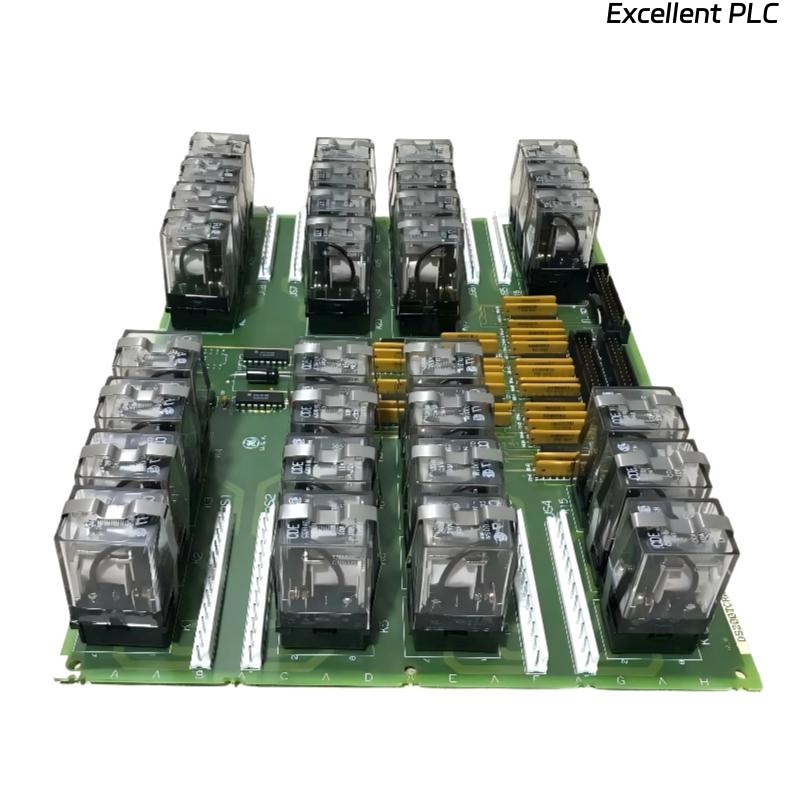

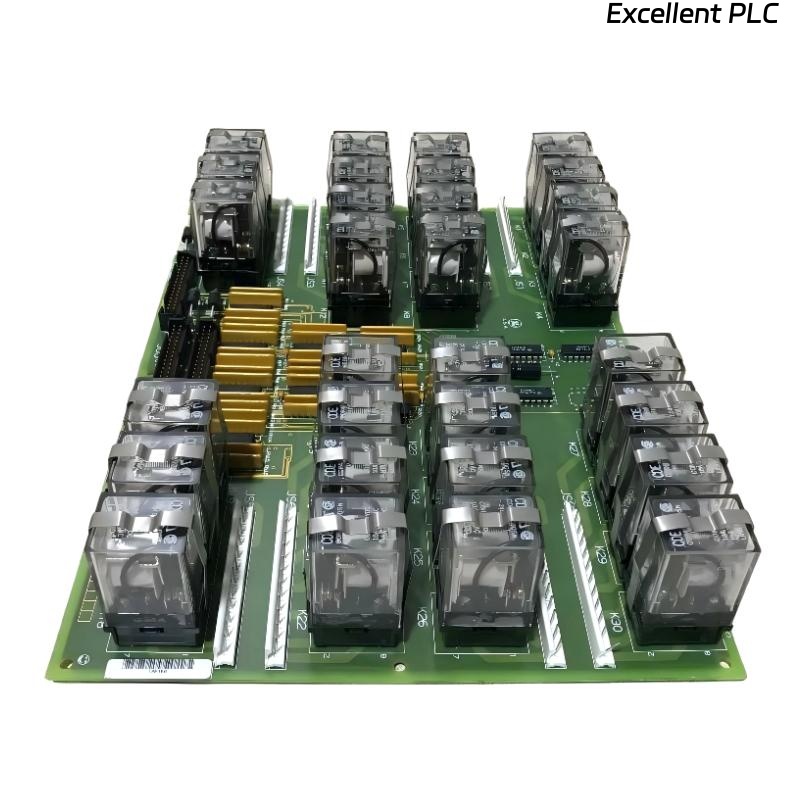

GE DS200TCRAG1ACC Relay Output Board
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The GE DS200TCRAG1ACC Relay Output Board is a robust industrial control module designed to deliver dependable relay-based output switching within GE drive and turbine control systems. It operates as a key execution interface, converting control commands from the system processor into stable physical relay actions for field-level devices.
This board is engineered to provide secure electrical separation between low-level control electronics and external load circuits. Its relay-based output structure enables safe and reliable control of contactors, alarms, solenoids, and auxiliary control elements commonly used in industrial automation and power systems.
Designed for demanding operating conditions, the DS200TCRAG1ACC supports continuous-duty operation with predictable switching behavior. Its construction emphasizes reliability, electrical isolation, and control stability, making it suitable for mission-critical industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Relay Output Board |
| Output Technology | Electromechanical relay outputs |
| Control Function | Discrete output signal switching |
| Electrical Isolation | Galvanic isolation between control logic and field circuits |
| Switching Characteristics | Stable and deterministic relay operation |
| Load Handling Capability | Compatible with inductive and resistive loads |
| System Interface | Backplane connection to GE control rack |
| Operating Environment | Designed for industrial temperature and vibration conditions |
| Installation Method | Control cabinet rack mounting |
| Diagnostics Support | Output state feedback through control system |
| Dimensions | 220 × 100 × 25 mm |
| Weight | 1.66 kg |
Applications
• Turbine auxiliary control systems, where reliable relay switching is required for alarms, trip circuits, and control interlocks.
• Industrial drive control, supporting activation of braking circuits, contactors, and external safety devices.
• Process automation environments, enabling secure control of valves, solenoids, and discrete actuators.
• Electrical isolation interfaces, where separation between control logic and field power circuits is critical.
• Control system refurbishment projects, providing a compatible replacement option for existing GE relay output modules.
Advantages
• Strong electrical isolation, protecting sensitive control electronics from voltage transients and load-side disturbances.
• Reliable relay-based switching, ensuring predictable output behavior in deterministic control systems.
• Broad application compatibility, capable of driving a wide range of industrial field devices.
• Industrial-grade construction, supporting long-term operation in high-stress environments.
• Straightforward system integration, designed for seamless use within GE rack-based control architectures.
• Operational transparency, allowing clear monitoring of output states through the host control system.
FAQ
-
Why are relay outputs preferred for certain industrial control applications?
Relay outputs provide physical isolation and robust switching capability, making them suitable for controlling higher-energy field devices safely. -
Can this board be used to control inductive loads without additional interface hardware?
Yes, its relay design supports inductive loads such as contactors and solenoids commonly used in industrial systems. -
How does the board receive control commands from the system?
Control commands are transmitted through the system backplane from the main processor to the relay output channels. -
What ensures consistent output behavior during continuous operation?
The use of industrial-grade relays and stable control circuitry ensures predictable switching performance over extended operating periods. -
Is the board suitable for interlock and protection logic implementations?
Yes, when properly engineered within the control system, it supports interlock and protection-related output functions. -
How are relay output states monitored by the control system?
The board provides output status feedback that allows the control system to verify relay activation and deactivation. -
Does the board help reduce electrical noise in control cabinets?
Physical separation provided by relay contacts minimizes the transfer of electrical noise from load circuits to control electronics. -
What should be considered when assigning field devices to relay outputs?
Engineers should match load characteristics and switching requirements with system design guidelines to ensure reliable operation. -
Can the board be used in modular control system expansions?
Yes, it supports modular system architectures, allowing relay output capacity to be expanded as system requirements grow. -
How does the board contribute to overall system reliability?
Its deterministic switching behavior and electrical isolation help maintain stable system operation and reduce fault propagation.
Related Models
| Model | Description |
|---|---|
| DS200TCRAG1A | Standard relay output board for GE systems |
| DS200TCRAG1ABC | Relay output board variant with similar functionality |
| DS200TCDAG1B | Digital I/O interface board |
| DS200TCQAG1A | Discrete input module |
| DS200TCDBG1A | Digital signal distribution board |
| DS200TCPSG1A | Control power supply board |
Popular Models
| Model | Application Focus |
|---|---|
| DS200SDCCG1A | Drive control processor module |
| DS200DTBCG1A | I/O terminal interface board |
| DS200LDCCH1A | Drive logic and coordination board |
| DS200PCCAG9A | Power conversion control module |
| DS200VPROH1A | High-performance control processor |
| DS200IPCSG1A | Integrated I/O processing module |
