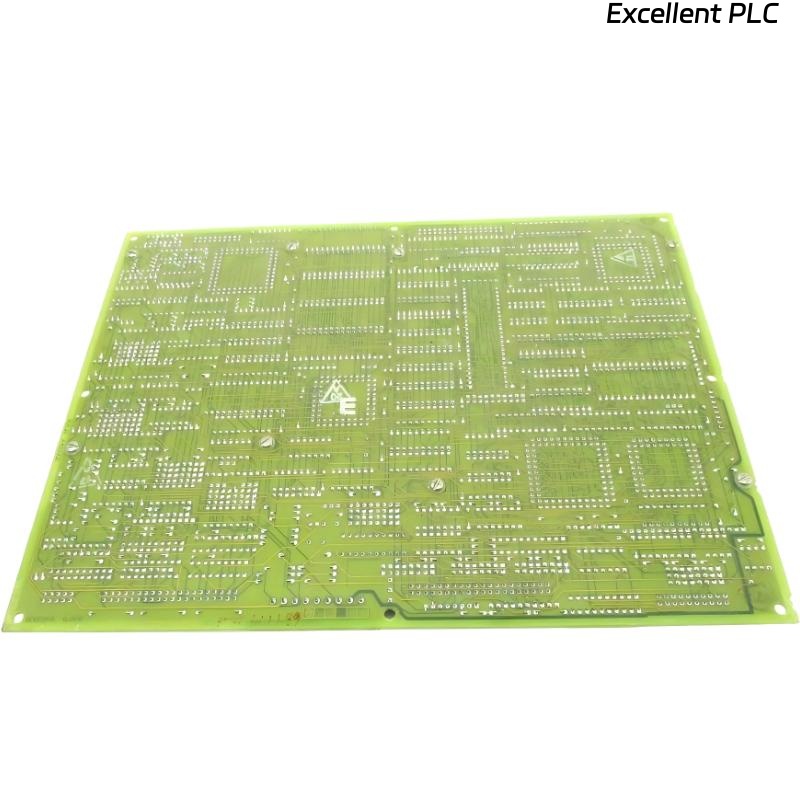

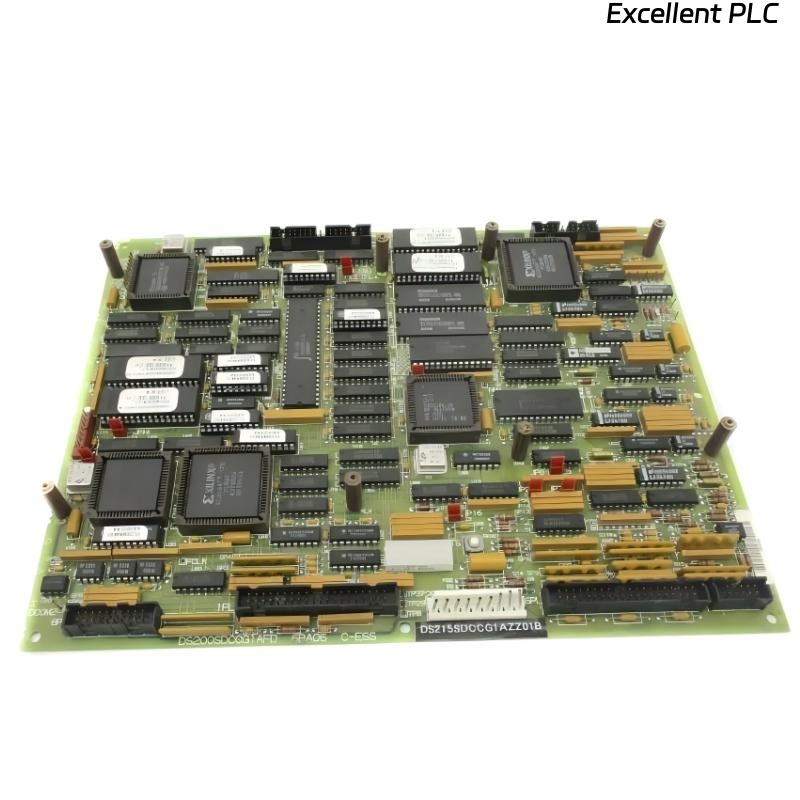

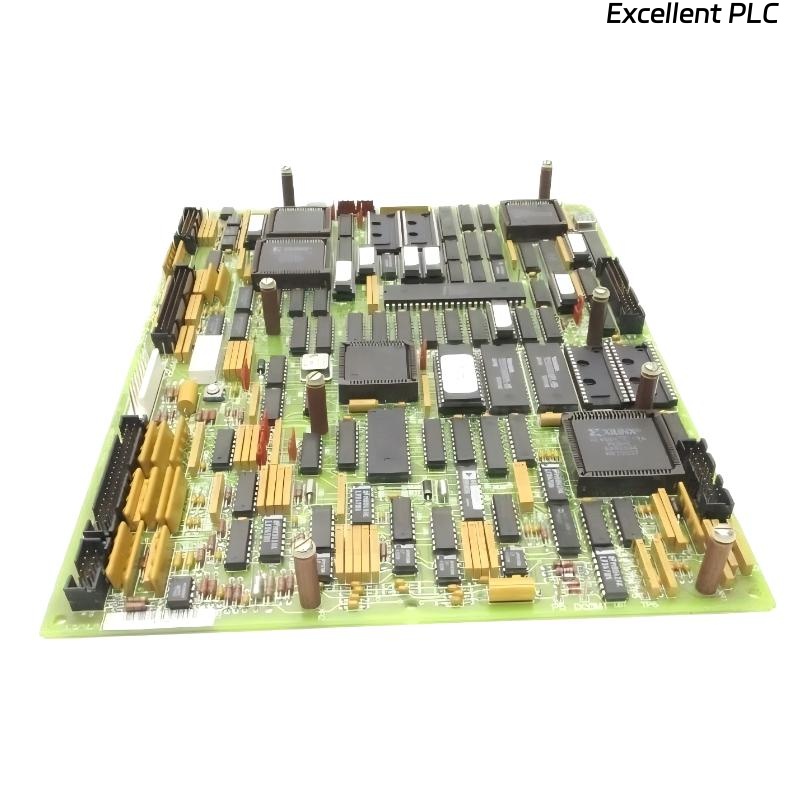

GE DS215SDCCG1AZZ01A / DS200SDCCG1AFD – Industrial Drive Control & Processor Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Overview
The DS215SDCCG1AZZ01A and DS200SDCCG1AFD are advanced drive control and system processor modules designed for GE industrial drive systems and legacy Mark V turbine control platforms.
These modules provide high-speed logic processing for drive regulation, deterministic I/O handling, and system-level coordination. In practice, engineers value them for stable real-time response, clear diagnostic feedback, and resilience to industrial electrical noise.
This version adopts a field-maintenance guide style, highlighting operational behavior and practical insights from real installations.
Technical Specifications
| Specification | DS215SDCCG1AZZ01A | DS200SDCCG1AFD |
|---|---|---|
| Module Type | Drive Control & Processor Card | Drive Control Processor Module |
| System Platform | GE Mark V / Industrial Drives | GE Industrial Drive Systems |
| Processor Type | Embedded GE ASIC + DSP | Embedded GE ASIC + DSP |
| Control Functions | Speed/torque logic, system coordination | Drive regulation, I/O logic |
| Power Requirements | +5 VDC, +15 VDC, –15 VDC | +5 VDC, +15 VDC, –15 VDC |
| Communication | Backplane bus | Backplane bus |
| Diagnostics | Fault logs, LED indicators | Fault logs, LED indicators |
| Operating Temperature | 0…+60°C | 0…+60°C |
| Storage Temperature | –40…+85°C | –40…+85°C |
| Dimensions (H × W × D) | 330 × 160 × 40 mm | 330 × 160 × 40 mm |
| Weight | ~1.2 kg | ~1.2 kg |
| Mounting | GE rack-mount | GE rack-mount |
Applications
-
Medium- and high-power industrial drives
-
Turbine auxiliary drive control
-
Process plant motor control
-
Retrofitting legacy Mark V or drive cabinets
-
Systems requiring high-reliability deterministic logic
-
Industrial automation platforms with integrated drive regulation
Advantages
-
Stable, real-time control loops for motor and turbine systems
-
Clear and rapid diagnostic feedback for commissioning and troubleshooting
-
Robust fault handling, protecting both module and downstream equipment
-
Field-swappable, minimizing downtime during replacement
-
Industrial-grade noise immunity
-
Smooth integration with GE legacy control systems
Technical FAQs
-
Do these modules perform speed or torque regulation?
Yes, DSP-based logic handles these functions internally. -
Are configuration parameters retained on the module?
Yes, non-volatile memory stores core configuration. -
Can they tolerate electrical noise typical in industrial plants?
Yes, modules are engineered for high EMI environments. -
How are faults communicated?
Through system LEDs and backplane fault signals. -
Do these modules support redundant processors?
Redundancy depends on system-level architecture. -
Is orientation critical for airflow?
Proper airflow is recommended, but orientation is flexible. -
What happens if a voltage rail fails?
The module enters a fail-safe state, disabling drive output. -
Are they hot-swappable?
No, power must be removed before installation or removal. -
Does temperature affect performance?
Modules operate stably across the rated temperature range. -
Are these modules compatible with Mark VI or VIe?
No, primarily for Mark V and legacy industrial drives.
Recommended Related Models
| Model | Description |
|---|---|
| DS200LDCCH1A | Drive control processor |
| DS200PCCAG5A | Power conversion interface |
| DS200TCQAG1B | Trip conditioning module |
| IS200DSPXH1D | Digital signal processor |
| DS200IMCPG1B | Motor control CPU |
| IS200VCRCH1B | Rack interface card |
Popular GE Modules
| Model | Description |
|---|---|
| IS215UCVEH2A | Mark VIe control processor |
| DS200TCPSG1A | Power supply module |
| DS200SDCCG1AFD | Drive control processor |
| IS200VVIBH1C | Vibration monitoring module |
| DS200ADGIH1A | Analog/digital interface |
| DS200LDCCH1A | Drive/logic control processor |
