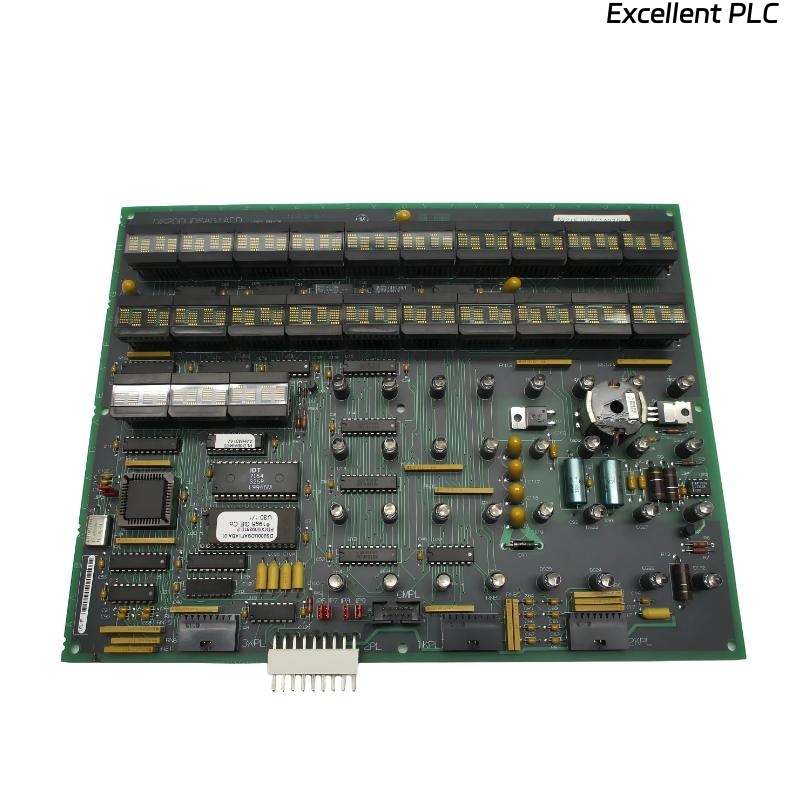

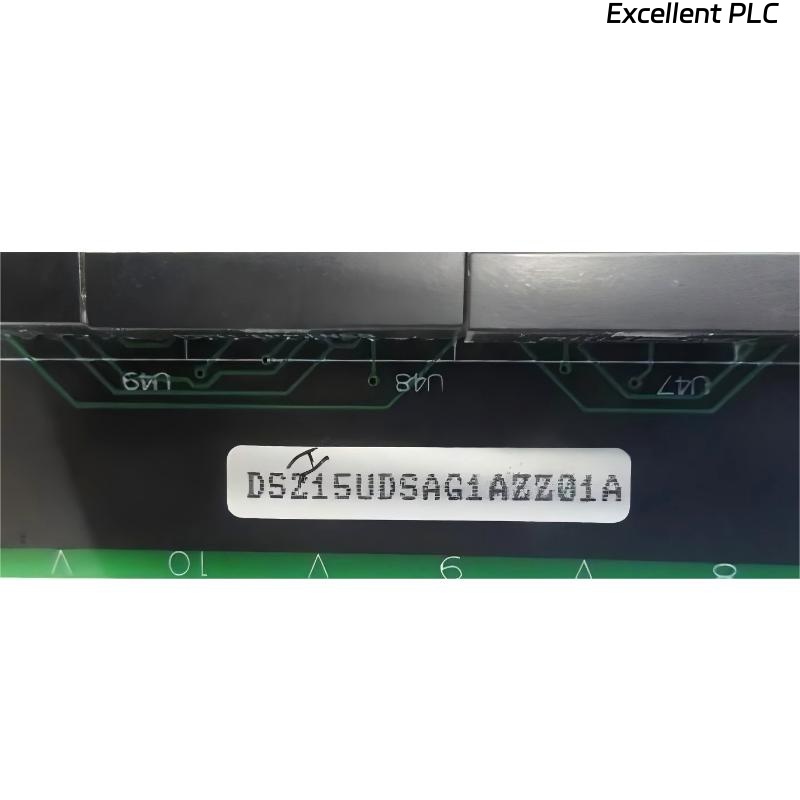

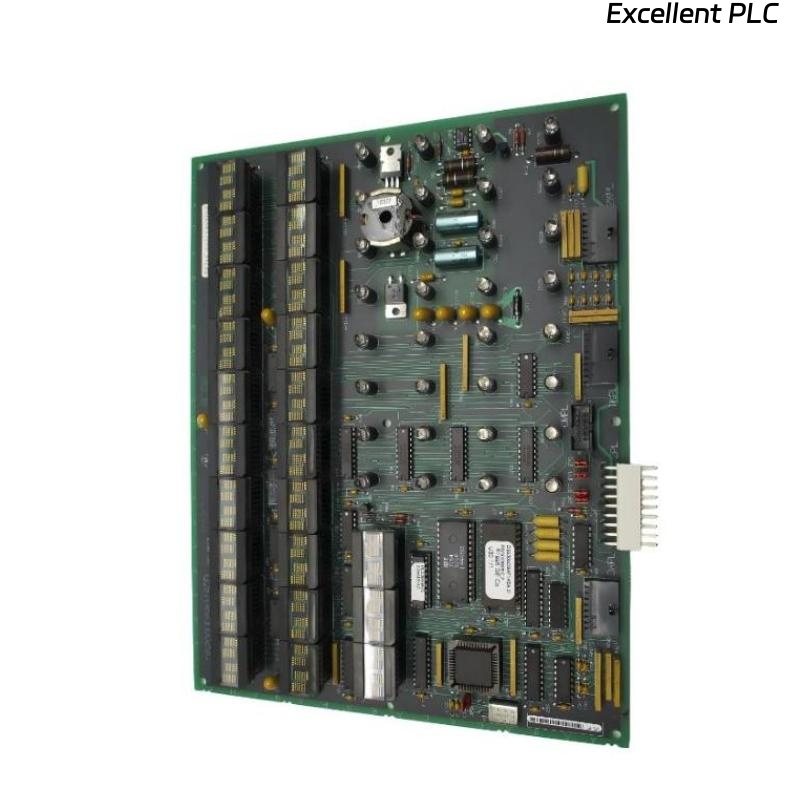

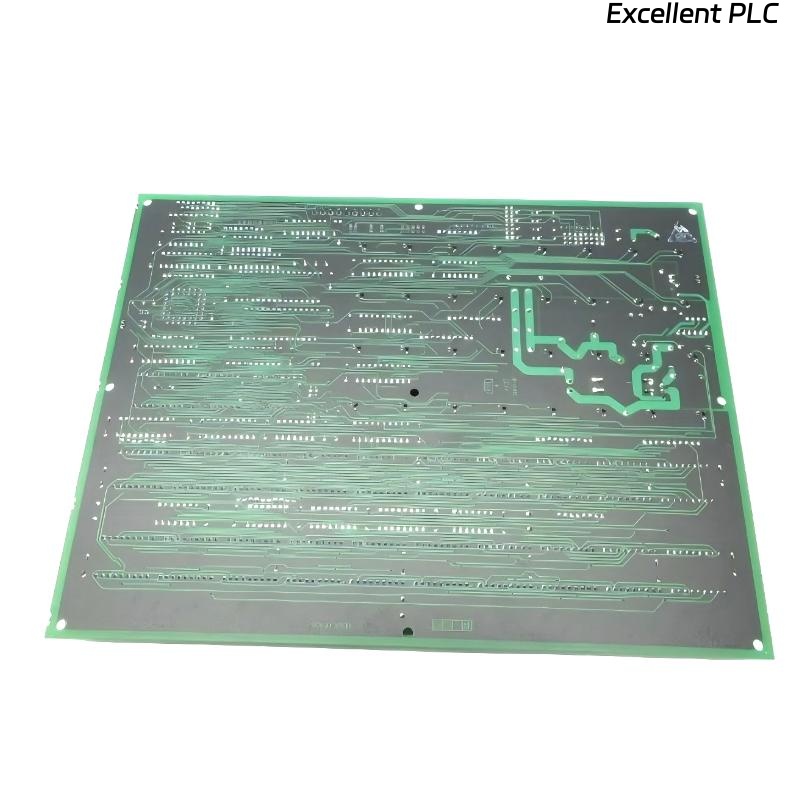

GE DS215UDSAG1AZZ01A – Digital I/O & Overspeed Protection Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Overview
The GE DS215UDSAG1AZZ01A is a high-reliability digital I/O and overspeed protection module used widely in Mark V and Mark VI turbine control platforms. It consolidates critical digital inputs, processing logic, and protective response circuits into a single assembly, allowing the turbine system to react rapidly to abnormal rotational or operational conditions.
This module is favored in turbine control retrofits due to its robust component design, predictable behavior under thermal load, and long-term stability even in high-vibration enclosures. Rather than focusing on theoretical capabilities, this description emphasizes practical field performance—what engineers typically observe during installation, commissioning, and maintenance.
Technical Specifications
| Specification | Description |
|---|---|
| Module Type | Digital I/O & Overspeed Protection Module |
| System Platform | GE Mark V / Mark VI |
| Digital Inputs | 24 VDC logic-level inputs, optically isolated |
| Protection Features | Overspeed detection, fault-state annunciation, latch logic |
| Internal Processing | ASIC-based signal conditioning and logic sequencing |
| Input Power | 24 VDC nominal |
| Operating Temperature | 0…+60°C |
| Storage Temperature | –40…+85°C |
| Vibration Rating | Turbine-grade industrial rating |
| Dimensions | Approx. 330 × 160 × 40 mm |
| Weight | ~1.25 kg |
| Mounting | Standard Mark V / VI chassis-mount configuration |
Applications
-
Gas and steam turbine overspeed protection
-
Safety logic processing in turbine control systems
-
Redundant digital input acquisition
-
Retrofit or replacement in aging Mark V enclosures
-
High-reliability system monitoring in power generation plants
-
Protection logic bridging between controllers and field devices
Advantages
-
Fast overspeed response, reducing turbine risk in failure scenarios.
-
Isolated digital channels that improve noise immunity and prevent false triggering.
-
Field-proven reliability, especially in older units with continuous duty cycles.
-
Stable thermal performance, allowing operation under dense rack thermal loads.
-
Predictable diagnostics, making troubleshooting more straightforward for plant engineers.
-
Mechanical durability, supporting long-term service in high-vibration turbine compartments.
Technical FAQs
1. Does this module require calibration after installation?
No calibration is required; it is factory-configured for turbine service.
2. Is overspeed detection handled locally or by the controller?
Initial processing is performed locally; final action integrates with system logic.
3. Can it handle reverse-polarity digital inputs?
Inputs are protected, but correct wiring is recommended to avoid latch faults.
4. How are faults reported to the turbine controller?
Through dedicated fault lines and internal status reporting.
5. Does it support redundant digital input channels?
Yes, redundancy is supported depending on system configuration.
6. Are the inputs optically isolated?
Yes, isolation is standard to prevent electrical interference.
7. What happens if power is lost?
The module enters a defined safe-state required by the control system.
8. Is there internal surge protection?
Yes, designed to withstand industrial power disturbances.
9. Can this module be used in Mark VIe?
Not directly; it is primarily for Mark V / Mark VI systems.
10. Does high vibration affect overspeed detection accuracy?
It is engineered for turbine vibration environments and maintains stable performance.
Recommended Related Models
| Model | Description |
|---|---|
| DS215SDCCG1AZZ01A | Drive/processor control board |
| DS215TCQAG1B | Trip conditioning module |
| IS200TREGH1B | Turbine emergency trip module |
| DS200DSPCH1A | Digital signal processor module |
| IS200VCRCH1B | Control rack interface module |
| DS200ADGIH1A | Analog/digital conversion interface |
Popular GE Models
| Model | Description |
|---|---|
| DS200LDCCH1A | Drive control board |
| IS215UCVEH2A | Mark VIe controller |
| DS200TCPSG1A | Power supply module |
| IS200VVIBH1C | Vibration monitoring module |
| DS200IMCPG1B | Motor control processor board |
| DS200SDCCG1A | Control card for GE drives |
