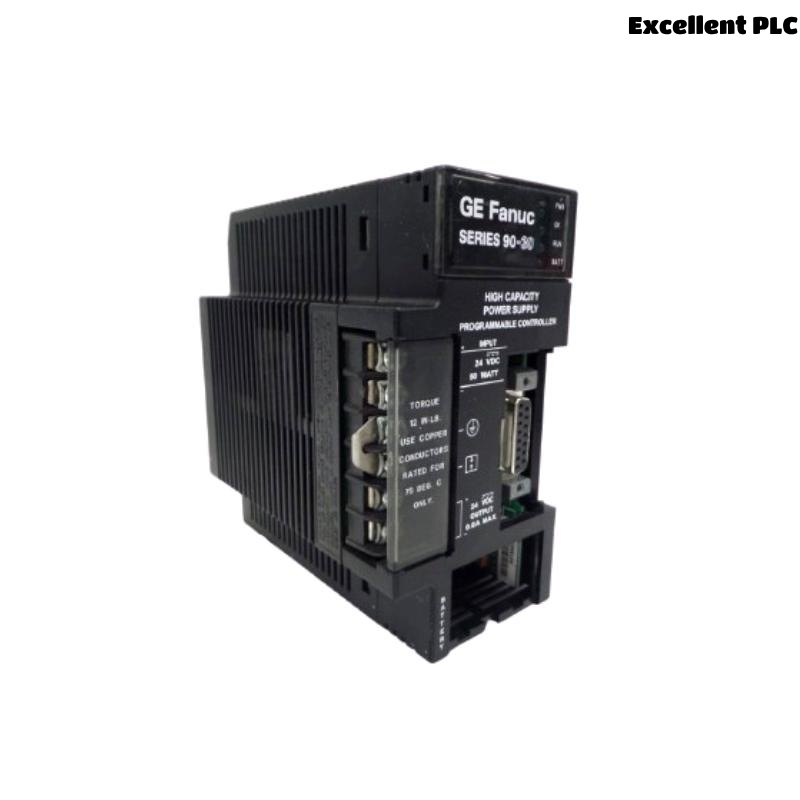

GE IC693PWR328 Series 90-30 Power Supply Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The GE Fanuc IC693PWR328 is a high-performance DC power supply module designed for the Series 90-30 PLC system. It operates with a 48 VDC input and delivers regulated power outputs of 5 VDC and 24 VDC to backplane modules. This module is engineered for use in industrial automation where a reliable DC power source is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage (Nominal) | 48 VDC |
| Input Voltage Range | 38 to 56 VDC |
| Maximum Input Power | 50 watts |
| Inrush Current | 4 A peak for 100 ms |
| Output Power – 5 VDC | 15 watts max |
| Output Power – 24 VDC Relay | 15 watts max |
| Output Power – 24 VDC Isolated | 20 watts max |
| Total Output Power | 30 watts max (combined) |
| Output Voltage – 5 VDC | 5.0–5.2 VDC (Nominal 5.1 VDC) |
| Output Voltage – 24 VDC Relay | 24–28 VDC |
| Output Voltage – 24 VDC Isolated | 21.5–28 VDC |
| Overvoltage Protection | 5 VDC output: 6.4 to 7 V |
| Overcurrent Protection | 5 VDC output: 4 A max |
| Ride-Through Time | ≥ 14 ms |
| Dimensions | 129 x 52 x 117 mm |
| Weight | 0.5 kg |
Applications
-
Used in Series 90-30 PLC systems with 48 VDC input
-
Industrial control cabinets and panels
-
Remote I/O power solutions
-
Systems requiring isolated 24 VDC output
Advantages
-
Supports three independent outputs (5 VDC, 24 VDC Relay, 24 VDC Isolated)
-
Compact size with efficient power delivery
-
Designed for robust industrial environments
-
Built-in surge, overvoltage, and overcurrent protection
-
Compatible with a wide range of GE Fanuc 90-30 modules
FAQ
Q1: What is the nominal input voltage for IC693PWR328?
A1: 48 VDC.
Q2: What is the total combined output power capacity?
A2: 30 watts maximum for all outputs combined.
Q3: How many output voltages does this module provide?
A3: Three – 5 VDC, 24 VDC Relay, and 24 VDC Isolated.
Q4: Does it have protection features?
A4: Yes, it includes overvoltage and overcurrent protection.
Q5: What is the ride-through time during power dips?
A5: At least 14 milliseconds.
Q6: What is the peak inrush current at startup?
A6: 4 A peak for up to 100 milliseconds.
Q7: Is this module hot-swappable?
A7: No, it must be installed with power off.
Q8: What GE Fanuc systems is it compatible with?
A8: GE Fanuc Series 90-30 PLC systems.
Q9: Can it power both logic and relay outputs?
A9: Yes, it can supply both logic (5 VDC) and relay (24 VDC) outputs.
Q10: What are the module dimensions and weight?
A10: 129 x 52 x 117 mm, 0.5 kg.
Related Series 90-30 Models
| Model | Description | Input Voltage | Outputs | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| IC693PWR321 | Power Supply, 120/240 VAC | 85–264 VAC | 5V @ 30W | 129x52x117 | 0.6 kg |
| IC693PWR322 | Power Supply, 125 VDC | 100–150 VDC | 5V @ 30W | 129x52x117 | 0.6 kg |
| IC693PWR330 | High-Capacity Power Supply | 120/240 VAC | 5V @ 60W | 129x52x117 | 0.7 kg |
| IC693PWR321U | Universal VAC Power Supply | 85–264 VAC | 5V, 24V Relay | 129x52x117 | 0.6 kg |
| IC693PWR331 | Redundant Power Supply Module | 120/240 VAC | Dual 5V Output | 129x52x117 | 0.75 kg |
| IC693PWR329 | Power Supply with Relay Output | 48 VDC | 5V, 24V Relay | 129x52x117 | 0.5 kg |
Popular GE Fanuc Models
| Model | Description | Category | Key Feature | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| IC693CPU374 | CPU Module | Controller | Ethernet Built-in | 140x60x130 | 0.55 kg |
| IC693MDL940 | Digital Input Module | I/O Module | 120 VAC, 16 pt input | 129x40x117 | 0.45 kg |
| IC693MDL645 | Digital Output Module | I/O Module | 24 VDC, 16 pt output | 129x40x117 | 0.45 kg |
| IC693ALG220 | Analog Input Module | I/O Module | 4 channels, 0–10 V | 129x40x117 | 0.46 kg |
| IC693ALG390 | Analog Output Module | I/O Module | 2 channels, 4–20 mA | 129x40x117 | 0.46 kg |
| IC693CHS391 | 10-Slot Baseplate | Rack/Backplane | 10-slot rack | 343x140x125 | 1.5 kg |
