Product Introduction

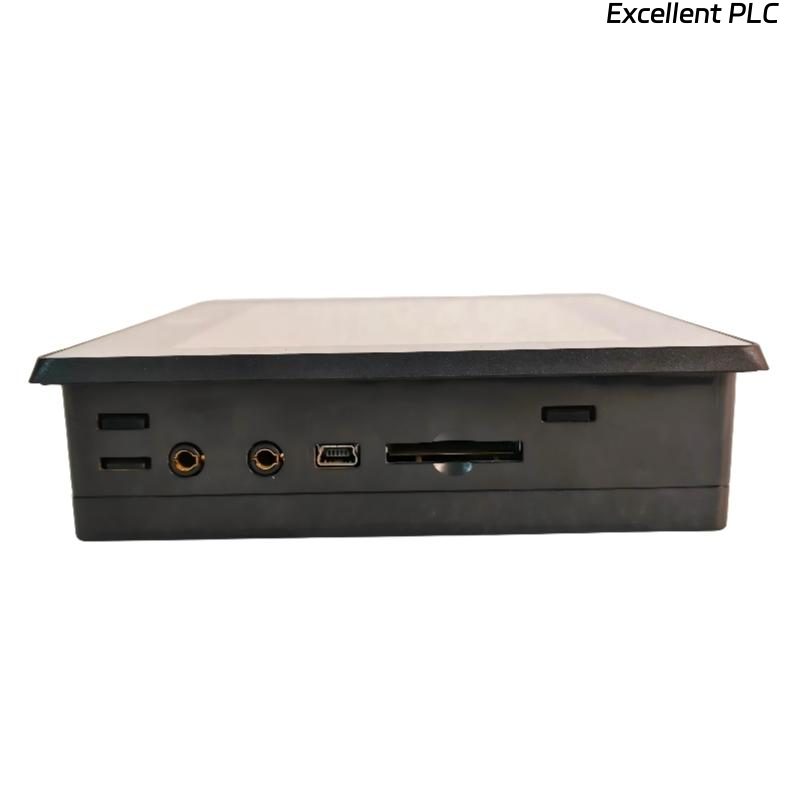

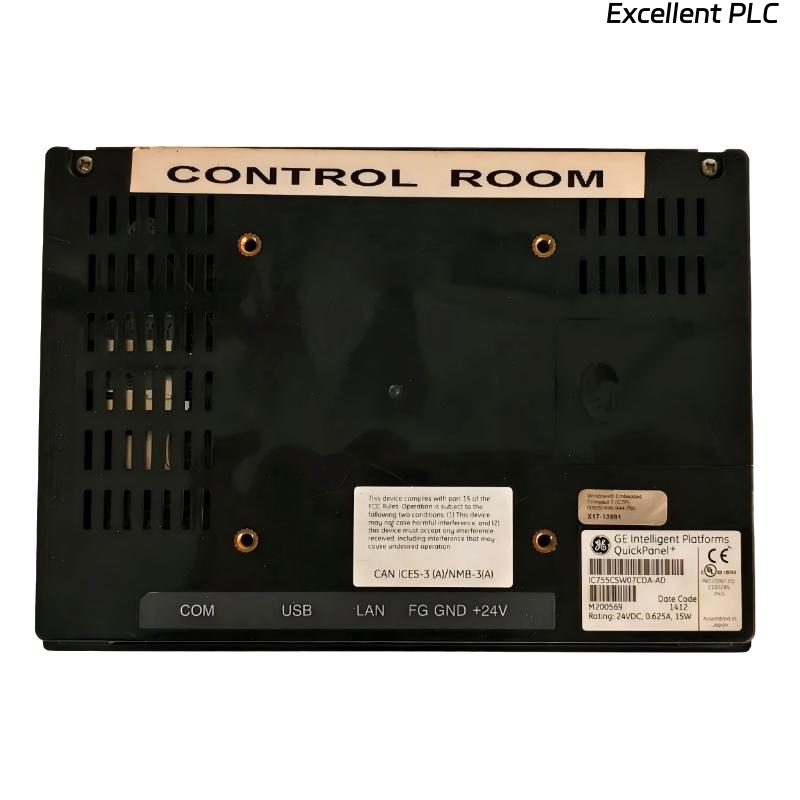

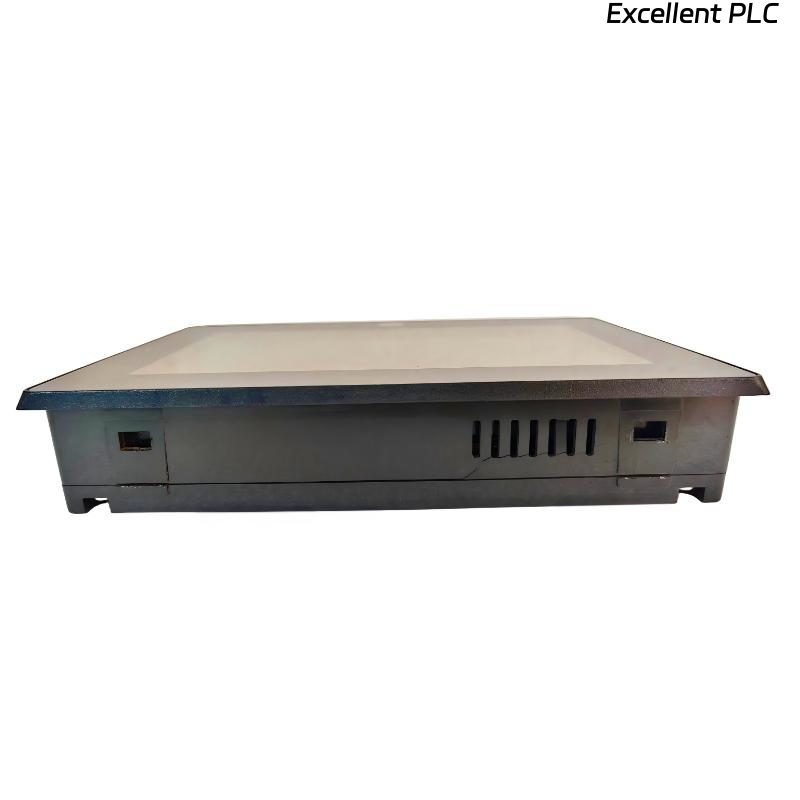

The GE IC755CSW07CDA Operator Interface is a high-performance QuickPanel Human Machine Interface (HMI) designed to provide intuitive visualization, monitoring, and control of industrial automation systems. Featuring a 7-inch widescreen color TFT display with multi-touch projected capacitive technology, it delivers a modern operator experience with responsive navigation and clear process visualization.
Powered by a 1 GHz processor, the IC755CSW07CDA offers fast screen updates, smooth graphics performance, and efficient handling of machine and process data. Its compact design and 24 VDC operation make it suitable for installation in a wide variety of industrial control panels and automation equipment.
The unit is commonly used in manufacturing, water treatment, power generation, material handling, packaging machinery, and process control applications where reliable operator interaction is essential.
Product Specifications
| Parameter | Description |
|---|---|
| Model | IC755CSW07CDA |
| Product Type | Operator Interface |
| Series | QuickPanel |
| Display Size | 7 Inch |
| Display Type | Color TFT Widescreen |
| Touch Technology | Multi-Touch Projected Capacitive Screen |
| Display Resolution | 800 × 480 SVGA Pixels |
| Processor Speed | 1 GHz |
| Power Supply | 24 VDC |
| Bezel Type | GE Monogram Bezel |
| Application | Human Machine Interface (HMI) |
| Dimensions | 192 × 36 × 137 mm |
| Weight | 0.8 kg |
Applications
• Manufacturing Automation – Provides operators with real-time machine monitoring and control capabilities.
• Packaging Machinery – Displays production status, alarms, recipes, and machine parameters.
• Material Handling Systems – Supports visualization and control of conveyors and automated equipment.
• Water and Wastewater Facilities – Enables monitoring of pumps, valves, and treatment processes.
• Power Generation Plants – Displays operational information and equipment status.
• Process Control Systems – Provides graphical access to process variables and system diagnostics.
• Food & Beverage Production – Supports production monitoring and operational management.
• Pharmaceutical Manufacturing – Enables operator interaction with automated production systems.
• Oil & Gas Facilities – Provides visualization and control of process equipment.
• Industrial Infrastructure Projects – Supports centralized operator interfaces for automation systems.
Advantages
• 7-Inch Widescreen Display – Provides clear visualization of process graphics and machine information.
• Multi-Touch Capacitive Screen – Supports intuitive gesture-based operation and responsive user interaction.
• Color TFT Technology – Delivers sharp graphics and excellent display clarity.
• 1 GHz Processor – Ensures smooth performance and fast screen response.
• Compact Design – Fits easily into control panels with limited space.
• 24 VDC Operation – Simplifies integration into industrial control systems.
• Modern User Experience – Offers smartphone-like touch functionality for improved usability.
• Reliable Industrial Performance – Designed for continuous operation in automation environments.
• Improved Operator Efficiency – Enables quick access to process data and control functions.
• Supports Advanced HMI Applications – Suitable for graphical visualization, alarms, trends, and diagnostics.
