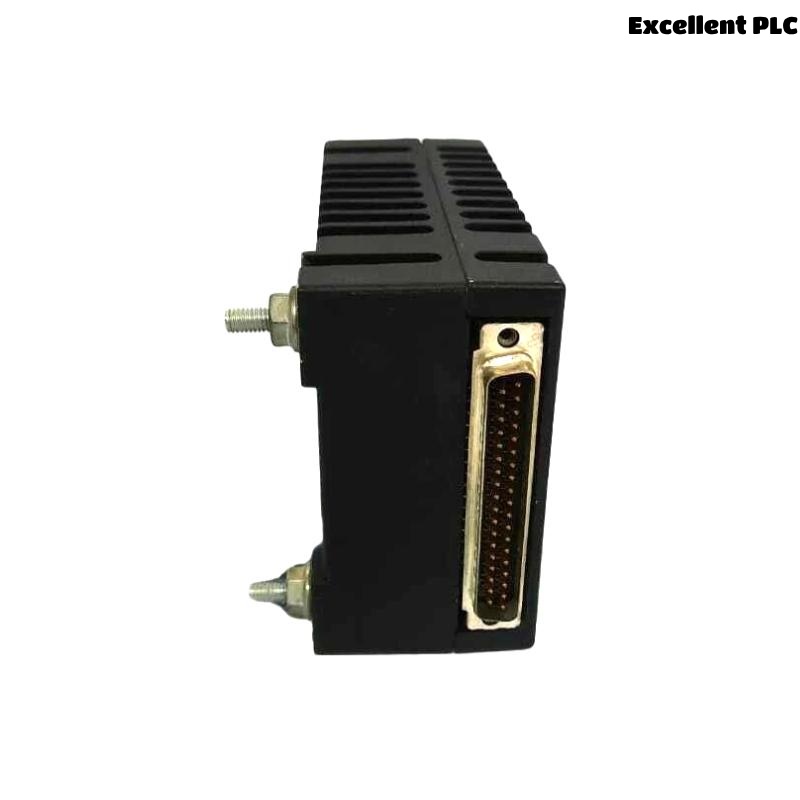

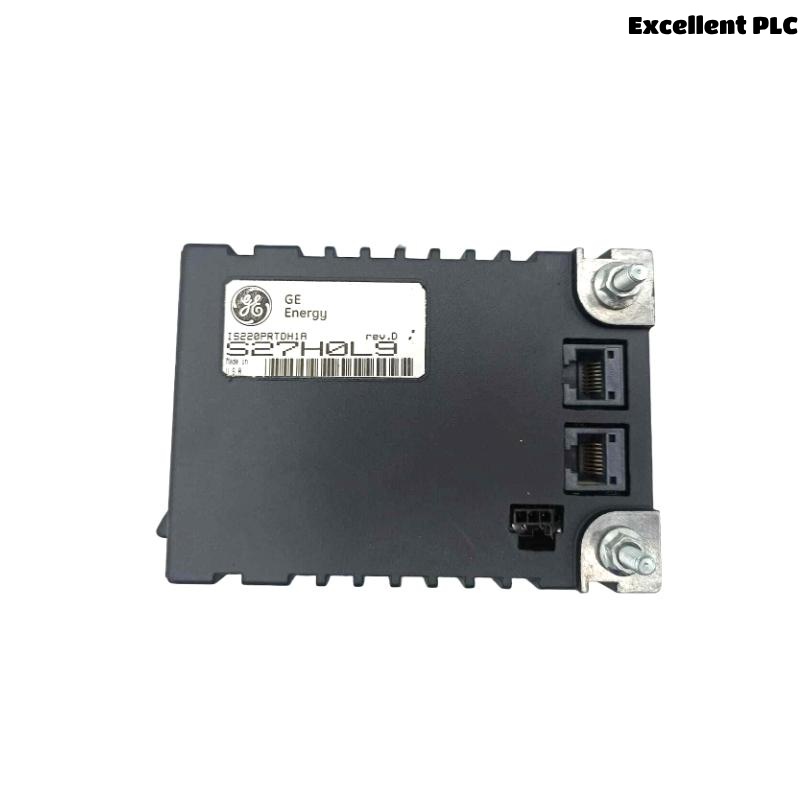

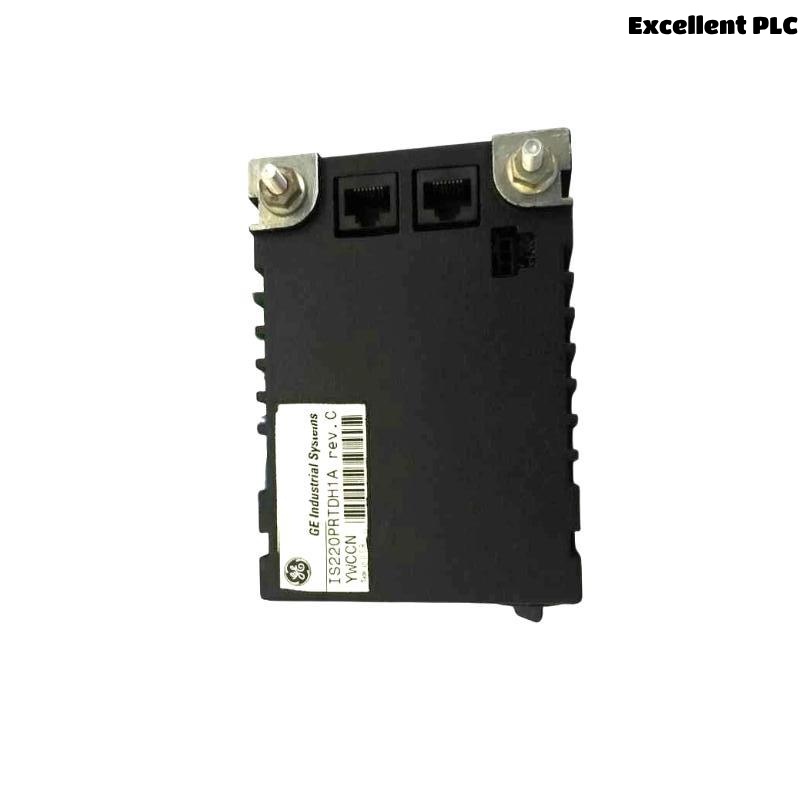

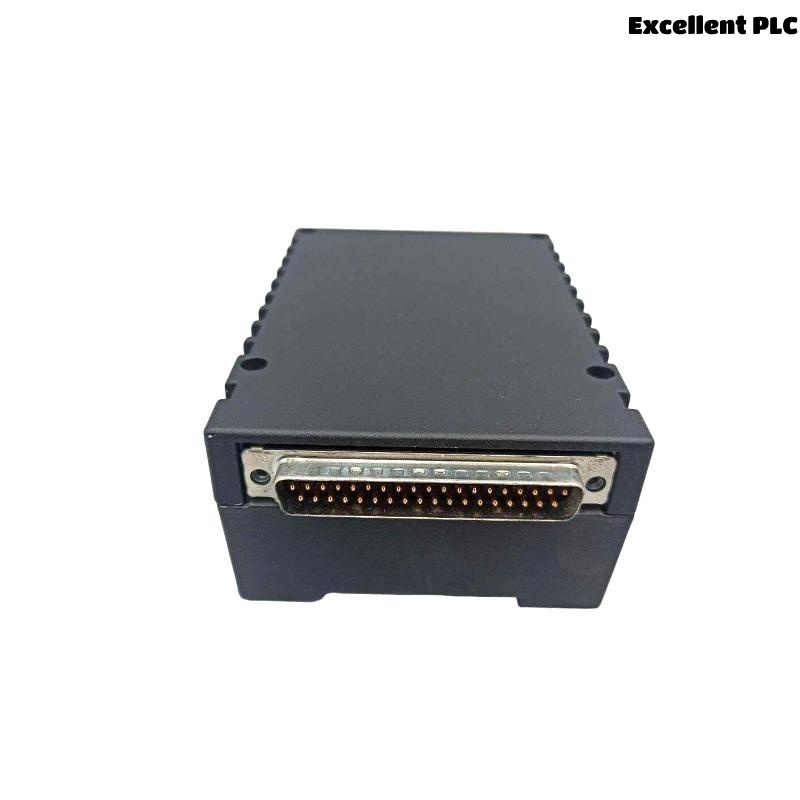

GE IS220PRTDH1A Mark VIe Series Resistance Temperature Device Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
GE IS220PRTDH1A is a Resistance Temperature Device (RTD) input module from the Mark VIe control series. It is designed to provide high-accuracy temperature sensing capabilities for industrial automation and turbine control systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | IS220PRTDH1A |
| Series | Mark VIe |
| Function | RTD Input Module |
| Input Type | 2-, 3-, or 4-wire RTD |
| Supported RTD Types | Pt100, Cu10, Ni120, etc. |
| Input Channels | 6 channels |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Isolation | Channel-to-channel and to ground |
| Operating Temperature | –30°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions (W×H×D) | 128 × 82 × 60 mm |
| Weight | 0.38 kg |
| Mounting | DIN rail or panel mount |
| Interface | I/O Pack with Ethernet connection |
| Redundancy | Supported |
Applications
-
Gas and steam turbine temperature monitoring
-
Process automation systems
-
Industrial control panels
-
Oil and gas temperature acquisition
-
Boiler and compressor monitoring
Advantages
-
High input accuracy for precise temperature readings
-
Supports multiple RTD types and wiring configurations
-
Electrical isolation enhances safety and reduces interference
-
Easily integrates into Mark VIe control systems
-
Compact design for space-constrained installations
-
Supports redundant architecture for reliability
Frequently Asked Questions (FAQ)
Q1: What types of RTDs are compatible with IS220PRTDH1A?
A1: It supports Pt100, Cu10, Ni120, and other common RTDs.
Q2: How many channels does this module provide?
A2: The module offers 6 RTD input channels.
Q3: Is this module isolated?
A3: Yes, it provides channel-to-channel and channel-to-ground isolation.
Q4: What is the input resolution?
A4: The input resolution is 16-bit for accurate readings.
Q5: Can it be used in high-temperature environments?
A5: It operates in temperatures from –30°C to +65°C.
Q6: What kind of mounting does it support?
A6: It can be mounted on a DIN rail or a control panel.
Q7: Does this module support redundancy?
A7: Yes, it supports redundant operation for high availability.
Q8: What is the weight of this module?
A8: It weighs 0.38 kg.
Q9: Is it compatible with Ethernet-based I/O Packs?
A9: Yes, it interfaces through Ethernet-enabled I/O Packs.
Q10: Can it be used in turbine applications?
A10: Yes, it is commonly used for gas and steam turbine temperature monitoring.
Related or Same-Series Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| IS220PAICH1A | Analog Input Module | 128 × 82 × 60 | 0.38 kg |
| IS220PDOAH1A | Discrete Output Module | 128 × 82 × 60 | 0.40 kg |
| IS220PDSAH1A | Discrete Input Module | 128 × 82 × 60 | 0.36 kg |
| IS220PTCCH1A | Thermocouple Input Module | 128 × 82 × 60 | 0.38 kg |
| IS220PAOCH1A | Analog Output Module | 128 × 82 × 60 | 0.38 kg |
| IS220PPRFH1B | RTD Processor with Feedback Module | 128 × 82 × 60 | 0.39 kg |
Popular GE Mark VIe Series Models
