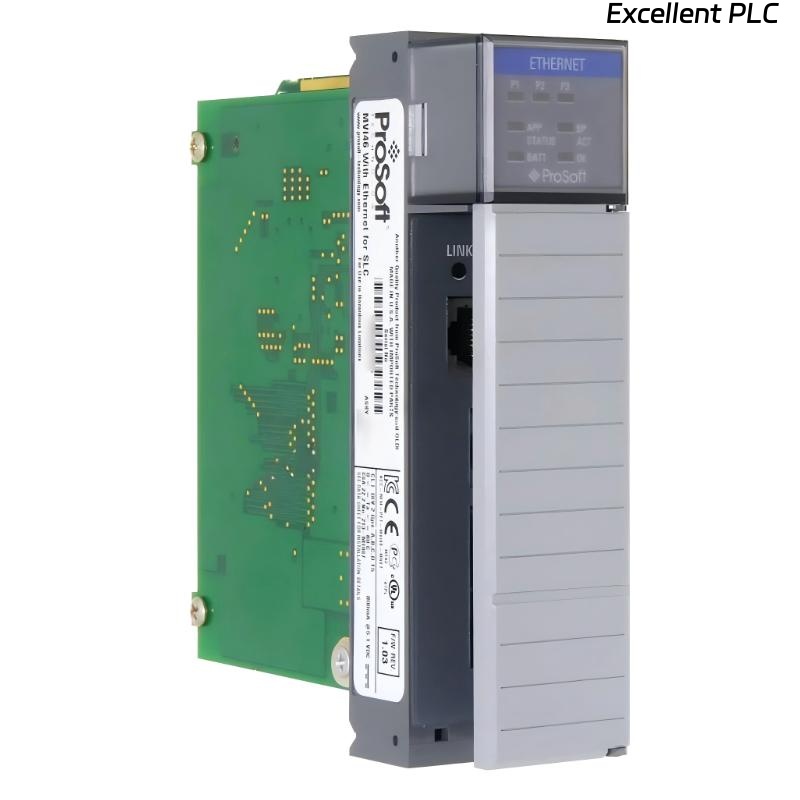

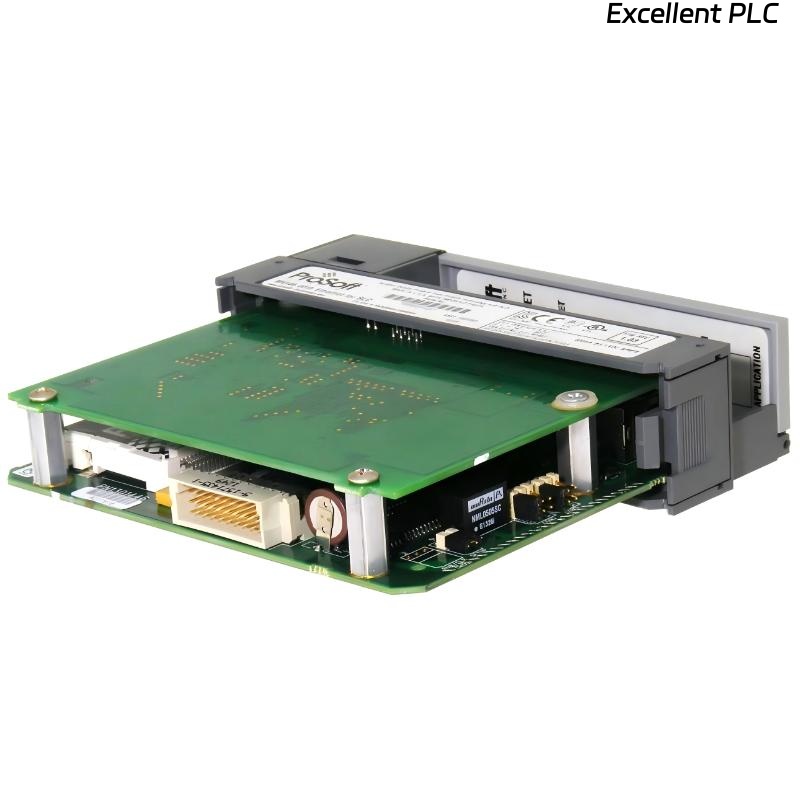

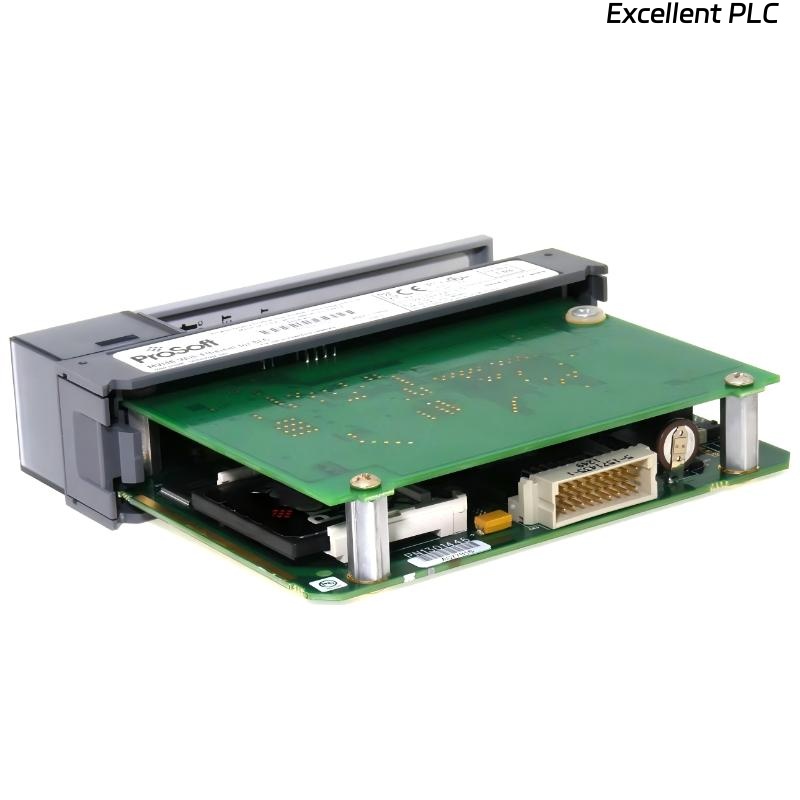

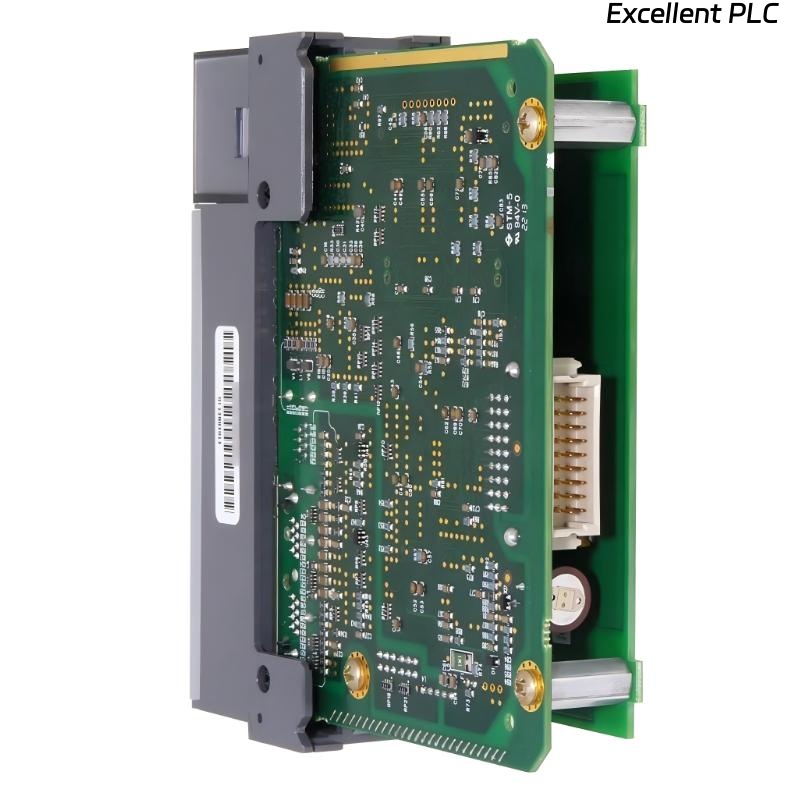

ProSoft MVI46-ADMNET Programmable Application Development Module

Product Introduction

The ProSoft MVI46-ADMNET is a programmable application development module designed to extend the communication capabilities of Allen-Bradley SLC500 processors. It allows these processors to interface seamlessly with Ethernet-compatible devices and hosts using Explicit Messaging protocols and custom ‘C’ code, providing developers the flexibility to implement specialized communication solutions.

Equipped with 1 RJ45 Serial Configuration Port (CFG) and 1 RJ45 Ethernet Port, the module ensures efficient and reliable communication for advanced automation tasks. It is ideal for custom industrial automation applications, including data acquisition, device integration, process monitoring, and control, enabling modern Ethernet devices to interface with legacy SLC500 systems effectively.

---

Product Specifications

---

Applications

• Custom Industrial Networking – Enables SLC500 processors to communicate with Ethernet-based devices using user-defined protocols.

• Data Acquisition – Facilitates the collection of process data from multiple Ethernet-enabled devices for monitoring and control.

• Device Integration – Provides seamless communication between legacy SLC500 processors and modern Ethernet devices.

• Process Automation – Supports the development of specialized automation solutions requiring custom messaging or device commands.

• Protocol Translation – Acts as a bridge between serial SLC500 modules and Ethernet-based devices for flexible automation architectures.

---

Advantages

• Programmable Flexibility – Allows developers to implement custom communication solutions using C programming.

• Compact and Lightweight – Simplifies integration into control cabinets.

• Dual Communication Ports – Separate serial configuration and Ethernet ports simplify setup and programming.

• Seamless SLC500 Integration – Works directly with Allen-Bradley SLC500 processors, leveraging existing infrastructure.

• Enhanced Ethernet Support – Enables explicit messaging and advanced data exchange with Ethernet-compatible devices.

FAQ

1. What processors is the MVI46-ADMNET compatible with?
   It is compatible with Allen-Bradley SLC500 processors and integrates directly with their communication slots.
2. What type of programming is supported?
   The module supports programming using custom C code, allowing tailored communication solutions.
3. How many communication ports does it have?
   It features 1 RJ45 Serial Configuration Port (CFG) and 1 RJ45 Ethernet Port.
4. Does the module support standard Ethernet protocols?
   Yes, it supports Ethernet Explicit Messaging, enabling communication with standard Ethernet devices.
5. Can it translate serial protocols to Ethernet?
   Yes, it can act as a bridge between serial SLC500 communications and Ethernet-compatible devices.
6. What is the maximum Ethernet speed supported?
   The module supports 10/100 Mbps Ethernet for reliable high-speed communication.
7. What are the operating temperature limits?
   It operates safely between 0°C and 60°C.
8. Does it require an external power supply?
   No, it draws power directly from the SLC500 processor slot.
9. What are the mounting options for this module?
   It can be mounted on a DIN rail or directly on a panel.
10. Is the module certified for industrial use?
    Yes, it is CE and UL certified for industrial applications.
