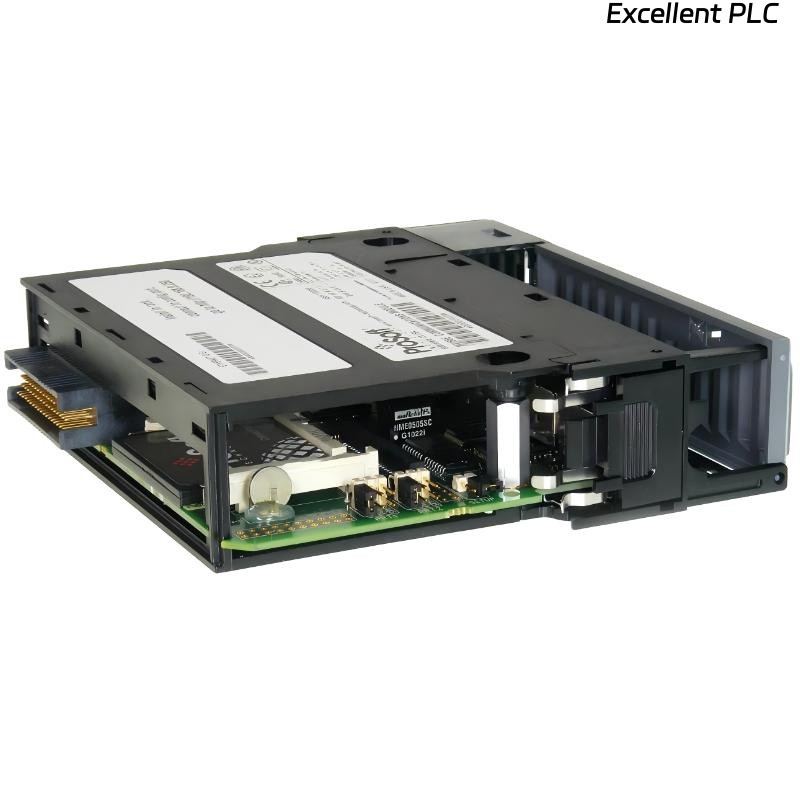

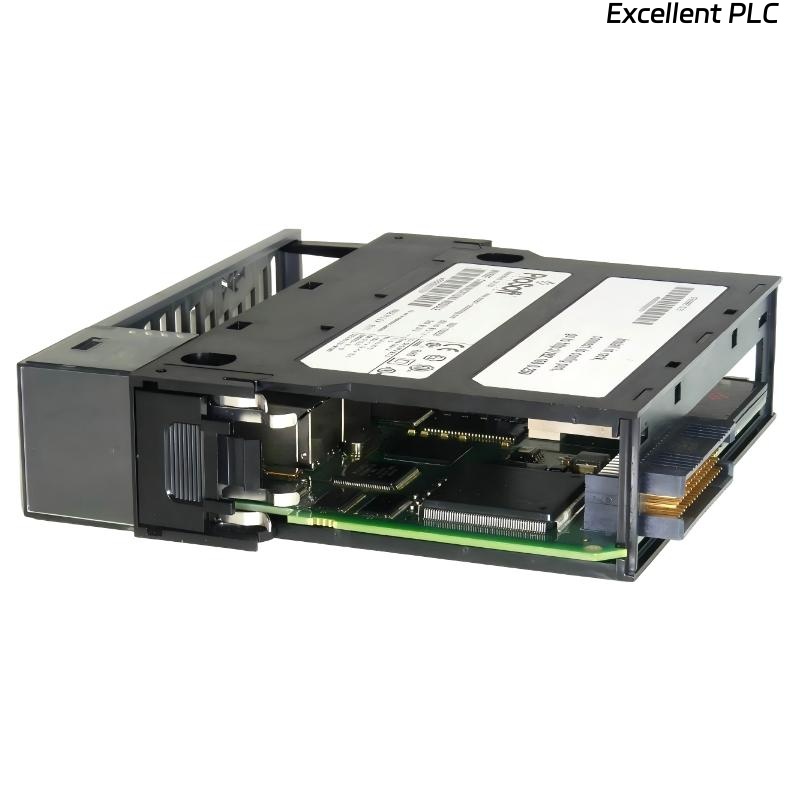

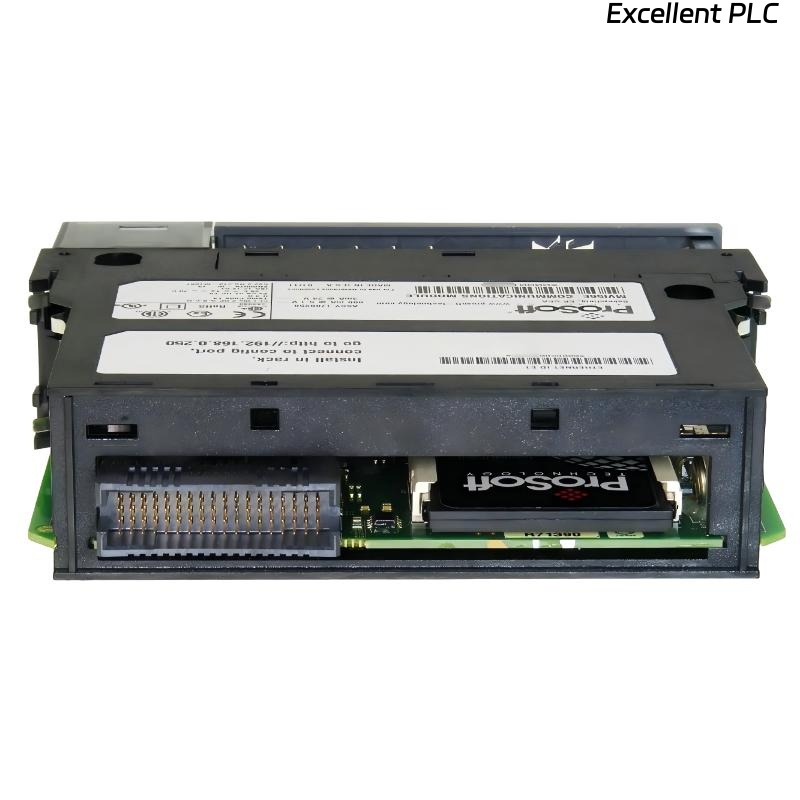

ProSoft MVI56E-MCMXT Modbus Master/Slave Enhanced Communication Module

Product Introduction

The ProSoft MVI56E-MCMXT is an enhanced Modbus Master/Slave communication module specifically developed for Allen-Bradley ControlLogix processors, with extended environmental capabilities for harsh industrial conditions. As part of the Logix-XT™ platform, this module is engineered to operate reliably in extreme temperatures and demanding environments where standard modules may not perform consistently.

This module functions as a bridge between the ControlLogix backplane and Modbus-compatible devices, supporting both Master and Slave communication modes. It allows the controller to actively poll field devices while also responding to incoming requests, making it suitable for complex and distributed automation architectures.

Equipped with dual Modbus communication ports and a dedicated configuration port, the MVI56E-MCMXT provides flexible connectivity and simplified setup. Its conformal coating enhances resistance to moisture, dust, and corrosive atmospheres, ensuring long-term reliability in industries such as oil & gas, power generation, and heavy manufacturing.

---

Product Specifications

---

Applications

● Harsh environment automation systems, such as oil & gas fields and offshore platforms where extended temperature tolerance is required

● Power generation and utilities, enabling reliable Modbus communication between ControlLogix PLCs and field instrumentation

● Process industries, including chemical and petrochemical plants with corrosive or humid environments

● Distributed control systems, supporting simultaneous Master/Slave communication across multiple Modbus devices

● System integration projects, bridging legacy Modbus networks with modern ControlLogix platforms

● Remote monitoring and SCADA systems, ensuring stable data transmission under extreme environmental conditions

---

Advantages

● Extended temperature range (-40 to +85°C), ensuring stable performance in extreme industrial environments

● Conformal coating protection, improving resistance to moisture, dust, and corrosive gases

● Dual Master/Slave capability, allowing flexible and efficient communication within complex networks

● Seamless ControlLogix integration, eliminating the need for external gateways

● Multiple communication ports, supporting flexible Modbus network configurations

● Enhanced reliability, specifically designed for the Logix-XT platform and harsh operating conditions

FAQ

1. What makes the MVI56E-MCMXT different from the standard MVI56E-MCM?
   The MCMXT version is designed for extreme environments, offering a wider temperature range and conformal coating for protection against harsh conditions.
2. Can this module operate continuously at high temperatures?
   Yes, it is designed to operate reliably up to +85°C, making it suitable for high-temperature industrial environments.
3. Does the module support simultaneous Master and Slave communication?
   Yes, it can function as both Master and Slave at the same time, enabling flexible data exchange.
4. What types of Modbus communication are supported?
   It supports Modbus RTU and ASCII protocols over serial communication interfaces.
5. How is the module configured?
   Configuration is performed through the dedicated RJ45 serial configuration port using ProSoft configuration tools.
6. Is the module suitable for corrosive environments?
   Yes, the conformal coating protects internal circuits from moisture, dust, and corrosive elements.
7. How does the module communicate with the PLC?
   It exchanges data directly through the ControlLogix backplane, appearing as an I/O module in the system.
8. What diagnostic features are available?
   LED indicators provide real-time status monitoring for communication, module health, and error conditions.
9. Can the module handle multiple Modbus devices simultaneously?
   Yes, with dual communication ports, it can connect and manage multiple Modbus devices efficiently.
10. Is it compatible with standard ControlLogix systems?
    While optimized for Logix-XT systems, it is also compatible with standard ControlLogix platforms when environmental conditions require enhanced protection.
