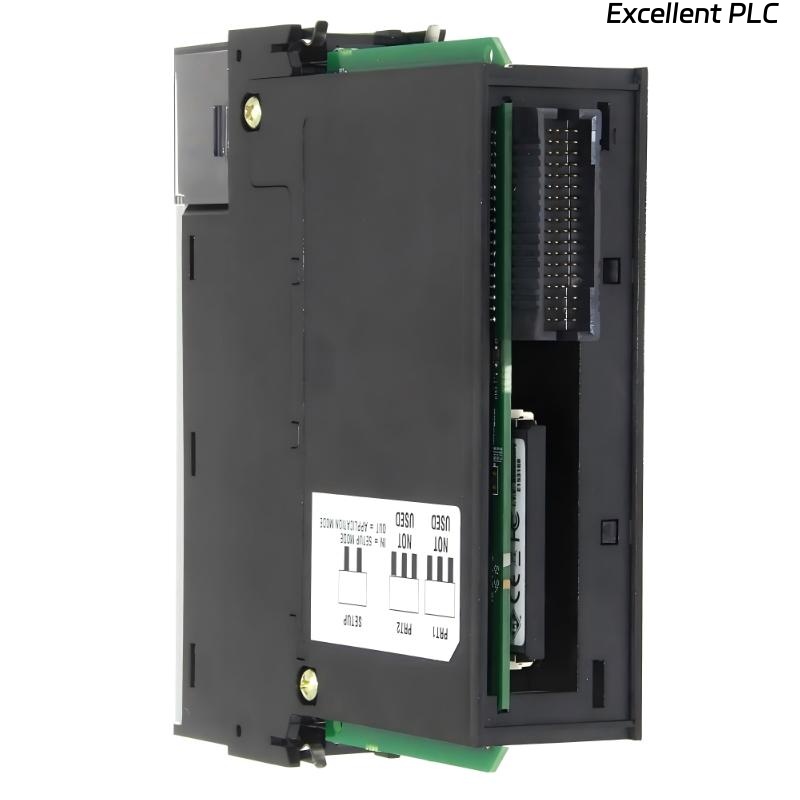

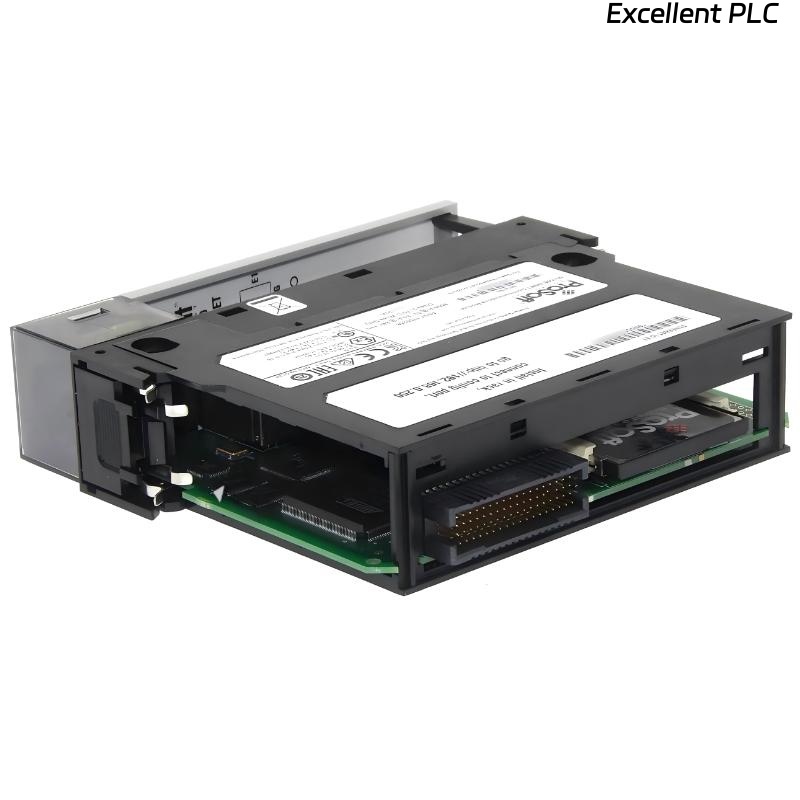

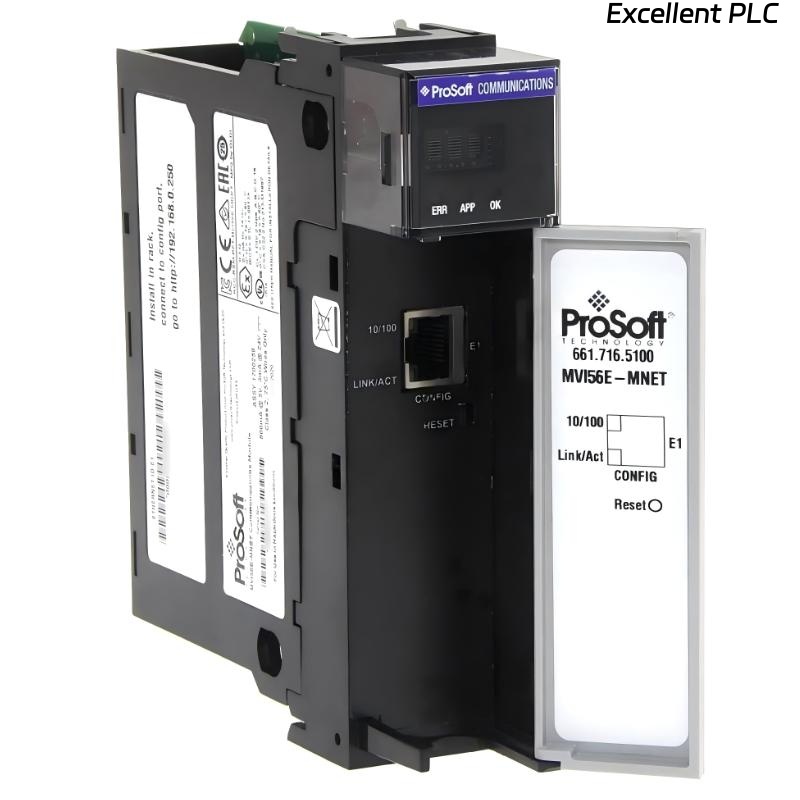

ProSoft MVI56E-MNET Modbus TCP/IP Client/Server Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ProSoft MVI56E-MNET is a high-performance Modbus TCP/IP Client/Server communication module designed for seamless integration with Allen-Bradley ControlLogix processors. It acts as a network interface between the ControlLogix backplane and Ethernet-based Modbus TCP/IP networks, enabling efficient and reliable data exchange with a wide range of industrial devices.
Installed directly into the ControlLogix rack, the module operates as an I/O interface, allowing the PLC processor to communicate with Modbus TCP/IP devices such as remote I/O, drives, meters, and SCADA systems. This eliminates the need for external gateways and simplifies overall system architecture.
The module supports both Client and Server modes, offering flexibility in communication design. It can initiate data requests to field devices while simultaneously responding to incoming requests from other network nodes. This dual functionality is particularly valuable in distributed automation systems.
With a built-in 10/100 Mbps Ethernet port, the MVI56E-MNET ensures stable and high-speed communication. Its enhanced firmware and optimized data handling capabilities make it suitable for applications requiring consistent performance under heavy network traffic conditions.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | MVI56E-MNET |
| Manufacturer | ProSoft Technology |
| Module Type | Modbus TCP/IP Communication Module |
| Functionality | Modbus TCP Client/Server |
| Platform Compatibility | Allen-Bradley ControlLogix |
| Ethernet Port | 1 × RJ45 (10/100 Mbps) |
| Communication Protocol | Modbus TCP/IP |
| Backplane Current Load | 800 mA @ 5 VDC |
| Backplane Current Load | 3 mA @ 24 VDC |
| Operating Temperature (Standard) | 0°C to 60°C |
| Operating Temperature (Extended) | –25°C to 70°C (MNETXT) |
| Storage Temperature | –40°C to 85°C |
| Mounting Type | ControlLogix Rack |
| Data Exchange Method | Backplane I/O Interface |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.26 kg |
Applications
● ControlLogix to Modbus TCP/IP integration, enabling PLCs to communicate with Ethernet-based Modbus devices
● SCADA and supervisory systems, supporting real-time data exchange with control and monitoring platforms
● Industrial Ethernet networks, connecting distributed devices such as remote I/O, drives, and sensors
● Energy management systems, integrating smart meters and power monitoring equipment
● Process automation environments, including oil & gas, water treatment, and chemical processing
● System modernization projects, replacing legacy serial communication with high-speed Ethernet-based solutions
Advantages
● Client/Server dual functionality, enabling flexible communication roles within the same module
● High-speed Ethernet communication, ensuring fast and reliable data transfer
● Direct ControlLogix integration, reducing system complexity by eliminating external gateways
● Support for extended temperature range, suitable for harsh industrial environments (MNETXT version)
● Efficient data handling capability, maintaining performance under heavy communication loads
● Simplified network architecture, allowing easy integration with existing Modbus TCP/IP systems
FAQ
- What is the primary function of the MVI56E-MNET module?
The module provides a communication interface between ControlLogix processors and Modbus TCP/IP networks, enabling efficient data exchange with Ethernet-based industrial devices. - Can the module operate as both a Client and a Server simultaneously?
Yes, it supports concurrent Client and Server operations, allowing it to initiate requests while also responding to incoming communications from other devices. - What types of devices can be connected via this module?
It can connect to PLCs, HMIs, SCADA systems, remote I/O, drives, and other equipment that supports Modbus TCP/IP communication. - How is data exchanged between the module and the ControlLogix processor?
Data is transferred through the ControlLogix backplane using an I/O mapping structure, allowing seamless integration into the PLC program. - What is the significance of the Ethernet port on the module?
The built-in RJ45 Ethernet port enables high-speed communication over standard industrial networks, supporting reliable data transfer across connected devices. - Is the module suitable for high network traffic environments?
Yes, it is designed to handle high volumes of data efficiently, making it suitable for systems with intensive communication requirements. - What is the difference between the standard and extended temperature versions?
The standard version operates from 0°C to 60°C, while the extended version (MNETXT) supports a wider range from –25°C to 70°C, making it suitable for harsher environments. - How does the module handle communication interruptions?
It includes built-in retry mechanisms, timeout settings, and diagnostic features to maintain stable communication and quickly identify issues. - Does the module require external power wiring?
No, it draws power directly from the ControlLogix backplane, simplifying installation and reducing wiring requirements. - Can users configure communication parameters and data mapping?
Yes, flexible configuration options allow users to define communication settings and map Modbus data to PLC memory according to application needs.
Related Models
| Model | Description |
|---|---|
| MVI56E-MCM | Modbus serial Master/Slave module |
| MVI56E-MNETC | Enhanced Modbus TCP/IP module |
| MVI56E-GSC | Generic serial communication module |
| MVI56E-DNP | DNP3 communication module |
| MVI56E-PDPMV1 | PROFIBUS DP master module |
| MVI56-MNET | Standard Modbus TCP/IP module |
Popular Models
| Model | Description |
|---|---|
| MVI56E-MNETC | High-performance Modbus TCP module |
| MVI69E-MBTCP | CompactLogix Modbus TCP module |
| PLX31-EIP-MBTCP | EtherNet/IP to Modbus TCP gateway |
| MVI56E-61850 | IEC 61850 communication module |
| MVI56E-SIE | Siemens protocol interface module |
| ILX34-MBS485 | Modbus serial communication module |
