ProSoft MVI56-PDPMV1 PROFIBUS DP V1 Master Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

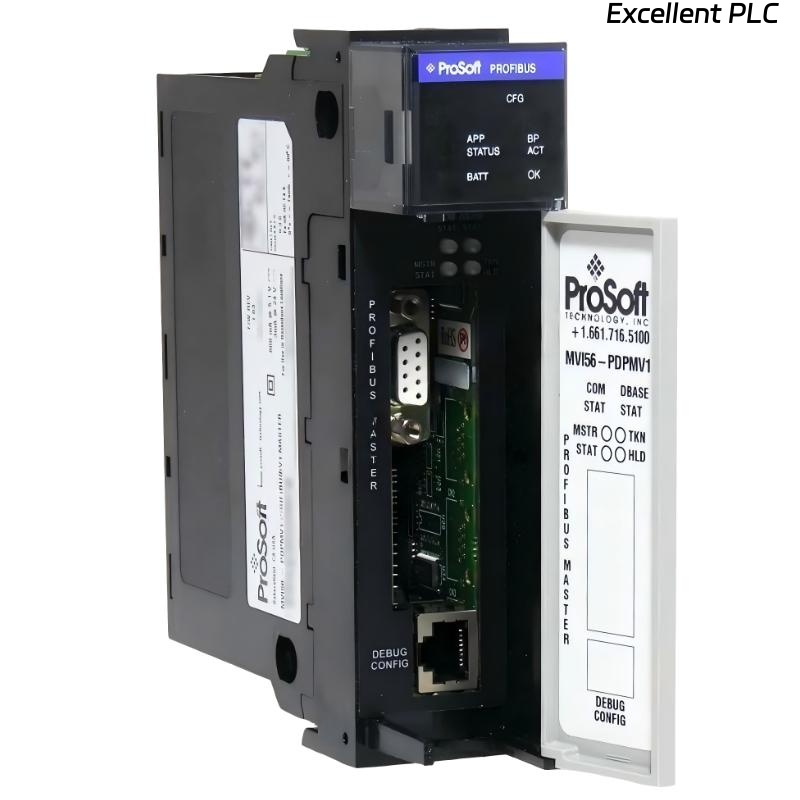

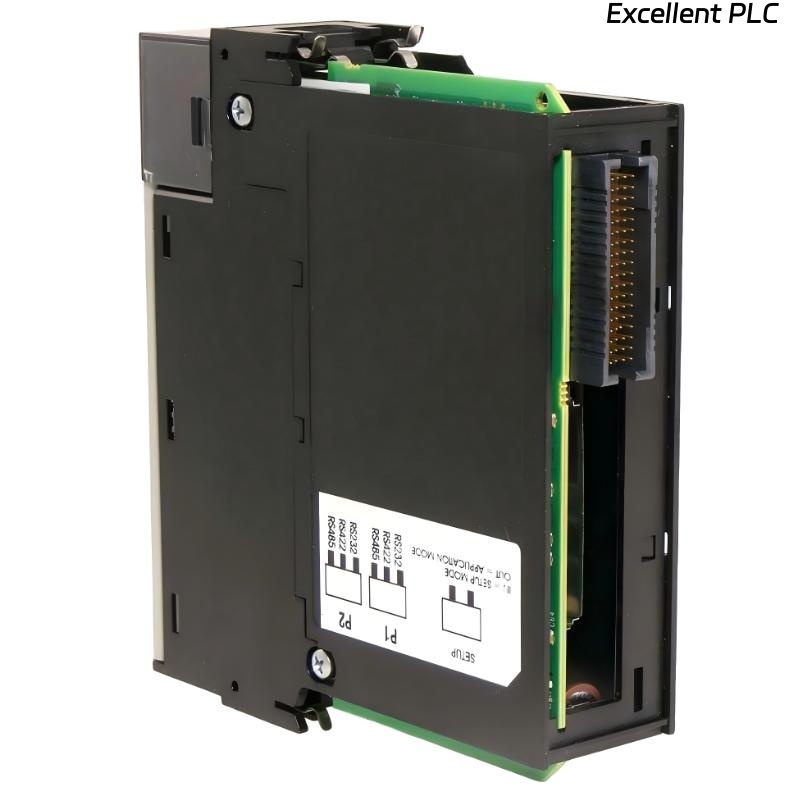

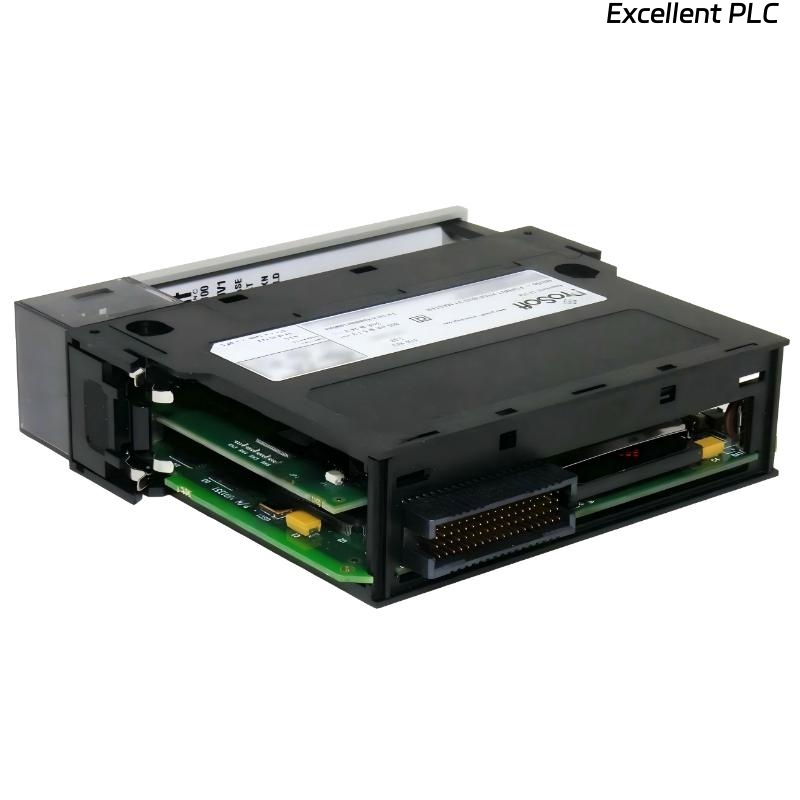

The ProSoft MVI56-PDPMV1 is a PROFIBUS DP V1 Master communication module specifically designed for seamless integration with Allen-Bradley ControlLogix processors. It provides a direct interface between the ControlLogix backplane and PROFIBUS DP networks, enabling high-speed and reliable data exchange with distributed field devices.
Installed as a single-slot module within the ControlLogix rack, the MVI56-PDPMV1 operates as an input/output interface, allowing the PLC to communicate directly with PROFIBUS DP slaves such as remote I/O systems, drives, and intelligent field instruments. This eliminates the need for external gateways and simplifies system architecture.
Compliant with IEC 61158 standards, the module fully supports PROFIBUS DP-V1 Master functionality, including cyclic and acyclic data communication. Its high communication speed of up to 12 Mbps ensures efficient data transfer, making it suitable for time-critical industrial applications.
With robust mechanical design and strong resistance to shock and vibration, the module is built to perform reliably in harsh industrial environments. It is widely used in manufacturing, process automation, and energy systems where PROFIBUS remains a key communication standard.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | MVI56-PDPMV1 |
| Manufacturer | ProSoft Technology |
| Module Type | PROFIBUS DP-V1 Master Communication Module |
| Functionality | PROFIBUS DP-V1 Master |
| Platform Compatibility | Allen-Bradley ControlLogix |
| Communication Speed | Up to 12000 Kbit/s |
| Communication Interface | PROFIBUS DP |
| Configuration Port | RS-232 |
| Slot Requirement | Single Slot |
| Power Supply (Backplane) | 5 VDC @ 800 mA |
| Power Supply (Backplane) | 24 VDC @ 3 mA |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Shock Resistance | 30 g operational, 50 g non-operational |
| Vibration Resistance | 5 g (10 Hz to 150 Hz) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting Type | ControlLogix Rack |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.68 kg |
Applications
● ControlLogix to PROFIBUS integration, enabling PLCs to communicate directly with PROFIBUS DP slave devices
● Distributed I/O systems, supporting high-speed data exchange with remote I/O stations
● Drive and motor control systems, integrating variable frequency drives and servo systems over PROFIBUS
● Process automation environments, including chemical, oil & gas, and water treatment industries
● Factory automation, connecting sensors, actuators, and intelligent devices within a unified network
● System upgrades and retrofits, allowing ControlLogix platforms to interface with existing PROFIBUS infrastructure
Advantages
● Full PROFIBUS DP-V1 Master support, ensuring compatibility with a wide range of field devices
● High communication speed up to 12 Mbps, enabling fast and efficient data transfer
● Direct backplane integration, reducing system complexity and eliminating external communication gateways
● Robust mechanical design, resistant to shock and vibration for reliable industrial operation
● Support for cyclic and acyclic communication, enhancing flexibility in data handling
● Single-slot design, optimizing rack space and simplifying installation
FAQ
- What is the main function of the MVI56-PDPMV1 module?
The module serves as a PROFIBUS DP-V1 Master interface, enabling ControlLogix processors to communicate with PROFIBUS slave devices for both cyclic and acyclic data exchange. - What types of devices can be connected to this module?
It can connect to PROFIBUS DP slave devices such as remote I/O modules, drives, sensors, actuators, and other intelligent field equipment. - What is the maximum communication speed supported?
The module supports communication speeds up to 12 Mbps, allowing fast data transfer in time-sensitive applications. - How is data exchanged between the module and the PLC?
Data is transferred via the ControlLogix backplane using an I/O data structure, enabling seamless integration into PLC programs. - What is the purpose of the RS-232 port?
The RS-232 port is used for configuration, diagnostics, and troubleshooting, allowing engineers to set parameters and monitor communication status. - Does the module support both cyclic and acyclic communication?
Yes, it supports both types, enabling real-time data exchange as well as parameterization and diagnostic communication. - How does the module perform in harsh industrial environments?
It is designed with high مقاومت to shock, vibration, and temperature variations, ensuring stable performance in demanding conditions. - What happens if a PROFIBUS device fails or disconnects?
The module provides diagnostic information and can be configured to handle faults through predefined PLC logic or communication retries. - Is the module suitable for large PROFIBUS networks?
Yes, it is capable of managing multiple slave devices and can be used in large-scale distributed systems depending on network design. - Does the module require external power supply wiring?
No, it is powered directly through the ControlLogix backplane, simplifying installation and reducing wiring complexity.
Related Models
| Model | Description |
|---|---|
| MVI56-PDPS | PROFIBUS DP Slave communication module |
| MVI56E-MCM | Modbus serial communication module |
| MVI56E-MNET | Modbus TCP/IP communication module |
| MVI56E-DNP | DNP3 communication module |
| MVI56E-MBP | Modbus Plus communication module |
| MVI56E-GSC | Generic serial communication module |
Popular Models
| Model | Description |
|---|---|
| MVI56E-MNETC | Enhanced Modbus TCP/IP module |
| MVI69E-MBTCP | CompactLogix Modbus TCP module |
| PLX31-EIP-MBTCP | EtherNet/IP to Modbus TCP gateway |
| MVI56E-61850 | IEC 61850 communication module |
| MVI56E-SIE | Siemens protocol interface module |
| ILX34-MBS485 | Modbus serial communication module |
